10APX | 2-Post Hoist

SKU: 5175306

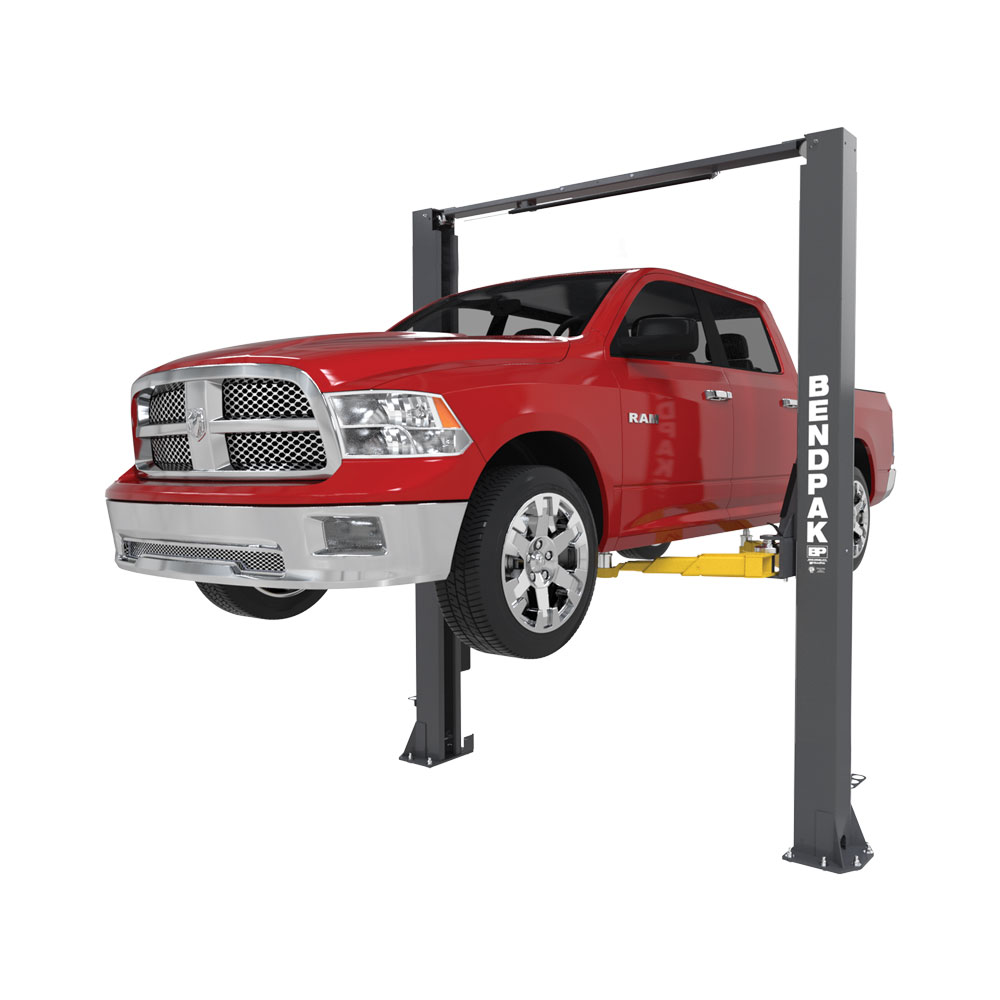

The BendPak 10APX is the ultimate high-rise two-post lift with a 10,000-lb capacity, advanced Bi-Metric™ arms, and cutting-edge safety features, making it perfect for modern vehicles, including EVs and larger high-roof models.

10,000-lb lifting capacity
Tall-rise design with 79.5″ lifting height
Adaptable symmetric/asymmetric configurations
Reinforced for heavy EV service
Advanced automatic safety systems

Here to help

Features

The BendPak 10APX combines revolutionary engineering, tall-rise capabilities, and advanced safety systems to deliver unmatched performance for vehicle service.

Tall-Rise Design
The 10APX features a 79.5” lifting height and a 157” overhead beam, providing ample space for comfortable under-car access.

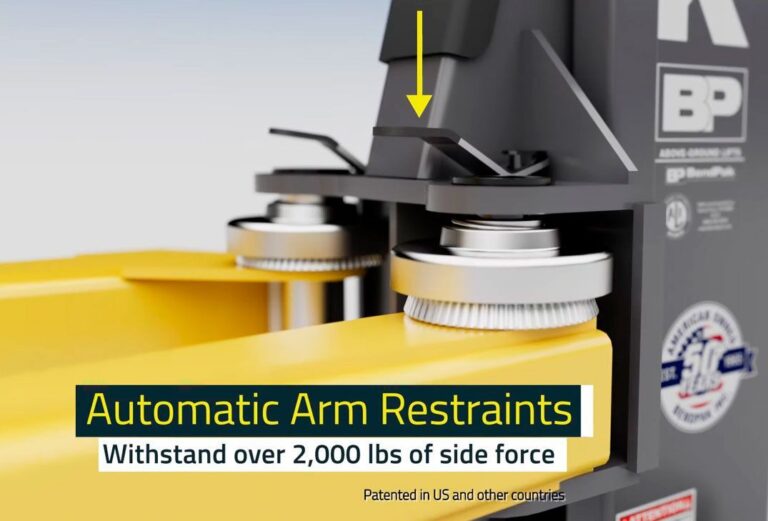

Automatic Arm Restraints
The patented ASARS system locks arms securely in place with over 2,000 lbs of holding force, ensuring unmatched safety during vehicle servicing.

Triple-Telescoping Swing Arms
Revolutionary triple-telescoping arms offer maximum retraction and extension, accommodating a variety of vehicle lifting points with ease.

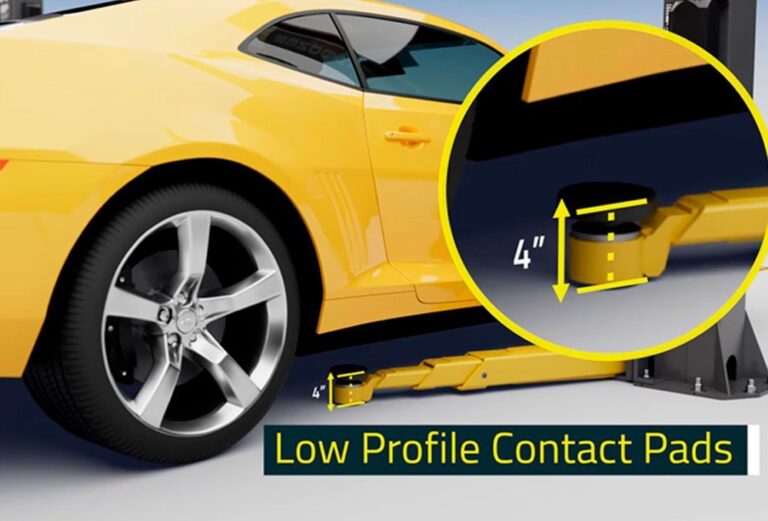

Low-Profile Arm Versatility
Low-Pro™ swing arms provide easy access to low-clearance vehicles while minimizing the risk of damage to side skirts, running boards, and other sensitive areas.

Advanced Safety Lock System
The innovative safety lock system engages automatically during lift operations and features a single-point release for smooth and effortless lowering.

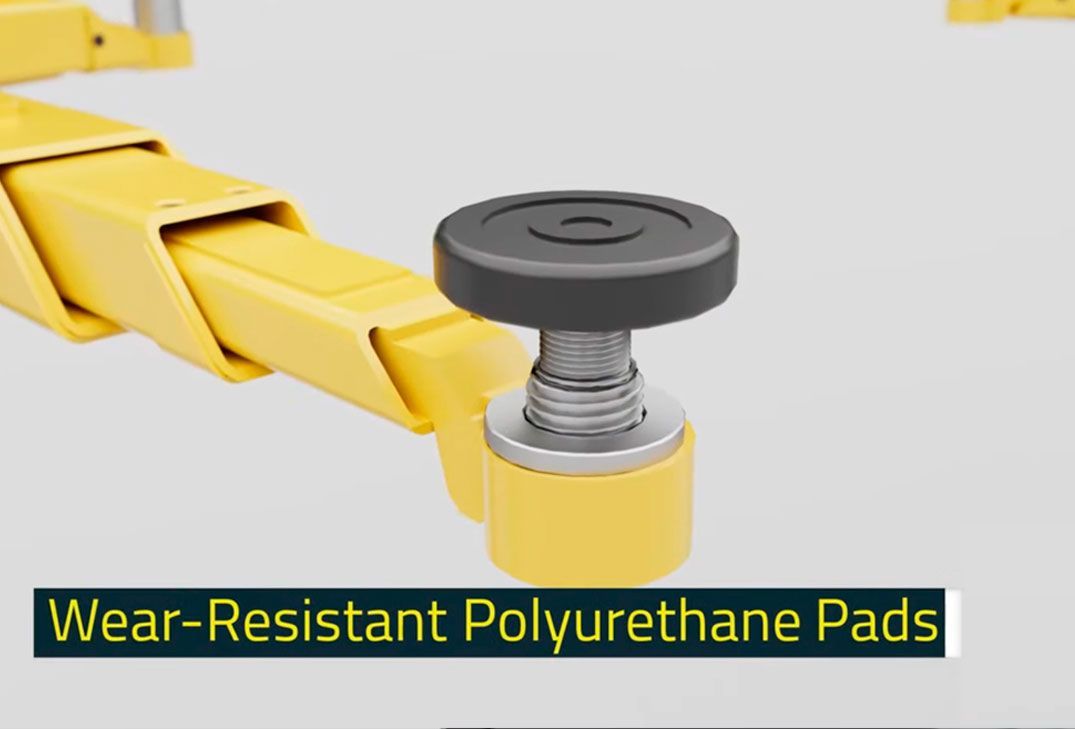

Screw Pads and Adapter Options
Double-telescoping screw pads with tear-resistant polyurethane ensure secure vehicle engagement, with optional stackable adapters for added lifting precision.

Bi-Metric™ Swing Arm Design
Adaptable Bi-Metric™ arms allow for quick switching between symmetric and asymmetric configurations, improving efficiency for diverse vehicle servicing.

Reinforced Construction
Engineered with high-tensile steel and oversized components, the 10APX is built to handle the increased weight of modern electric and heavy-duty vehicles with ease.

Materials & Tech

Engineered with high-tensile steel and cutting-edge technology, the 10APX is designed for durability, safety, and adaptability, handling the demands of modern and heavy vehicles like EVs.

Adjustable clearfloor design
Bi-Metric™ arms for flexible configurations
Double-telescoping screw pads with polyurethane covers
Advanced safety locks spaced every 3 inches
Expandable top beam for wide or narrow installations

COMES WITH

Automatic Safety Lock System: Engages during lift operations for operator safety.
Electric/Hydraulic Power System: Ensures smooth and efficient lifting.
Column-mounted adapter Rack: Keeps accessories organised and within reach.

OPTIONAL

Stackable Screw Pad Adapters: Available in 2.5” and 5” heights for enhanced pad placement.
Extended Overhead Beam (181”): Suitable for servicing high-roof vehicles like cargo vans.

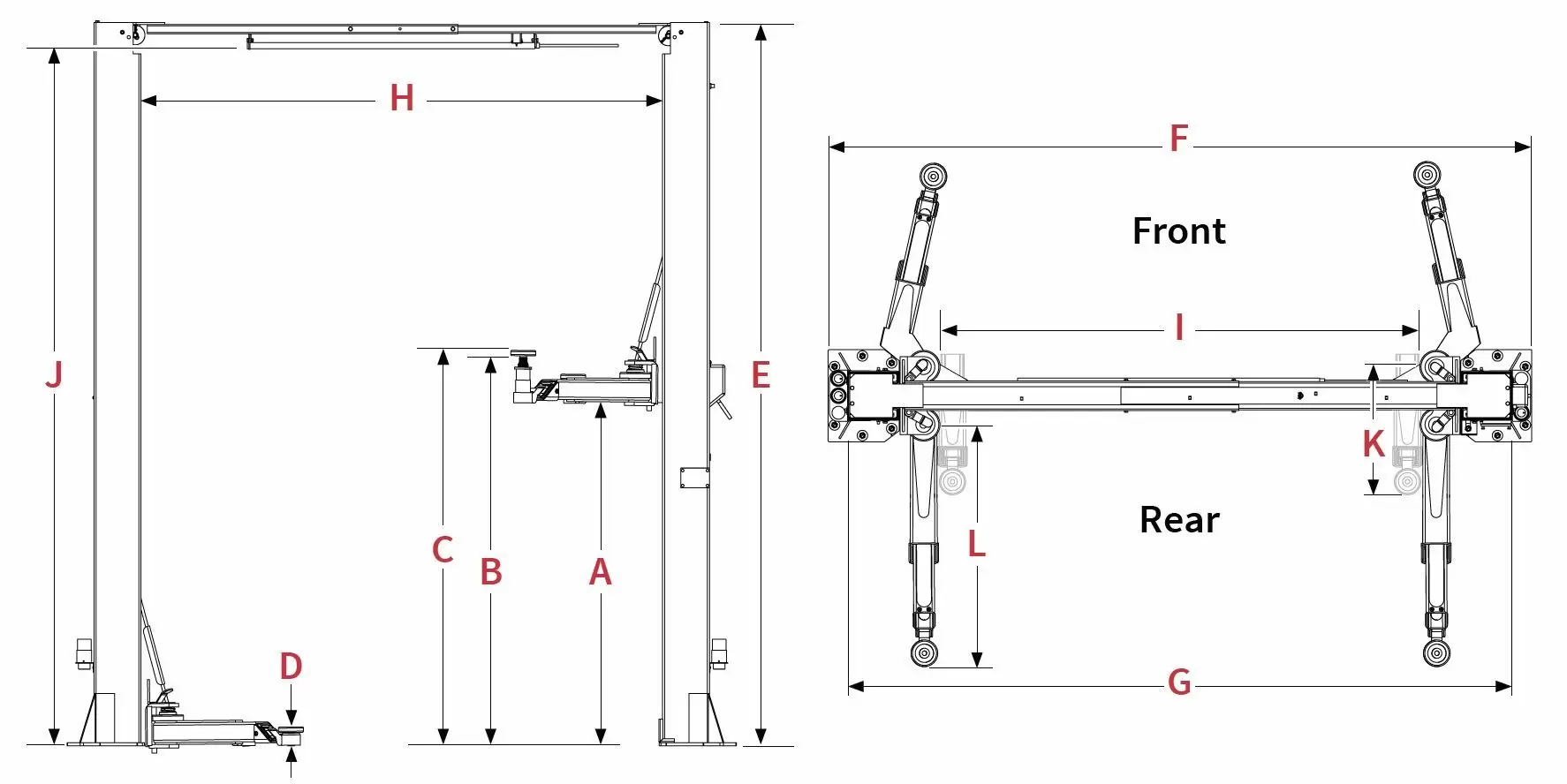

Specifications

CAPACITY	Imperial	Metric
Lifting Capacity	10,000 lbs	4,536 kg
Max Capacity / Front Axle	5,000 lbs	2,268 kg
Max Capacity / Rear Axle	5,000 lbs	2,268 kg

RISE	Imperial	Metric
A – Rise	75″	1,905 mm
B – Rise + Pad Only	79.5″	2,007 mm
C – Rise + Pad + 63 mm Adapter	89″	2,261 mm
D – Min. Height + Pad	4″	102 mm
Time to Full Rise	45 seconds	–

OUTSIDE DIMENSIONS	Imperial	Metric
E – Height Overall	157″	3,988 mm
F – Width Overall	135″ or 145″	3,429 mm or 3,683 mm
G – Outside Columns	127″ or 137″	3,226 mm or 3,480 mm

INSIDE DIMENSIONS	Imperial	Metric
H – Inside Columns	108.25″ or 118.25″	2,750 mm or 3,004 mm
I – Drive-Thru Clearance	92″ or 102″	2,337 mm or 2,591 mm

ARMS & PADS	Imperial	Metric
K – Front Arm Reach (MIN)	22″	559 mm
K – Front Arm Reach (MAX)	47.5″	1,207 mm
L – Rear Arm Reach (MIN)	29.5″	749 mm
L – Rear Arm Reach (MAX)	57″	1,448 mm
Screw Pad Adjustment	2″	51 mm

MAX LOAD PER ARM	Imperial	Metric
Max Load Per Arm	2,500 lbs	1,134 kg

POWER UNIT	Specification
Motor	220 VAC, 60 Hz, 1 Phase

NOISE	Level
Noise	<70 dB
