  • QuickJack
  • Portable Car Lift, Car Lifts

6000ELX

SKU: 6000ELX

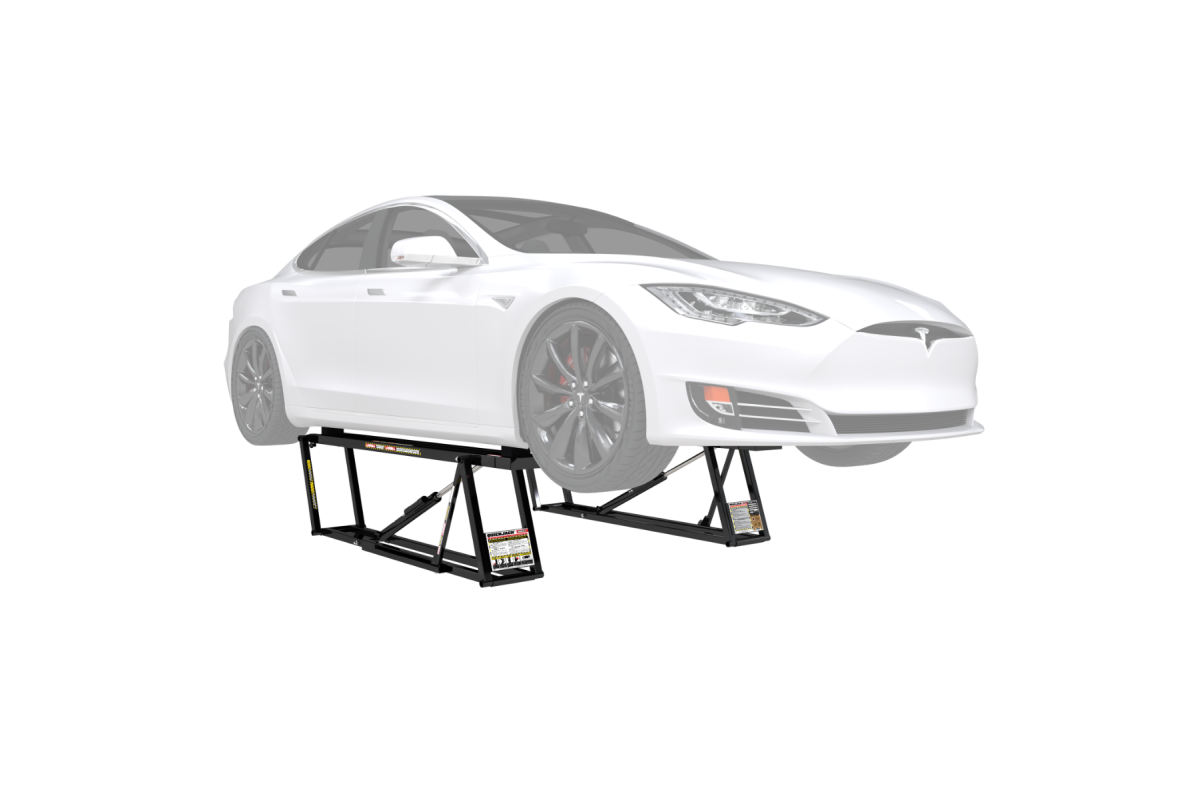

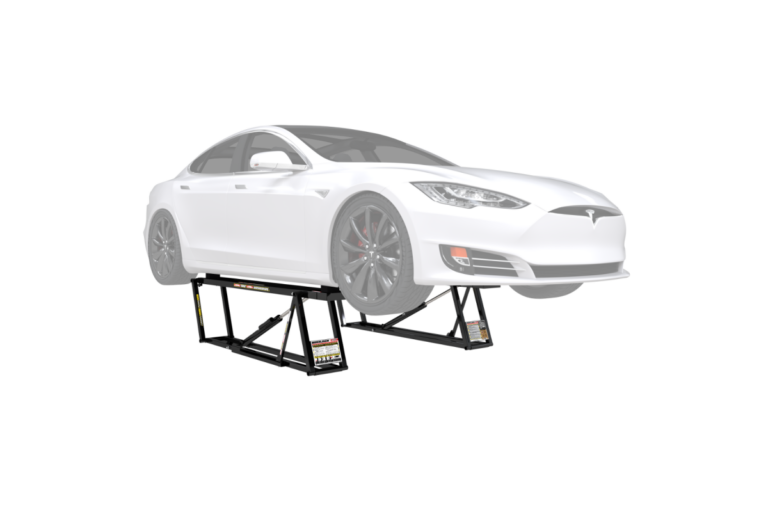

The QuickJack 6000ELX is a super-long portable car lift designed specifically for electric vehicles (EVs), luxury sedans, and long-wheelbase cars. With a 6,000-lb. lifting capacity and one of the widest lift point spreads in the industry, this model ensures safe, stable, and convenient vehicle servicing. Whether you’re a detailing professional, repair shop, or home garage mechanic, the 6000ELX offers unparalleled accessibility and efficiency.

  • 6,000-lb. lifting capacity for EVs & long-wheelbase vehicles
  • 76” max lift point spread – widest in the industry
  • 24.5” max lifting height for superior undercarriage access

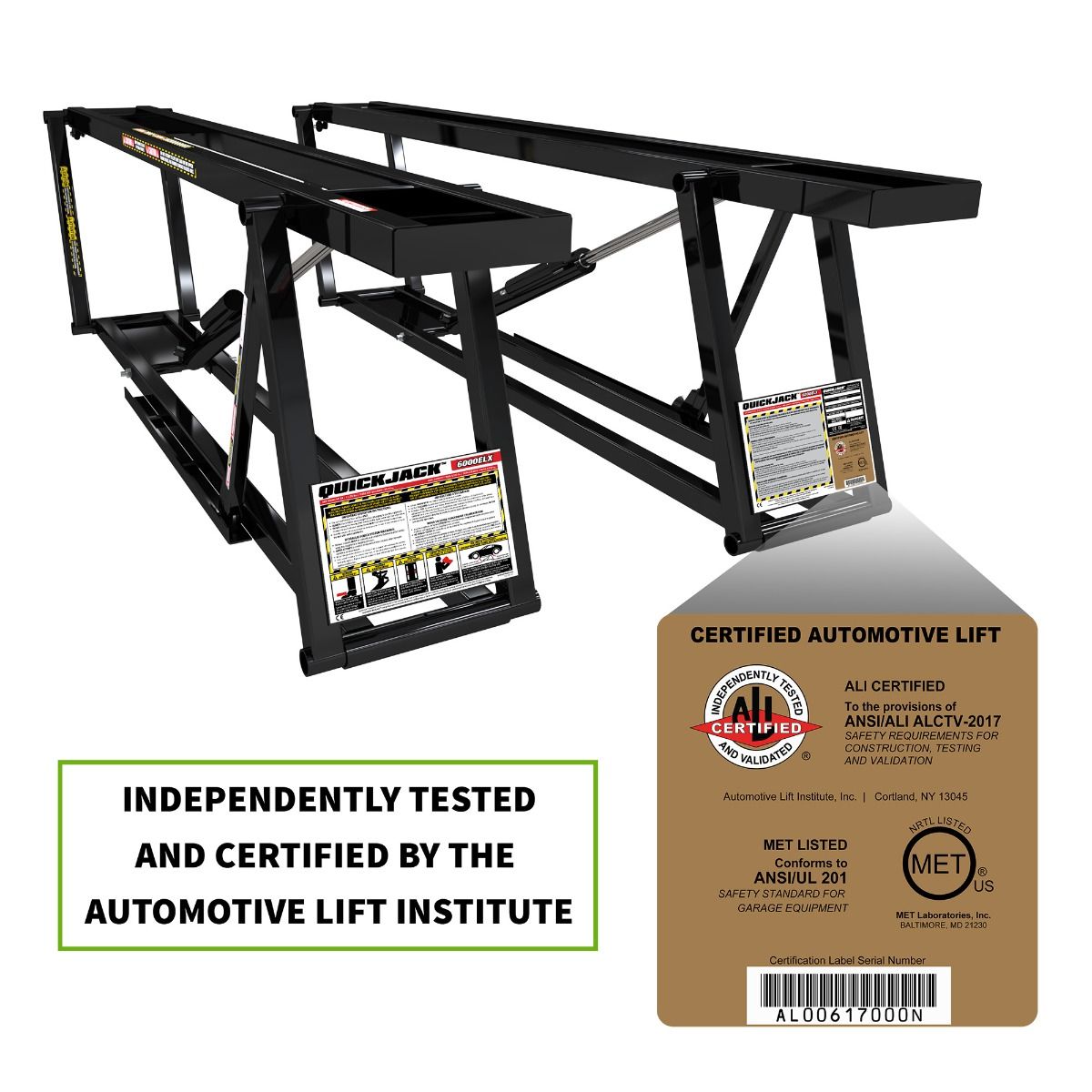

  • Automatic safety locks for secure lifting
  • One-touch button control for easy operation
  • Built-in hydraulic flow divider for even, level lifting
Enquire

Here to help

6000ELX

Enquire

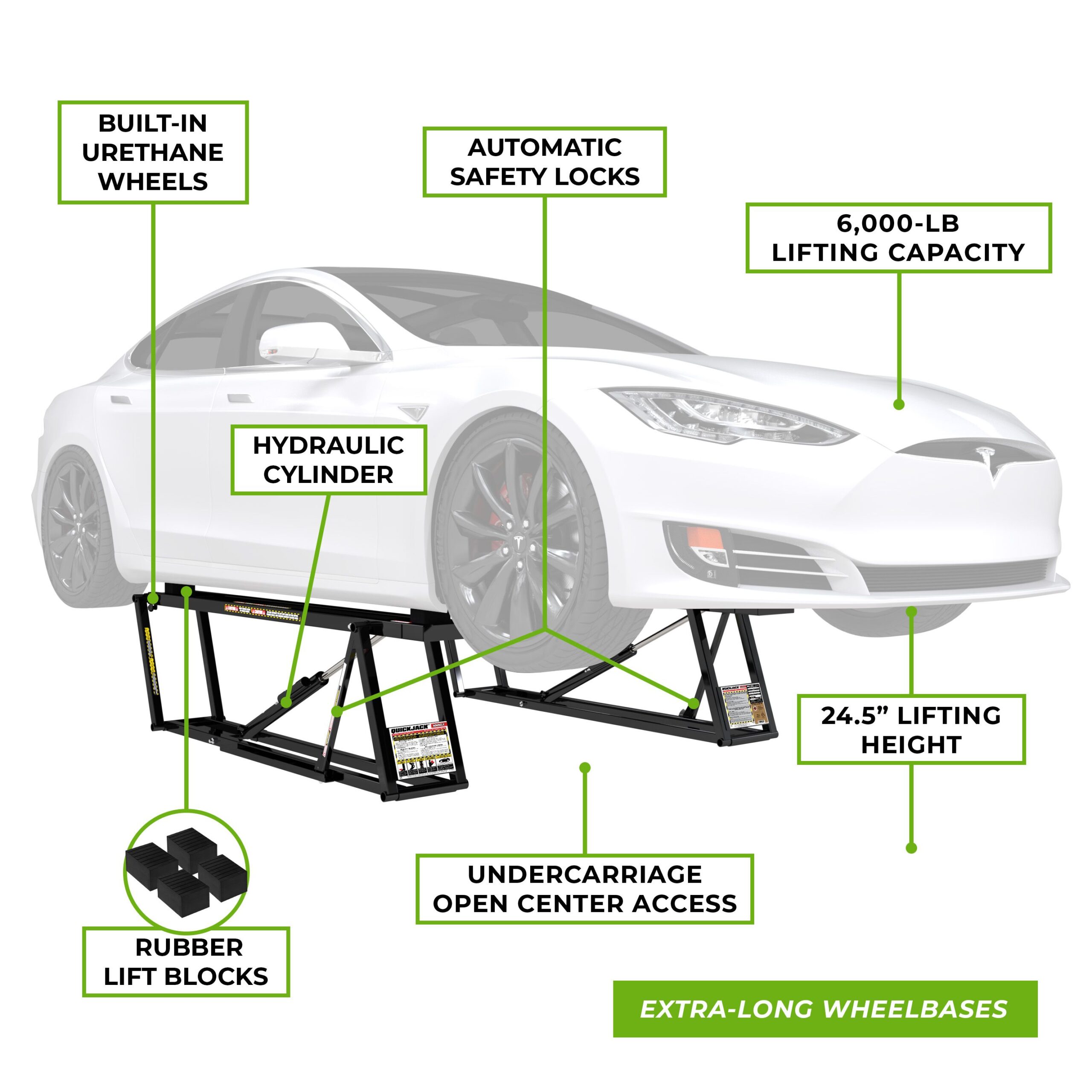

Features

With a lift point range from 53” to 76”, the 6000ELX is perfect for servicing electric cars, long-wheelbase sedans, and light-duty trucks.

Automatic Safety Locks for Stability
The dual-position safety locks engage automatically during lifting, ensuring stability and security while working under your vehicle.

One-Touch Button Control
A hydraulic-powered pendant control allows for smooth, effortless lifting and lowering in just 30 seconds.

Hydraulic Flow Divider for Even Lifting
An integrated hydraulic system ensures both frames lift evenly, eliminating the need for crossbars or additional leveling components.

Open-Center Design for Full Access
Unlike scissor lifts or pit lifts, the 6000ELX offers unobstructed access to the undercarriage, making it ideal for detailing, maintenance, and repairs.

Durable & Portable Construction
Despite its extended frame length, the 6000ELX remains lightweight and easy to move, thanks to high-durability urethane wheels.

Materials & Tech

Crafted from high-strength steel, the 6000ELX features reinforced lifting arms, aircraft-grade hydraulic lines, and advanced safety mechanisms. Equipped with dual hydraulic cylinders and an integrated hydraulic flow system, the 6000ELX ensures fast, smooth, and reliable lifting.

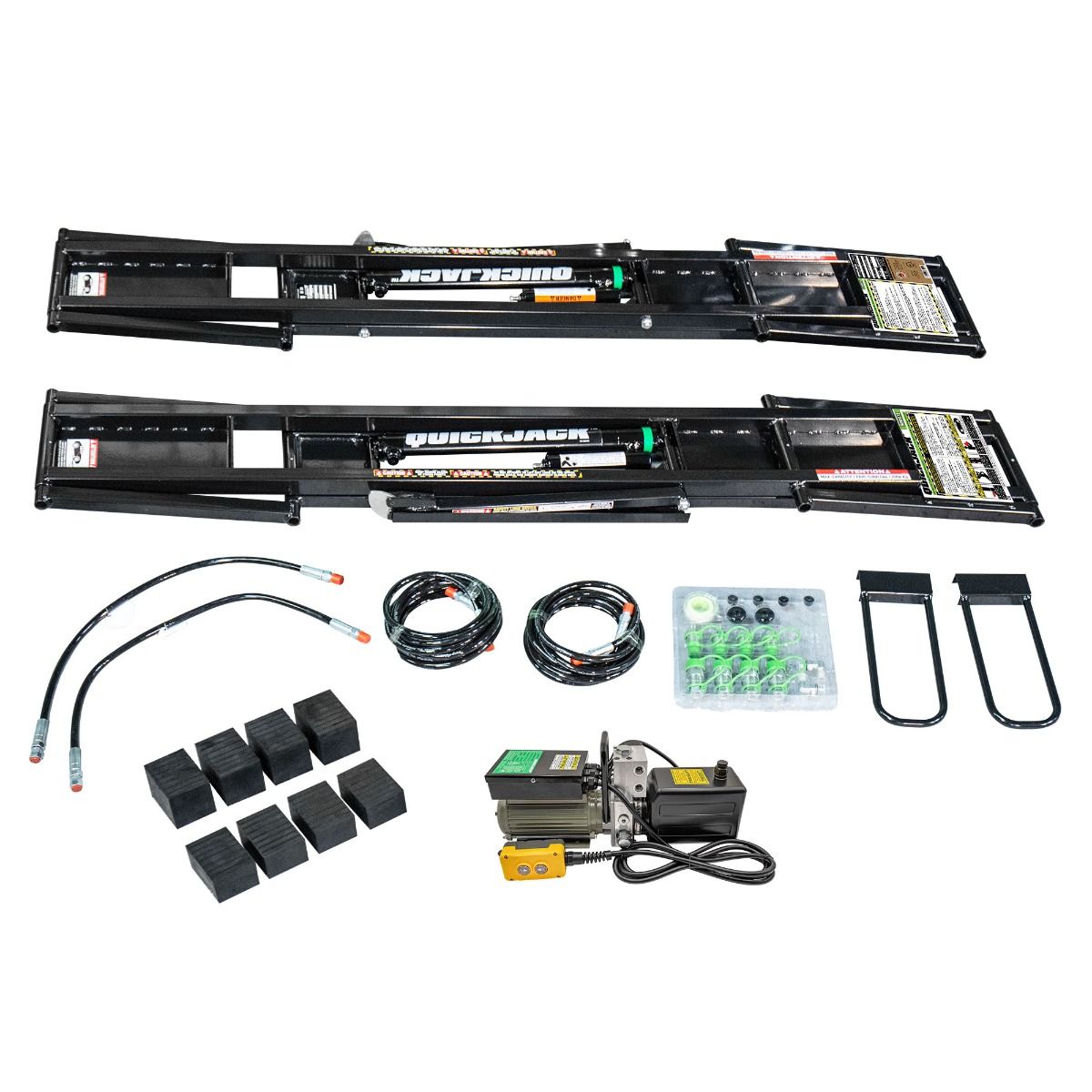

  • 6000ELX Left & Right Frame Assemblies
  • Hydraulic Power Unit with Pendant Control
  • 4x Medium Rubber Lift Blocks (2″)
  • 4x Tall Rubber Lift Blocks (3″)

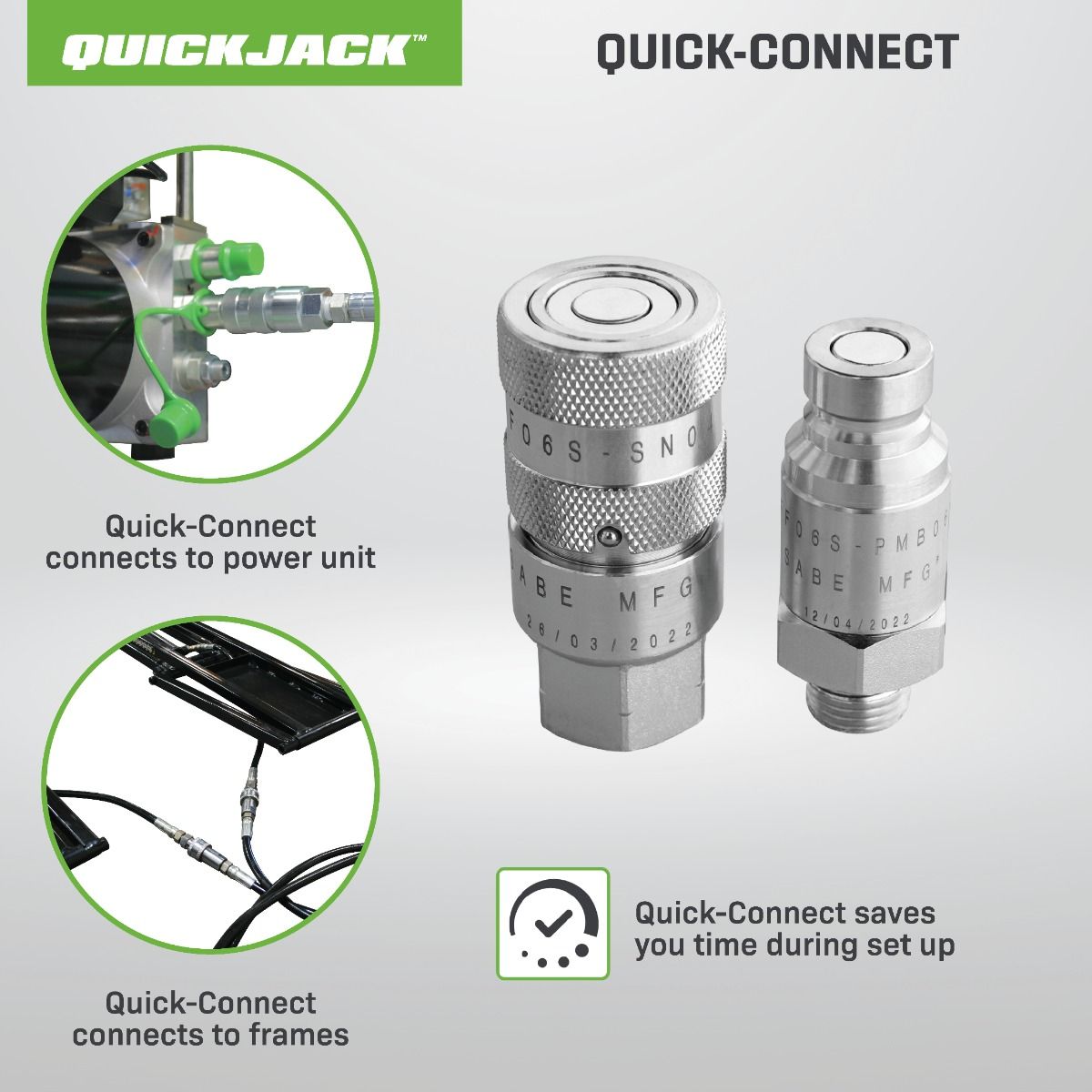

  • 2x Short Hydraulic Hoses
  • 2x Long Hydraulic Hoses
  • 2x Frame-Positioning Handles
  • Fittings, Thread Tape, & Setup Instructions

Optional

  • Low-Profile Jack Pads for Tesla Models
  • Truck Adapter Kit for SUVs & Light Trucks
  • Crossbeam Adapter for Added Stability

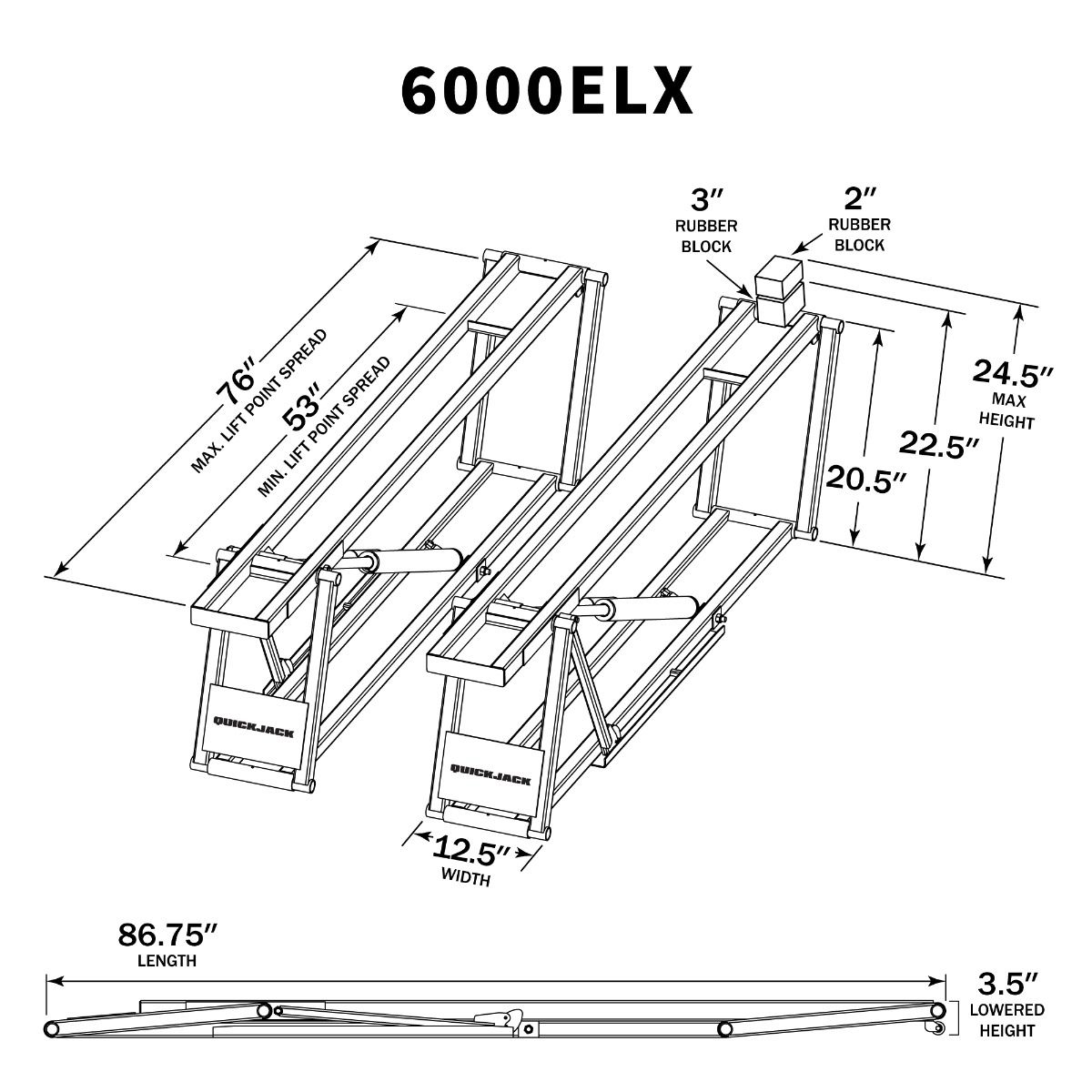

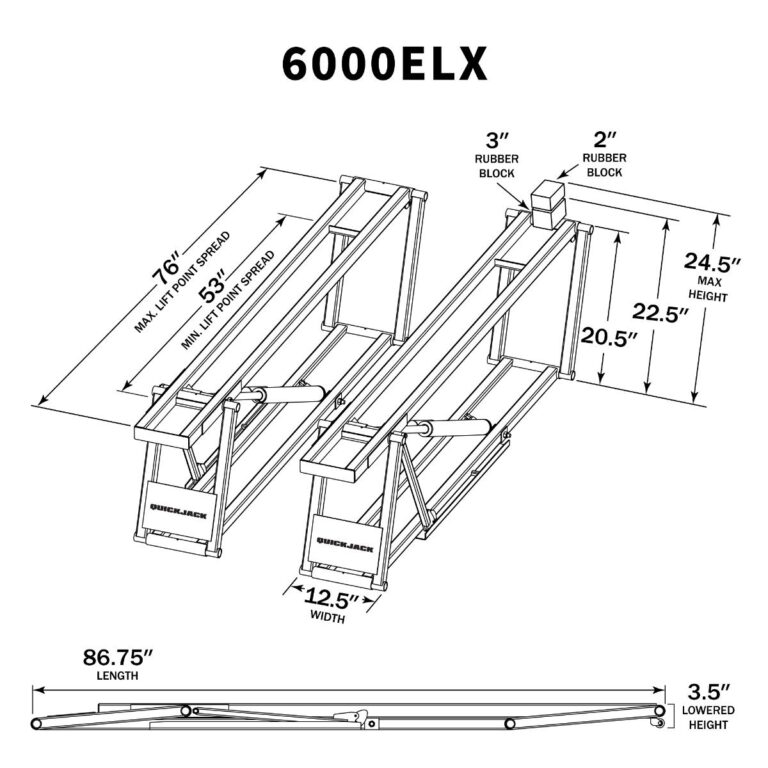

Specifications

Specification Details
Lifting Capacity 6,000 lbs. (2,722 kg)
Lowered Height 4″ (102 mm)
Max Lifting Height 24.5″ (622 mm)
Lift Time 30 seconds
Frame Length 86.75″ (2,203 mm)
Frame Width 12.5″ (318 mm)
Weight (each frame) 112 lbs. (51 kg)

Lift Point Spread & Clearance

Specification Details
Max Lift Point Spread 76″ (1,930 mm)
Min Lift Point Spread 53″ (1,346 mm)
Drive Thru Height 68.5″ (1,742 mm)

Power & Safety Features

Specification Details
Power Options 110V AC / 220V AC
Hydraulic Power Unit Weight 30 lbs. (13 kg)
Safety Lock Positions 2 (Mid-Rise & Full-Rise)
Automatic Safety Locks Yes

Shipping & Packaging

Specification Details
Shipping Weight 318 lbs. (144 kg)
Shipping Dimensions (each frame) 89.75″ (L) x 16.75″ (W) x 6″ (H)
Brand Spotlight

QuickJack

QuickJack is the trusted choice for car enthusiasts, mechanics, and tradies seeking a safer, faster way to lift vehicles at home or on the go.

Developed by BendPak, QuickJack redefined portable car lifting with its lightweight design, automatic safety locks, and reliable performance. Designed for ultimate convenience, it eliminates the need for jack stands and creepers, making vehicle maintenance easier and safer. Through Genesis Equipment, Australians gain access to QuickJack’s full range — supported locally and built with the innovation and engineering excellence BendPak is known for.
View Brand Profile

Other QuickJack Products

BendPak 12APX 2-post Hoist Exclusively distributed in Australia by Genesis Equipment - car lifts

BendPak

12APX | 2-Post Hoist

— Car Lifts

BendPak HDS-40 Heavy Duty 4-post Heavy Vehicle Truck Lift Genesis Equipment Australia

BendPak

HDS-40 Heavy Vehicle Lift

— 4 Post Hoist

BendPak HDS-27X Heavy Duty 4-post Truck Lift Genesis Equipment Australia

BendPak

HDS-27X Heavy Vehicle Lift

— 4 Post Hoist

Product Uses

What some of our customers have used it for:

357434510_691079939701100_5253503691519644574_n

Premier Autotune Workshop

Genesis was transparent with me, and answered all my questions, they weren't trying to sell me anything or push hoists onto me. They could see my plans and what I needed for the future for all the types of cars I service. And they provided me with solutions for what is going to work for my workshop and the future. I’m confident with Genesis Equipment and the BendPak hoists they’ve supplied me.

Allen, Owner

Perfect for:

  •  Electric vehicle (EV) maintenance & repairs
  •  Luxury car detailing & wheel service
  •  Home garages & DIY mechanics
  •  Auto repair shops & professional detailing businesses
  •  Fleet vehicle maintenance for long-wheelbase sedans
  •  Portable lifting solutions for EV service centers
