PCL-18B (Set of 8)

SKU: 5175294

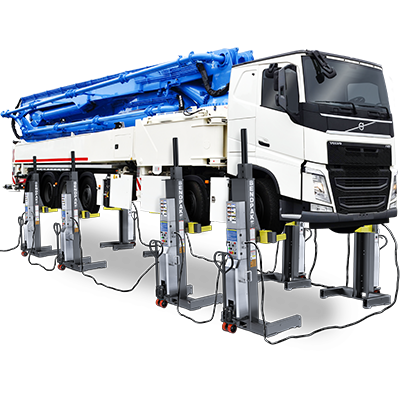

The BendPak PCL-18B mobile column lift system (set of 8) is engineered for unmatched lifting capacity, supporting 65,317 kg of vehicle weight. Designed for four-axle trucks, industrial equipment, and fleet servicing, this system allows for maximum lifting flexibility, enhanced safety, and superior workshop efficiency. Whether you’re lifting a single massive vehicle or multiple trucks simultaneously, this system provides the ultimate heavy-duty lifting power.

65,317 kg total lifting capacity (Set of 8)
Configurable for single, paired, or team operation
Meets ANSI/ALI ALCTV-2011 safety standards
Smart self-diagnostics & automatic calibration
Two-speed lowering system (Turtle & Rabbit mode)
Highly mobile and compact for efficient storage

Here to help

PCL-18B (Set of 8)

Features

The PCL-18B (Set of 8) provides 8,165 kg lifting power per column, ensuring stable and controlled lifting for large-scale commercial and industrial vehicles.

Versatile & Scalable Workshop Solution
The system can be used as a full set of 8 or divided into two sets of 4, allowing for simultaneous vehicle servicing.

Advanced Programmable Control System
Each lift column is equipped with fully programmable controls, allowing operators to configure lifting individually, in pairs, or as a team.

Intelligent Diagnostics & Auto-Calibration
Self-monitoring electronics provide real-time diagnostics and automatic calibration, ensuring precision, safety, and efficiency.

Industry-Leading Safety Features
Equipped with emergency shut-off switches, automatic safety locks, and audible warnings, ensuring maximum operator security.

Superior Mobility & Compact Design
The pallet-jack style steering, sealed roller bearings, and lightweight construction allow for easy movement and space-saving storage.

Materials & Tech

Constructed from reinforced steel and featuring sealed hydraulic systems, the BendPak PCL-18B ensures long-lasting performance and durability.

8 x Mobile Column Lifts (8,165 kg capacity each)
Three 9m interconnecting cables
Programmable Control System with Touchpad Interface
Heavy-Duty Polyurethane Wheels with Sealed Roller Bearings
Emergency Stop & Multi-Level Safety Locking System

Optional

PCL-18B Cross Beam Adapter (for full wheel service)
Additional Lift Columns (Set of 2 or 4)

Specifications

Capacity & Dimensions	Imperial	Metric
Lifting Capacity (per column)	18,000 lbs	8,165 kg
Total System Capacity (Set of 6)	108,000 lbs	49,000 kg
Max Lifting Height	71.5”	1,889 mm

Power	Imperial	Metric
Turning Circle	40”	1,016 mm
Lifting Speed	85 sec

Physical Dimensions	Imperial	Metric
Overall Height (Raised)	101”	2,565 mm
Overall Height (Lowered)	146.5”	3,721 mm
Overall Width	45”	1,143 mm

Weight & Shipping	Imperial	Metric
Column Weight	1,450 lbs	657 kg
Shipping Dimensions (per column)	106” x 55” x 41”	2,696 mm x 1,397 mm x 1,041 mm
