Nussbaum SMART LIFT 2.35 SL EV 2-post hoist with EV lifting arms

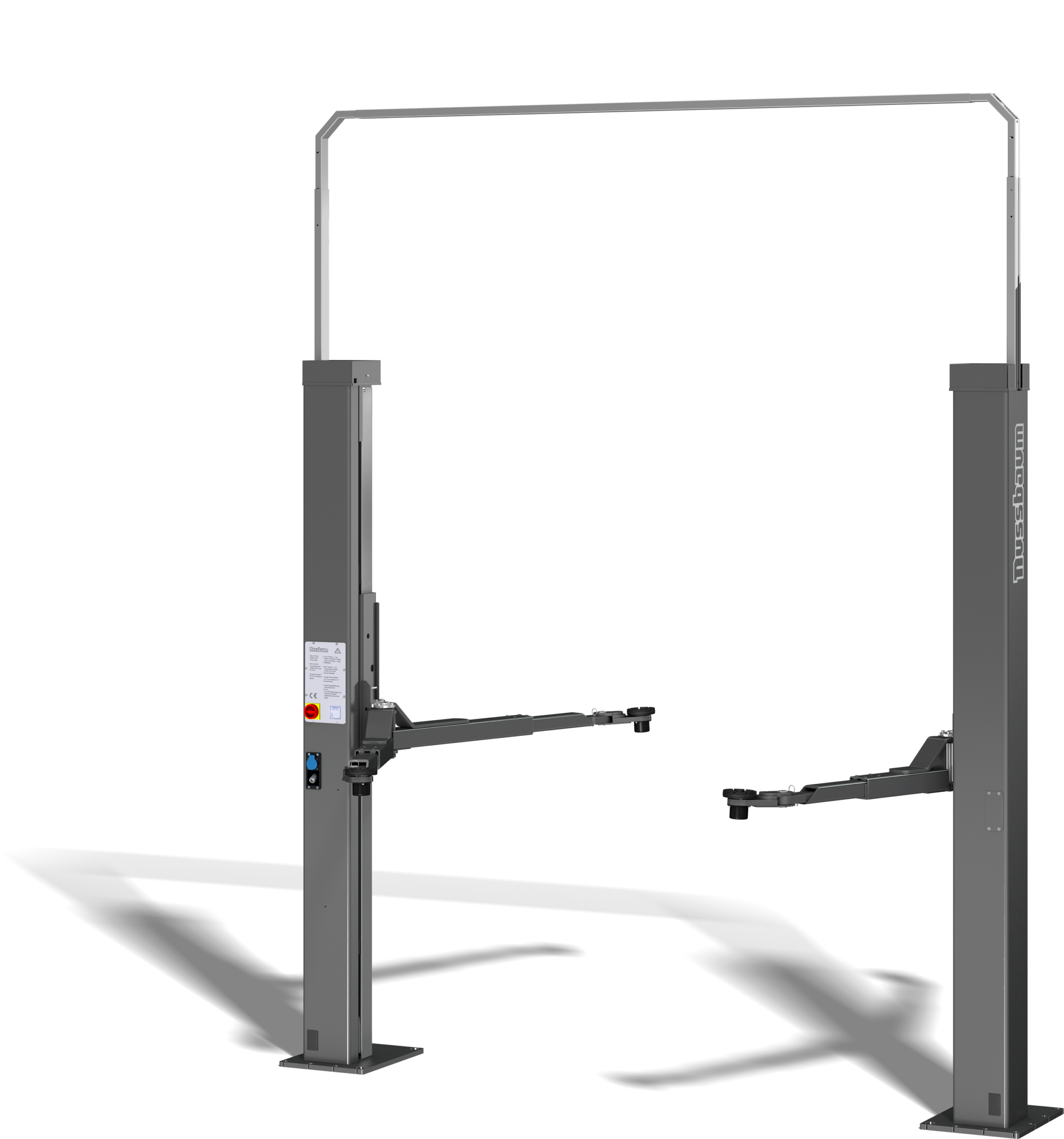

Front view of the Nussbaum SMART LIFT 2.35 SL EV

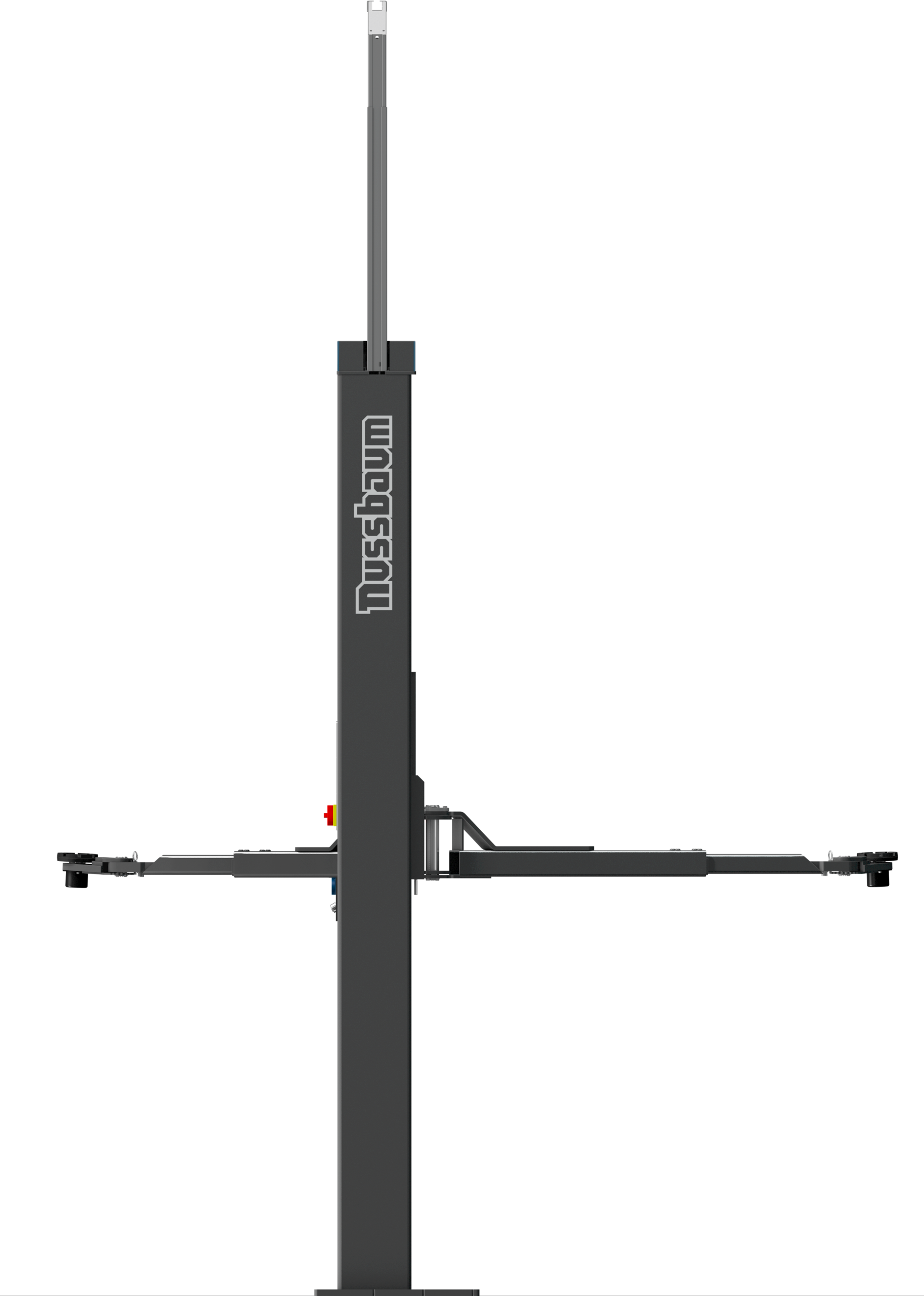

Side view of the Nussbaum SMART LIFT 2.35 SL EV column and arm

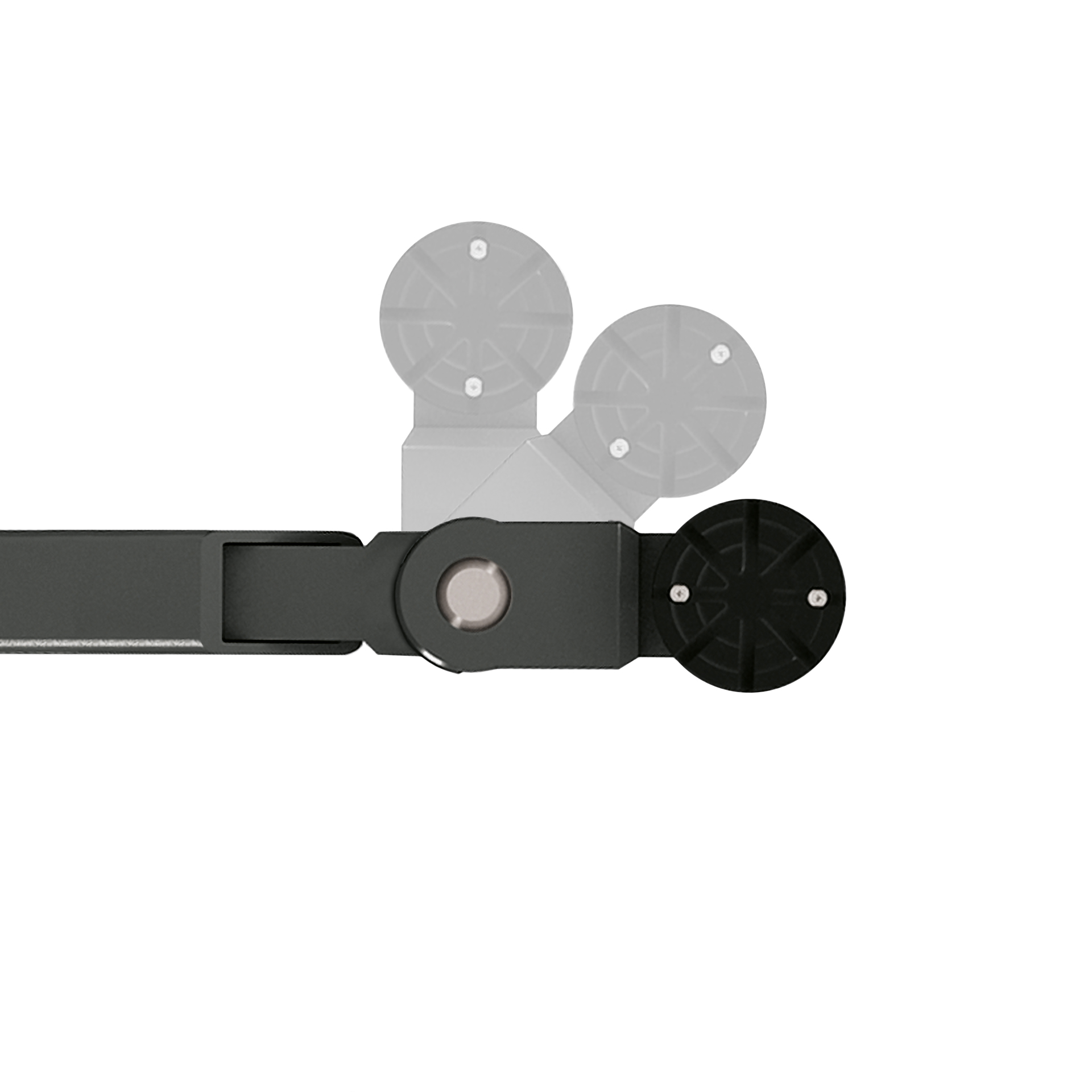

Nussbaum EV lifting arm with 180 degree swivelling front section

Nussbaum EV lifting arm positioned under a vehicle pick-up point

SMART LIFT 2.35 SL EV

SKU: 0030810

The Nussbaum SMART LIFT 2.35 SL EV is an electromechanical 2-post lift built for electric vehicle work. The front section of each EV lifting arm swivels 180°, giving flexible pick-up and clear access under the floor where the battery sits. With a 3,500 kg capacity, a low 2,890 mm column height and a flexible installation width, it fits into most car workshops.

3,500 kg lifting capacity
EV lifting arms with a 180° swivelling front section
2,014 mm lifting height
2,890 mm column height for low-ceiling workshops
Asymmetric, 2-times telescopic arms
CE-Stop included
Made in Germany

Getting your workshop EV ready? See how the DRIVEN rebate works.

Here to help

SMART LIFT 2.35 SL EV

Features

A SMART LIFT with lifting arms designed around the battery: they reach the vehicle’s pick-up points without crossing the pack underneath.

EV Arms That Clear the Battery

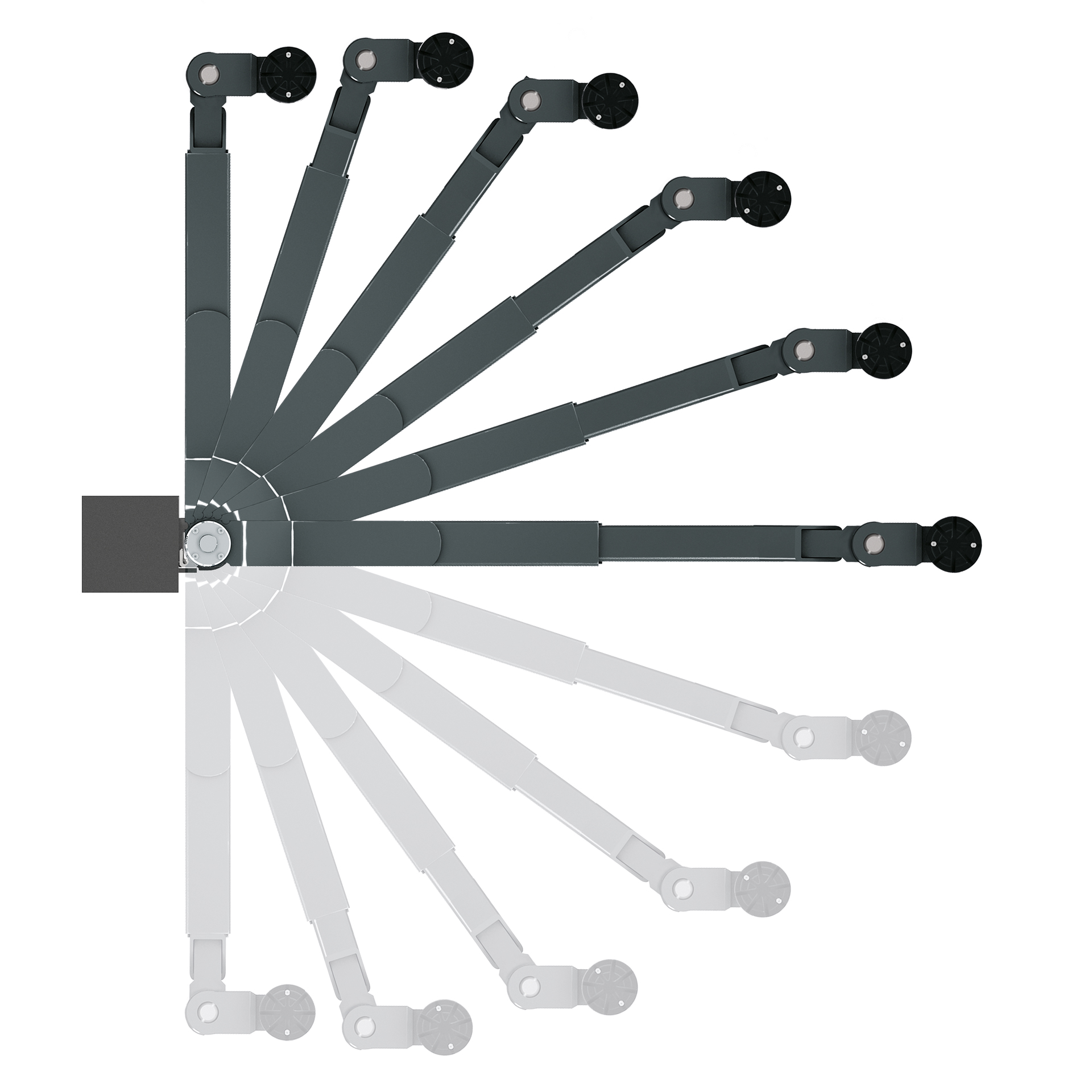

The front part of each arm swivels 180°, so the pick-up points can be reached without the arms getting in the way of the battery pack under the floor.

Lifts Heavier EVs
3,500 kg capacity, lifting in 46 seconds and lowering in 40 seconds, to a lifting height of 2,014 mm.

Fits Low Ceilings
A column height of only 2,890 mm, with the cable connection run either through the floor or over a height-adjustable cable bridge.

Flexible Installation Width
Asymmetric, 2-times telescopic arms and a flexible installation width suit a wide range of cars.

Safety Built In
Automatic arm locking, a second safety nut under the lifting nut, a wear check on the lifting nut you can see at a glance, and CE-Stop included.

Materials & Tech

The spindle carrying nut system consists of a rotating spindle and a low-wear lifting nut made of high-quality Nylatron®. A second safety nut under the carrying nut additionally secures the system. The arms are secured by an automatic locking device. The lifting nut can be inspected by the user by means of an easily visible optical wear check.

Installation requirements

Foundation at least 200 mm deep, C20/25 concrete with standard reinforcement
12 dowels (depending on the foundation, see the manual)
Electrical connection 3 Ph, 400 V, 50 Hz, 16 A slow-blow

Finish

Shot-peened and powder-coated, RAL 7016 grey

Comes with

Lift with height-adjustable cable bridge
Asymmetric telescopic EV lifting arms
4 turntables fixed in the arms

Specifications

Capacity & Speed
Lifting Capacity	3,500 kg
Lifting Time	46 seconds
Lowering Time	40 seconds

Dimensions
Lifting Height	2,014 mm
Lowest Pick-Up Height	107–171 mm
Column Height	2,890 mm
Clearance Height (cable bridge)	3,715–4,115 mm
Total Width	3,350 mm
Drive-Through Width	2,498 mm
Clear Distance Between Columns	2,746 mm

Arms
Short Arm Reach	608–1,019 mm
Long Arm Reach	956–1,496 mm

Electrical
Power Supply	3 Ph, 400 V, 50 Hz
Fuse Protection	16 A slow-blow
Motor Power	2 × 1.5 kW

Model
Nussbaum Item Number	0030810
Colour	RAL 7016 grey
