Home / Wheel Service Equipment / Wheel Balancer G.30

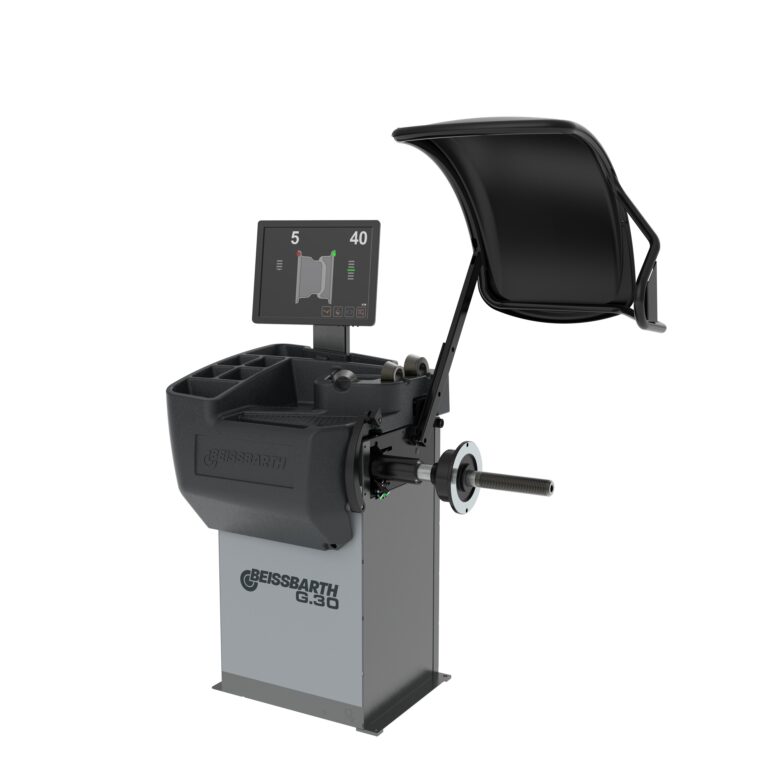

Wheel Balancer G.30

SKU: 1 692 501 001

The G.30 Wheel Balancer is a high-precision, entry-level balancing solution designed for busy workshops. With automatic data recognition, internal line laser, a 17” touchscreen, and sonar-based wheel width detection, it delivers faster, more accurate balancing for both steel and alloy wheels.

Balances wheels in just 4.7 seconds
Internal line laser
17″ touchscreen with graphical user guidance
Auto Adaptive Mode
Sonar-based rim width detection
Mechanical quick-clamping system

Here to help

Wheel Balancer G.30

Features

Balances wheels in just 4.7 seconds. Automatic stop of the wheel 15° before correction position. LED illumination for accurate weight placement

Internal Line Laser for Precise Weight Placement
Reduces operator error in weight positioning
Ensures precise balancing for smoother rides

17″ Industrial Touchscreen for Easy Operation
Step-by-step graphical interface
Works with gloves for seamless use
Quick selection of balancing programs

Auto Adaptive Mode for Maximum Ride Comfort
Dynamically adjusts tolerances based on wheel size
Minimizes remaining imbalance to eliminate vibrations

Automatic Wheel Data Recognition for Quick Setup
Auto measurement of rim distance, diameter, and weight placement
Automatic selection between clip-on and adhesive weights
Balancing accuracy of ±0.5g

Mechanical Quick-Clamping for Secure Wheel Mounting
Stable 40mm shaft for firm grip
**Handles wheels up to 75kg

Wheel Guard with Integrated Sonar for Steel & Alloy Rims
Automatically detects rim width without manual input
Closes automatically to start the balancing process

Materials & Tech

The G.30 Wheel Balancer is engineered with fully automated data recognition, real-time weight placement guidance, and integrated sonar detection for maximum efficiency and precision.

3 Cones (Ø45-111mm) for Various Wheel Sizes
Quick-Lock Nut for Secure Clamping
Clamping Cap & Pressure Ring for Stability
Rubber Ring for Enhanced Grip
60g Counterweight for Calibration
Weight Pliers for Handling Balance Weights

Optional

G.Zero Wheel Lift
Light Truck Cone Set
Mercedes-Benz Cone Kit

Specifications

GENERAL SPECIFICATIONS	Specifications
Max. Wheel Diameter	36″ (914 mm)
Max. Rim Diameter	30″
Min. Rim Diameter	10″
Max. Rim Width	20″
Min. Rim Width	1.5″
Max. Wheel Weight	75 kg
Measuring Speed	100 rpm
Measuring Time	4.7 seconds
Balancing Accuracy	±0.5g
Wheel Data Recording	Semi-automatic

DIMENSIONS & WEIGHT	Specifications
Machine Weight	110 kg
Gross Weight (with Packaging)	153 kg
Length	1250 mm
Height	1570 mm
Width	1150 mm
Packaging Dimensions	1280 mm (L) x 980 mm (W) x 1960 mm (H)

ELECTRICAL SPECIFICATIONS	Specifications
Power Supply	230V / 50-60Hz \| Single Phase
Motor Power	0.15 kW

Brand Spotlight

Beissbarth

Precision testing and diagnostics from a brand with over 120 years of workshop innovation—trusted by OEMs and independent professionals alike.

Beissbarth sets the benchmark in advanced automotive testing and service equipment, delivering premium solutions for wheel alignment, ADAS calibration, brake testing, and tyre diagnostics. With deep-rooted partnerships across global car manufacturers and independent workshops, Beissbarth products are engineered for accuracy, efficiency, and seamless workshop integration. Through Genesis Equipment, you gain access to Beissbarth’s cutting-edge technology and OEM-approved systems—designed to future-proof your workshop operations and keep you ahead of industry standards.

Other Beissbarth Products

Ranger

Tyre Inflation Cage

— Wheel Service Equipment

BendPak

Litestix Under Hood Work Light

— Workshop Equipment

Nussbaum

Top Lift 2.35 TLD XY

— Vehicle Lifts

Product Uses

What some of our customers have used it for:

No data was found

Perfect for:

Automotive Repair Workshops
Tire Shops & Service Stations
Fleet Maintenance Centers
Heavy Vehicle Dealerships
Motorcycle Repair Shops (with Adapter)
Mobile Mechanics & Home Workshops

Resources

Downloads

BrochurePDF
