Home / Vehicle Lifts / 2 Post Hoist / XPR-12CL-LTA | 2-Post Hoist

XPR-12CL-LTA | 2-Post Hoist

SKU: XPR-12CL-LTA

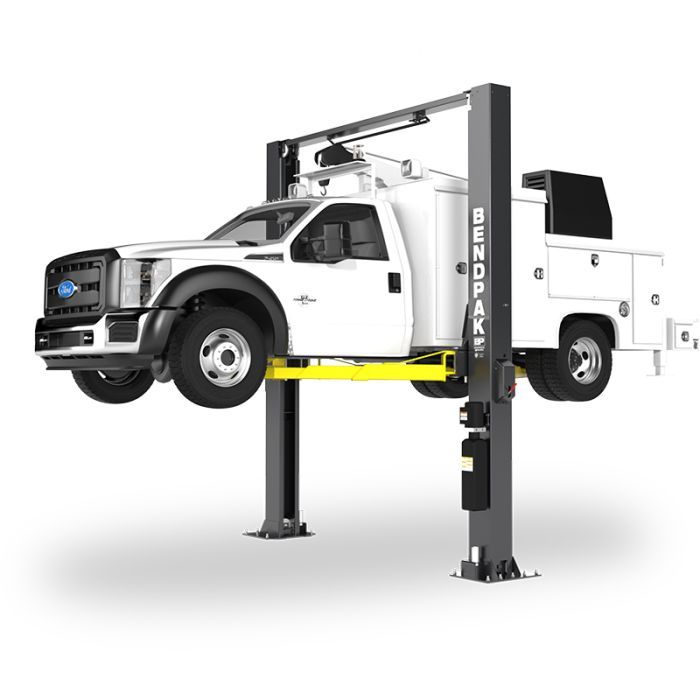

The XPR-12CL-LTA is a heavy-duty, Clearfloor two-post lift with a massive 12,000-lb. lifting capacity and 72-inch long-reach telescoping arms. Perfect for servicing vehicles with extended wheelbases or hard-to-reach lift points, it combines durability, versatility, and safety.

12,000-lb. lifting capacity
Clearfloor design for unobstructed workspace
72-inch long-reach telescoping arms
ALI Certified for safety and quality
Dual direct-drive hydraulic cylinders

Here to help

Features

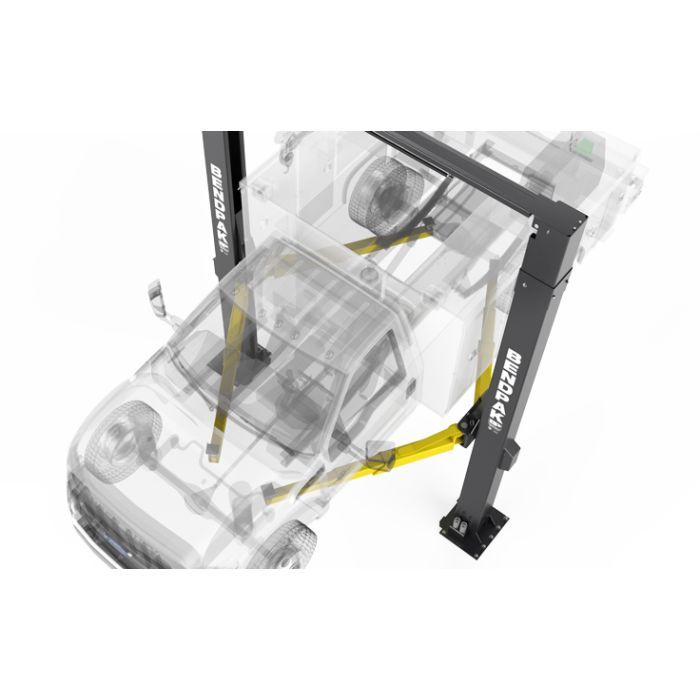

Designed with 72-inch telescoping arms, the XPR-12CL-LTA makes accessing hard-to-reach lift points on long-wheelbase vehicles easier than ever.

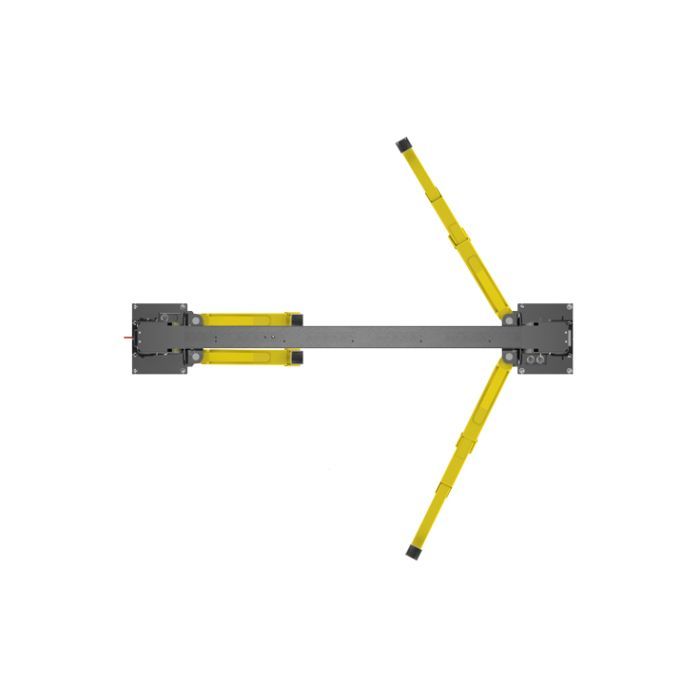

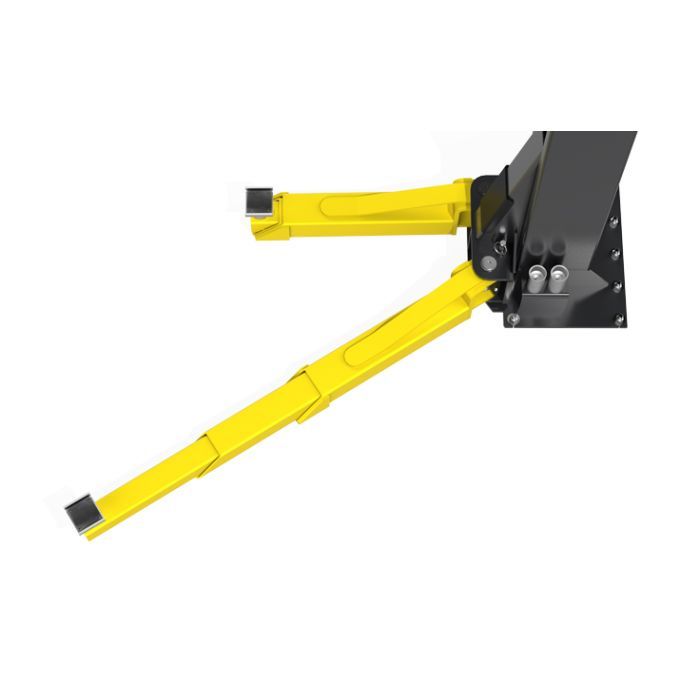

Triple-Telescoping Arms
The three-stage front and rear arms provide maximum reach and superior retraction, allowing this lift to service compact cars, large trucks, and everything in between.

Clearfloor Design
An overhead equalization beam eliminates floor obstructions, providing ample space for toolboxes, transmission jacks, and other shop equipment.

Taller Lift Carriages
At 170 inches, the columns reduce stress on the lift mechanism, increasing durability and stability for heavy-duty operations.

Dual Direct-Drive Technology
Two low-pressure HVLP hydraulic cylinders ensure smoother, more reliable lifting without the need for chains or screw mechanisms.

16-Piece Adapter Set
The included adapters, featuring stackable components and frame cradle pads, provide maximum versatility for various vehicle configurations.

Automatic Safety Features
Automatic arm restraints and a padded safety shutoff bar ensure optimal safety during operation.

Materials & Tech

Built with A36 steel and industrial-grade components, the XPR-12CL-LTA is engineered to handle heavy-duty lifting with minimal maintenance.

XPR-12CL-LTA Lift Unit
16-piece specialty adapter set, including 6-inch and 3-inch stackable adapters, polyurethane contact pads, and frame cradle pads
User manual and installation guide

Comes with

Automatic arm restraints
Oversized cable sheaves to reduce cable fatigue

Optional

Column extensions for increased overhead clearance

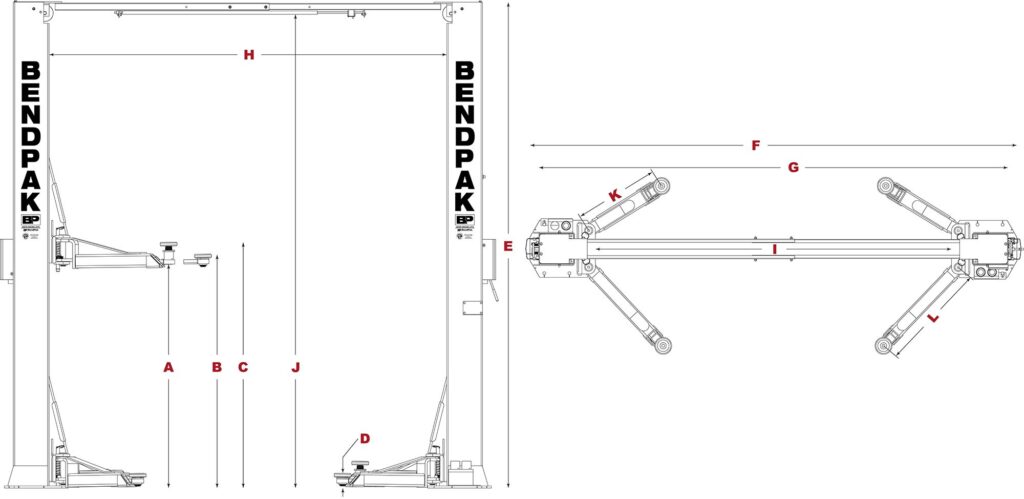

Specifications

Capacity	Imperial	Metric
Lifting Capacity	12,000 lbs	5,443 kg

Rise	Imperial	Metric
A – Rise	69″	1,753 mm
B – Rise + Pad	74.75″	1,899 mm
C – Rise + Pad + Adapter	80″	2,032 mm
D – Min. Height + Pad	6.5″	165 mm
Time to Full Rise	45 seconds	–

Outside Dimensions	Imperial	Metric
E – Height Overall	169″	4,293 mm
F – Width Overall	155″	3,937 mm
G – Outside Columns	142.5″	3,620 mm

Inside Dimensions	Imperial	Metric
H – Inside Columns	119.5″	3,035 mm
I – Drive-Thru Clearance	104.75″	2,661 mm
J – Floor to Overhead Switch	163″	4,140 mm

Arms & Pads	Imperial	Metric
K – Front Arm Reach (MIN)	35.5″	902 mm
K – Front Arm Reach (MAX)	71.5″	1,816 mm
L – Rear Arm Reach (MIN)	35.5″	902 mm
L – Rear Arm Reach (MAX)	71.5″	1,816 mm
Max Load Per Arm	3,000 lbs	1,361 kg

Noise	Imperial	Metric
	45 dB	–

Shipping
Shipping Dimensions	174″ x 29″ x 35″	–
Weight	2,712 lbs	–
