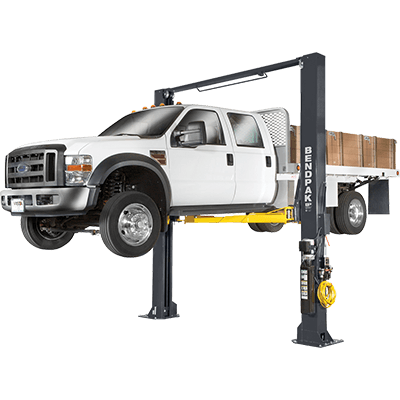

XPR-12CL | 2-Post Hoist

SKU: 5175405

Designed for heavy-duty lifting, the XPR-12CL offers a massive 5,443-kg lifting capacity with a Clearfloor design. Featuring triple-telescoping arms, dual direct-drive cylinders, and industrial-grade construction, it’s perfect for professional workshops handling larger vehicles.

5,443-kg lifting capacity
CE and ALI certified
Clearfloor design for unobstructed workspace
Triple-telescoping arms for maximum versatility
Dual direct-drive hydraulic cylinders for smoother operation

Here to help

Features

The XPR-12CL is engineered for strength and efficiency, making it ideal for workshops managing a variety of vehicle sizes and types.

Triple-Telescoping Arms
The XPR-12CL’s three-stage front and rear arms allow for superior reach and retraction, ensuring compatibility with both compact cars and heavy-duty trucks.

Clearfloor Design
Hydraulic lines are routed overhead, leaving the floor clear for toolboxes, jacks, and other equipment, enhancing workspace productivity.

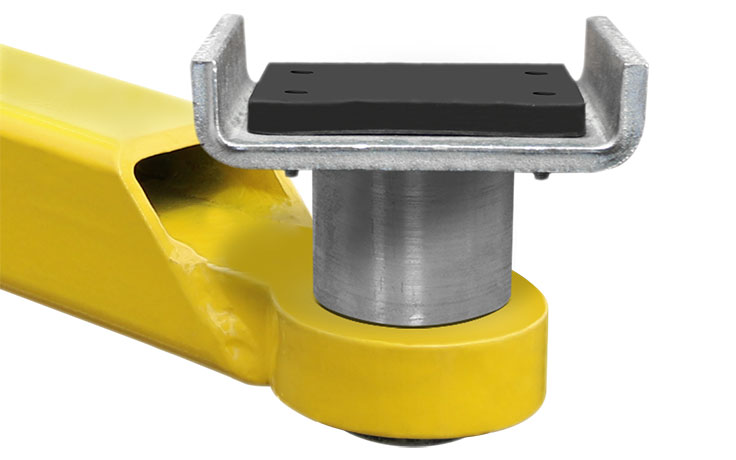

Low-Profile Frame Contact Pads
Easily accommodate low-profile vehicles with dropped-end frame contact pads, ensuring versatility across different vehicle types.

Dual Direct-Drive Hydraulic Cylinders
Eliminates the need for chains or screw mechanisms, reducing maintenance and ensuring smoother, more reliable lifting performance.

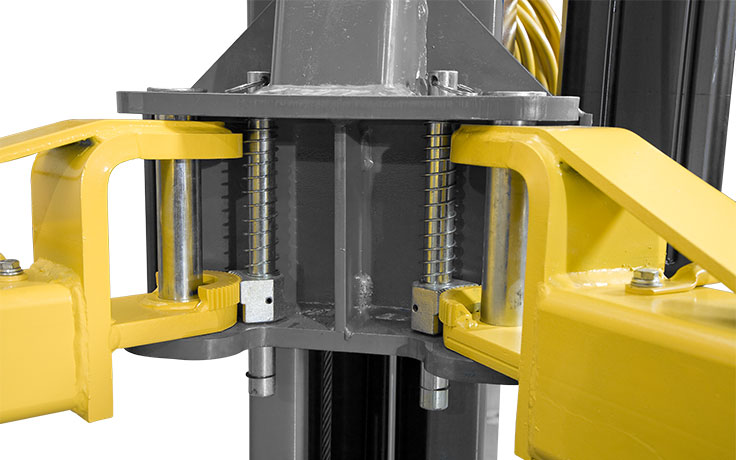

Automatic Arm Restraints
Engage automatically as the arms rise, locking securely for safe and stable lifting of even the heaviest loads.

Maintenance-Free Load Bearings
Constructed with ultra-high molecular weight polyethylene (UHMW), the load bearings never require lubrication and are resistant to environmental hazards.

Materials & Tech

The XPR-12CL is crafted from A36 steel and features industrial-grade components, ensuring longevity and low-maintenance operation.

XPR-12CL Hoist Unit
16-piece specialty adapter set, including stackable adapters and frame cradle pads
User manual and installation guide

Comes with

Safety locks in each column, spaced every 76 mm
Oversized 1,346 mm tall carriages for superior strength

Optional

Column extensions for increased overhead clearance

Specifications

Capacity	lbs	kgs
Lifting Capacity	12,000 lbs	5,443 kg
Max Capacity / Front Axle	6,000 lbs	2,722 kg
Max Capacity / Rear Axle	6,000 lbs	2,722 kg

Rise	Imperial	Metric
A – Rise	69″	1,753 mm
B – Rise + Pad Only	74″	1,880 mm
C – Rise + Pad + 63 mm Adapter	80″	2,032 mm
D – Min. Height + Pad	5″	127 mm
Time to Full Rise	45 seconds –

Outside Dimensions	Imperial	Metric
E – Height Overall	170″	4,318 mm
F – Width Overall	155″	3,937 mm
G – Outside Columns	144″	3,658 mm

Inside Dimensions	inches	mm
H – Inside Columns	120″	3,048 mm
I – Drive-Thru Clearance	106″	2,692 mm
J – Floor To Overhead Switch	165″	4,191 mm

Arms & Pads	Imperial	Metric
K – Front Arm Reach (MIN)	32″	813 mm
K – Front Arm Reach (MAX)	60″	1,524 mm
L – Rear Arm Reach (MIN)	32″	813 mm
L – Rear Arm Reach (MAX)	60″	1,524 mm
Max Load Per Arm	3,000 lbs	1,361 kg

Shipping
Weight	220 VAC / 60 Hz / 1 Ph
Dimensions	45 dB
