XPR-12FDL | 2-Post Hoist

SKU: 5175403

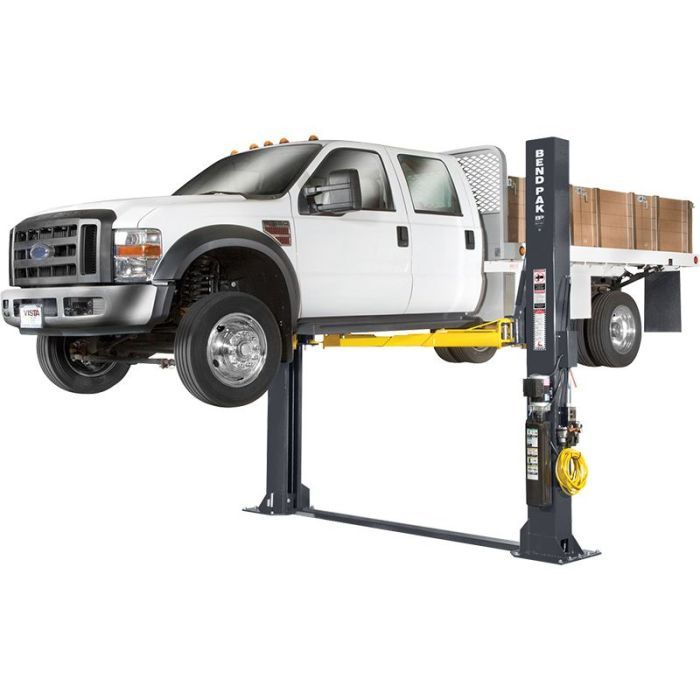

The XPR-12FDL is a heavy-duty, floorplate two-post hoist with a 12,000-lb. lifting capacity, triple-telescoping arms, and a durable open-top design. It’s perfect for safely lifting large trucks, SUVs, and commercial vans while also accommodating low-profile vehicles with ease.

12,000-lb. lifting capacity
Open-top design for taller vehicles
Triple-telescoping arms for versatile reach
Maintenance-free UHMW load bearings
ALI Certified for safety and quality

Here to help

Features

The XPR-12FDL features triple-telescoping arms with a maximum reach of 59 inches, making it ideal for lifting vehicles with long wheelbases.

Open-Top Design
This floorplate hoist features an open-top design, making it suitable for taller vehicles like Sprinters and high-rise trucks.

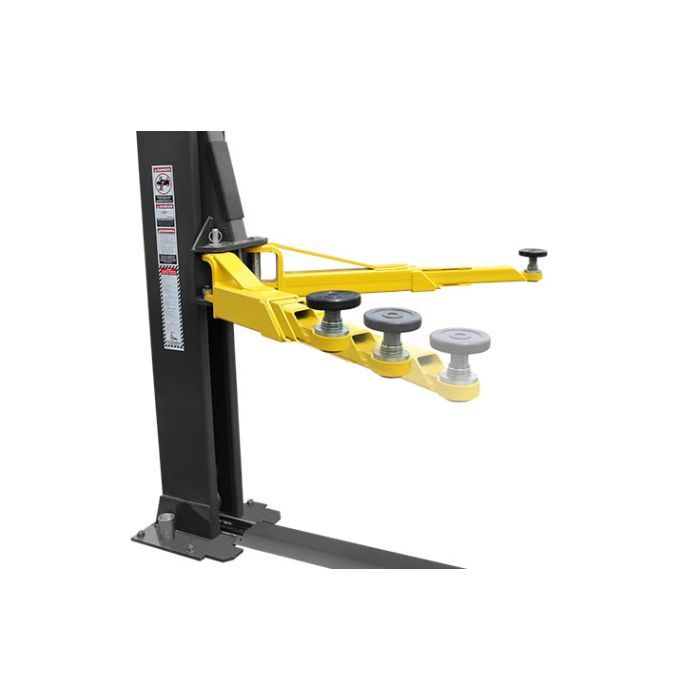

Low-Profile Arms and Dropped-End Pads
Easily reach under low-profile vehicles without damaging doors or chassis, thanks to the low-profile arm design and dropped-end frame contact pads.

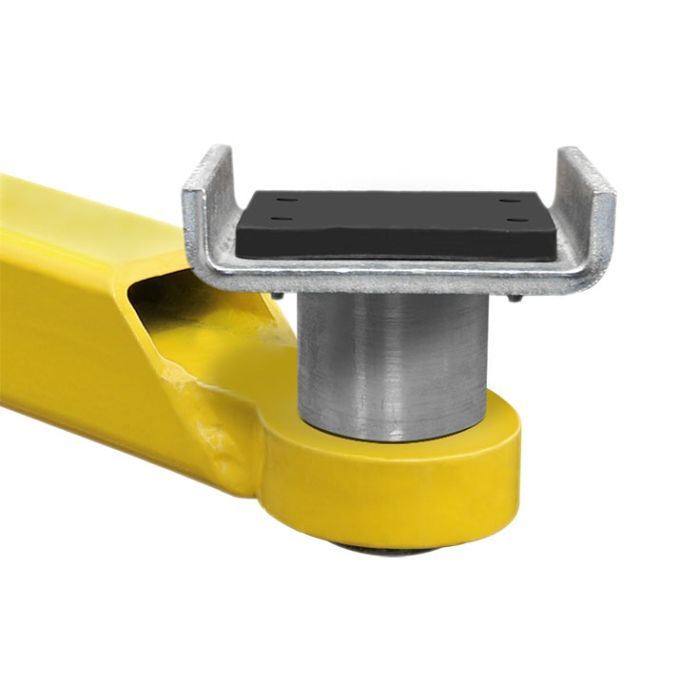

16-Piece Adapter Set
The included set features stackable adapters, polyurethane pads, and frame cradle pads, ensuring compatibility with various vehicle types.

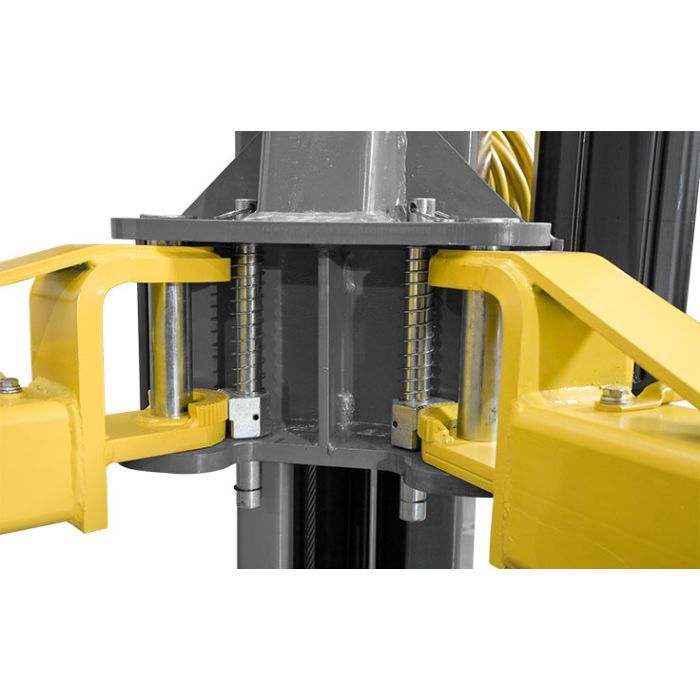

Automatic Arm Restraints
Safety is paramount with the automatic arm restraints that engage during lifting and disengage when fully lowered.

Maintenance-Free Load Bearings
UHMW load bearings are self-lubricating and resistant to environmental hazards, providing long-lasting durability.

Materials & Tech

Constructed with single-piece steel columns, A36 steel base plates, and industrial-grade components, the XPR-12FDL ensures unmatched durability and performance.

XPR-12FDL Lift Unit
16-piece specialty adapter set (stackable adapters, polyurethane pads, frame cradle pads)
User manual and installation guide

Comes with

Electric/hydraulic power system
Dual direct-drive hydraulic cylinders

Optional

Extended height column option for additional overhead clearance

Specifications

Capacity	Imperial	Metric
Lifting Capacity	12,000 lbs	5,443 kg
Max Capacity / Front Axle	6,000 lbs	2,722 kg
Max Capacity / Rear Axle	6,000 lbs	2,722 kg

Rise	Imperial	Metric
A – Rise	69″	1,753 mm
B – Rise + Pad Only	74″	1,880 mm
C – Rise + Pad + 63 mm Adapter	79″	2,007 mm
D – Min. Height + Pad	5″	127 mm
Time to Full Rise	55 seconds	–

Outside Dimensions	Imperial	Metric
E – Height Overall	144″	3,658 mm
F – Width Overall	155″	3,937 mm
G – Outside Columns	146″	3,708 mm

Inside Dimensions	Imperial	Metric
H – Inside Columns	118″	2,997 mm
I – Drive-Thru Clearance	103″	2,616 mm

Arms & Pads	Imperial	Metric
K – Front Arm Reach (MIN)	39″	991 mm
K – Front Arm Reach (MAX)	59″	1,499 mm
L – Rear Arm Reach (MIN)	39″	991 mm
L – Rear Arm Reach (MAX)	59″	1,499 mm
Max Load Per Arm	3,000 lbs	1,361 kg

Floorplate	Imperial	Metric
Height	2″	51 mm
Width	8.5″	216 mm

Power Unit
Motor	220 VAC / 60 Hz / 1 Ph
Noise	45 dB
