Home / Vehicle Lifts / 2 Post Hoist / XPR-9TF | 2-Post Hoist

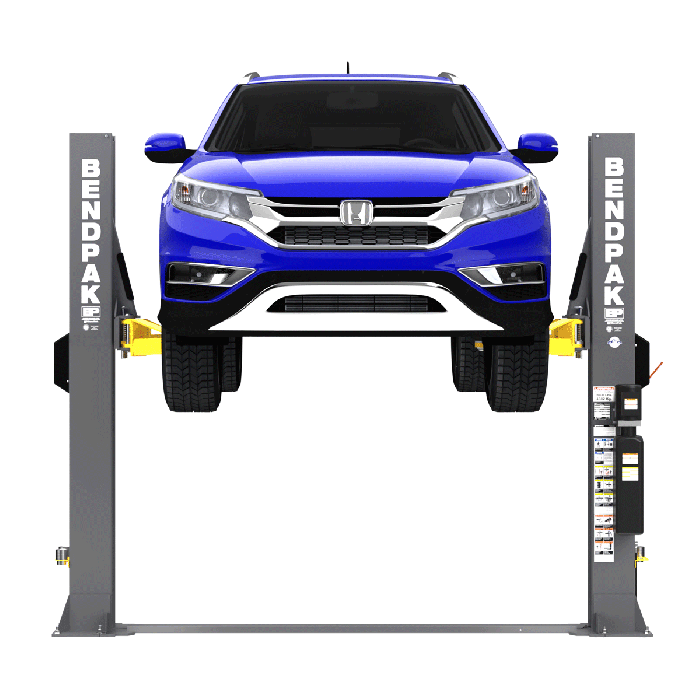

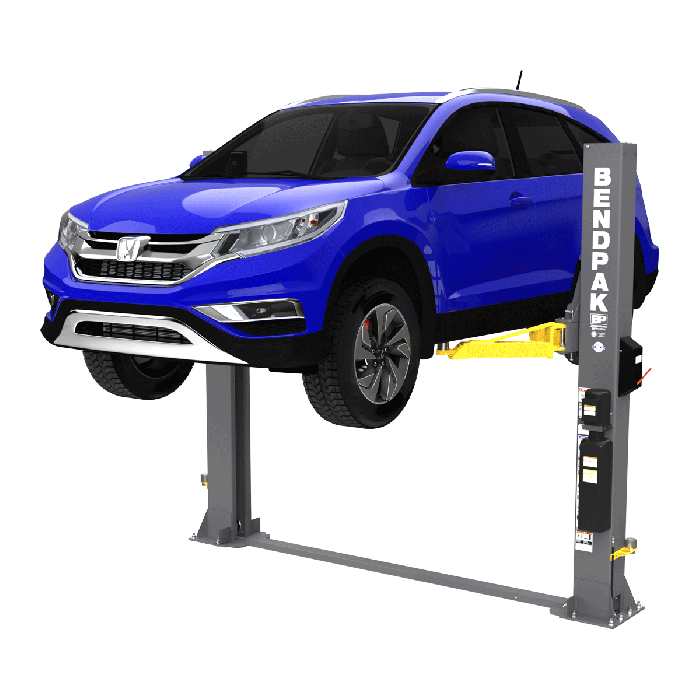

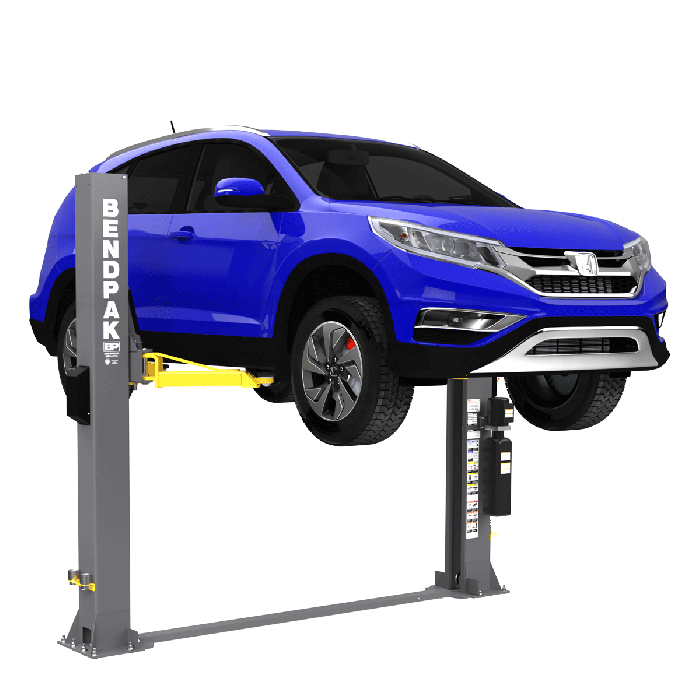

XPR-9TF | 2-Post Hoist

SKU: 5175308

The BendPak XPR-9TF is a professional-grade two-post hoist with a 9,000 lbs. capacity, designed for maximum versatility and efficiency in both wide and narrow configurations. Perfect for full-size pickups, commercial vehicles, and compact cars, it features a floorplate design, automatic arm restraints, and maintenance-free load bearings.

9,000 lbs. lifting capacity
Wide and narrow installation configurations
Maintenance-free UHMW load bearings
Automatic arm restraints for added safety
Floorplate design ideal for low-ceiling garages

Here to help

Features

Designed to accommodate vehicles of all sizes, from compact cars to full-size pickups, with wide or narrow installation options.

Automatic Arm Restraints
The lift’s arms automatically lock during lifting and release upon descent, ensuring safe and secure operation.

Maintenance-Free Load Bearings
UHMW polyethylene load bearings are resistant to chemicals and wear, providing a lifetime of maintenance-free reliability.

Dual Hydraulic Chain-Over System
The dual hydraulic cylinders ensure smooth and balanced lifting for vehicles of varying sizes and weights.

Flexible Installation Options
Choose between wide or narrow setups to maximize space and vehicle accessibility in your shop or garage.

Compact Floorplate Design
Ideal for garages with low ceilings, ensuring compatibility without compromising performance.

Materials & Tech

The XPR-9TF is crafted with single-piece columns, UHMW load bearings, and a robust hydraulic system to ensure durability and ease of use.

XPR-9TF Hoist Unit
4-piece 63 mm stackable adapter set
Installation manual

Comes with

Electric/hydraulic power system
Plated arm restraints and rust-resistant arm pins

Optional

Extended reach adapters for specialty vehicles

Specifications

Capacity	Imperial	Metric
Lifting Capacity	9,000 lbs	4,082 kg
Max Capacity / Front Axle	4,500 lbs	2,041 kg
Max Capacity / Rear Axle	4,500 lbs	2,041 kg

Rise	Imperial	Metric
A – Rise	69″	1,753 mm
B – Rise + Pad Only	73.75″	1,870 mm
C – Rise + Pad + 63 mm Adapter	78.25″	1,987 mm
D – Min. Height + Pad	4.75″	118 mm
Time to Full Rise	45 seconds

Outside Dimensions	Imperial	Metric
E – Height Overall	123.25″	3,128 mm
F – Width Overall	132″ – 145″	3,353 mm – 3,683 mm
G – Outside Columns	124.75″ – 137.75″	3,169 mm – 3,499 mm

Inside Dimensions	Imperial	Metric
H – Inside Columns	103.5″ or 116.5″	2,629 mm or 2,959 mm
I – Drive-Thru Clearance	91″ or 104″	2,315 mm or 2,642 mm

Arms & Pads	Imperial	Metric
K – Front Arm Reach (MIN)	25.5″	646 mm
K – Front Arm Reach (MAX)	49.5″	1,255 mm
L – Rear Arm Reach (MIN)	32.25″	821 mm
L – Rear Arm Reach (MAX)	52.5″	1,331 mm
Screw Pad Adjustment	1.5″	37 mm
Max Load Per Arm	N/A	N/A

Power Unit
Motor	220 VAC, 60 Hz, 1 Phase
Noise	<43 dB
