A6S-OPT1

SKU: 5175274

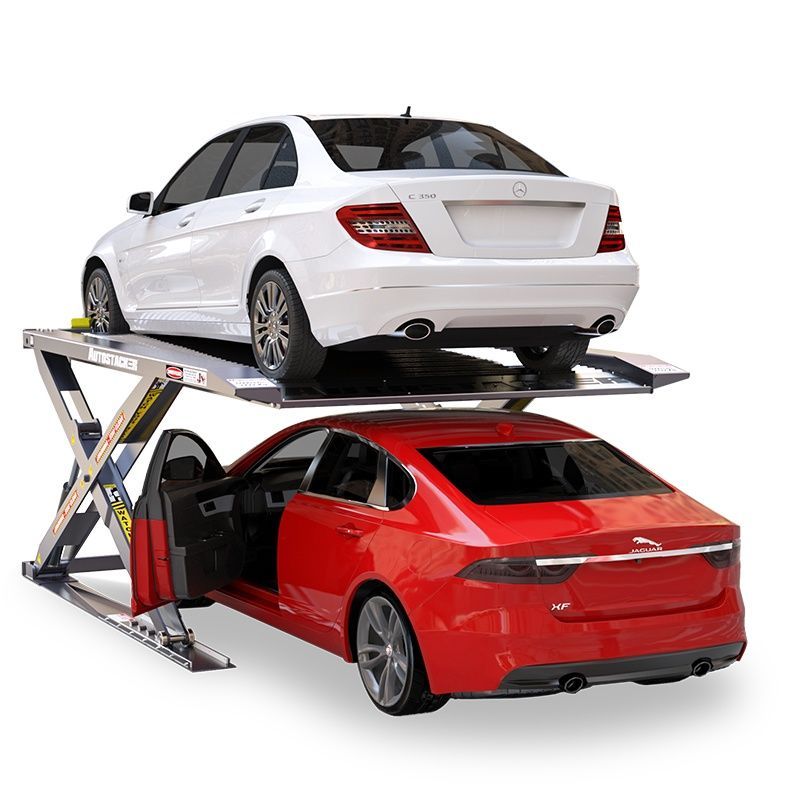

The Autostacker A6S Standard Package 220V is a fully collapsible, space-saving parking lift that lets you stack two vehicles in a single parking space. Designed for both home and commercial use, it offers an impressive 6,000-lb. lifting capacity, faster lift speeds, and the reliability of BendPak engineering.

6,000-lb. lifting capacity
Ultra-compact, zero-post scissor design
85” of underside clearance
Fast 45-second rise time
Ergonomic, safety-first controls
Ideal for low-clearance performance vehicles

Here to help

A6S-OPT1

Features

Maximize space with a lift that delivers 6,000 lbs. of capacity in a compact, flush-mounted scissor design—perfect for tight garages and professional spaces alike.

Faster Lifting with 220V Power
Experience rapid rise and descent with the high-efficiency 220V motor system—ideal for high-traffic use or minimizing wait times in busy garages.

Zero-Post Design for Maximum Access
The A6S eliminates bulky support posts, offering unobstructed access around the lift and better vehicle maneuverability—even in confined spaces.

85” of Underside Clearance
Generous vertical space accommodates large vehicles underneath, increasing storage flexibility for SUVs, trucks, and more.

Door-Sentry™ Car Door Protection
Patented full-length impact-absorbing guards protect doors from dings and scratches during parking.

Smart Hydraulic Circuitry
Auto-synchronizing hydraulic cylinders ensure balanced, equalized lifting for smooth and stable operation—without complex electronics.

Vehicle Security Elevated
Keep your prized car safe and out of reach from vandals, pets, and garage hazards—almost 8 feet in the air.

Quiet, Operator-Friendly Design
Whisper-quiet at just 52 dB, with intuitive controls, ergonomic panel placement, and built-in safety features.

Materials & Tech

Constructed from rugged welded steel, the Autostacker A6S features a durable full-length galvanized platform supported by concealed tandem hydraulic cylinders. A low-profile, 5° incline makes it ideal for performance vehicles with wide tires and low clearance.

A6S-OPT1-220V Scissor Lift
Power Unit and Power Unit Kit
A6S Parts Box

Optional

Access Panel A6S – $1,025.00
Replace galvanized deck sections with removable welded-steel panels for a maintenance-ready, open-center lift.

Specifications

GENERAL	Details
Material	Steel
Type Stance	Scissor Lift
Adjustable Width At Installation	false
Assembly Required	true
Rated For Outdoor Use	false
Assembled Weight	2,516 lbs

DIMENSIONS	Details
Height Overall	91 inches
Overall Width Max	103.13 inches

LIFTING DIMENSIONS	Details
Max Lifting Height	85 inches

LIFTING CAPACITY	Details
Lifting Capacity	6,000 lbs

RISE	Details
Time to Full Rise	45 seconds

LOCKING DIMENSIONS	Details
Locking Position Qty	5
Lock Release Type	Self-Locking Ratchet

PLATFORM/RAMP DIMENSIONS	Details
Platform Length Overall	141.25 inches

OTHER DIMENSIONS	Details
Tire Stop Height	1.75 inches

POWER	Details
Horse Power	3 HP
Voltage	208-240V
Amps	11
Motor	208-240V, 50-60Hz, 1-Ph.
Noise Level	70 dB
Power Unit	208-240V, 50-60Hz, 1-Ph.
Watts	2,420 W

AIR	Details
Air Requirement	0

CLEARANCE DIMENSIONS	Details
Drive Thru Under Clearance on Top Lock	76.13 inches
Drive Thru Width Range	83.13 inches

Brand Spotlight

Autostacker

Autostacker is the world’s leading fully collapsible parking lift, trusted by homeowners, dealerships, and display showrooms to safely double vehicle storage within a single bay.

Engineered by BendPak, Autostacker blends strength, style, and space-saving design to support up to 6,000 lbs. Its low-profile entry, no-post setup, and Door-Sentry™ protection make it ideal for luxury vehicles and tight spaces. Available in standard and extra-wide models, Autostacker is purpose-built for convenience and performance. Through Genesis Equipment, Australian customers gain direct access to Autostacker’s innovative lifts with expert local support and guidance.
