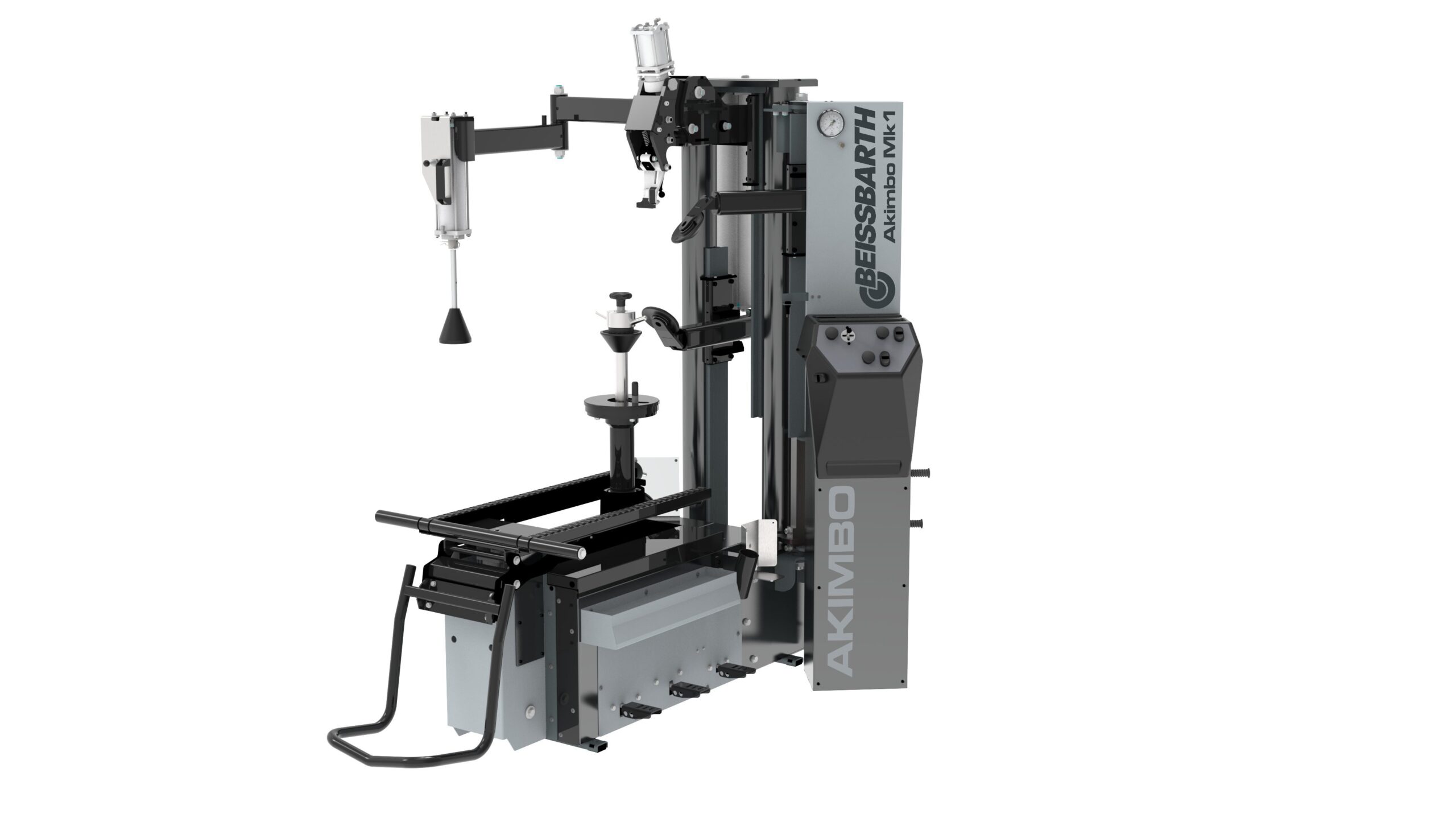

Akimbo MK1

SKU: 1 692 401 007

The Beissbarth Akimbo MK1 is an advanced, premium tyre changer, designed for high-precision wheel servicing. With a clamping range of 10″ to 30″ rims, a powerful pneumatic bead pusher, and laser positioning, the Akimbo MK1 ensures fast, effortless, and damage-free tyre changes. Featuring intuitive button controls and an integrated wheel lift, this machine is built for maximum efficiency and technician comfort.

Key Features

  • Handles wheels up to 30″ in diameter
  • Pneumatic bead pusher for effortless assembly handling
  • Double bead breaker discs with synchronized movements
  • Integrated wheel lift for technician convenience
  • Laser positioning for precise tool alignment
  • Powerful mounting tool eliminates levers & rim contact

Features

The Akimbo MK1 combines cutting-edge automation, ergonomic design, and powerful performance for quick, accurate, and damage-free tyre servicing.

Pneumatic Bead Pusher for Effortless Handling

  • Powerful pneumatic bead pusher for handling tough assemblies effortlessly.
  • Independently controllable, ensuring precise positioning.
  • Mounted to the main column, eliminating flexing and increasing durability.

Center Clamping for Secure, Precise Grip

  • Higher clamping force for maximum stability.
  • Robust mechanical locking pin prevents movement.
  • Handles rims up to 30” with automatic radial adjustment.

Double Bead Breaker Discs with Laser Positioning

  • Synchronized yet independently controllable movements for efficient bead loosening.
  • Upper & lower bead breakers adapt to different wheel sizes.
  • Equipped with laser guidance for accurate positioning.

Integrated Wheel Lift for Technician Comfort

  • Lifts wheels directly onto the center post, eliminating manual lifting strain.
  • Handles wheel assemblies up to 80 kg.
  • Enhances workshop safety and efficiency.

Intuitive Pneumatic Control System

  • Button-based navigation, allowing one-person operation from one side.
  • Automatic removal of tools for seamless workflow.
  • Eliminates Bowden cables, reducing maintenance needs.

Powerful Mounting Tool for Lever-Free Operation

  • Ensures damage-free mounting & demounting.
  • No rim contact, preventing scratches and scuffs.
  • Eliminates the need for traditional tyre levers.

Materials & Tech

The Akimbo MK1 is engineered with high-strength steel and precision mechanical components, ensuring reliability and long service life.

Inclusions

  • Akimbo MK1 Tyre Changer
  • Upper tool protection (3x)
  • Lower tool protection (2x)
  • Center-post protection (2x)
  • Power plug
  • Brush
  • WDK RFT/UHP clamp
  • WDK rim protector
  • Plastic lever

Optional

  • Mounting finger (SKU: 1 692 402 016)
  • Light truck spacer (SKU: 1 692 402 215)
  • Light truck cone (SKU: 1 692 402 213)
  • Blast Inflation Kit (SKU: 1 692 402 029)
  • Reversed Wheel Kit (SKU: 1 692 402 024)

Specifications

GENERAL SPECIFICATIONS
Clamping Range 10–30″
Max. Wheel Width 15″ (380 mm)
Max. Wheel Diameter 47″ (1,200 mm)
Mounting Paste Holder Capacity Up to 5 kg
Air Supply 8–10 bar
Inflation System Pedal-operated
Power Consumption 1.5 kW
Power Supply 230V | 1 Ph | 50–60 Hz
Rotation Speed 8–18 rpm
WDK Approval Yes
INTEGRATED FEATURES & ACCESSORIES
Bead Pusher Arm Premium
Bead Breaker Discs 2x
Wheel Lift Yes
Laser Positioning Yes
Brand Spotlight

Beissbarth

Precision testing and diagnostics from a brand with over 120 years of workshop innovation—trusted by OEMs and independent professionals alike.

Beissbarth sets the benchmark in advanced automotive testing and service equipment, delivering premium solutions for wheel alignment, ADAS calibration, brake testing, and tyre diagnostics. With deep-rooted partnerships across global car manufacturers and independent workshops, Beissbarth products are engineered for accuracy, efficiency, and seamless workshop integration. Through Genesis Equipment, you gain access to Beissbarth’s cutting-edge technology and OEM-approved systems—designed to future-proof your workshop operations and keep you ahead of industry standards.

Other Beissbarth Products

Ranger

Tyre Inflation Cage

— Wheel Service Equipment

BendPak

Litestix Under Hood Work Light

— Workshop Equipment

Nussbaum

Top Lift 2.35 TLD XY

— Vehicle Lifts

Product Uses

What some of our customers have used it for:

No data was found

Perfect for:

  • Passenger car workshops & dealerships
  • High-performance & luxury car servicing
  • Tire replacement centers & automotive repair shops
  • Fleet maintenance facilities
