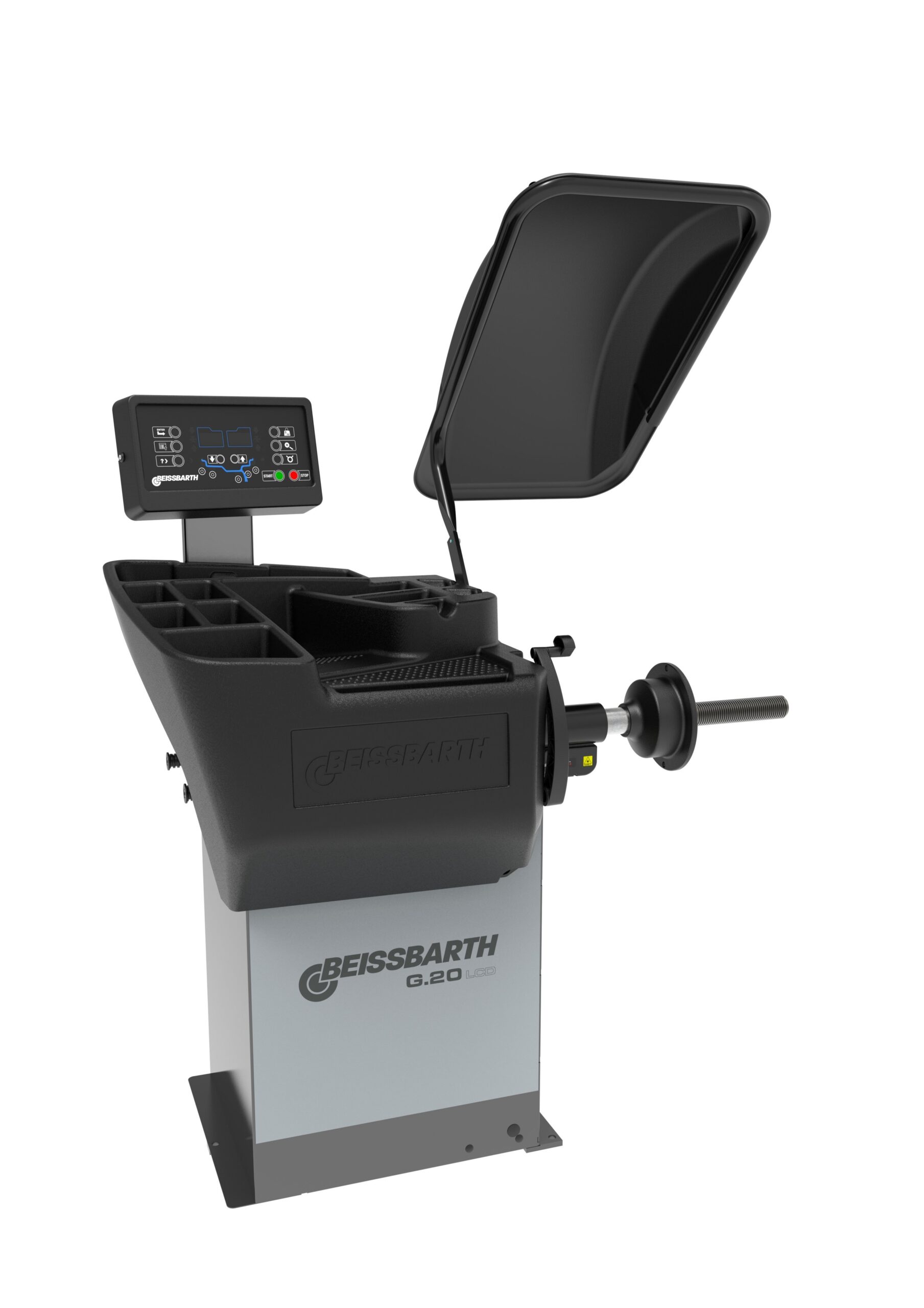

LCD Wheel Balancer G.20

SKU: 1 692 501 007

Light technology into your workshop balances wheels in under five seconds. Compact car specialty unit that fits into smaller spaces. Highly adaptable beyond compacts via an extensive accessories catalog – speak with your sales person. The LCD G.20 wheel balancer by Beissbarth is priced for bulk purchases and entry-level balancing. Automated features dramatically reduce total time per wheel.

Here to help

LIGHT TECHNOLOGY FOR WORKSHOP SPEED & ACCURACY

LEDs and LASERs

LED control panel for easy reading

LED illumination for placing weights

Inside line LASER (class two) accurately positions adhesive weights on rims

AUTOMATIC

Stops the wheel 15° before correction position.

Recognition of steel rim width.

Measurement accuracy +/- 0.5g

Eliminates the smallest vibrations noticeable by the driver.

Data arm measures diameter, distance, and weight placement

PROGRAM

Begins automatically by closing the wheel guard.

Dynamic tolerance adjustment based in weight and size.

Hides weights behind different spokes.

Selects clip on and adhesive weights.

CLAMPING

Mechanical with quick-lock nut

Stable 40mm shaft

Wheel weights up to 75kg

HIGHLY ADAPTABLE LED G.20 – ACCESSORIES

Accessories Description – go to Beissbarth.com and click on accessory name for full text

G.Zero Wheel lift \| with memory function	1 692 502 000
Wheel lift \| for wheel balancers	1 695 601 012
Large clamping cap \| for aluminium rims	1 692 502 044
Spacer sleeve \| for use with spacer 1692502029	1 692 502 029
Distance ring 40mm \| in combination with light truck cone 1692502047	1 692 502 028
Spacer for wide rims \| for use with spacer sleeve 1692502029	1 692 502 036
Light truck cone with 36mm distance ring \| for light truck wheels w/center hole Ø 97-170mm	1 692 502 046
Cone 4WD \| Ø 101 – 119 mm	1 692 502 035
Cones kit for Mercedes-Benz	1 692 502 030
Cones and clamping kit Passenger car \| Ø 45 – 194 mm	1 692 502 027
Long stud bolt for Peugeot 406 \| 1 Set = 5 pcs	1 692 502 054
Motorcycle and scooter adapter \| Ø 15 – 35 mm	1 692 502 073
Spacer \| in combination with light truck cone 1692502047	1 692 502 031
Cone \| for central hole Ø 43 – 69 mm	1 692 502 053
Cones and clamping kit Truck \| Ø 202 / 221 / 281 mm	1 692 502 025
Stud adapter kit USA \| Manual \| 5 x 101.6 / 139.7 / 165.1 mm \| 6 x 139.7 / 114.3 mm \| 4 x 165.1 / 170 mm \| 3 x 130 mm	1 692 502 060
Stud adapter kit 4-hole \| Manual \| 4 x 98 / 100 / 108 / 110 / 114.3 / 120 / 130 mm	1 692 502 056
Stud adapter kit SR5 \| Manual \| 5 x 100 / 108 / 112 / 114.3 / 120 / 139.7 / 150 / 160 mm	1 692 502 057
Stud adapter kit 5-hole \| Manual \| for Opel \| 105 / 110 / 115 / 118 / 130 mm	1 692 502 058
Stud adapter kit 5-hole \| Manual \| 5 x 98 / 110 / 118 / 120.65 / 127 / 130 / 140 mm	1 692 502 059
Universal 3-4-5-6-hole stud adapter \| Manual \| Ø 75 – 210 mm	1 692 502 061
Universal 3-4-5-6-hole adapter \| Ø 95 – 120 mm	1 692 502 037
Clip-on studs Conical \| 5 x 103 mm	1 692 502 064
Clip-on studs Conical \| 5 x 68 mm	1 692 502 063
Clip-on studs Spherical \| 5 x 123 mm	1 692 502 062
Centering disc Ø 161 mm \| for 3-arm star adapter SR3	1 692 502 040
Centering disc Ø 130 mm \| for 3-arm star adapter SR3	1 692 502 041
Centering disc Ø 142 mm \| for 3-arm star adapter SR3	1 692 502 039
Centering bushes kit 2 x Ø 15 / 16 / 17 / 19.05 / 20 / 22 / 25 / 28 mm \| 16 pcs.	1 692 502 074
Universal 3-4-5-6-hole stud adapter \| Pneumatic \| Ø 75 – 210 mm	1 692 502 070
Centering kit for PSA \| 5 pcs.	1 692 502 050
Centering kit for Renault \| 5 pcs.	1 692 502 051
Cone \| for German OEMs \| Ø 56.5 / 57 / 66.5 / 70 – 72.5 mm	1 692 502 049

INCLUEDED

SCOPE OF DELIVERY	Quick-lock nut Pro Grip 40x4
4 cones Ø43-112,5mm	60g counterweight
Clamping cap	Pressure ring
Rubber ring	Weight pliers

SPECIFICATIONS

Number of cones	4
Motor power	0.15 kW
Balancing accuracy +/-	0.5 g
Measuring speed	100 rpm
Weight	110 kg
Length	1100 mm
Height	1220 mm
Electrical connection	230 V \| 50 – 60 Hz \| 1 ph
Min. rim diameter	254 mm / 10″
Min. rim width	38 mm / 1.5″
Measuring time	4.7 seconds
Shaft diameter	40 mm
Thread type	40 x 4 TR – Metric ISO-Trapezoidal Thread
Max. rim width	508 mm / 20″
Max. wheel weight	75 kg
Max. rim diameter	762 mm / 30″
Max. wheel diameter	914 mm / 36″
Width	965 mm
Display	LCD
Wheel data recording	Semi-automatic

SHIPPING SPECS
Packaging length	1100 mm
Packaging width	700 mm
Packaging height	1165 mm
Stackable	2 Pieces
Units per 20ft container	30 Pieces – ask about direct shipment pricing
Units per 40ft container	66 Pieces – ask about direct shipment pricing
