Q.Lign T.41 | w/Q.Grip Clamps

SKU: 1 690 800 002

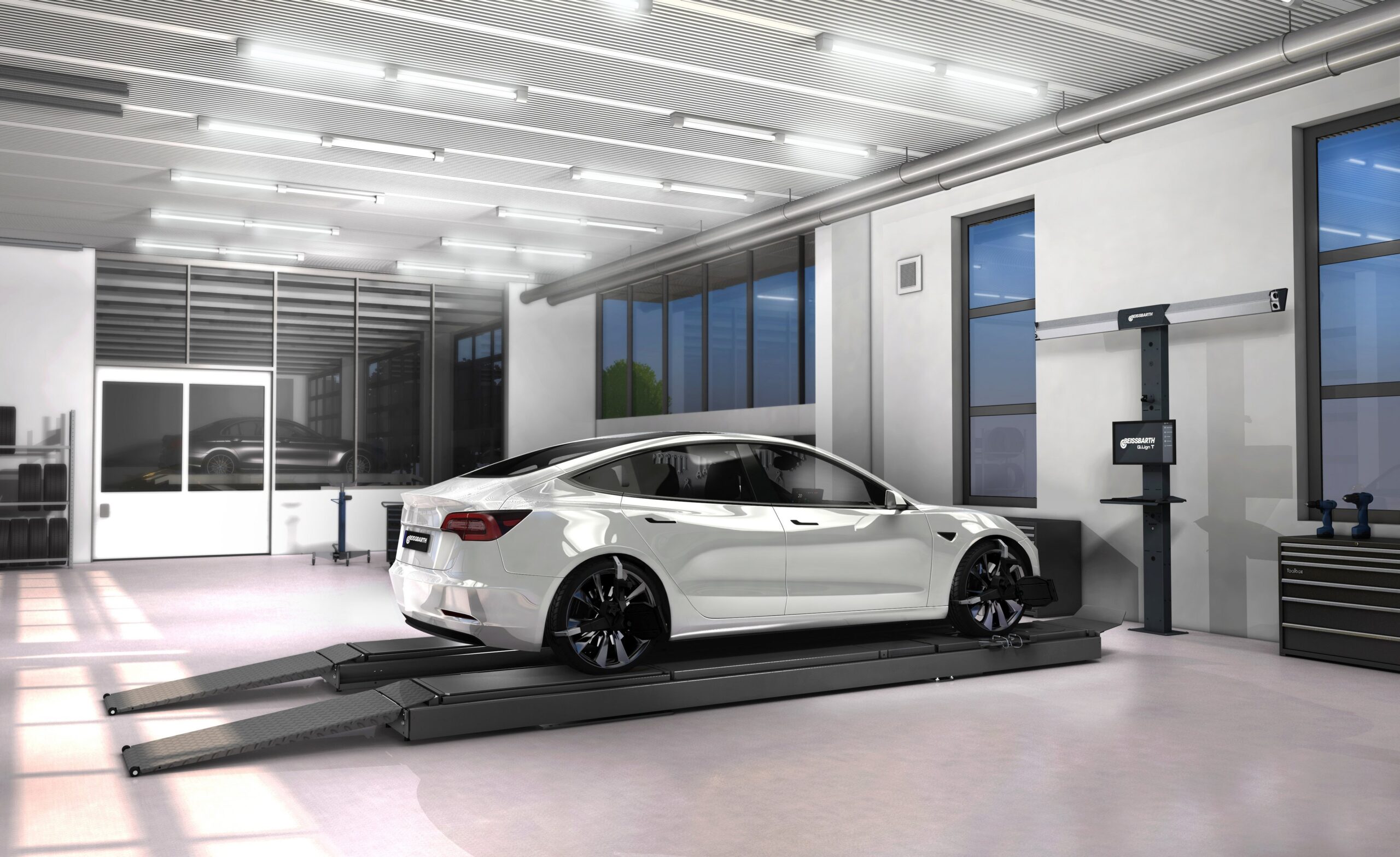

The Q.Lign T.41 is a fixed-position 3D wheel aligner featuring a floor-mounted support column, turnplates, and Q.Grip wheel clamps for precise, high-speed vehicle alignment. With a permanent camera beam, real-time data access, and a fully web-based system, it is the perfect choice for professional wheel alignment specialists seeking maximum accuracy and efficiency.

Fixed 3D Camera Beam
Q.Grip Wheel Clamps
Web-Based Operation
Four Independent Cameras
Active MEMS Technology
27″ Monitor with Wireless Keyboard & Mouse

Here to help

Features

Permanent high-level camera beam at 2.8 meters. No moving parts, eliminating maintenance and reducing risk of damage. Works seamlessly with all wheelbases and platform heights

Web-Based Technology – No PC Required
World’s first web-based wheel aligner
Stream-to-X technology: Display software on TV, PC, laptop, tablet, or smartphone
Uses up to 95% less power than traditional systems

Four-Camera System for Unparalleled Accuracy
Dedicated rear axle camera improves front toe accuracy
All four cameras work independently to ensure flawless alignment results

Q.Grip Clamps – Fast, Secure & Rim-Friendly
Mounts in seconds with no rim contact
No hubcap removal required
Adapts from 21″ to 33″ instantly without twisting
Designed for speed & precision, 5x faster than conventional clamps

Work Smarter, Not Harder
MEMS (Micro-Electromechanical System) Technology ensures constant gravity-based measurement
Runout compensation at any lift height – from ground level to full lift height
Caster sweep at floor level – no stool or ladder required

Seamless Workshop Integration
Instant access to measurement results & reports
Automatic data storage and retrieval
Ideal for high-volume alignment workshops

Materials & Tech

The Q.Lign T.41 features fixed-position, high-precision 3D cameras that provide permanent live measurements without any mechanical adjustments.

Camera Beam with 4 Integrated Cameras
Floor-Mounted Support Column with Tray
Q.Lign Display Module
4 Auto-ID Targets
27” Monitor, Wireless Keyboard & Mouse
Brake Lock & Steering Wheel Lock
Front Turnplates & Filling Pieces
Q.Grip Wheel Clamps (525-835mm Wheel Diameter)
Q.Grip Clamp Storage
Key Card 365 – International Vehicle Specs Database

Optional

Self-Centering Quick Clamps for Luxury Vehicles (Porsche, Tesla, Ferrari, etc.)
Magnetic Clamps for Specialized Vehicles
Mechanical & Electronic Turntables – Standard & Precision Models
Wireless Printer for Reports – 1 693 770 415

Specifications

GENERAL SPECIFICATIONS	Details
Measuring System	3D Alignment with Fixed Beam
Weight	119kg (Net), 170kg (Gross)
Power Supply	90 – 264V \| 1Ph \| 47-63Hz
Sensor Count	4 Sensors (Fixed Beam)
Wheel Base Compatibility	1750mm – 4600mm
Display	27” Monitor + 10” OLED Sensor Screens

MEASUREMENT CAPABILITIES	Supported
Total Toe & Individual Toe (Front/Rear Axle)	Yes
Toe-Out on Turns	Yes
Camber (Front/Rear Axle)	Yes
Caster & SAI (Steering Axis Inclination)	Yes
Set-Back (Front/Rear Axle)	Yes
Thrust Angle & Geometric Center Line	Yes
Ride Height for Modified Vehicles	Yes
Real-Time Vehicle Dimensions & Adjustments	Yes

SPACE REQUIREMENTS	Details
Minimum Height Required	2800mm
Minimum Clearance on Four-Post Lifts	2800mm
Camera to Center of Turntable Distance	1800mm – 3300mm
