Wheel Aligner Easy CCD+ | Kit Version

SKU: 1 690 310 071

The Easy CCD+ Kit Version is a versatile, cost-effective, and space-saving CCD wheel aligner, perfect for existing alignment bays. With wireless CCD sensors, ADAS calibration integration, and rolling runout compensation, this system ensures quick, precise, and professional wheel alignment results.

Perfect for Existing Wheel Alignment Bays
Seamless ADAS Calibration Integration
Wireless CCD Sensors with Battery Power
360° Measurement Field
Rolling Runout Compensation
Compact Charging Pods

Here to help

Features

Ideal for workshops upgrading their alignment technology. Compatible with various lifts & existing bay setups. No need for additional structure modifications

ADAS-Ready for Seamless Calibration
Integrated thrust angle tracking for ADAS calibration
Compatible with headlight testing and calibration jigs
Eliminates the need for extra cameras, cables, or targets

Wireless CCD Sensors for Enhanced Mobility
Battery-powered sensors for a cable-free experience
Wireless data transmission for faster operations
Mount sensors anywhere in the bay for maximum efficiency

360° Self-Adjusting Measurement System
Automatic calibration compensates for movement & vibrations
No fixed sensor positions for added flexibility
Maintains ±2-minute precision in all conditions

Rolling Runout Compensation
No need to lift vehicles for pre-alignment checks
Saves time and improves alignment accuracy
Efficiently handles all vehicle types, from sedans to commercial fleets

Compact Charging Pods for Space Efficiency
Wall-mounted charging pods save workshop space
Keeps sensors powered and ready for use
Organized, clutter-free sensor storage

Materials & Tech

Utilizing high-precision CCD sensors, the Easy CCD+ Kit Version delivers professional-grade alignment results while integrating seamlessly with ADAS systems and headlight calibration equipment.

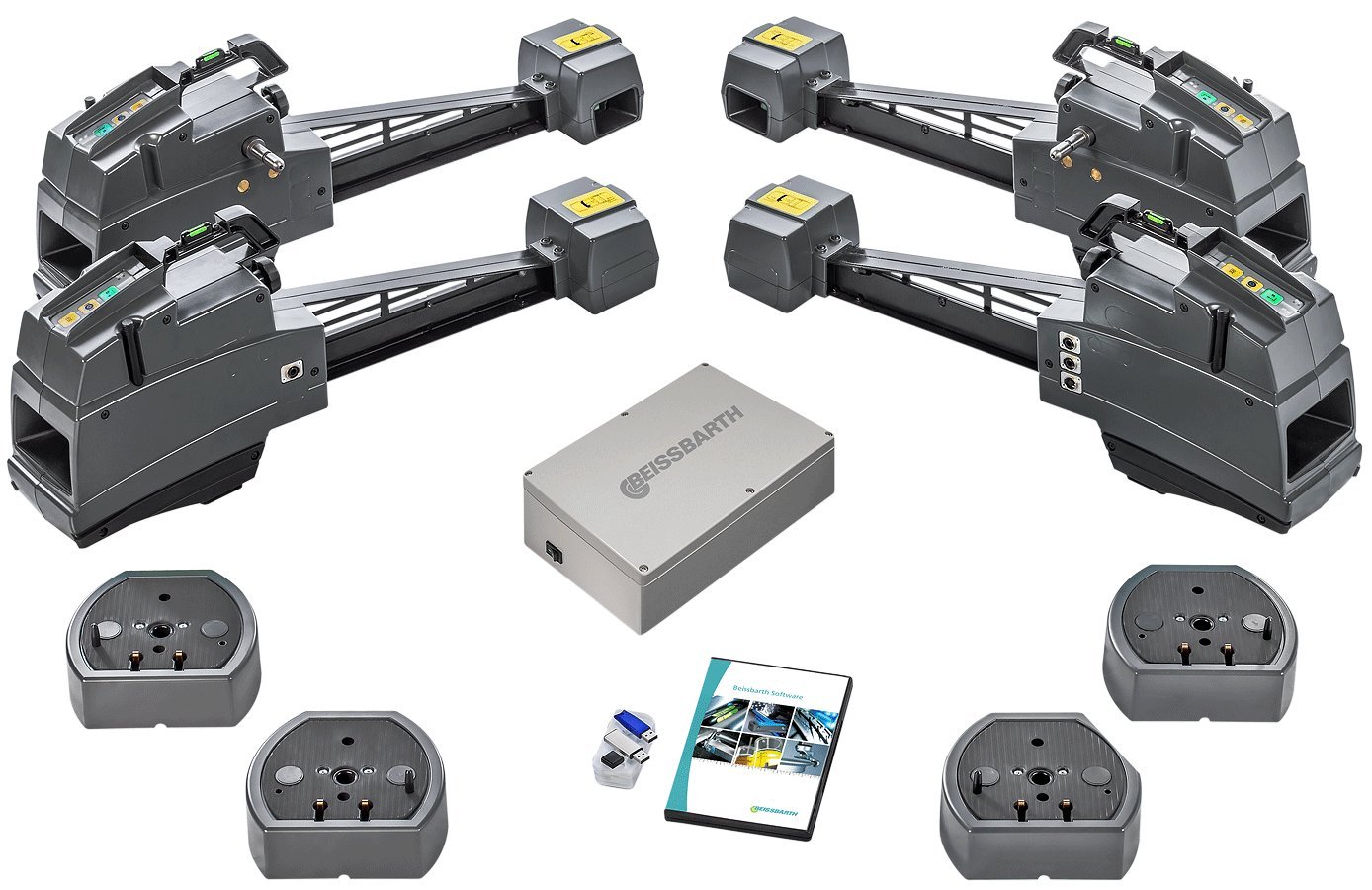

Sensor Heads with Encoder & Battery Power
SmartTest & ADAS Calibration Software
Pre-Installed Beissbarth Vehicle Specs Database
Compact Charging Pods

Optional

Turntables for Enhanced Accuracy
Magnetic Wheel Clamps for Quick Setup
ADAS Calibration Target Boards & Alignment Tools
Sliding Plates & Wheel Chocks for Additional Stability

Specifications

GENERAL SPECIFICATIONS	Details
Measuring System	CCD-Based Wheel Alignment
Data Transmission	Wireless
Power Supply	Battery-Powered Sensors
Operating Temperature	5°C to 40°C
Storage Temperature	-20°C to 60°C

DIMENSIONS & WEIGHT	Details
Packaging Size	850mm x 550mm x 820mm
Net Weight	27kg
Gross Weight	42kg

MEASUREMENT CAPABILITIES	Supported
Total Toe & Individual Toe (Front/Rear Axle)	Yes
Toe-Out on Turns	Yes
Camber (Front/Rear Axle)	Yes
Caster & SAI (Steering Axis Inclination)	Yes
Set-Back (Front/Rear Axle)	Yes
Thrust Angle & Geometric Center Line	Yes
ADAS Calibration Compatibility	Yes

Brand Spotlight

Beissbarth

Precision testing and diagnostics from a brand with over 120 years of workshop innovation—trusted by OEMs and independent professionals alike.

Beissbarth sets the benchmark in advanced automotive testing and service equipment, delivering premium solutions for wheel alignment, ADAS calibration, brake testing, and tyre diagnostics. With deep-rooted partnerships across global car manufacturers and independent workshops, Beissbarth products are engineered for accuracy, efficiency, and seamless workshop integration. Through Genesis Equipment, you gain access to Beissbarth’s cutting-edge technology and OEM-approved systems—designed to future-proof your workshop operations and keep you ahead of industry standards.

Other Beissbarth Products

Beissbarth

Truck Tyre Changer 1,200kg TC850 HD

— Wheel and Tyre Equipment

Beissbarth

Q.Lign | Excellence – Web-Based 3D Wheel Aligner

— Wheel and Tyre Equipment

Beissbarth

Q.Lign | Compact Air – Web-Based 3D Wheel Aligner

— Wheel and Tyre Equipment

Beissbarth

Q.Lign – Web-Based 3D Wheel Aligner with Q.Grips

— Wheel and Tyre Equipment

Beissbarth

Tyre Changer TC47L Extra Tool Pro3 | WDK

— Wheel and Tyre Equipment

Beissbarth

Tyre Changer TC47L Pro2 | WDK

— Wheel and Tyre Equipment

Beissbarth

Premium Bead Breaker Tyre Changer TC45 Pro2 | WDK

— Wheel and Tyre Equipment

Beissbarth

WDK High Volume Tyre Changer TC45 Pro | WDK

— Wheel and Tyre Equipment

Beissbarth

Premium Jaw Inflation Tyre Changer TC45 | TI Version/400V

— Wheel and Tyre Equipment

Product Uses

What some of our customers have used it for:

Perfect for:

Workshops Looking to Upgrade Existing Alignment Bays
ADAS Calibration & Headlight Testing Facilities
Independent Repair & Alignment Shops
Commercial Fleet Maintenance Centers
OEM & Dealer-Approved Service Centers

Resources

Downloads

BrochurePDF

Enquire
