10AP | 2-Post Hoist

SKU: 5175304

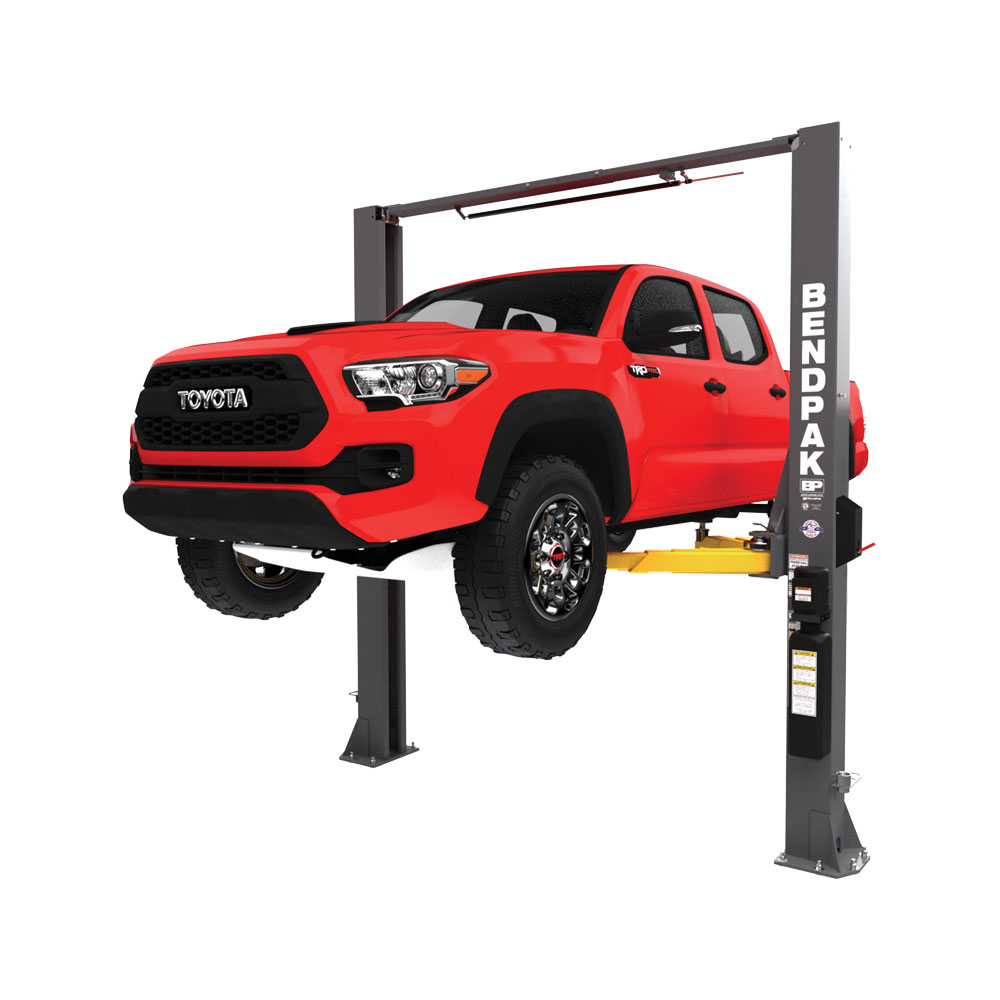

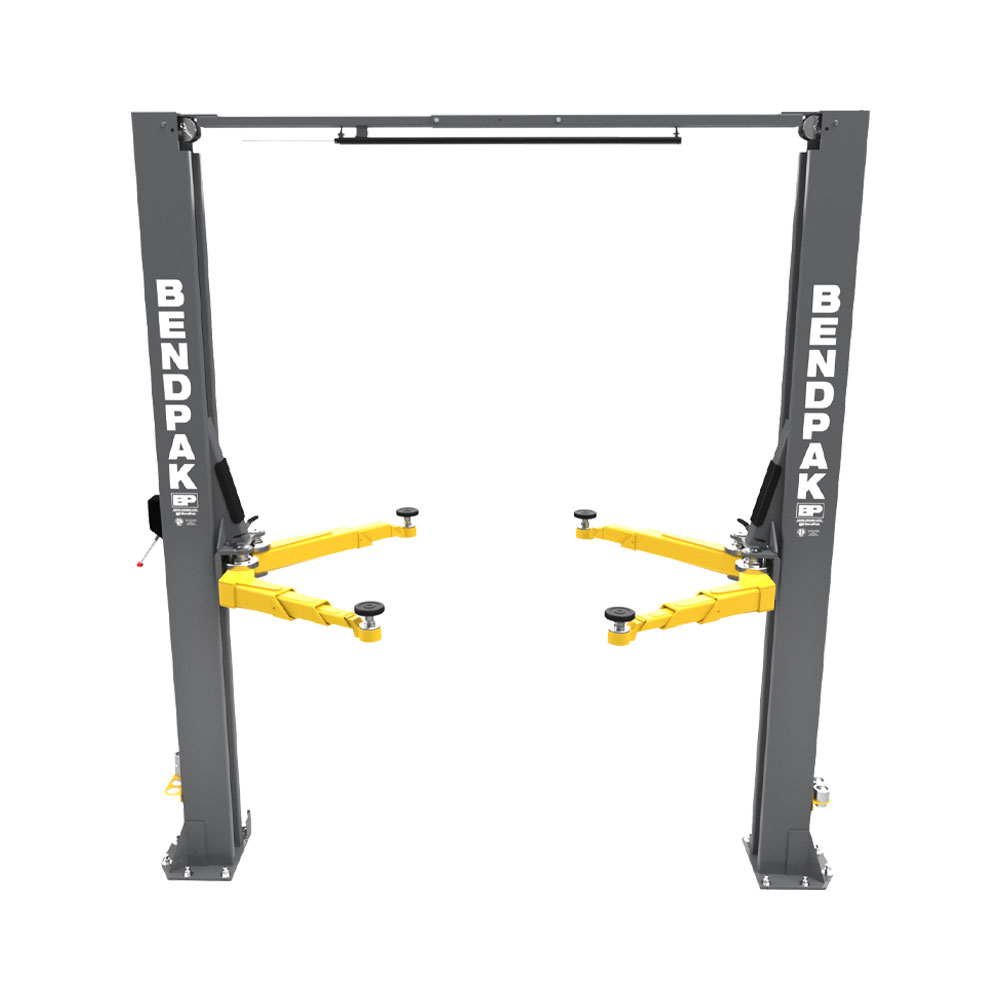

The BendPak 10AP is a revolutionary two-post lift designed for durability, safety, and adaptability. With a 10,000-lb lifting capacity, adjustable clear floor design, and patented features like automatic arm restraints and triple-telescoping swing arms, it’s the ultimate solution for servicing vehicles of all shapes and sizes.

  • 10,000-lb Lifting Capacity
  • Adjustable Clearfloor Design
  • Automatic Arm Restraints
  • Triple-Telescoping Swing Arms
  • Low-Profile Arm Versatility

Features

The BendPak 10AP combines cutting-edge engineering with unmatched versatility to meet the demands of modern auto service. Packed with innovative features like adjustable clear floor design, triple-telescoping arms, and advanced safety systems, this lift delivers exceptional performance, reliability, and ease of use for professionals and enthusiasts alike.

10,000-lb Lifting Capacity
Built to handle heavy-duty tasks, the 10AP offers a robust 10,000-lb lifting capacity, making it perfect for servicing a wide range of vehicles.

Adjustable Clearfloor Design
The adaptable clearfloor design allows for both wide and narrow installations, ensuring flexibility to fit your workspace needs.

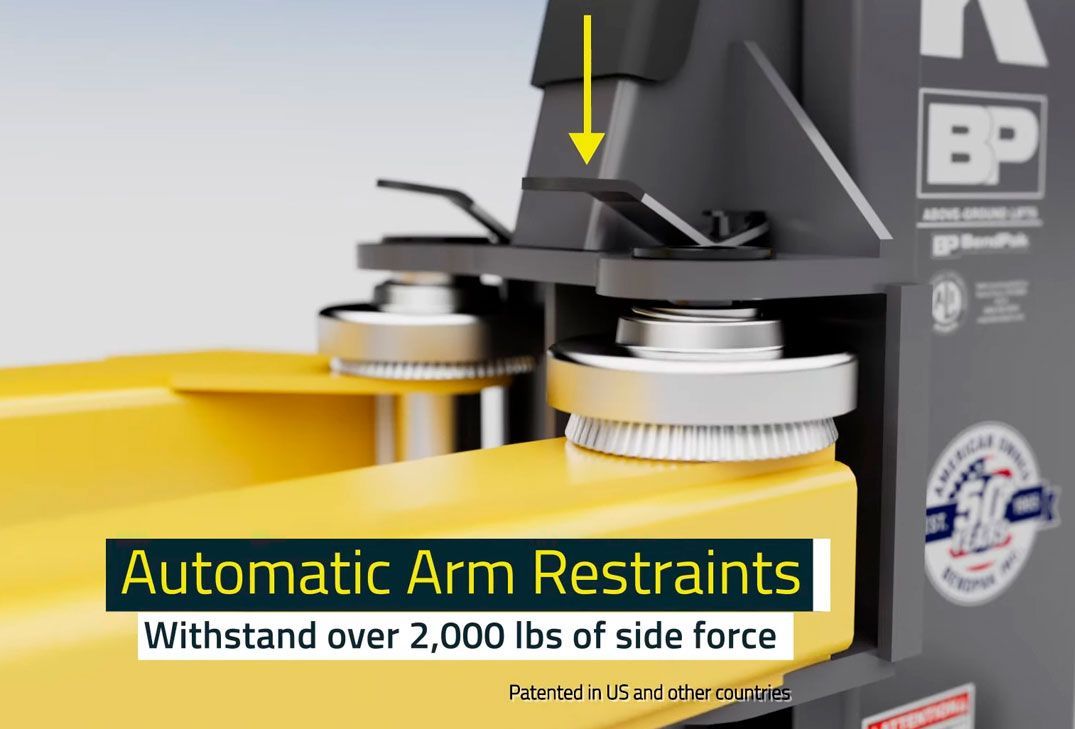

Automatic Arm Restraints
Patented Automatic Swing Arm Restraint System (ASARS) locks arms securely in place with over 2,000 lbs of holding force, providing unmatched safety and stability.

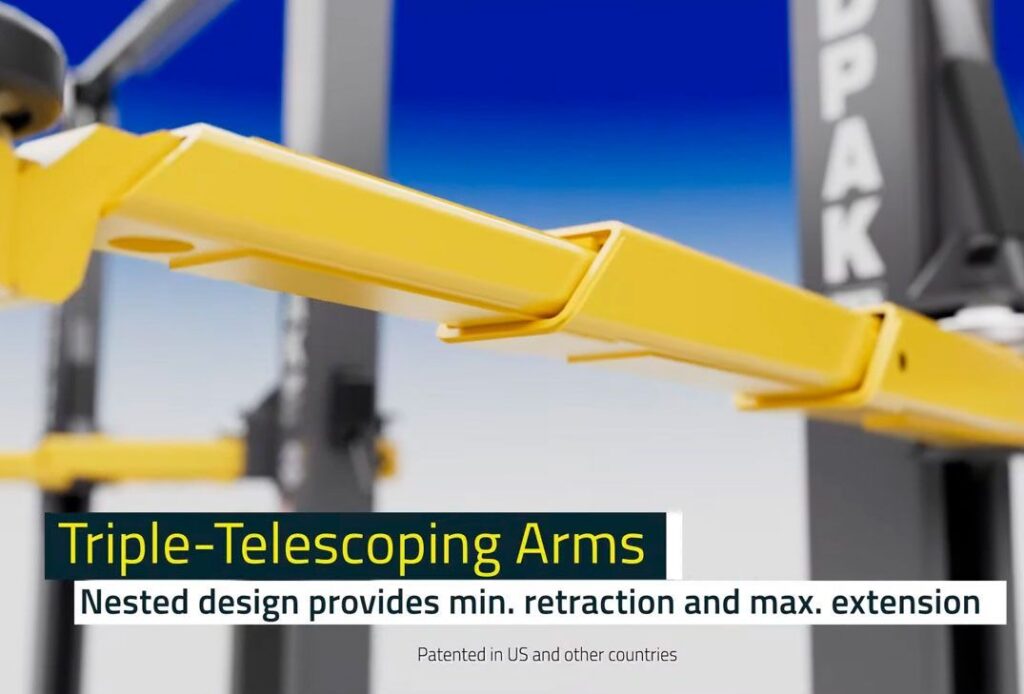

Triple-Telescoping Swing Arms
Revolutionary triple-telescoping arms retract and extend farther than traditional designs, offering maximum versatility for lifting various vehicle types.

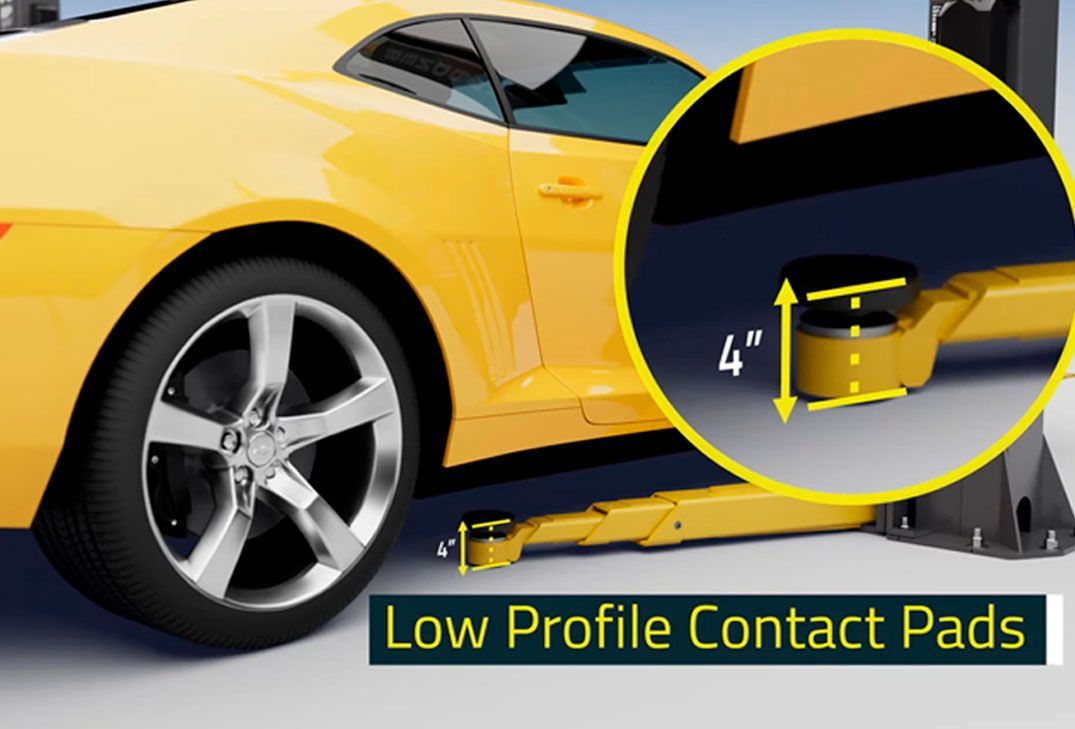

Low-Profile Arm Versatility
Low-Pro™ swing arms ensure easy access to low-clearance vehicles, reducing the risk of damage to side skirts, running boards, and ground effects.

Advanced Safety Lock System
The automatic safety lock system engages during every lift, while a single-point release makes lowering vehicles effortless and efficient.

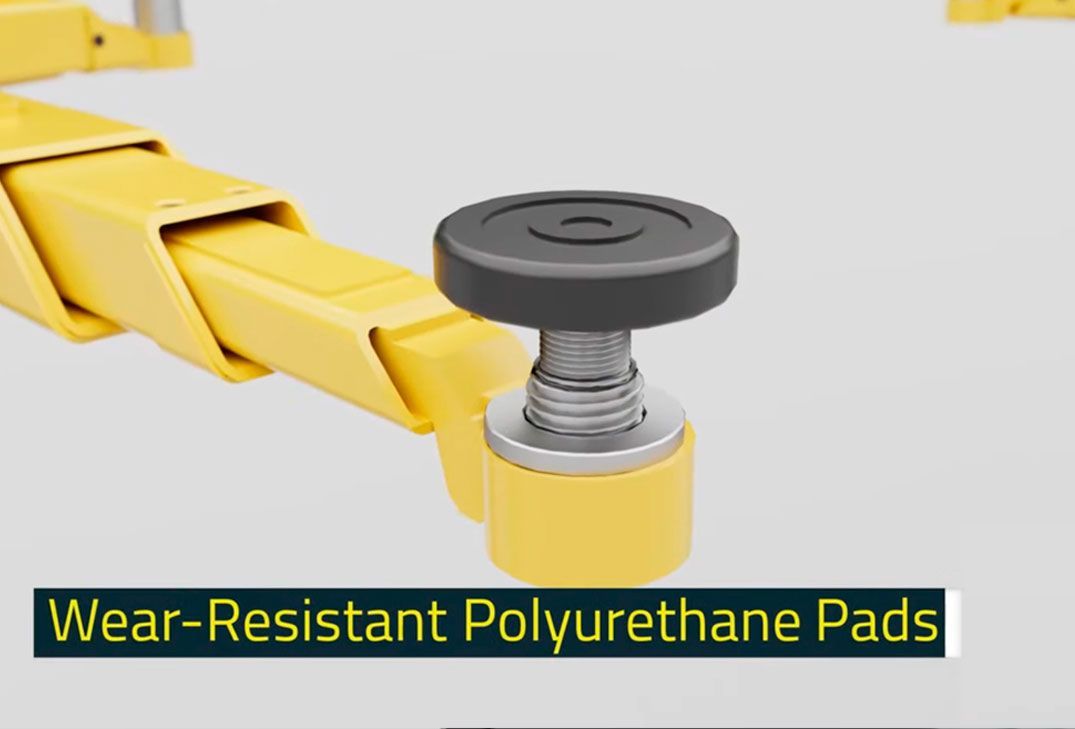

Screw Pads and Adapter Options
Double-telescoping screw pads with durable polyurethane ensure secure and precise vehicle engagement, with optional stackable adapters for added versatility.

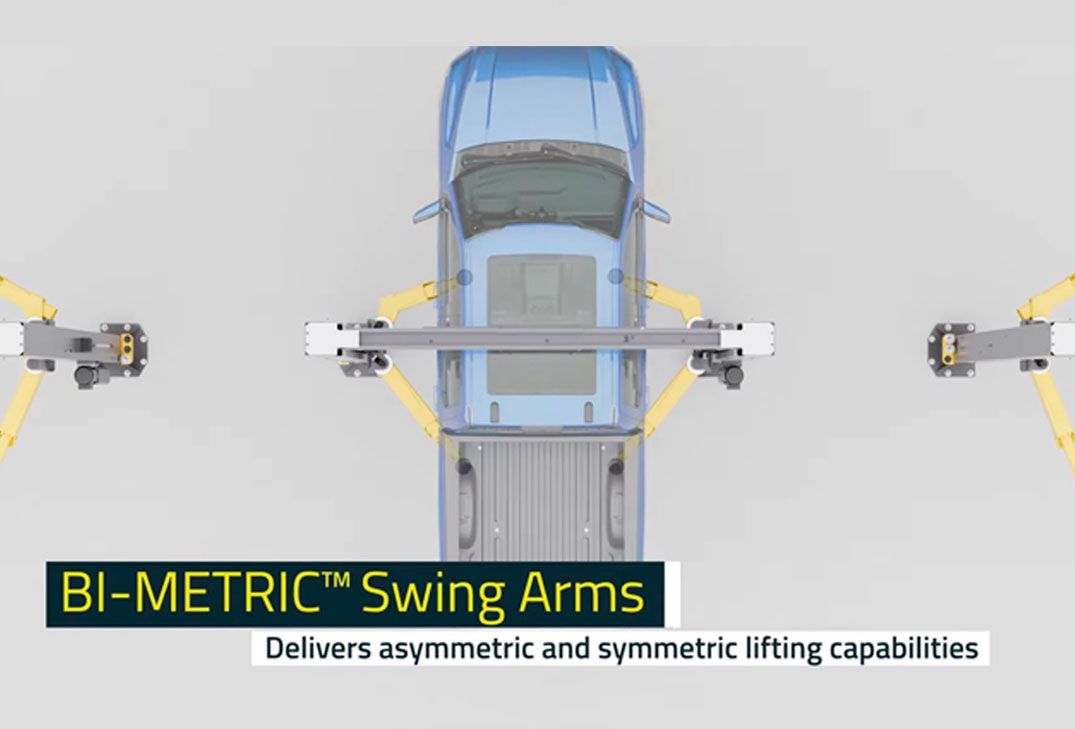

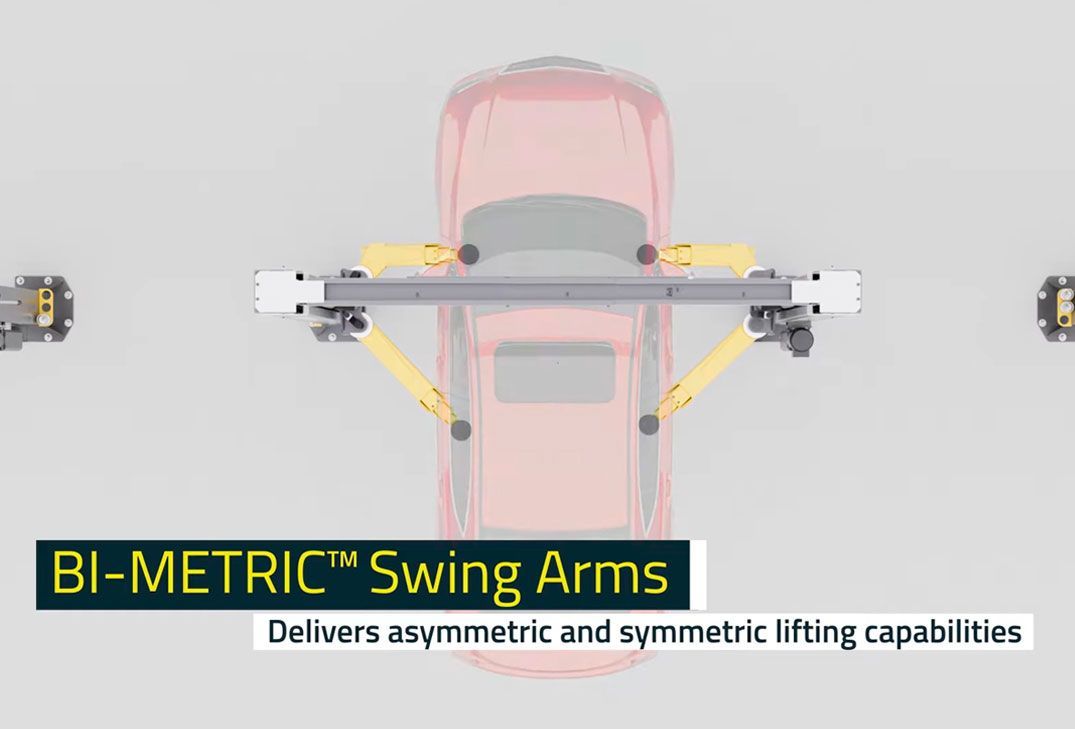

Bi-Metric™ Swing Arm Design
Switch effortlessly between symmetric and asymmetric configurations to accommodate various vehicle types without swapping out arms.

Durable Construction
Built with oversized carriages, high-strength equalizing cables, and a powder-coated finish, the 10AP is engineered for long-lasting performance and reliability

Materials & Tech

Crafted with industrial-grade materials and cutting-edge technology, the BendPak 10AP delivers unmatched strength, reliability, and precision for demanding vehicle service tasks.
  • Adjustable clear floor design
  • Dual hydraulic direct-drive cylinders
  • Automatic safety lock system
  • Bi-Metric™ swing arms for symmetric/asymmetric use
  • Double-telescoping screw pads with polyurethane covers
  • Low-Pro™ swing arms for low-clearance vehicles
  • Expandable top beam for flexible installation

COMES WITH

  • Overhead Safety Shutoff Bar: Prevents lift operation in case of clearance issues.
  • Self-Lubricating Bearing System: Reduces wear and maintenance needs.
  • Single-Point Safety Release: Effortless unlocking of safety locks during descent.
  • High-Strength Equalizing Cable: Reduces cable fatigue for longer operational life.

OPTIONAL

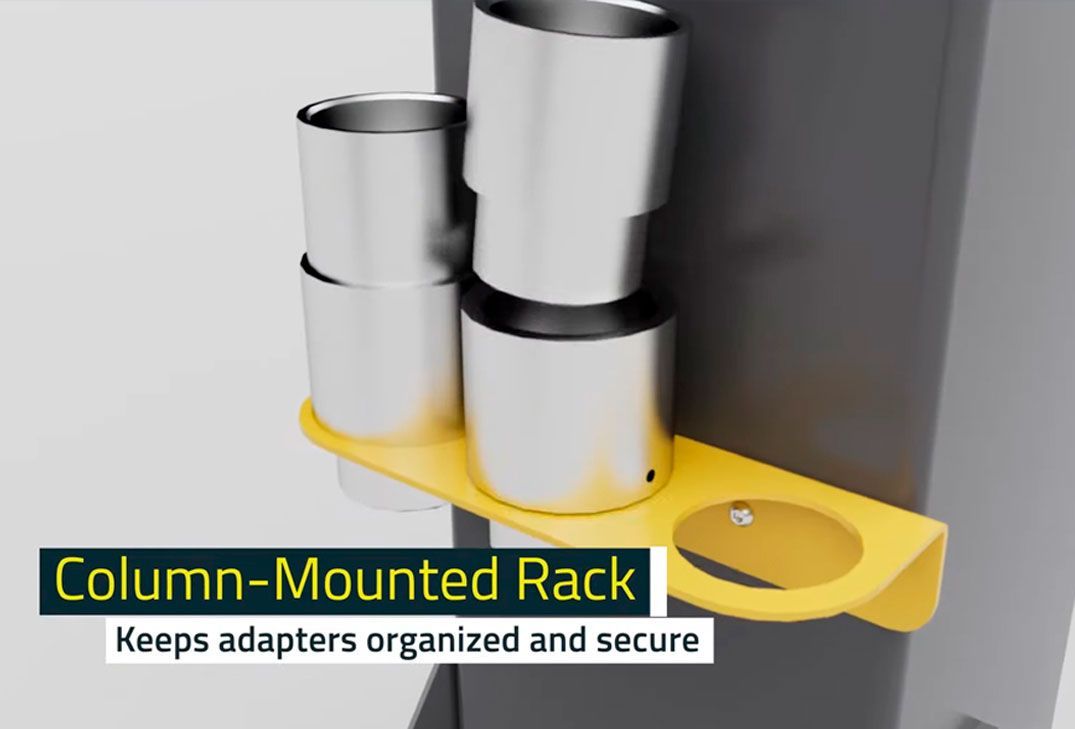

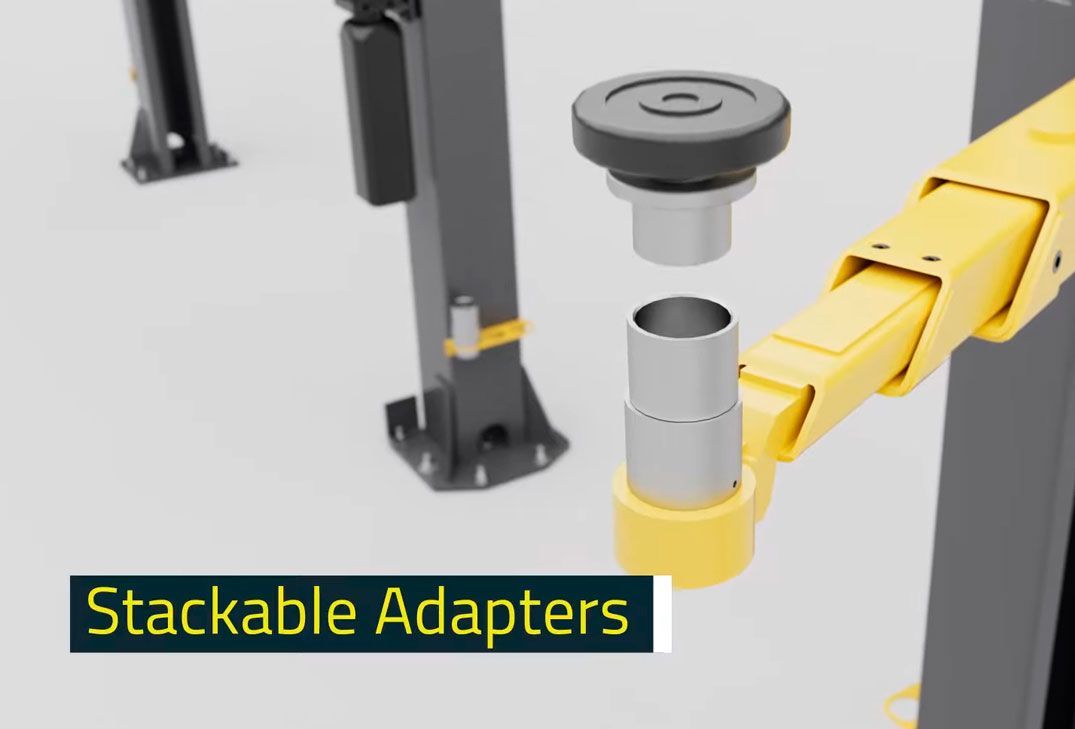

  • Stackable Screw Pad Adapters: Available in 2.5” and 5” heights for precise vertical positioning.
  • Extended Arm Reach Kits: Enhance versatility for servicing larger vehicles.
  • Customisable Installation Kits: Choose configurations for wide or narrow workspace setups.

Specifications

CAPACITY lbs kgs
Lifting Capacity 10,000 lbs 4,536 kg
RISE inches mm
A. Rise 69” 1,753 mm
B. Rise + Pad 72.25” 1,835 mm
D. Min Height + Pad 4” 102 mm
45 Seconds to Full Rise
OUTSIDE DIMENSIONS inches mm
E. Height Overall 145″ 3,683 mm
F. Width Overall 135″ or 145″ 3,429 mm or 3,683 mm
G. Outside Columns 127″ or 137″ 3,226 mm or 3,480 mm
INSIDE DIMENSIONS inches mm
H. Inside Columns 108.25″ or 118.25″ 2,750 mm or 3,004 mm
I. Drive-Thru Clearance 92″ or 102″ 2,337 mm or 2,591 mm
J. Floor to Overhead Switch 139.25″ 3,537 mm
ARMS & PADS inches mm
K. Front Arm Reach (MIN) 24.5″ 622 mm
K. Front Arm Reach (MAX) 50″ 1,270 mm
L. Rear Arm Reach (MIN) 32″ 812 mm
L. Rear Arm Reach (MAX) 59.25″ 1,504 mm
MAX LOAD PER ARM lbs kgs
Max Load Per Arm 2,500 lbs 1,134 kg
NOISE
Noise <70 dB
SHIPPING Dimensions
Shipping Dimensions 150″ x 24″ x 28″ (3810 mm x 610 mm x 711 mm)
Weight 1729.00kg
Brand Spotlight

BendPak

For decades, BendPak has set the gold standard in hoisting technology, trusted by automotive repair workshops, motor dealerships, and heavy vehicle operators alike.

Renowned for its unmatched quality and durability, BendPak delivers solutions built to withstand the demands of high-volume operations. With our exclusive partnership, Genesis Equipment ensures that your business benefits from the latest innovations and superior performance. When you choose BendPak through Genesis, you’re choosing a brand that professionals trust worldwide to maximize safety, efficiency, and value.
