SKU: 5215911

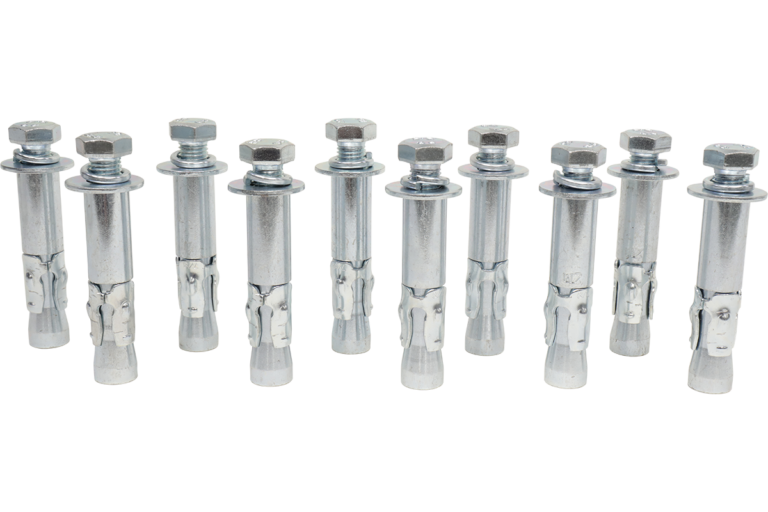

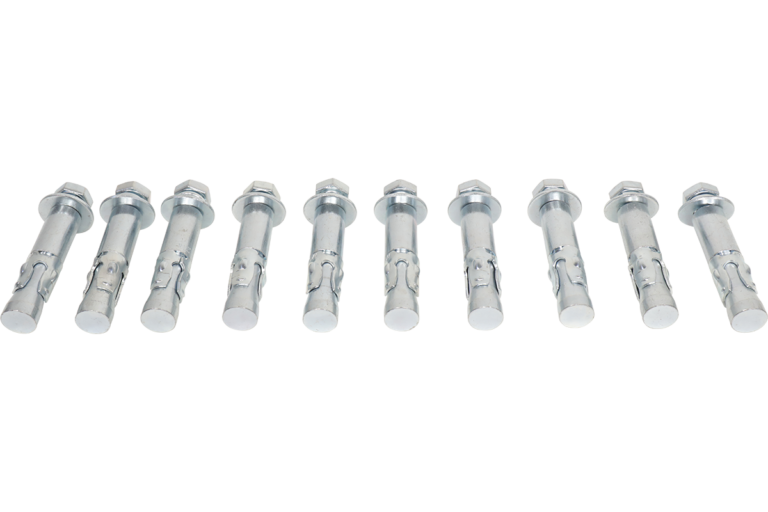

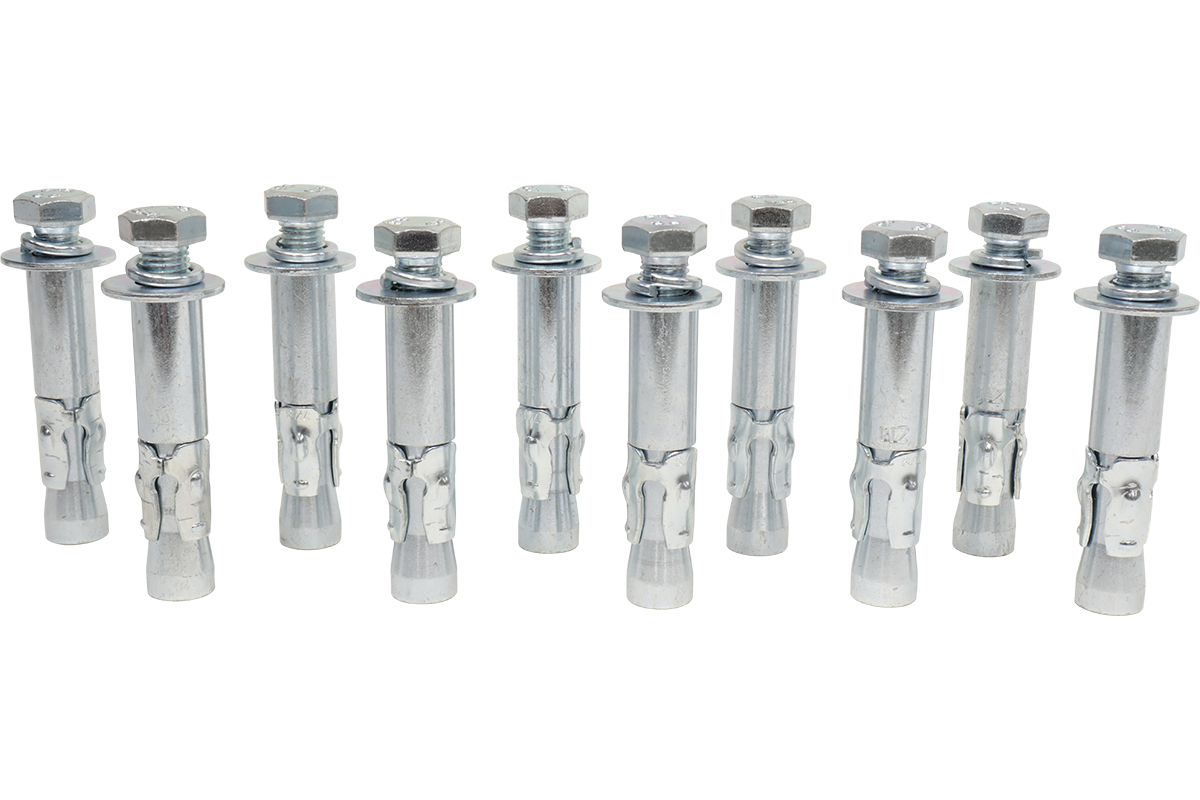

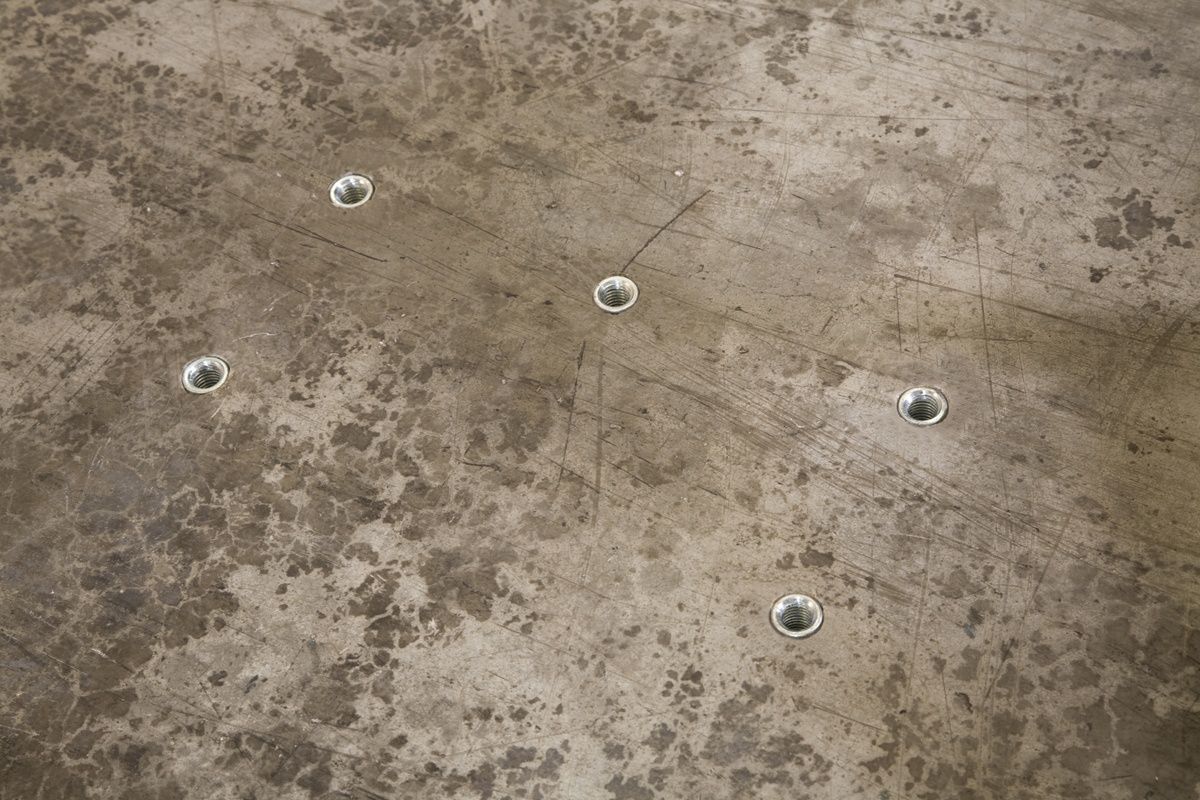

The MaxJax Anchor Bolt Kit allows you to securely set up your MaxJax portable car lift in multiple locations, enhancing versatility and mobility in your garage or workshop.
Anchor Bolt Kit
Features
High-Tensile Strength
Each anchor offers an ultimate tensile strength of 16,500 lbs. in 4,000-psi concrete, ensuring robust and reliable setups.
Durable Construction
Crafted from zinc-plated carbon steel for enhanced durability and corrosion resistance.
Secure Anchoring System

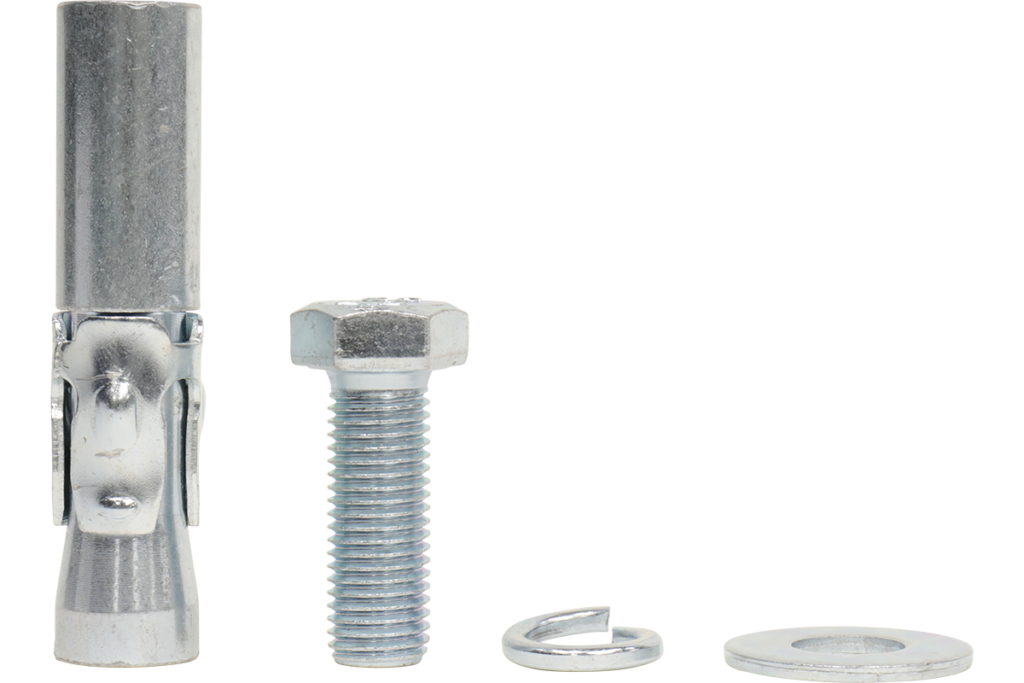

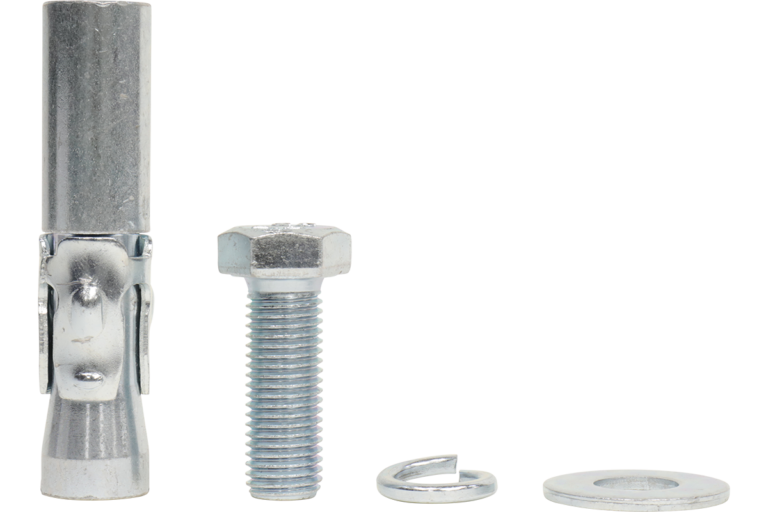

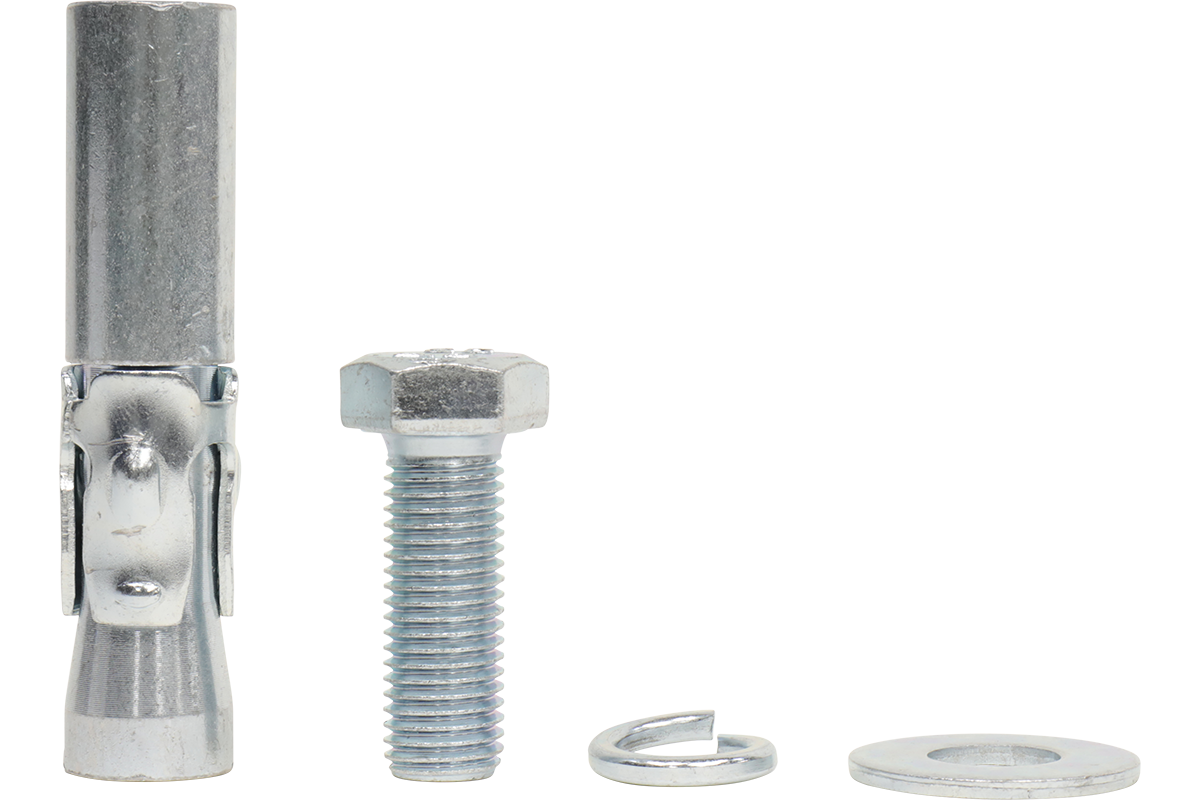

Features a wedge clip mechanism that expands to create a secure hold in concrete.
Upgrade Options
Optional Epoxy Anchor Bolt Kit available for added security and strength.
Universal Compatibility
Designed specifically for MaxJax portable car lifts to enhance mobility and versatility.
Materials & Tech

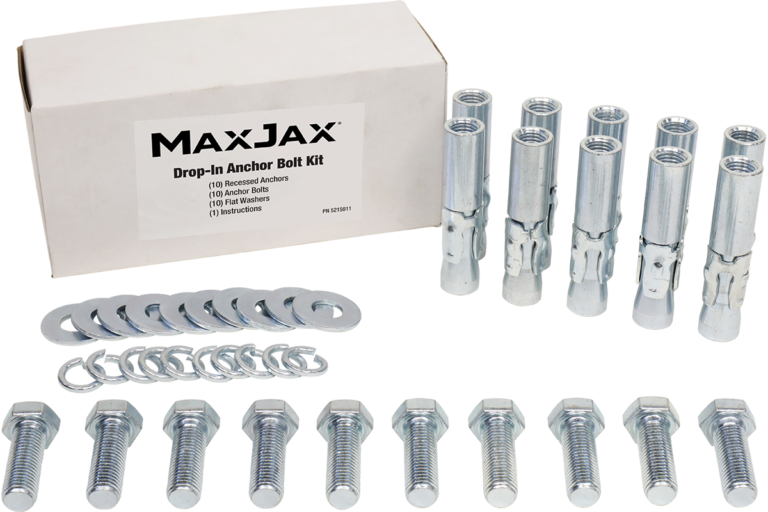

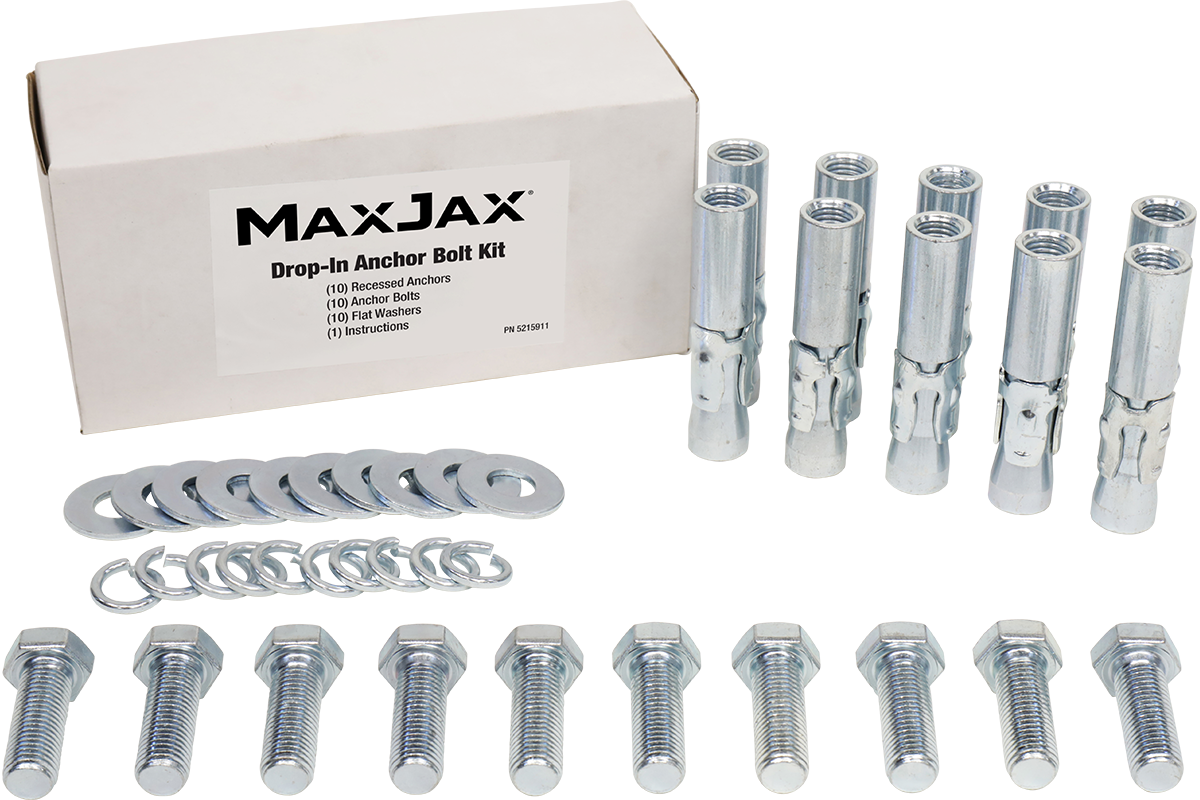

Comes with
Optional
| Drill Size | ||
|---|---|---|
| Drill Size | 7/8″ | |
| Hole Dimensions | Imperial | Metric |
|---|---|---|
| Min. Hole Depth | 5″ | – |
| Diameter | 7/8″ | – |
| Inside Diameter | 5/8″ | – |
| Length | Imperial | Metric |
|---|---|---|
| Length | 5.75″ | – |
| Strength | Imperial | Metric |
|---|---|---|
| Tensile Strength | 16,500 lbs | 7,484 kg |
| Material & Finish | ||
|---|---|---|
| Exterior Finish | Zinc Plated | |
| Material | Carbon Steel | |
| Shipping | ||
|---|---|---|
| Shipping Weight | 15 lbs | 7 kg |
