SKU: 5176018
Introductory pre-order offer: buy now for $3,998 inc GST (pre-order) and save $1,000 on the $4,998 price on arrival — stock arriving early October 2026. Prices include GST. Excludes shipping.

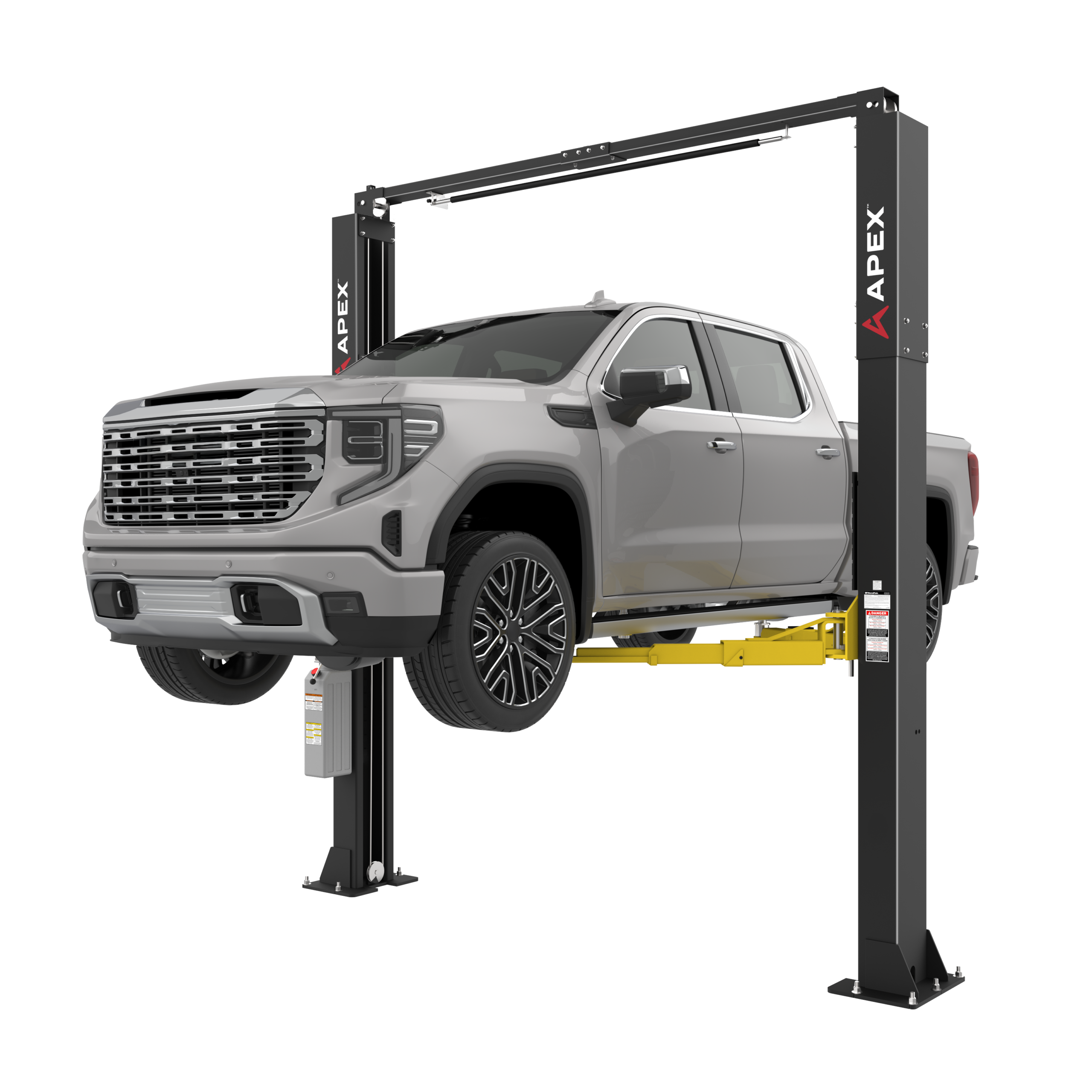

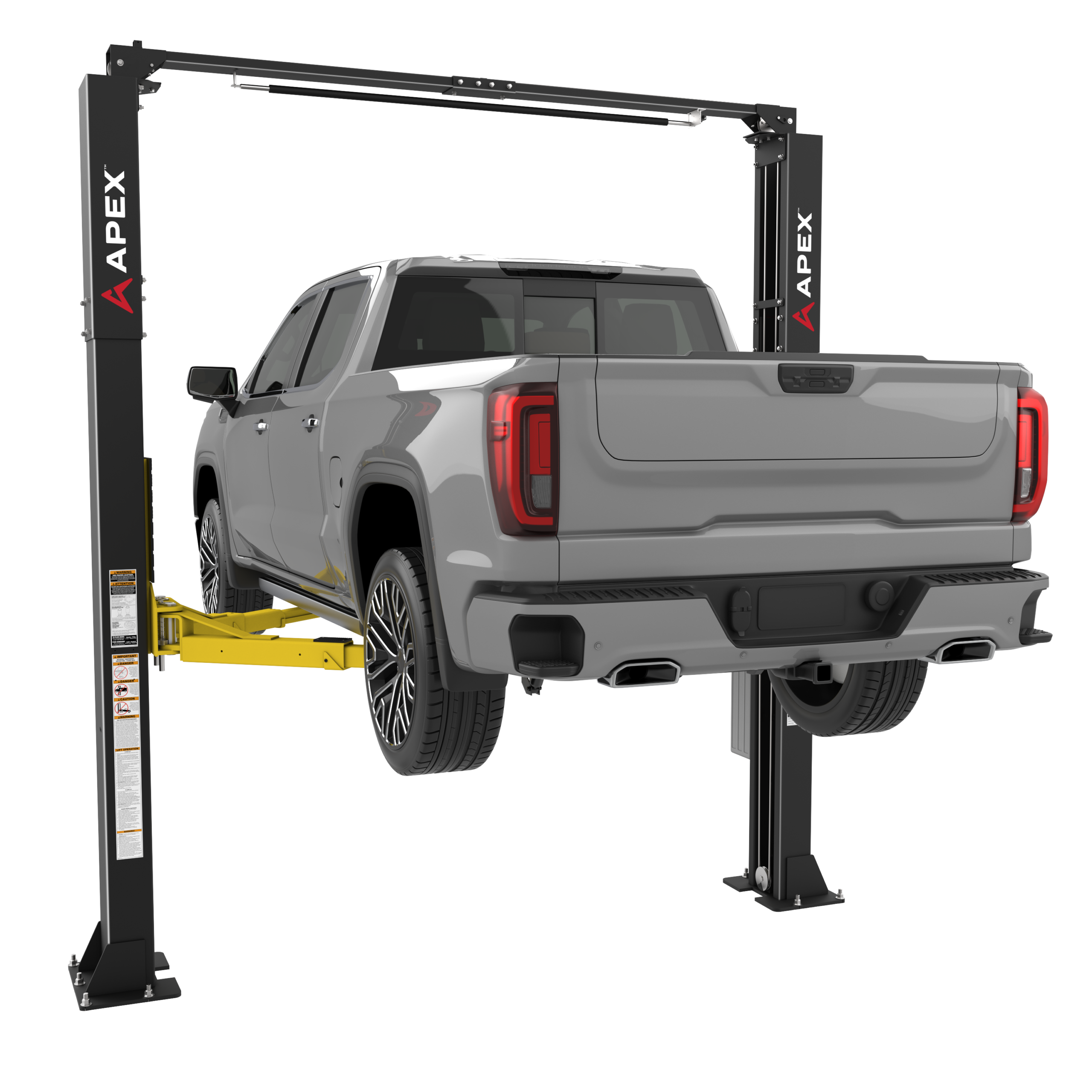

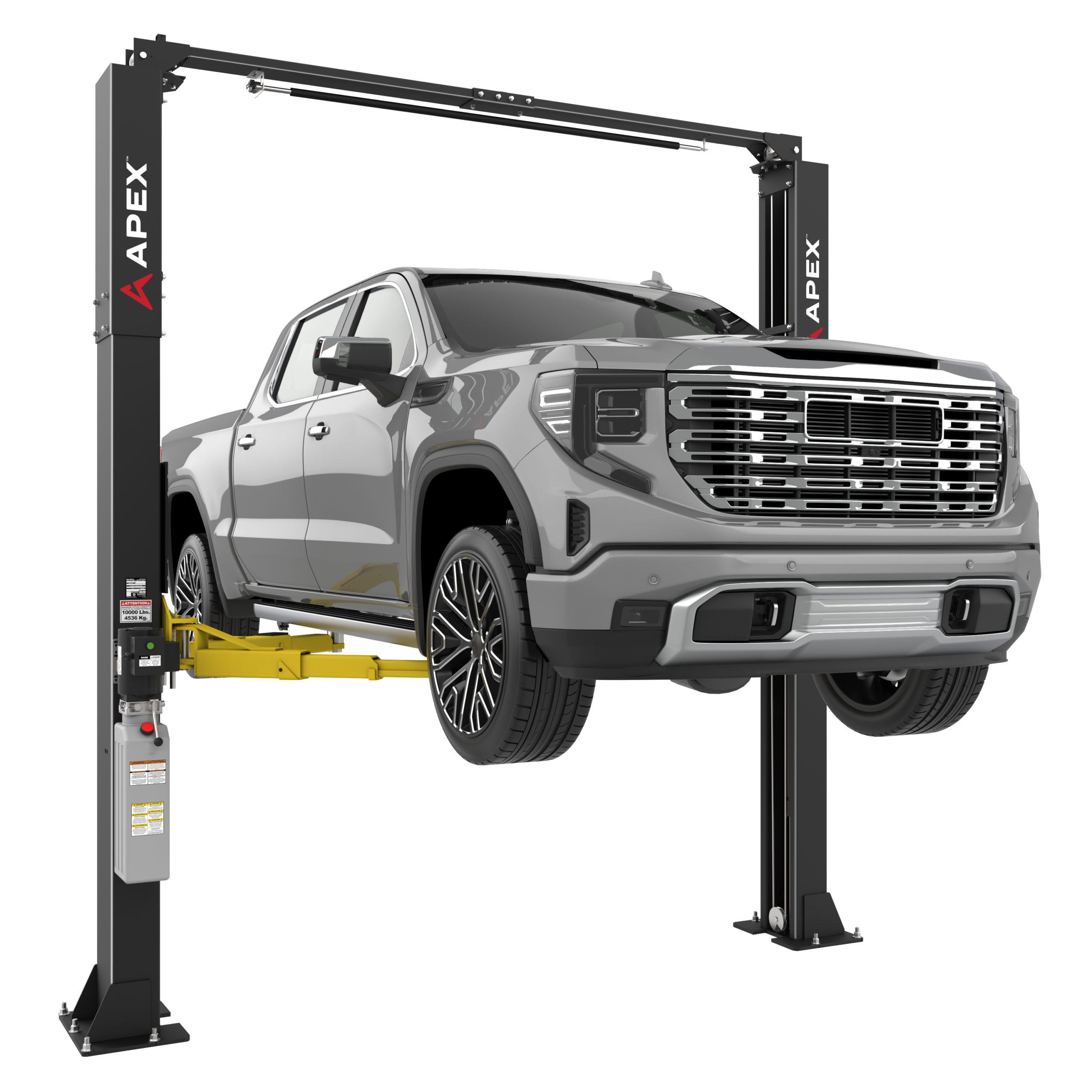

The Apex AL10CS is a two-post clearfloor hoist built for the home workshop that takes its cars seriously. With 4,536 kg of lifting capacity and a clean, unobstructed floor between the columns, it brings commercial-grade engineering into a domestic shed — purpose-built and certified for Australian conditions.

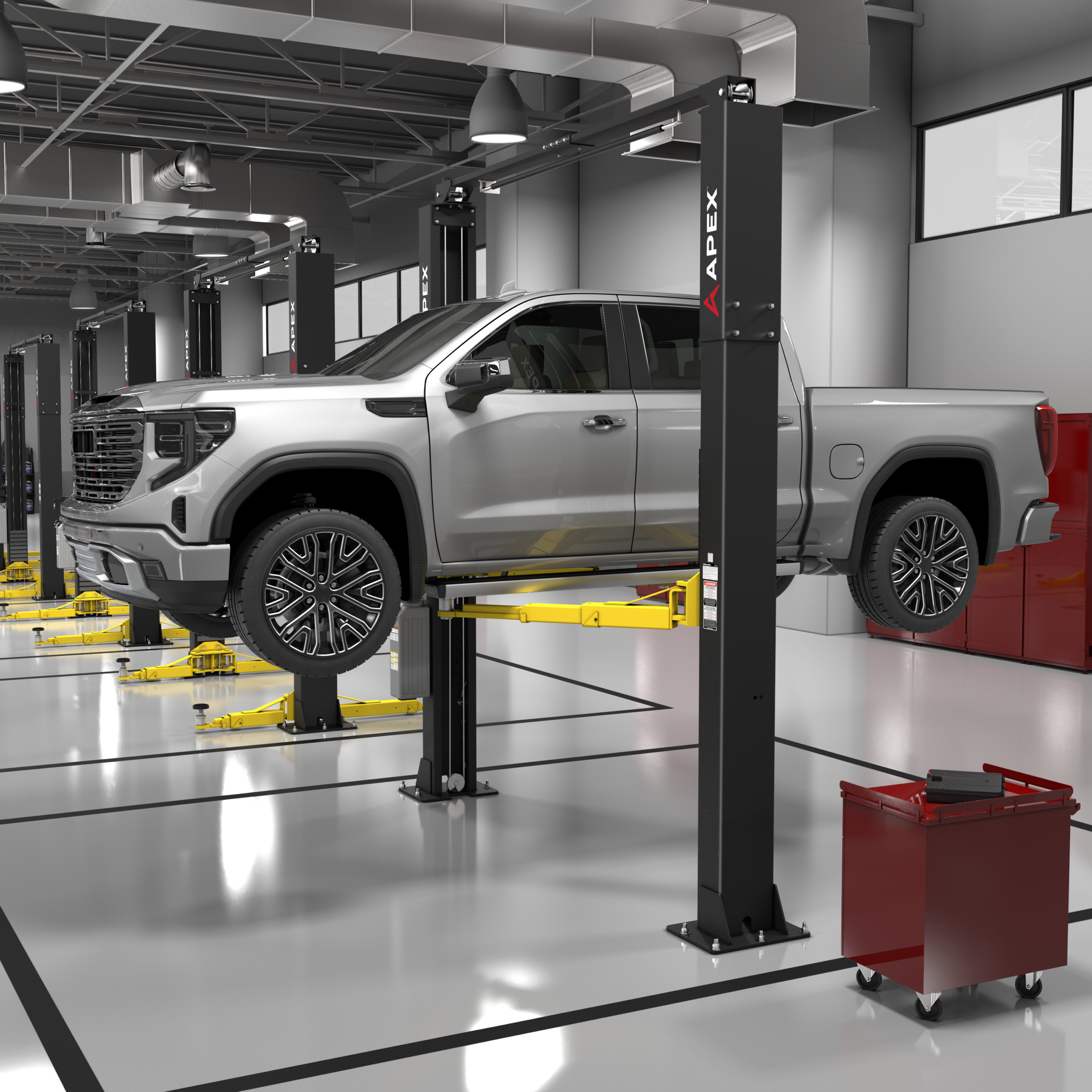

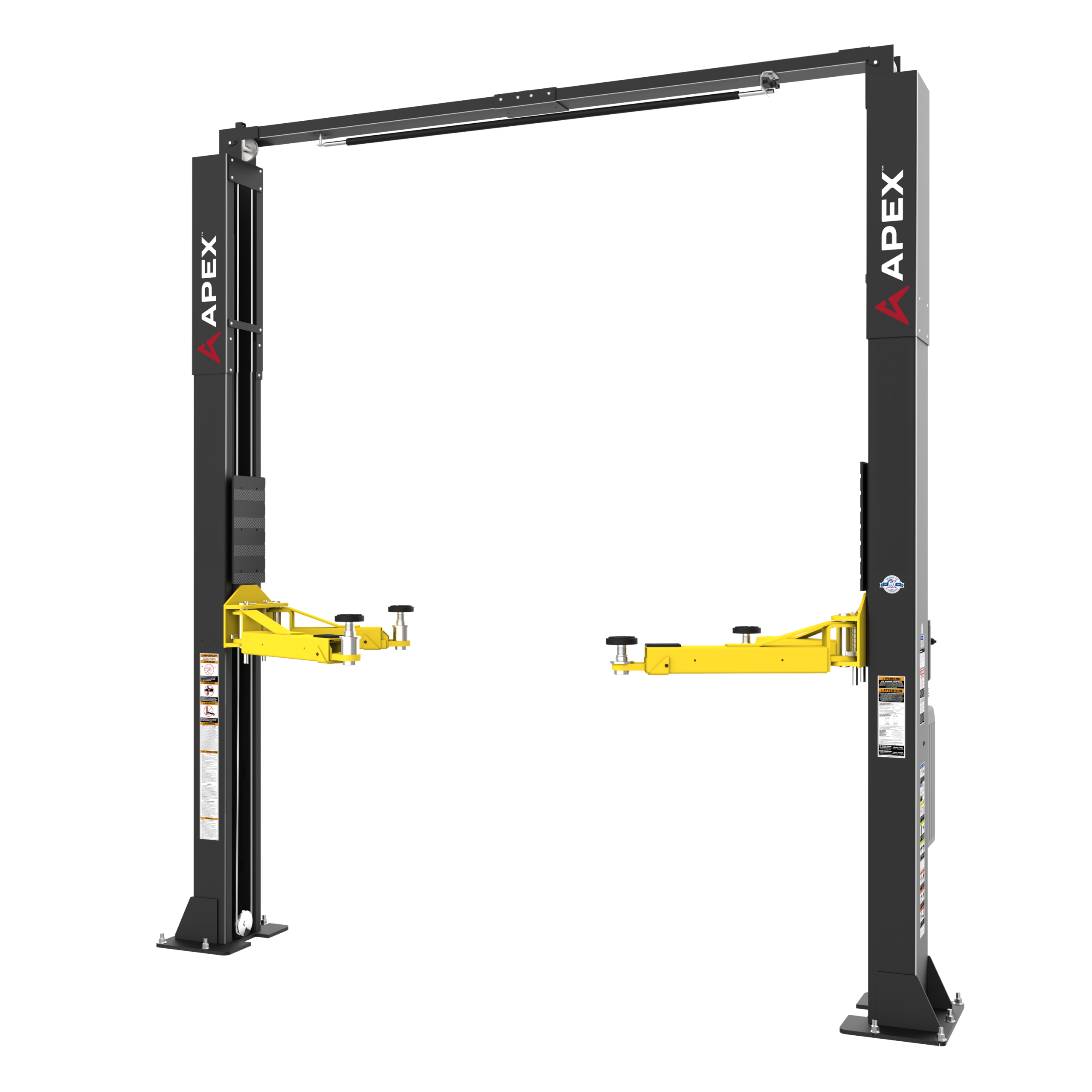

The overhead box-beam design keeps the floor completely clear, so there’s nothing to drive around or trip over. At 3,759 mm overall height it’s ideally suited to a high-clearance double shed with around 4 m of ceiling, and symmetric and asymmetric arm positioning handles everything from a weekend project car to the daily driver.
If the overhead clearance doesn’t suit your shed, talk to us — we’ll help you choose the right hoist for your space.
Apex AL10CS 2-Post Hoist
Features
Built for Australia
| Lifting capacity | 4,536 kg |
| Max. capacity / front axle | 2,268 kg |
| Max. capacity / rear axle | 2,268 kg |
| Max. load per arm | 1,134 kg |
| Height overall | 3,759 mm |
| Width overall (at baseplate) | 3,492 mm |
| Width outside of columns | 3,264 mm |
| Width inside columns | 2,908 mm |
| Floor to overhead switch bar | 3,619 mm |
| Rise | 1,778 mm |
| Max. lift height (pad + 63 mm adapter) | 1,943–1,994 mm |
| Drive-thru clearance | 2,618 mm |
| Min. pad height | 100 mm |

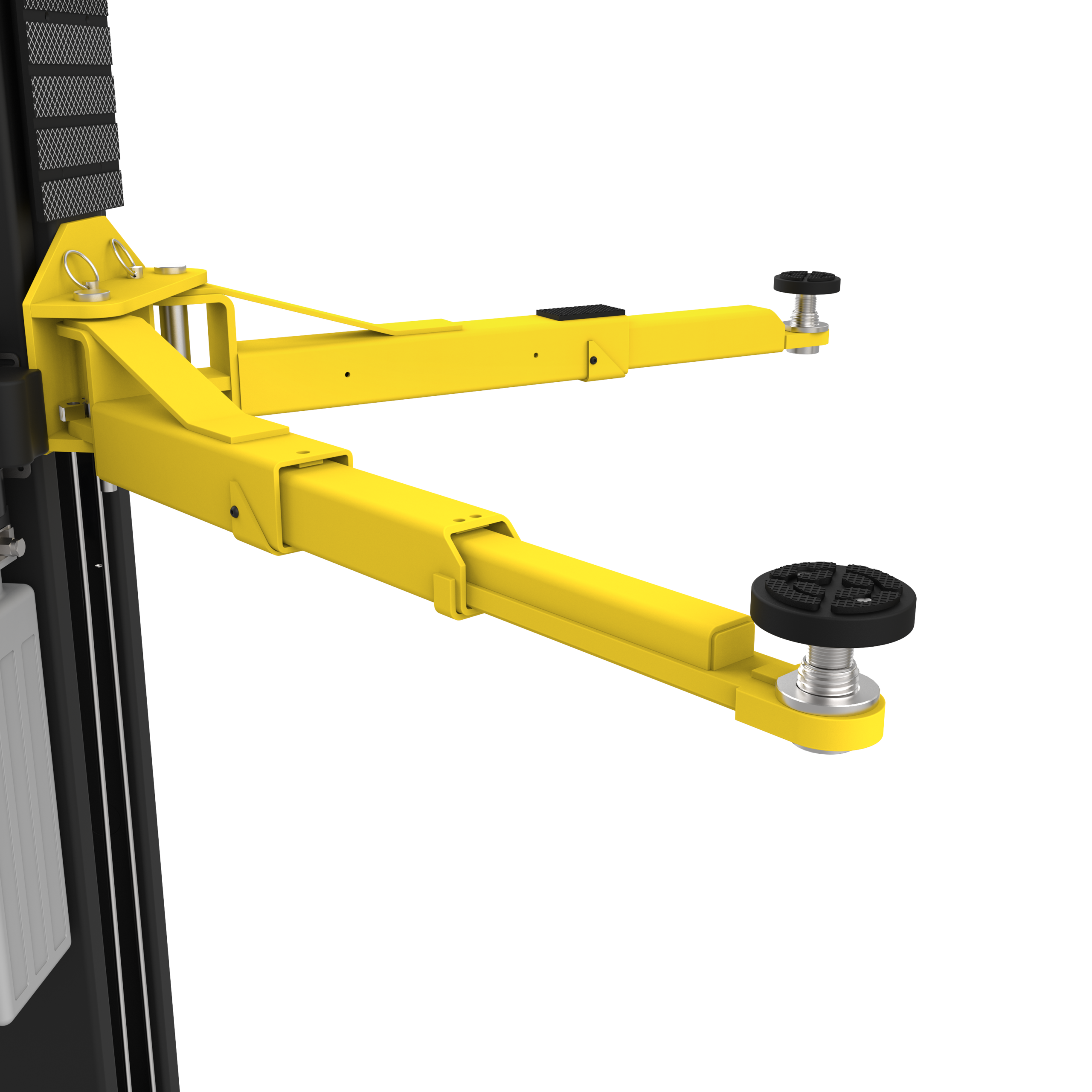

| Front arm reach (min–max) | 571–1,099 mm |
| Rear arm reach (min–max) | 845–1,353 mm |
| Screw pad adjustment | 51 mm |
| Time of full rise | 65 seconds |
| Motor | 240 V / 50 Hz / 1 Ph (AU power unit, SKU 5585780) |
| Shipping weight | 703 kg |
| Warranty | 36 months |
Height overall measured to top of cylinder at maximum height. Specifications subject to change without notice.
