GP-7 | 2-Post Hoist

SKU: 5175992

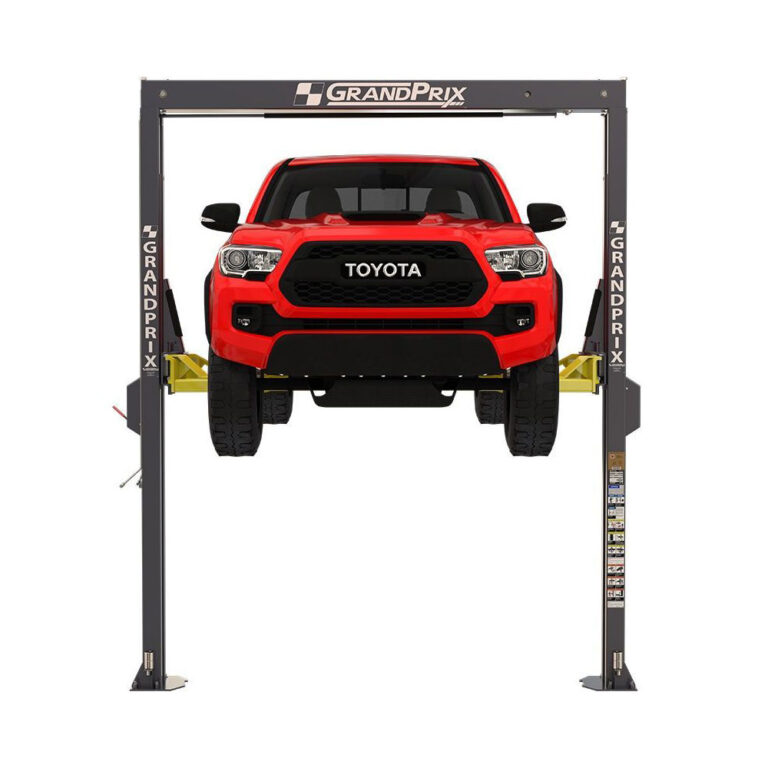

The BendPak GP-7 is a premium two-post hoist designed for garages with 4-meter ceilings. With a 3,175 kg lifting capacity, this slim-profile hoist maximises space while ensuring fast, safe, and efficient lifting.

3,175-kg. lifting capacity
Slim-profile columns for space-saving design
Bi-metric™ asymmetric & symmetric arm configuration
Automatic safety locks and multiple lock positions
Hydraulic cylinder with dual aircraft lifting cables

Here to help

GP-7 | 2-Post Hoist

Features

The GP-7 combines a compact footprint with robust performance, making it ideal for both home garages and professional workshops.

Slim-Profile Columns
The space-saving column design allows you to fit multiple hoists in tight spaces without sacrificing strength or performance. Perfect for optimizing garage layouts.

Hydraulic Cylinder Efficiency
The single overhead hydraulic cylinder, paired with dual aircraft-grade lifting cables, ensures twice the lifting speed of standard hoists, reducing downtime and boosting productivity.

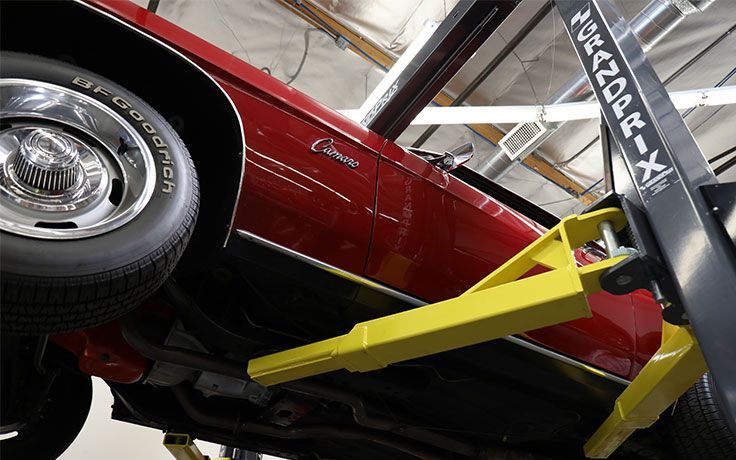

Bi-Metric™ Arm Configuration
The versatile Bi-Metric™ arms allow for symmetric and asymmetric vehicle loading, giving you flexibility based on your space and vehicle type.

Quad Safety Cable System
Four lifting cables provide unmatched safety. Two cables are functional, and the other two act as redundant backups, ensuring uninterrupted lifting in any situation.

Automatic Safety Locks
Safety locks engage automatically during operation, with multiple locking positions for ultimate reliability and technician confidence.

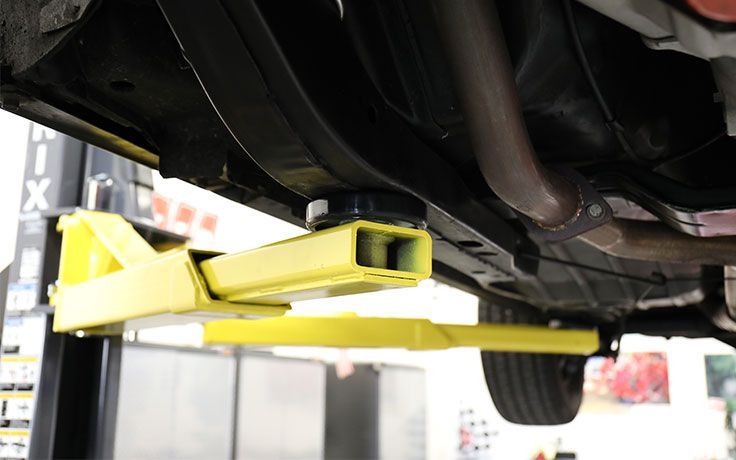

Lowered Arm Tube Supports
The Low-Pro™ arm design accommodates low-clearance vehicles, making it ideal for lifting sports cars and other compact models.

Faster Turnaround Times
With a 55-second rise time, the GP-7 minimises delays, enabling you to complete jobs faster and improve customer satisfaction.

ALI-Certified for Safety
The GP-7 meets or exceeds stringent ALI safety standards, guaranteeing a safe and dependable hoist for any application.

Materials & Tech

The GP-7 is crafted with precision materials, including aircraft-grade lifting cables and durable hydraulic systems, ensuring long-lasting performance.

GP-7 Two-Post Hoist Unit
User Manual
Mounting Hardware

COMES WITH

BendPak 5-2-1 Warranty Program

OPTIONAL

Telescoping Low-Pro™ Arm Extensions
Additional Mounting Adapters

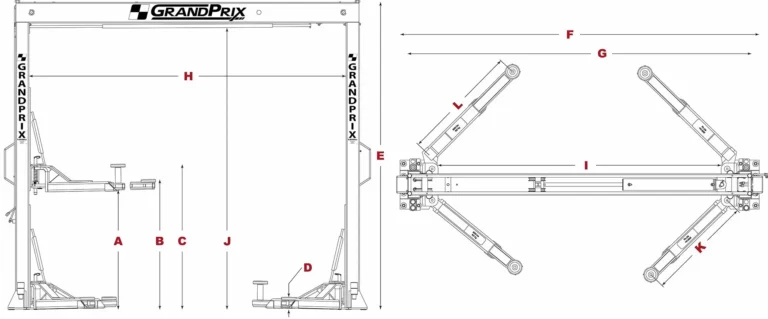

Specifications

CAPACITY	Imperial	Metric
Lifting Capacity	7,000 lbs	3,175 kg
Max Capacity / Front Axle	3,500 lbs	1,588 kg
Max Capacity / Rear Axle	3,500 lbs	1,588 kg

RISE	Imperial	Metric
A – Rise	74.5″	1,892 mm
B – Rise + Pad Only	78″	1,981 mm
C – Rise + Pad + 63 mm Adapter	86.5″	2,197 mm
D – Min. Height + Pad	4.5″	114 mm
Time to Full Rise	55 seconds	–

OUTSIDE DIMENSIONS	Imperial	Metric
E – Height Overall	150″	3,810 mm
F – Width Overall	125″	3,175 mm
G – Outside Columns	119.5″	3,035 mm

INSIDE DIMENSIONS	Imperial	Metric
H – Inside Columns	110″	2,794 mm
I – Drive-Thru Clearance	89.5″	2,273 mm
J – Floor to Overhead Switch	140″	3,556 mm

ARMS & PADS	Imperial	Metric
K – Front Arm Reach (MIN)	26″	660 mm
K – Front Arm Reach (MAX)	42″	1,067 mm
L – Rear Arm Reach (MIN)	28″	711 mm
L – Rear Arm Reach (MAX)	47.5″	1,207 mm

MAX LOAD PER ARM	Imperial	Metric
Max Load Per Arm	1,750 lbs	794 kg

POWER UNIT	Specification
Motor	220 VAC / 60 Hz / 1 Ph

NOISE	Level
Noise	45 dB
