Home / Vehicle Lifts / GP-7LCS | 2-Post Hoist

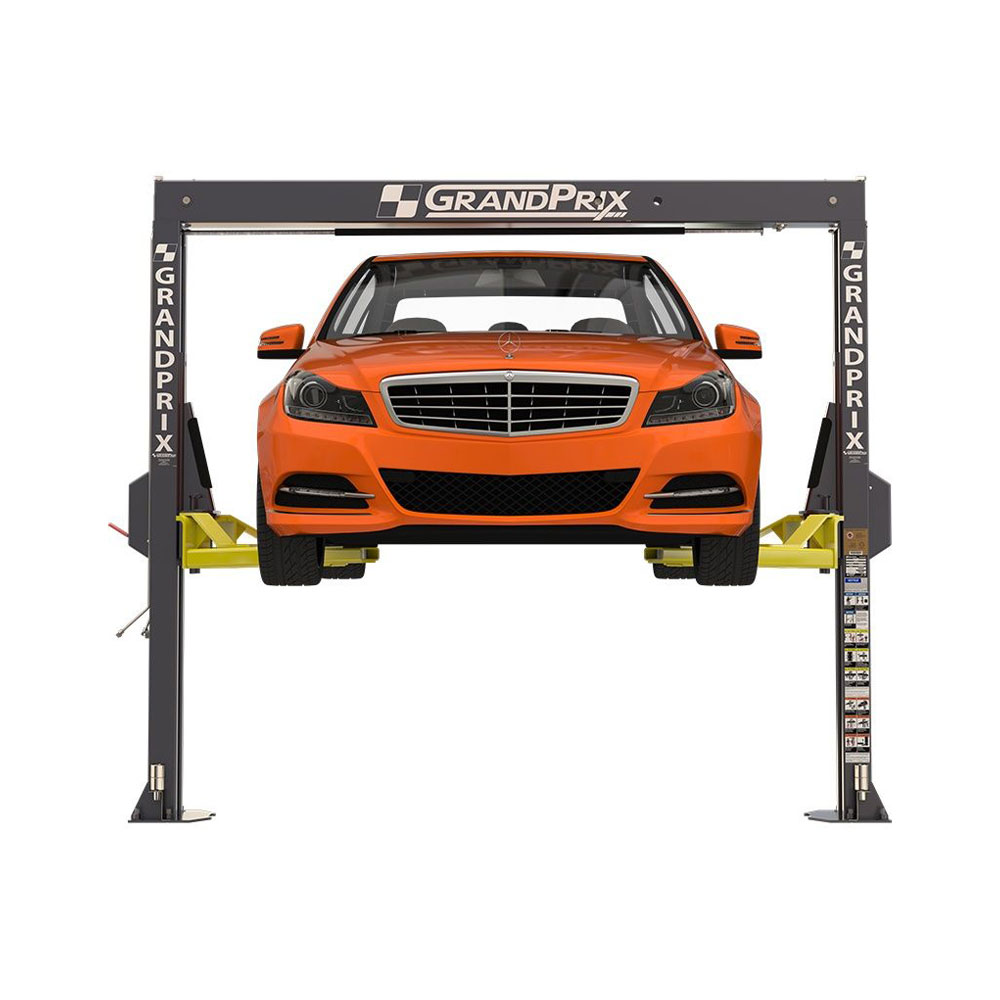

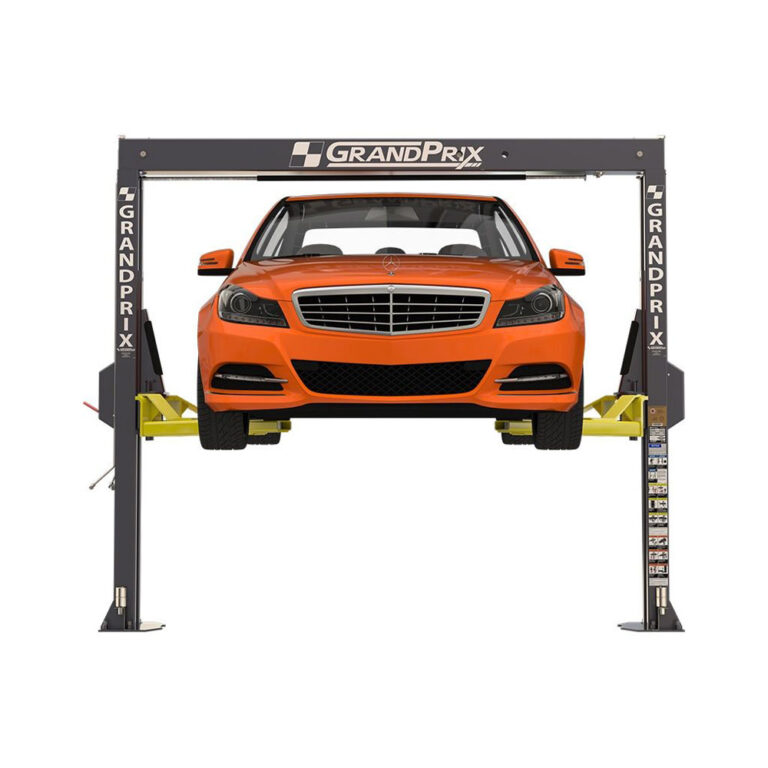

GP-7LCS | 2-Post Hoist

SKU: 5175995

The GP-7LCS is the ultimate solution for garages with ceilings as low as 8’10”. It features a 3,175 kg lifting capacity and offers a 58″ maximum rise, making it ideal for tight spaces without compromising safety or performance.

7,000 lbs. (3,175 kg) lifting capacity
Low-profile columns for ceilings as low as 9′
Bi-metric™ arm configuration for symmetric and asymmetric loading
Quad safety cable system
Automatic safety locks

Here to help

Features

The GP-7LCS fits in spaces where traditional lifts won’t, offering professional-grade performance for home users.

Super-Slim Side Columns
The low-profile columns reduce the space needed for installation while maintaining strength and reliability.

Single Overhead Hydraulic Cylinder
Positioned overhead, the hydraulic cylinder reduces column width and ensures faster lifting with minimal maintenance.

Quad Safety Cable System
Four aircraft-grade lifting cables, including two redundant cables, ensure maximum safety and reliability during operation.

Bi-Metric™ Arm Configuration
Allows symmetric or asymmetric vehicle loading, offering flexibility based on garage layout and user preference.

Automatic Safety Locks
Multiple locking positions ensure the lift stays securely in place during maintenance.

Perfect for Low-Ceiling Garages
With an overall height of just 106.5″, the GP-7LCS is ideal for garages with ceilings as low as 8’10”.

Materials & Tech

The GP-7LCS uses durable, aircraft-grade materials and innovative design to deliver exceptional performance in low-ceiling environments.

GP-7LCS Two-Post Hoist Unit
Installation Hardware
User Manual

COMES WITH

BendPak 5-2-1 Warranty Program

OPTIONAL

Additional Low-Pro™ Arm Extensions
Tall Adapter Kit

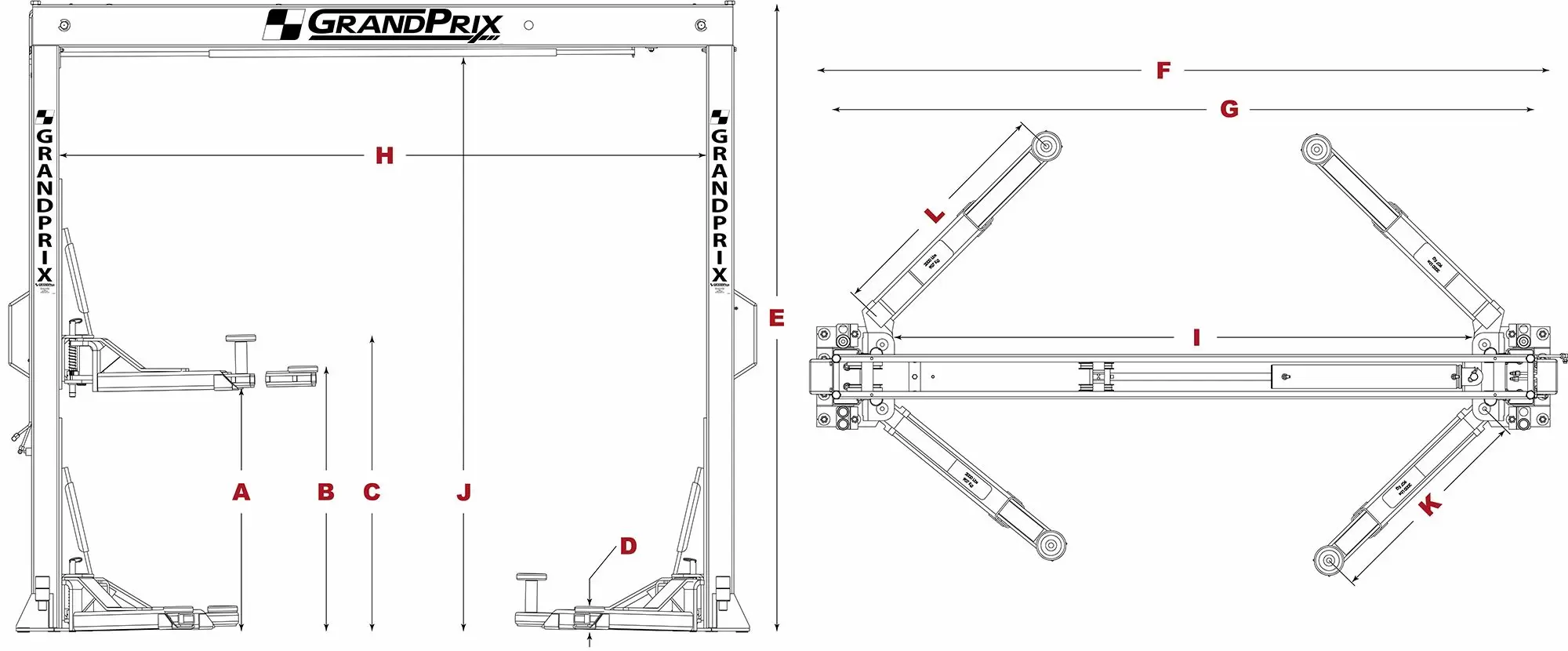

Specifications

CAPACITY	Imperial	Metric
Lifting Capacity	7,000 lbs	3,175 kg

RISE	Imperial	Metric
A – Rise	54″	1,372 mm
B – Rise + Pad	56.5″	1,435 mm
C – Rise + Pad + Adapter	59.25″	1,504 mm
D – Min. Height + Pad	4.75″	120 mm
Time to Full Rise	45 seconds	–

OUTSIDE DIMENSIONS	Imperial	Metric
E – Height Overall	106.5″	2,705 mm
F – Width Overall	124.75″	3,168 mm
G – Outside Columns	119.5″	3,035 mm

INSIDE DIMENSIONS	Imperial	Metric
H – Inside Columns	110″	2,794 mm
I – Drive-Thru Clearance	98.25″	2,495 mm
J – Floor to Overhead Switch	96″	2,438 mm

ARMS & PADS	Imperial	Metric
K – Front Arm Reach (MIN)	27″	686 mm
K – Front Arm Reach (MAX)	43.75″	1,111 mm
L – Rear Arm Reach (MIN)	28″	711 mm
L – Rear Arm Reach (MAX)	47″	1,193 mm

MAX LOAD PER ARM	Imperial	Metric
Max Load Per Arm	1,750 lbs	794 kg

NOISE	Level
Noise	45 dB

SHIPPING	Specification
Shipping Dimensions	130″ x 24″ x 26″	–
Weight	1,372 lbs	–
