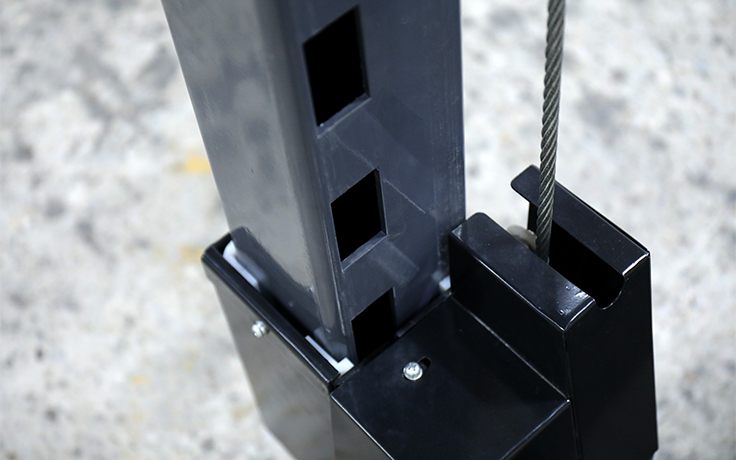

grandprix-four-post-lift-locking-positions

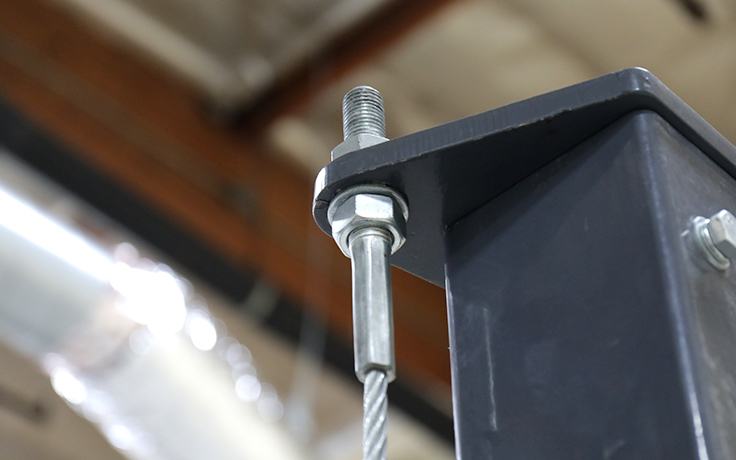

lifting-cable-bolt-grandprix-four-post-lift

safety-lock-slack-cable-grandprix-4-post-lift

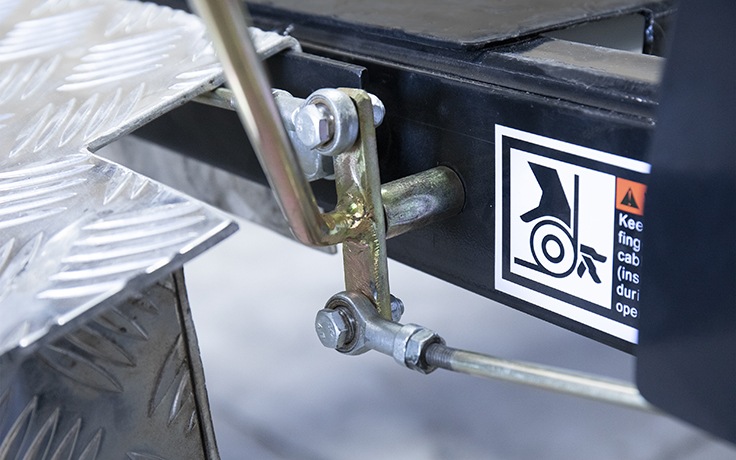

grandprix-four-post-lift-safety-locks-handle

GP-9F Package | 4-Post Hoist

SKU: 5175254

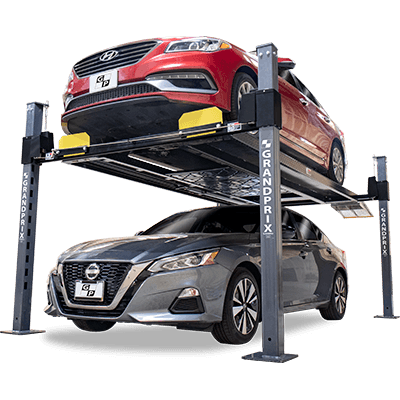

The GrandPrix GP-9F is a 9,000-lb. capacity four-post car and light-duty truck lift designed for home garages and car enthusiasts. With its rugged boxed-steel construction and included accessories like aluminum ramps, caster kit, jack platform, and drip trays, the GP-9F is a complete lifting solution offering superior durability and space-saving design.

9,000-lb. lifting capacity
Includes essential accessories: caster kit, drip trays, aluminium ramps, and jack tray
Compact size fits most home garages
Rugged boxed-steel construction
Multi-level locking positions for adjustable heights

Here to help

Features

The GP-9F combines the power of hydraulic lifting with the simplicity of mechanical operation, delivering unmatched performance for home garages.

All Accessories Included
Comes with quick-mount casters, aluminum ramps, jack tray, and drip trays at no additional cost, making it a complete package for all your lifting needs.

Compact Design
Optimized for home garages with limited space, the lift offers versatility and easy operation while fitting most vehicles, including light trucks and SUVs.

Automatic Safety Locks

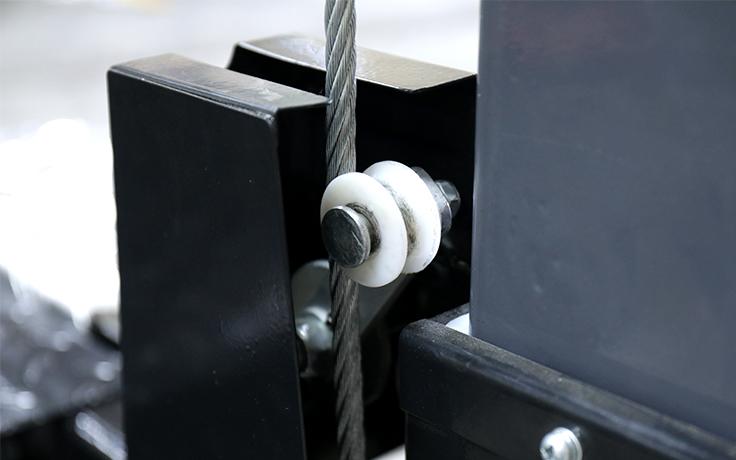

Four safety locks and a secondary slack-cable system engage automatically, ensuring maximum safety during operation.

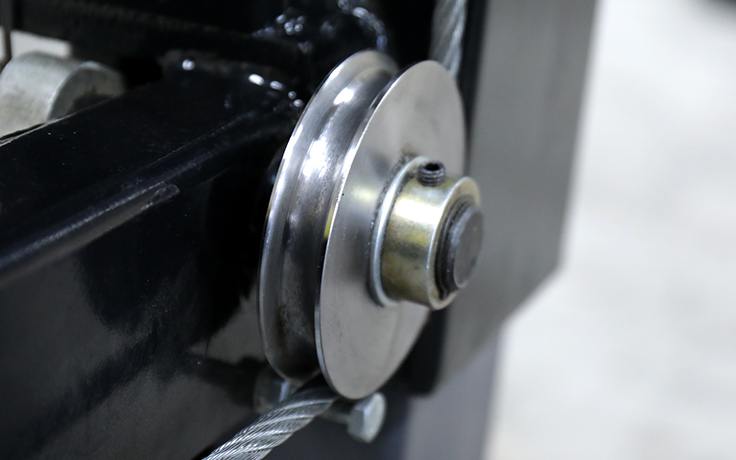

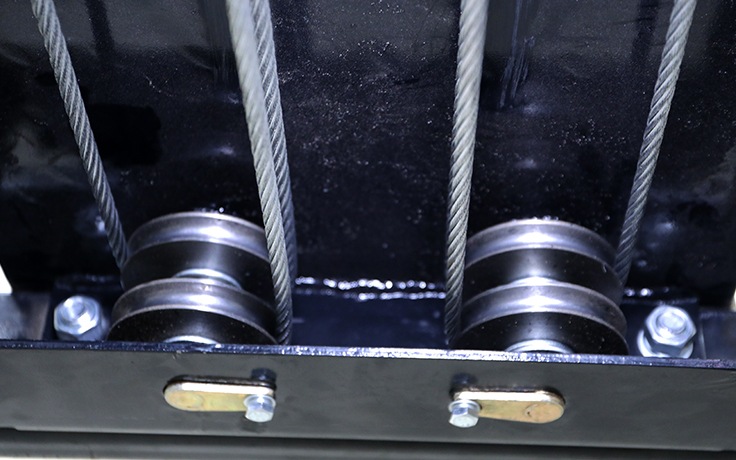

Heavy-Duty Aircraft Wire Rope
Stainless steel lifting cables rated to handle over 14,000 lbs. each provide superior durability and reliability.

Boxed-Steel Construction

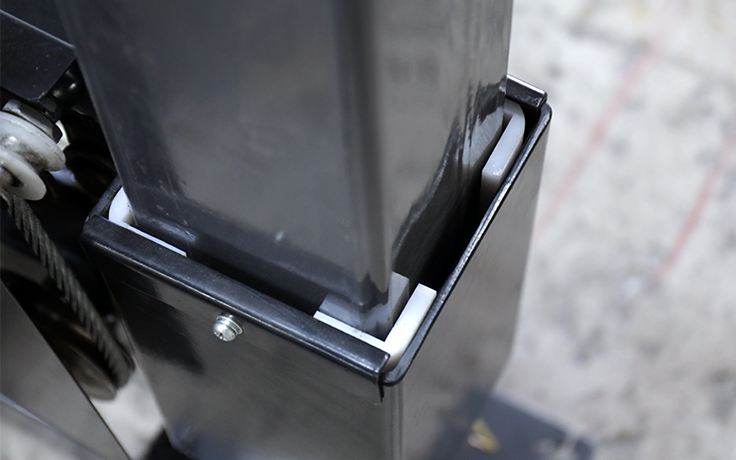

4.75″ x 4.75″ boxed-steel columns ensure resistance to twisting and bending, while 12″ x 12″ baseplates enhance stability.

Materials & Tech

The GP-9F features a boxed-steel construction, hardened steel safety locks, and durable powder-coated finishes to withstand years of heavy use.

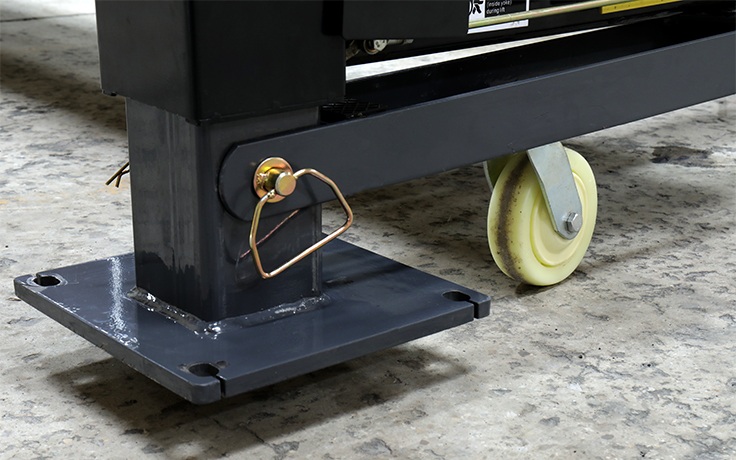

Quick-mount caster kit

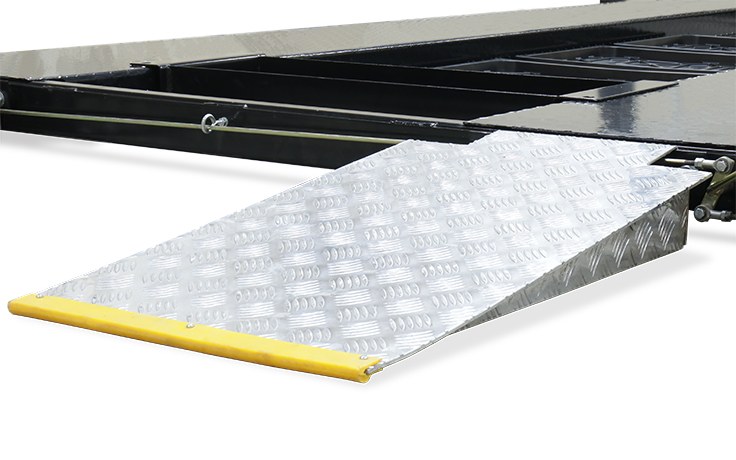

Aluminium approach ramps

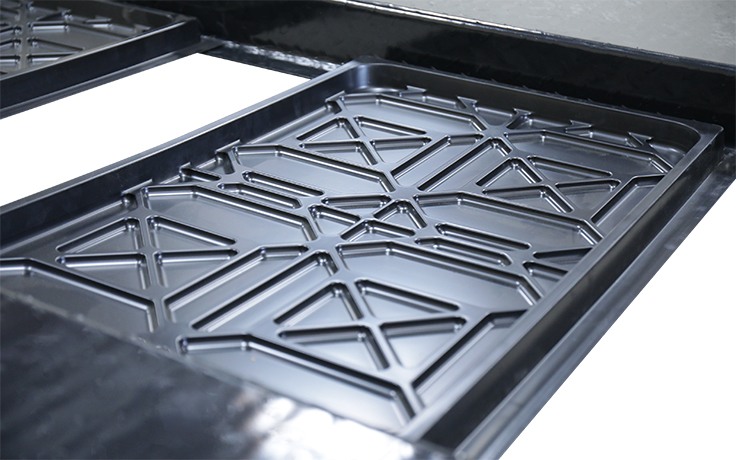

Drip trays
Jack platform

Comes with

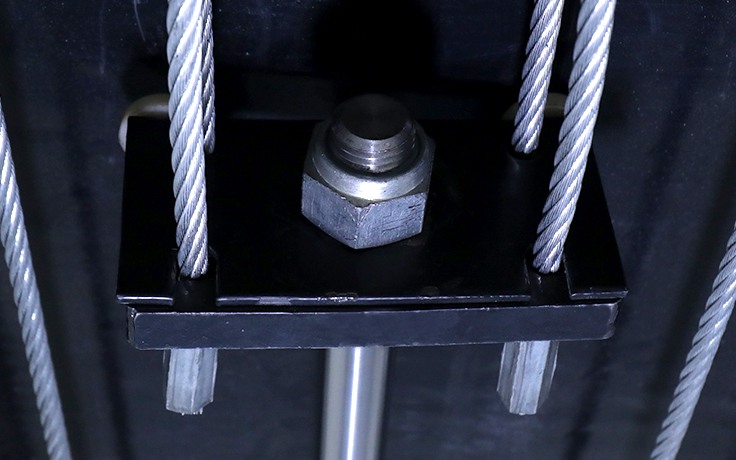

Hydraulic lifting system
Built-in flow restriction for controlled descent

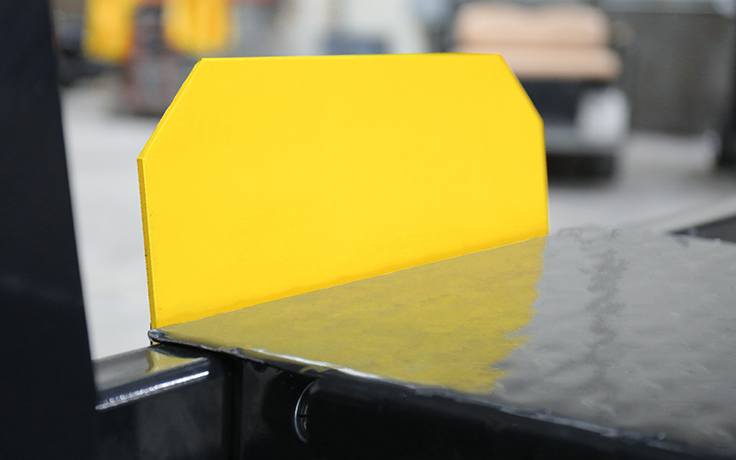

Tire stops for added safety

Optional

Full-length aluminium platforms for additional storage options

Specifications

Capacity	Imperial	Metric
Lifting Capacity	9,000 lbs	4,082 kg
Max Capacity / Front Axle	4,500 lbs	2,041 kg
Max Capacity / Rear Axle	4,500 lbs	2,041 kg

Rise	Imperial	Metric
A – Min. Runway Height	5″	127 mm
B – Max. Rise	70″	1,778 mm
C – Max. Lifting Height	75″	1,905 mm
Time to Full Rise	45 seconds

Outside Dimensions	Imperial	Metric
D – Overall Width	114.5″	2,908 mm
E – Outside Length	176.5″	4,483 mm
F – Overall Length	203″	5,156 mm
G – Height of Columns	89″	2,261 mm

Inside Dimensions	Imperial	Metric
H – Width Between Columns	98″	2,489 mm
I – Drive-Thru Clearance	88″	2,235 mm

Runways	Imperial	Metric
J – Runway Width	18.75″	476 mm
K – Length of Runways	161.25″	4,096 mm
L – Width Between Runways	35″	889 mm
M – Runway Centerline	56.5″	1,435 mm
N – Outside Edge of Runways	75.25″	1,911 mm

Minimum Wheelbase	Imperial	Metric
Rated Capacity	115″	2,921 mm
75% Capacity	100″	2,540 mm
50% Capacity	85″	2,159 mm
25% Capacity	70″	1,778 mm

Locking	Imperial	Metric
Locking Positions	13	–
Lock Spacing	Every 4″	102 mm

Power Unit
Motor	Standard: 110 VAC, 50-60 Hz, 1 PH, 20 A	Optional: 208-230 VAC, 50-60 Hz, 1 PH, 25 A
Noise	45 dB

Shipping
Weight	2,224 lbs	1,008.8 kg
Dimensions	166″ x 22″ x 30″	4,203 mm x 559 mm x 762 mm
