GP-9XLT | 4-Post Hoist

SKU: 5175257

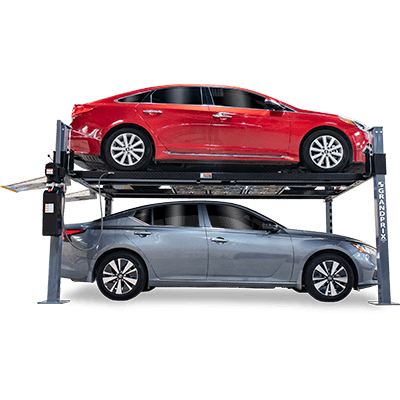

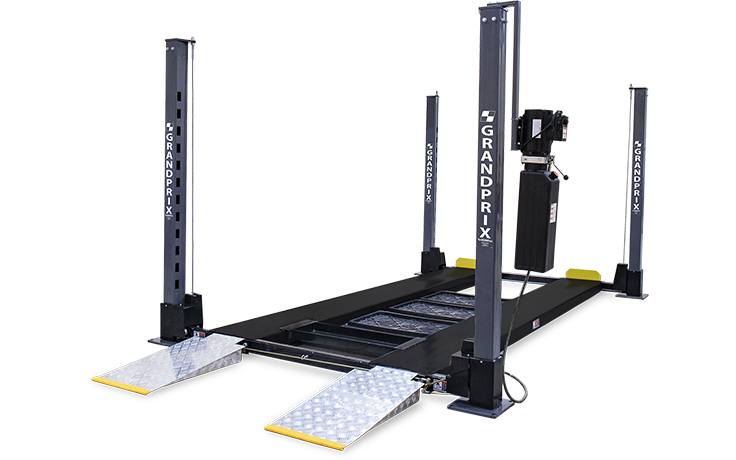

The GrandPrix GP-9XLT is a 9,000-lb. capacity four-post hoist designed with extended height and length, making it perfect for accommodating long-wheelbase and high-stance vehicles. This package includes aluminum ramps, a caster kit, a jack platform, and drip trays, providing a complete lifting solution for both residential and commercial applications.

9,000-lb. lifting capacity
Extended height and length for long-wheelbase and high-stance vehicles
Includes caster kit, aluminum ramps, jack platform, and drip trays
16 locking positions for adjustable height
Rugged boxed-steel column construction

Here to help

Features

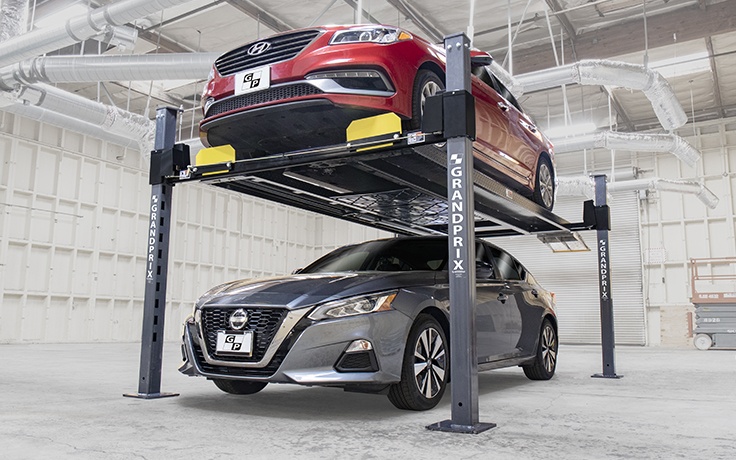

The GP-9XLT offers an additional 609 mm of length and 304 mm of height, making it ideal for taller vehicles and long-wheelbase models.

All Accessories Included
Comes with aluminum ramps, drip trays, a mobile jack tray, a caster kit, tire stops, and hard rubber wheel chocks, providing everything you need in one complete package.

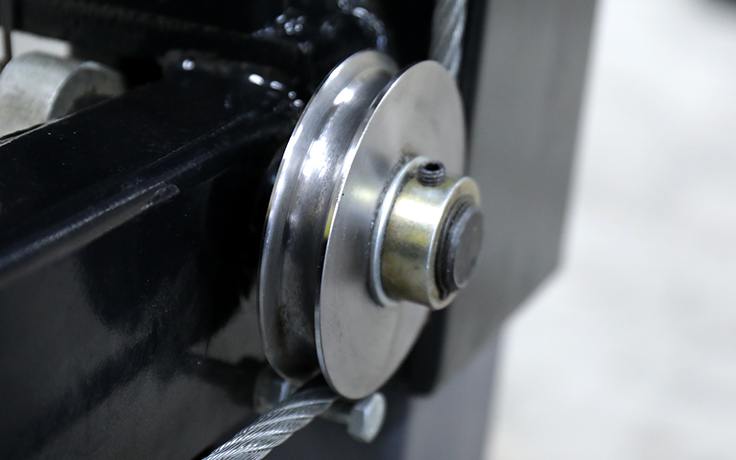

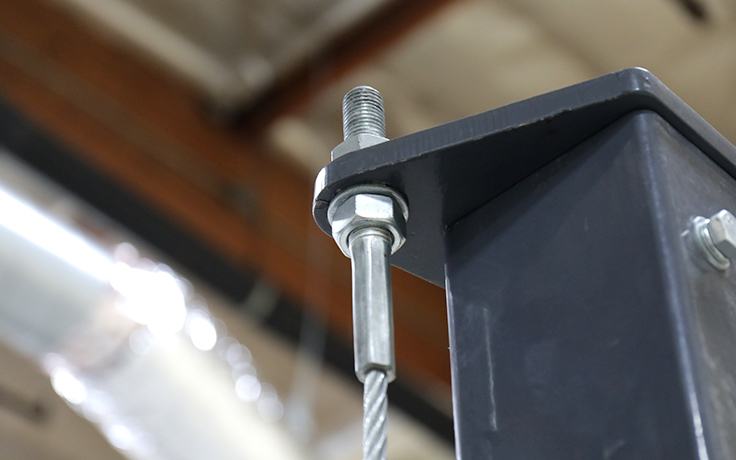

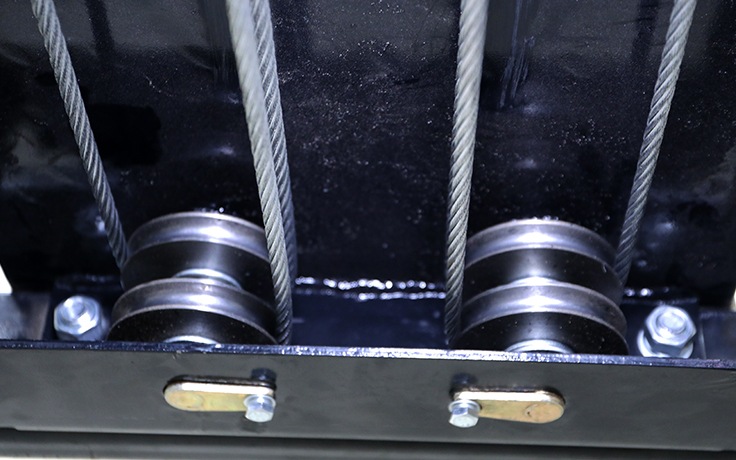

Heavy-Duty Aircraft Wire Rope
Stainless steel lifting cables rated to handle over 6,350 kg each, ensuring unmatched durability and reliability during operation.

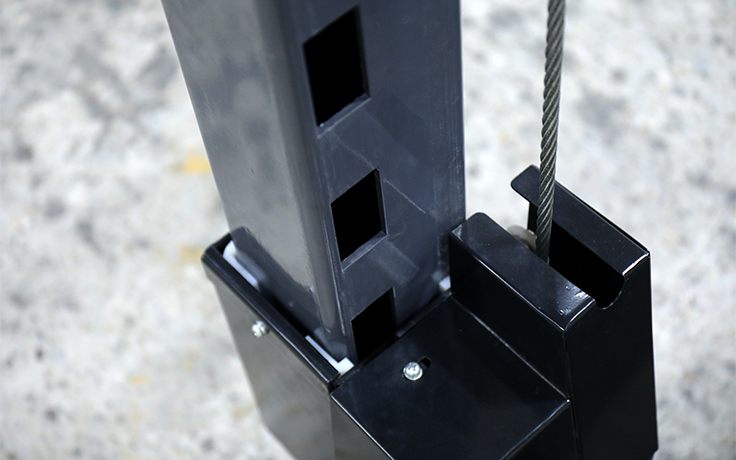

Automatic Safety Locks
Featuring 19 mm thick steel safety locks and a backup slack-cable system, ensuring vehicles are securely held in place at all times.

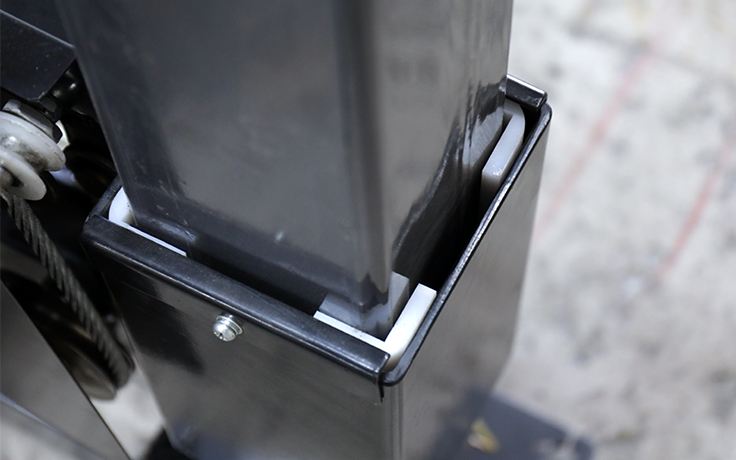

Rugged Boxed-Steel Construction
The hoist’s boxed-steel columns (120 mm x 120 mm) and 15.9 mm thick baseplates ensure incredible resistance to twisting and bending for long-lasting performance.

Materials & Tech

With heavy-duty materials like boxed-steel columns, stainless steel cables, and a powder-coated finish, the GP-9XLT is built to withstand heavy use while providing maximum safety.

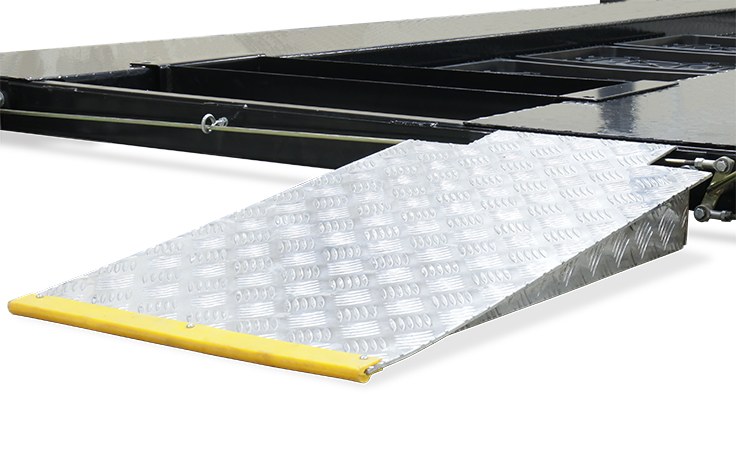

Aluminum approach ramps
Mobile jack tray

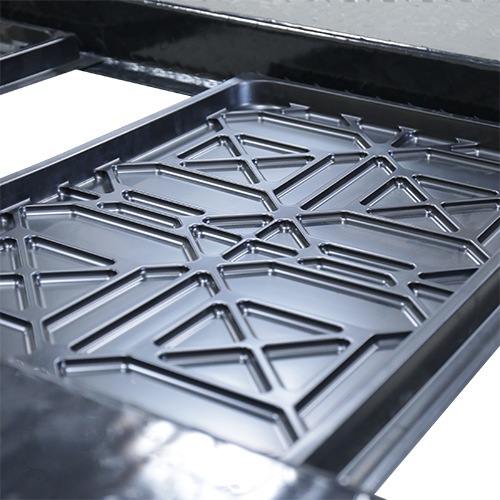

Drip trays

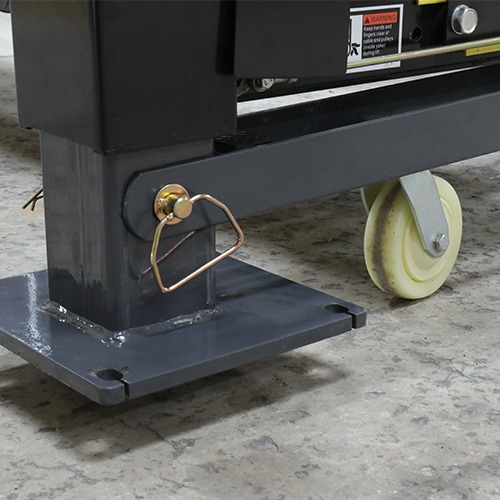

Caster kit

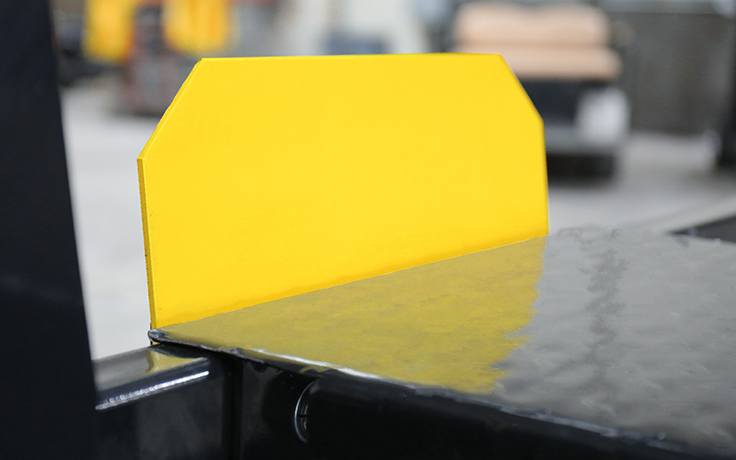

Tire stops
Hard rubber wheel chocks

Comes with

Hydraulic lifting system for smooth operation
Built-in flow restriction to prevent free-fall
Manual deadbolt locks for added safety

Optional

Full-length aluminum platforms for storing additional equipment

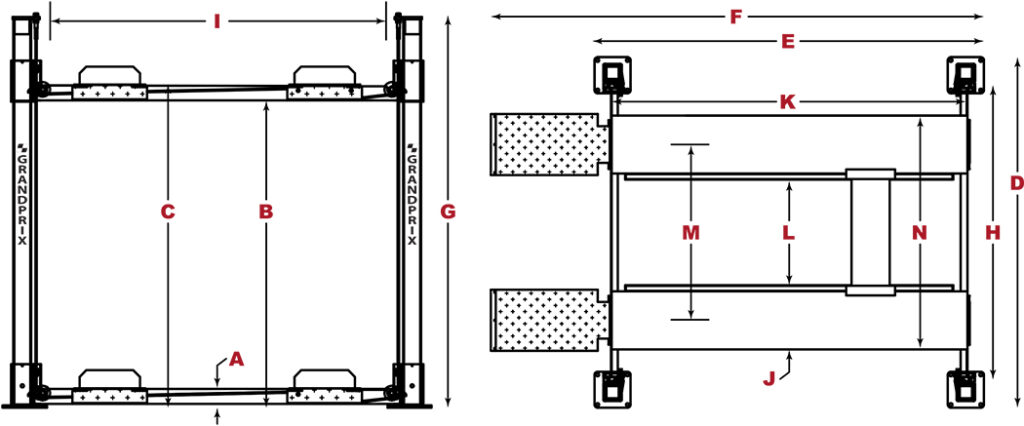

Specifications

Capacity	Imperial	Metric
Lifting Capacity	9,000 lbs	4,082 kg
Max Capacity / Front Axle	4,500 lbs	2,041 kg
Max Capacity / Rear Axle	4,500 lbs	2,041 kg

Rise	Imperial	Metric
A – Min. Runway Height	5″	127 mm
B – Max. Rise	82″	2,083 mm
C – Max. Lifting Height	87″	2,210 mm
Time to Full Rise	55 seconds

Outside Dimensions	Imperial	Metric
D – Overall Width	114″	2,896 mm
E – Outside Length	200.5″	5,093 mm
F – Overall Length	227″	5,766 mm
G – Height of Columns	99″	2,515 mm

Inside Dimensions	Imperial	Metric
H – Width Between Columns	98″	2,489 mm
I – Drive-Thru Clearance	86″	2,184 mm

Runways	Imperial	Metric
J – Runway Width	18.75″	476 mm
K – Length of Runways	189.75″	4,820 mm
L – Width Between Runways	37.5″	953 mm
M – Runway Centerline	53.75″	1,365 mm
N – Outside Edge of Runways	72.5″	1,842 mm

Minimum Wheelbase	Imperial	Metric
Rated Capacity	135″	3,429 mm
75% Capacity	115″	2,921 mm
50% Capacity	95″	2,413 mm
25% Capacity	80″	2,032 mm

Locking	Imperial	Metric
Locking Positions	16	–
Lock Spacing	Every 4″	102 mm

Power Unit
Motor	Standard: 110VAC, 50-60HZ, 1PH, 20A	Optional: 208-230VAC, 50-60HZ, 1PH, 25A
Noise	45 dB
