M7K | 2-Post Hoist

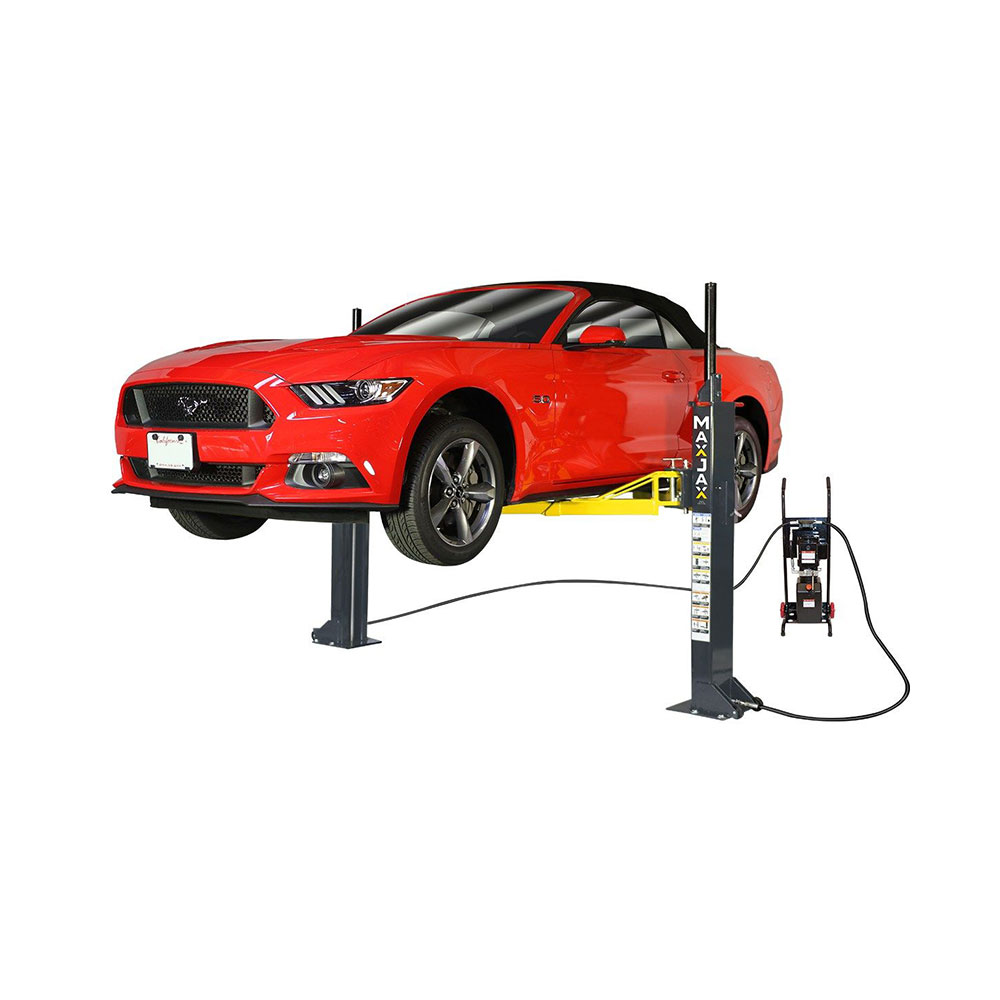

The MaxJax M7K is the ultimate portable two-post lift, boasting a 7,000-lb lifting capacity with an innovative, compact design. Ideal for home garages or professional use, it offers unmatched versatility, safety, and efficiency.

7,000 lbs. (3,175 kg) lifting capacity
Portable, space-saving design
Low-pressure HVLP Direct-Drive cylinders
Adjustable lifting arms for various vehicle types
Maintenance-free slide blocks

Here to help

M7K | 2-Post Hoist

Features

The MaxJax M7K is a game-changing lift system that combines portability and high lifting capacity, perfect for any garage.

Portability

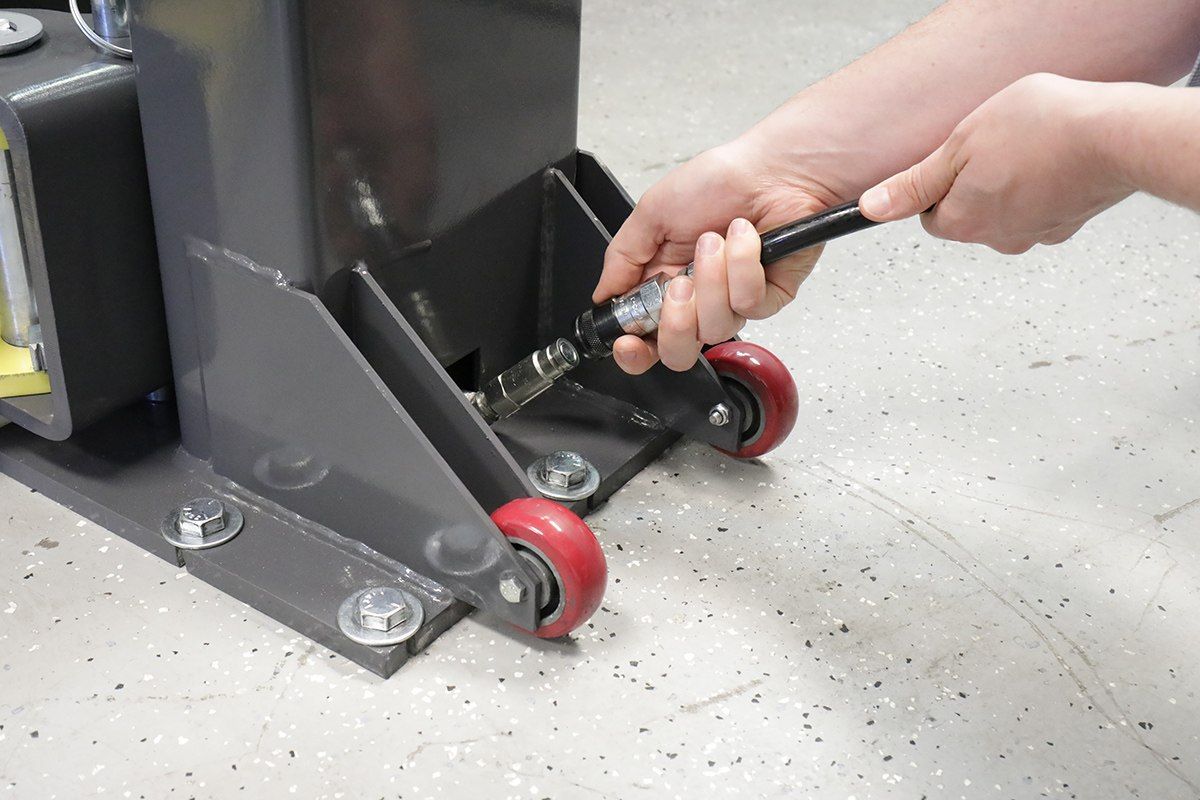

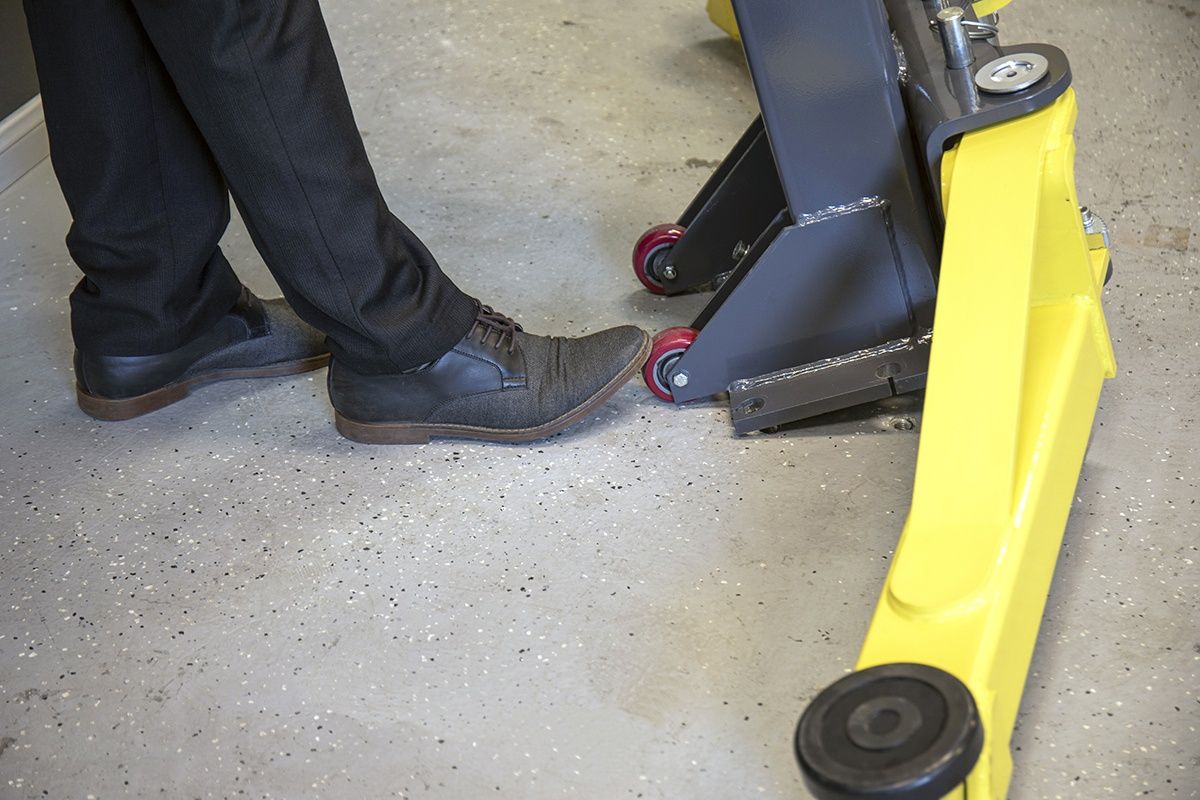

Easily move and store the lift thanks to built-in wheels and quick-connect hydraulic couplers, freeing up valuable garage space when not in use.

Low-Pressure HVLP Direct-Drive Cylinders
Eliminates the need for chains or screw mechanisms, offering smoother operation, better reliability, and reduced maintenance.

Clear Undercar Access
Provides unparalleled undercar clearance for easy access to components like transmissions, drive shafts, and differentials.

Pop-Up Bay Ready
Quickly create additional work bays on demand, doubling your work area without requiring permanent installations.

Automatic Arm Restraints
Built-in restraints ensure safety during lifting and disengage automatically when lowered, simplifying vehicle setup.

Maintenance-Free Slide Blocks
Durable UHMW polyethylene load bearings require no lubrication and offer long-lasting reliability.

Versatile Vehicle Support
Adjustable arms and stackable adapters accommodate vehicles with Uni-body construction, narrow/wide frames, and custom motorcycles.

Materials & Tech

The MaxJax M7K uses high-quality materials and precision engineering, ensuring long-lasting performance and reliability.

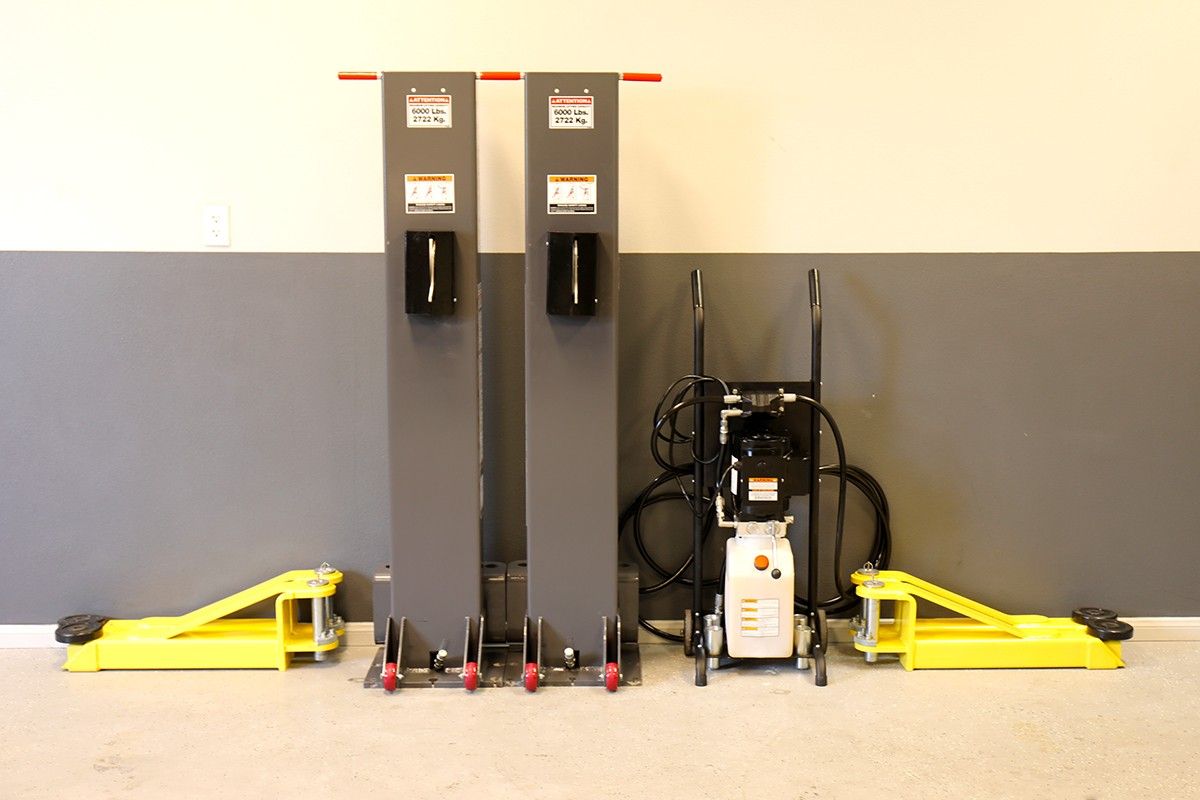

MaxJax M7K Portable Two-Post Lift
Medium-height adapters (x4)
Stackable standard lift pad adapters (x4)
Hydraulic power unit cart
Quick-connect hydraulic couplers

COMES WITH

Comprehensive installation and maintenance instructions
Hydraulic safety features

OPTIONAL

Tall adapter sets
Motorcycle adapter kit

Specifications

CAPACITY	Imperial	Metric
Lifting Capacity	7,000 lbs	3,175 kg

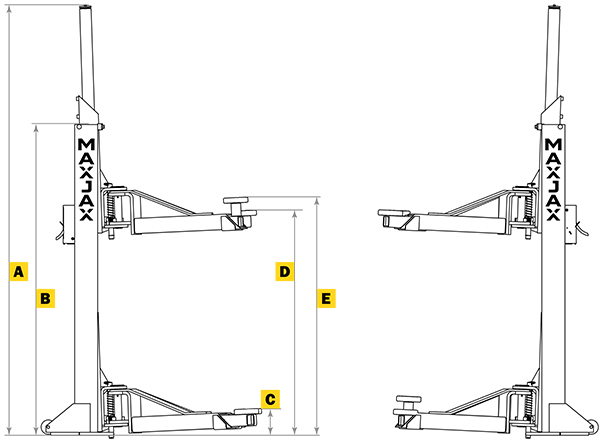

HEIGHT & REACH	Imperial	Metric
Max Load Per Arm	1,750 lbs	794 kg
Height Overall (A)	89.5″	2,273 mm
Height of Column (B)	64″	1,628 mm
Min. Pad Height (C)	5.5″	139.7 mm
Max Lift Height (Pad Only)	47.25″	1,200.15 mm
Max Lift Height (With 3″ Adapter)	50.5″	1,283 mm
Arm Reach (F) Min – Max	26″ – 40″	860 mm – 1,016 mm

DIMENSIONS	Imperial	Metric
Typical Width (Outside of Base Plate) (G)	105″ – 135″	2,867 mm – 3,429 mm
Drive-Thru Clearance (H)	74″ – 104″	1,880 mm – 2,642 mm
Locking Positions	7 (every 3″)	–

POWER & OPERATION	Specification
Motor	110/220 VAC, 50/60 Hz, 1 Ph	–
Raising/Lowering Time	45 seconds	–

WEIGHT & SHIPPING	Imperial	Metric
Individual Column Weight	300 lbs	136 kg
Shipping Weight (Standard Model)	980 lbs	444 kg
Shipping Dimensions (Standard Model)	68″ x 39″ x 35″	1,727 mm x 990.8 mm x 889 mm
Note	Lowering is slower with no vehicle	–
Motor Voltage	Must specify at purchase	–

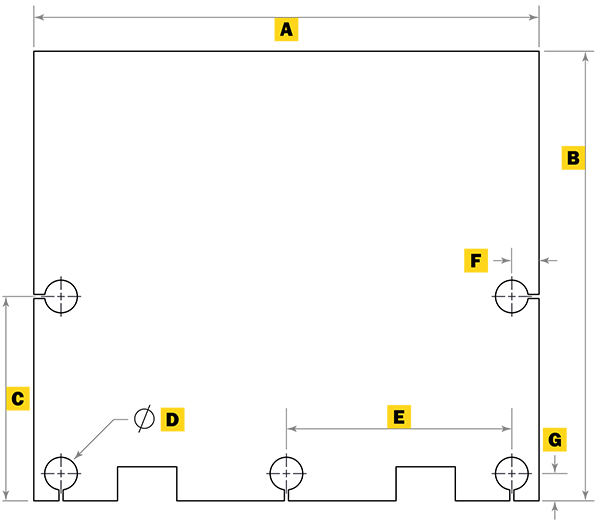

BASEPLATE DIMENSIONS	Imperial	Metric
A	14.5″	371 mm
B	8.5″	220 mm
C	6″	150 mm
D	1″	24 mm
E	6.5″	165.5 mm
F	0.75″	20 mm

Brand Spotlight

MaxJax

MaxJax is a revolutionary portable two-post car lift that redefined the automotive service industry upon its launch in 2008.

Exclusively distributed by Genesis Equipment in Australia, MaxJax stands out for its innovative design, global patents, and commitment to quality. This portable two-post lift combines ease of use with exceptional versatility, making it the go-to choice for garages and workshops looking to maximize efficiency and space without sacrificing reliability. With Genesis Equipment’s industry-leading customer support and warranty coverage, MaxJax remains an essential tool for automotive professionals and hobbyists.
