SKU: 1 690 800 001

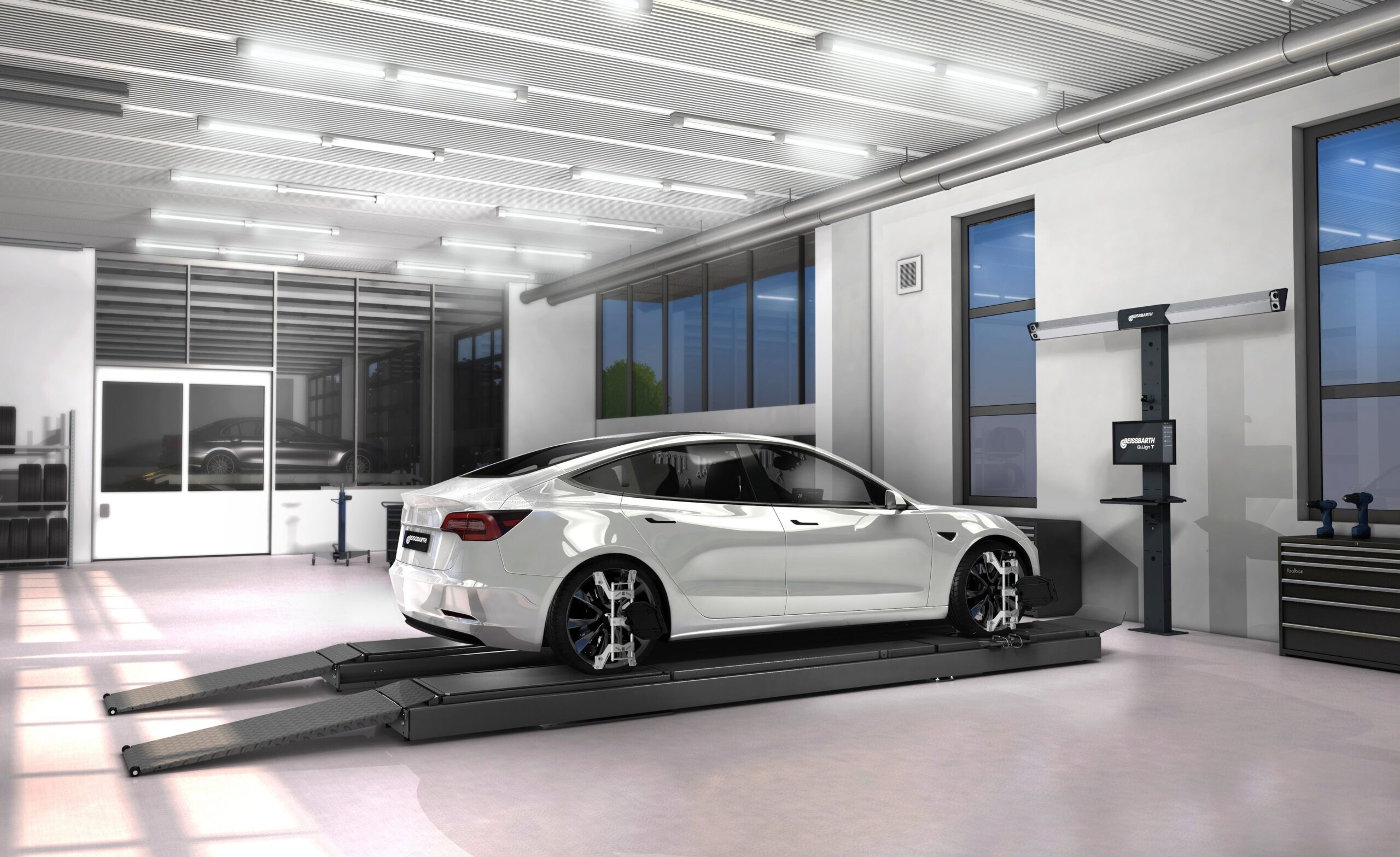

The Q.Lign T.41 is a fixed-position 3D wheel aligner featuring a floor-mounted support column, turnplates, and MultiFit wheel clamps for precise and efficient vehicle alignment. With a permanent camera beam, real-time data access, and a fully web-based system, it is the perfect solution for independent workshops and tire service centers looking to maximize accuracy and productivity.
Q.Lign T.41 with MultiFit Wheel Clamps
Features
Web-Based Technology – No PC Required
World’s first web-based wheel aligner
Stream-to-X technology: Display software on TV, PC, laptop, tablet, or smartphone
Uses up to 95% less power than traditional systems
Four-Camera System for Unparalleled Accuracy
Dedicated rear axle camera improves front toe accuracy
All four cameras work independently to ensure flawless alignment results
Work Smarter, Not Harder
MEMS (Micro-Electromechanical System) Technology ensures constant gravity-based measurement
Runout compensation at any lift height – from ground level to full lift height
Caster sweep at floor level – no stool or ladder required
MultiFit Wheel Clamps – Fast Setup, No Rim Contact
Clamp in seconds with no contact on rims
Compatible with various alignment lifts
Expandable from 13″ – 22″ to 27″ wheel sizes
Seamless Workshop Integration
Instant access to measurement results & reports
Automatic data storage and retrieval
Ideal for efficient workshop operations
Materials & Tech
Optional
| GENERAL SPECIFICATIONS | Details |
| Measuring System | 3D Alignment with Fixed Beam |
| Weight | 119kg (Net), 170kg (Gross) |
| Power Supply | 90 – 264V | 1Ph | 47-63Hz |
| Sensor Count | 4 Sensors (Fixed Beam) |
| Wheel Base Compatibility | 1750mm – 4600mm |
| Display | 27” Monitor + 10” OLED Sensor Screens |
| MEASUREMENT CAPABILITIES | Supported |
| Total Toe & Individual Toe (Front/Rear Axle) | Yes |
| Toe-Out on Turns | Yes |
| Camber (Front/Rear Axle) | Yes |
| Caster & SAI (Steering Axis Inclination) | Yes |
| Set-Back (Front/Rear Axle) | Yes |
| Thrust Angle & Geometric Center Line | Yes |
| Ride Height for Modified Vehicles | Yes |
| Real-Time Vehicle Dimensions & Adjustments | Yes |
| SPACE REQUIREMENTS | Details |
| Minimum Height Required | 2800mm |
| Minimum Clearance on Four-Post Lifts | 2800mm |
| Camera to Center of Turntable Distance | 1800mm – 3300mm |
