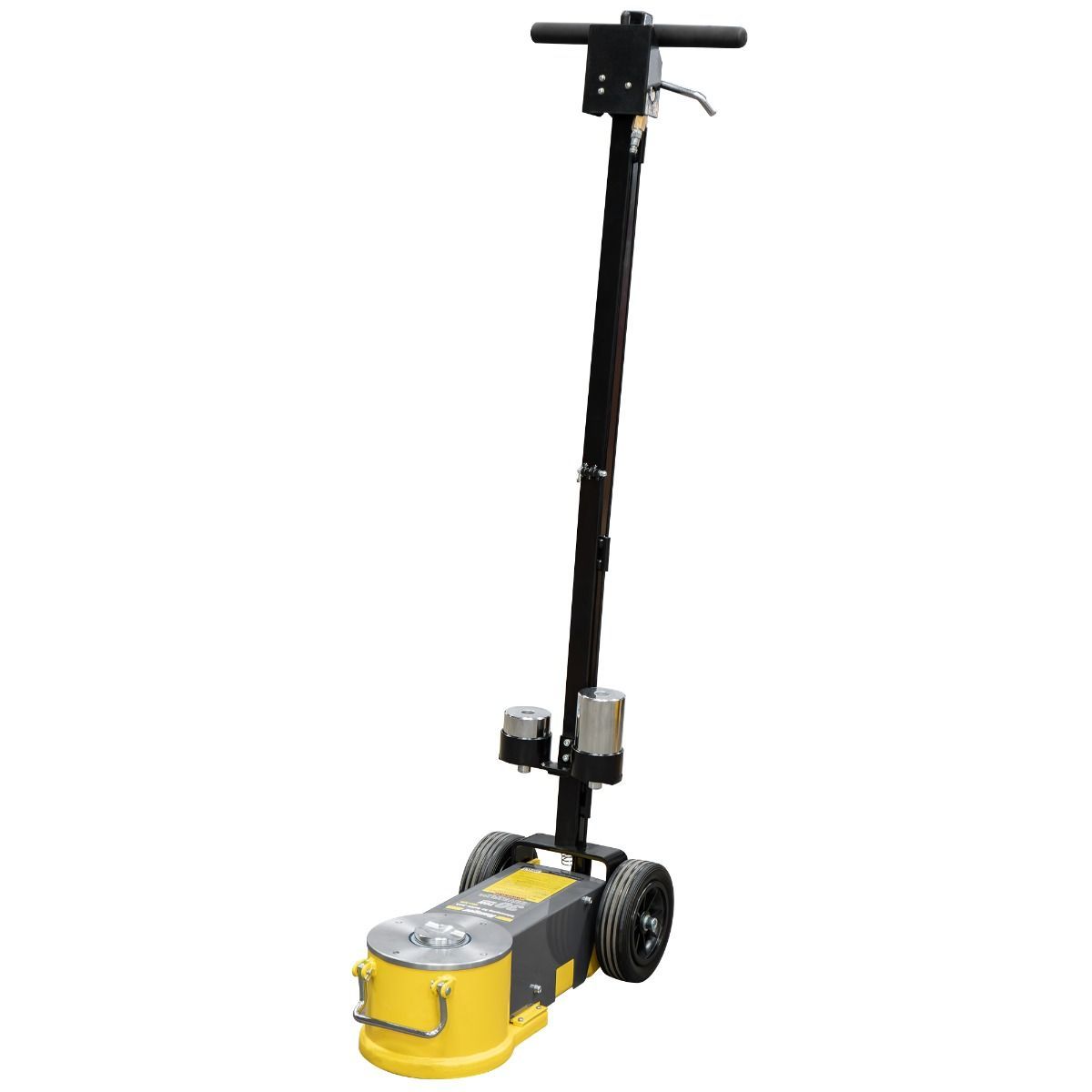

ranger-rbj-30tl-30-ton-floor-jack-telescoping-air-bottle-jack-5150443-front-right-01

ranger-rbj-30tl-30-ton-floor-jack-telescoping-air-bottle-jack-5150443-front-left-01

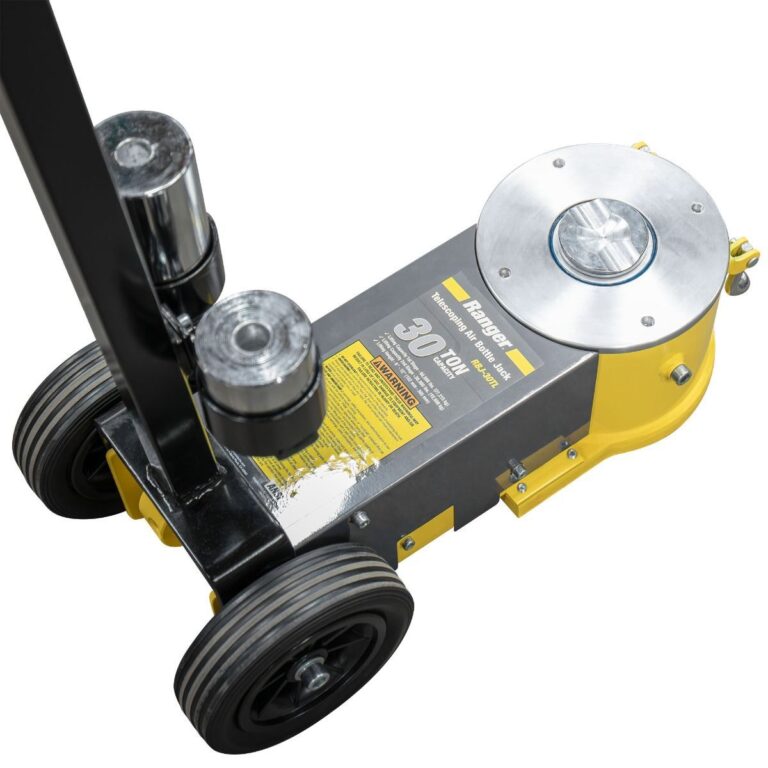

ranger-rbj-30tl-30-ton-floor-jack-telescoping-air-bottle-jack-5150443-back-right-01

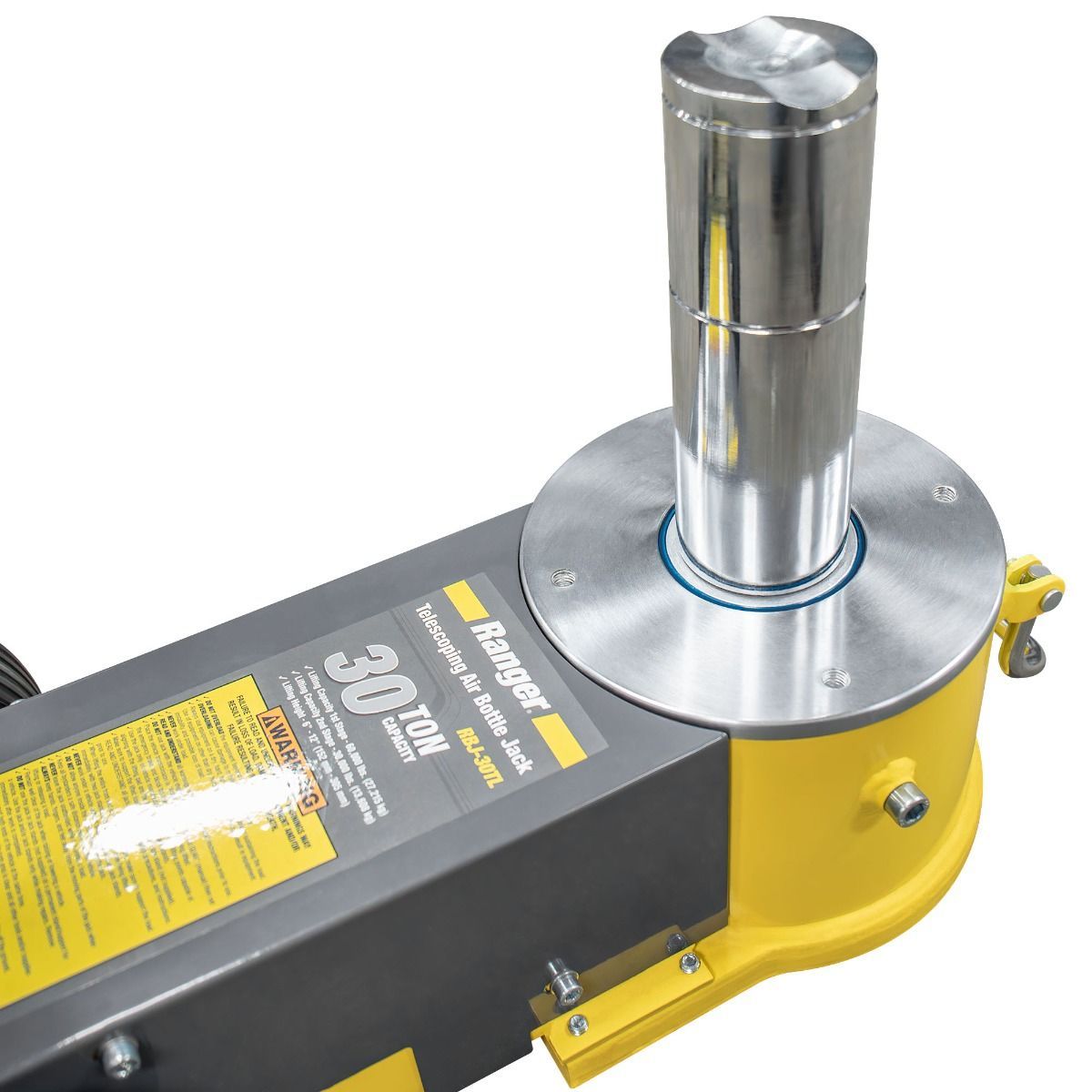

ranger-rbj-30tl-30-ton-floor-jack-telescoping-air-bottle-jack-5150443-close-up-01

RBJ-30TL

SKU: 5150443

The Ranger RBJ-30TL is the ultimate air-hydraulic floor jack, delivering 27,216 kg lifting capacity in the first-stage position and 13,608 kg at full height. Built for heavy commercial applications, this telescoping air bottle jack is perfect for five-axle semis, heavy-duty trucks, and industrial vehicles. Featuring air-powered operation, a durable steel saddle, and a compact design for easy maneuverability, the RBJ-30TL is the most powerful and versatile floor jack in its class.

27,216 kg lifting capacity
Air-hydraulic operation
Compact design
Large rubber wheels
Built-in safety valve
Includes additional lifting saddles

Here to help

RBJ-30TL

Features

The RBJ-30TL is designed for extreme lifting power, effortlessly handling heavy commercial vehicles, including five-axle semis and large industrial trucks.

Air-Hydraulic Operation for Effortless Lifting
Uses compressed air for easy and smooth lifting
Ideal for high-capacity, frequent-use applications

Dual-Stage Telescoping Ram for Maximum Lift
27,216 kg lifting capacity in the first stage
13,608 kg capacity at full 305mm height

Compact, Low-Profile Design
165mm collapsed height for low ground-clearance vehicles
Fits easily between tandem wheels for optimal positioning

Built-in Safety & Overload Protection
Dead-man controls prevent accidental operation
Integrated safety valve prevents overloading beyond rated capacity

Heavy-Duty Steel Construction
Hardened alloy-plated telescoping ram for durability
Sealed hydraulic unit to prevent contamination

Manoeuvrability & Portability
Large rubber wheels for smooth movement
Long ‘T’ handle for easy positioning and locking in 3 different positions

Materials & Tech

The RBJ-30TL utilizes air pressure-driven hydraulic power to lift heavy-duty vehicles with minimal effort, providing efficient, reliable lifting without strain.

1x RBJ-30TL Air Bottle Jack
Pre-installed Telescoping Hydraulic Ram
Additional Lifting Saddles for Height Adjustment
User Guide for Setup & Maintenance

Specifications

PERFORMANCE & POWER	Specifications
Lifting Capacity (1st Stage)	27,216 kg
Lifting Capacity (2nd Stage)	13,608 kg
Lowered Height	150 mm
Raised Height	152 mm – 305 mm

BUILD & DIMENSIONS	Specifications
Chassis Width	318 mm
Chassis Length	572 mm
Shipping Weight	51.5 kg
