TC1150 HD

SKU: 1 692 401 009

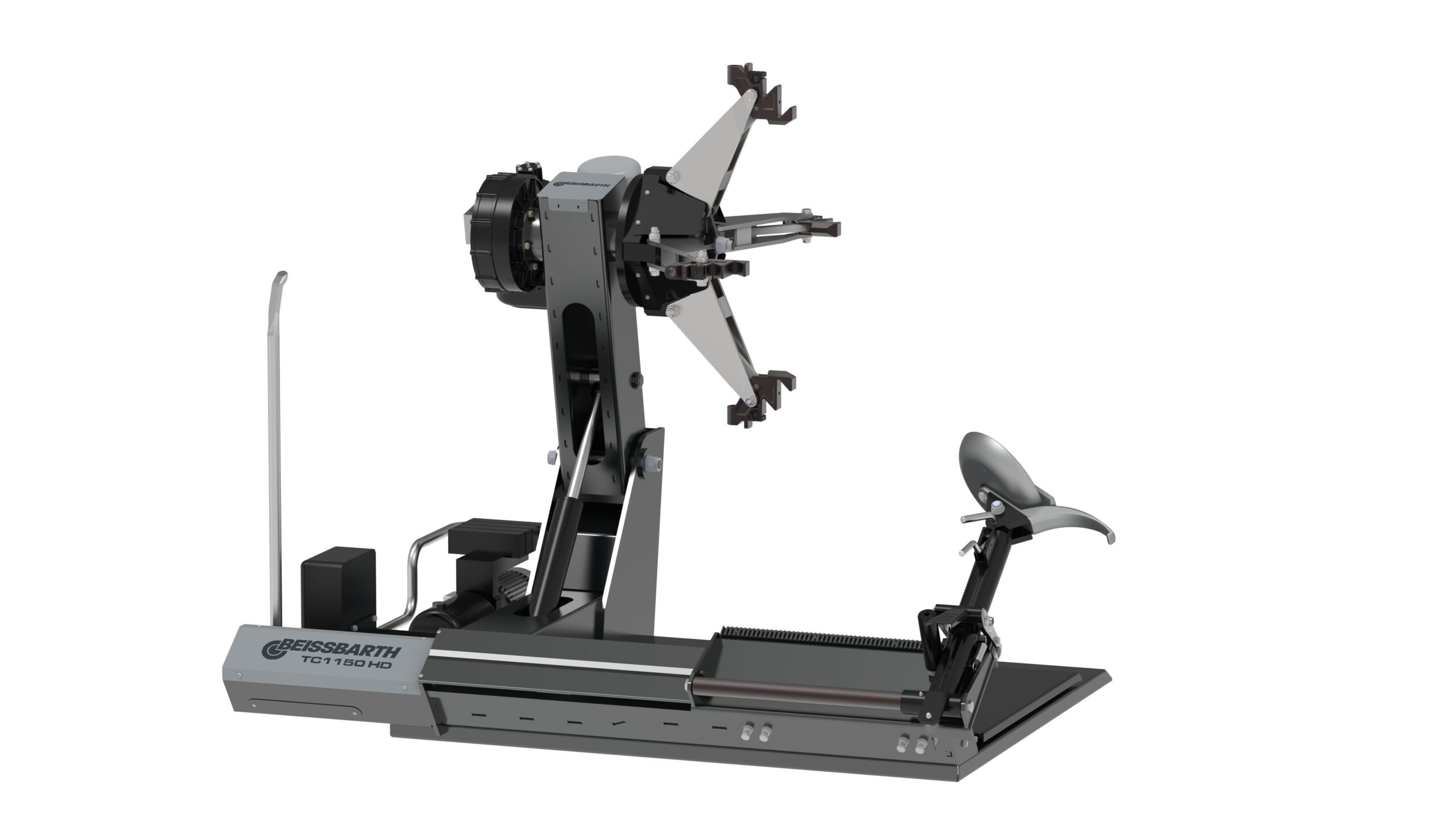

The TC1150 HD is a powerful and versatile heavy-duty truck tyre changer, designed to handle rims from 14″ to 42″ (extendable to 56″) and wheels up to 2000kg. With a self-centering four-jaw chuck, a high-performance bead breaker, and an intuitive cable remote, it ensures fast, safe, and precise tyre changing for commercial trucks, buses, and heavy-duty vehicles.

Key Features

Handles rim sizes from 14″ – 42″ (extendable to 56″)
Powerful self-centering four-jaw chuck with hydraulic adjustment
High-performance bead breaker with 25,000N force
Intuitive cable remote with ergonomic joystick control
Heavy-duty design for maximum stability and reliability
Pre-drilled holes for floor fixation for enhanced safety

Here to help

TC1150 HD

Features

The TC1150 HD is designed for efficiency, precision, and durability, making it the ultimate solution for high-volume commercial tyre workshops.

Self-Centering Chuck for Perfect Clamping

Four powerful jaws for secure and precise rim clamping.
Rotates clockwise and anti-clockwise at 4.5 – 9 rpm.
Opens and closes hydraulically with adjustable pressure.

Versatile Clamping with Five Grip Zones

Handles rims of all shapes and profiles with ease.
Offers six different rim clamping positions for optimal grip.

Powerful Bead Breaker for Effortless Demounting

Generates 25,000N of force at 10 bar.
Independent control of in & out movement for precision.

Adjustable Mounting and Demounting Tool Arm

Manual tool inclination adjustment for perfect positioning.
Quickly switch between bead breaking roller and bead extraction.

Ergonomic Cable Remote for Easy Operation

Joystick 1: Controls wheel up/down and tool carriage movement.
Joystick 2: Controls jaw opening/closing.
Foot Pedals: Rotate the wheel clockwise and anti-clockwise.
Fully movable inside the working area for operator convenience.

Designed for Maximum Safety and Stability

Pre-drilled holes for floor fixation for added stability.
Handles up to 2000kg wheel weight without compromise.

Materials & Tech

The TC1150 HD is engineered for reliability, featuring heavy-duty materials, a powerful hydraulic system, and an advanced self-centering chuck to ensure precision and efficiency.

Inclusions

Truck Mounting Lever
Rim Clamp
5.3m Cable
400V Plug

Optional

OTR Adapter Set (4 pcs.) – SKU: 1 692 402 006
Internal Hole Adapter (100mm) – SKU: 1 692 402 007
Protection Kit for Clamping Jaws (4 pcs.) – SKU: 1 692 402 008
Clamp for Aluminium Rims – SKU: 1 692 402 010
Rim Protection Ring (22.5" Aluminium Rims) – SKU: 1 692 402 011
56" Clamping Jaw Extensions (4 pcs.) – SKU: 1 692 402 005

Specifications

GENERAL SPECIFICATIONS
Max. Wheel Diameter	2300 mm (91″)
Max. Rim Diameter	42″ (extendable to 56″)
Max. Wheel Width	1150 mm (45″)
Max. Wheel Weight	2000 kg

POWER & DIMENSIONS
Power Supply Voltage	400V \| 3 Phase \| 50Hz
Motor Power	2.2 – 3 kW
Rotation Speed	4.5 – 9 rpm

PHYSICAL DIMENSIONS
Length	2350 mm
Height	860 – 1450 mm
Width	1870 mm
Weight	855 kg
Packaging Length	1950 mm
Packaging Width	2250 mm
Packaging Height	1030 mm
Gross Weight	1060 kg

PERFORMANCE & CAPACITY
Bead Breaker Cylinder Force	25,000N @ 10 bar
Min. Rim Diameter	14″
Min. Center Bore Diameter	122 mm (5″)
Number of Mounting Speeds	Variable
Stackable	Yes (2 pieces)
Units per 20ft Container	4
Units per 40ft Container	10

Brand Spotlight

Beissbarth

Precision testing and diagnostics from a brand with over 120 years of workshop innovation—trusted by OEMs and independent professionals alike.

Beissbarth sets the benchmark in advanced automotive testing and service equipment, delivering premium solutions for wheel alignment, ADAS calibration, brake testing, and tyre diagnostics. With deep-rooted partnerships across global car manufacturers and independent workshops, Beissbarth products are engineered for accuracy, efficiency, and seamless workshop integration. Through Genesis Equipment, you gain access to Beissbarth’s cutting-edge technology and OEM-approved systems—designed to future-proof your workshop operations and keep you ahead of industry standards.

Other Beissbarth Products

Nussbaum

Top Lift 2.35 TLD XY

— Vehicle Lifts

Nussbaum

Power Lift HF 3S 3500 DT

— Vehicle Lifts

Nussbaum

Smart Lift 2.40 SL Uni

— Vehicle Lifts

Product Uses

What some of our customers have used it for:

No data was found

Perfect for:

Truck and Bus Fleet Maintenance
Heavy-Duty Tyre Service Centers
Mining & Industrial Vehicle Maintenance
Logistics & Freight Carrier Depots
Municipal and Government Workshops
Commercial Tyre Dealers
