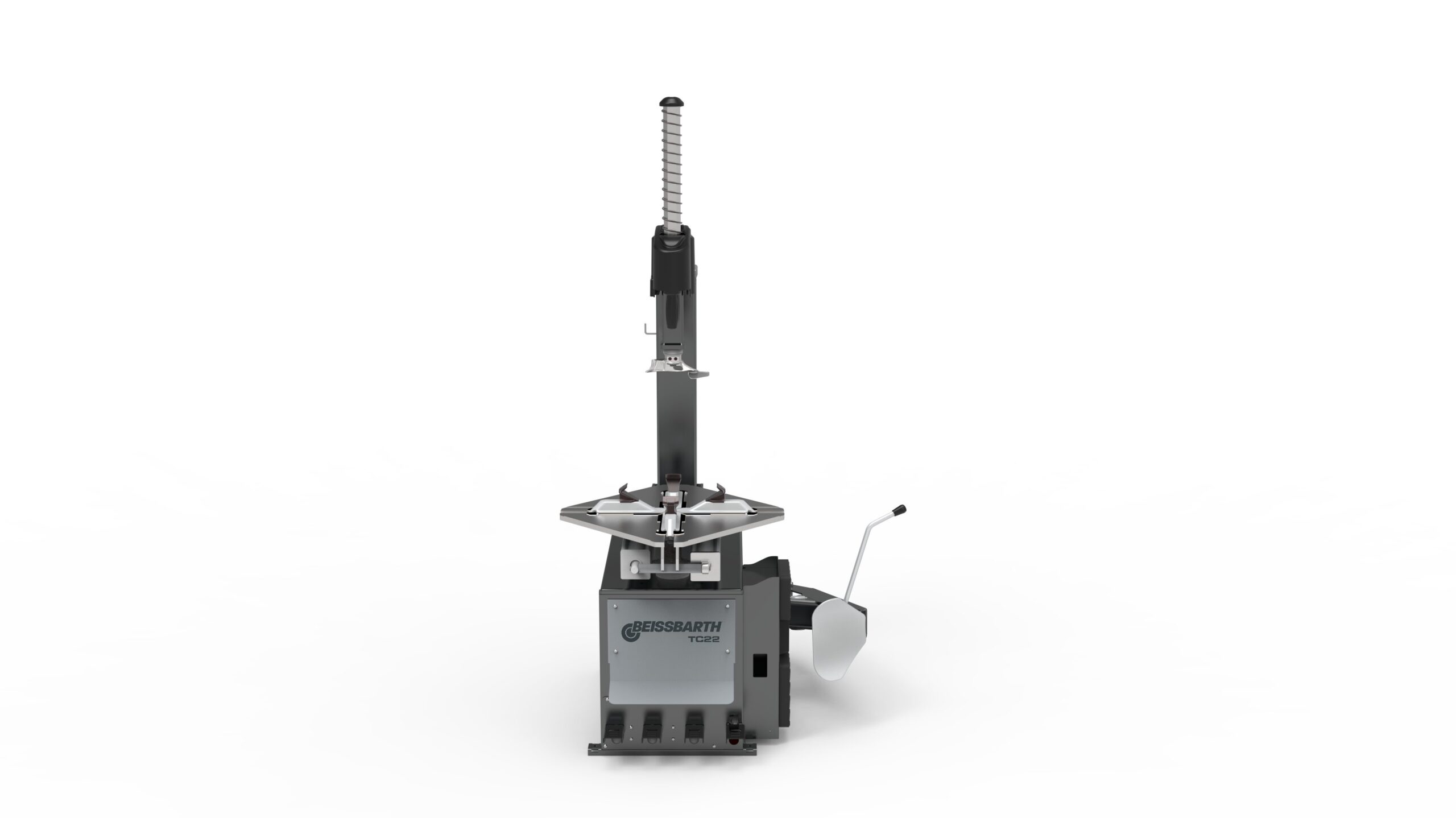

csm_00509122_2cdc0138a98685a6be435177f6f92757_d5d0e522d6

TC22 | 230V/50-60Hz/1 Speed

SKU: 1 692 401 014

The TC22 Automatic Tilt-Back Tyre Changer is an efficient and durable solution for workshops handling low to medium tyre service volume. Designed with a robust mounting column, high clamping power, and a powerful bead breaker, the TC22 offers precision and ease of operation for professionals.

Key Features

Clamping range of 10″ – 25″ for versatile applications.
Powerful bead breaker with 25,000N force for easy tyre demounting.
Automatic centering jaws with double 80mm cylinders for strong and secure clamping.
Square turntable design for improved leverage and ease of use.
Easy tilt-back column for quick operation and better access.
Ergonomic foot-controlled bead breaker for enhanced efficiency.

Here to help

TC22 | 230V/50-60Hz/1 Speed

Features

The TC22 Tyre Changer is designed for efficiency, precision, and durability, ensuring quick tyre mounting and demounting for a wide range of passenger vehicles.

Square Turntable with Automatic Centering Jaws

Provides a secure grip with a clamping range of 10” – 25”.
Double 80mm cylinders ensure maximum clamping power for various rim types.

Powerful Bead Breaker with High Efficiency

Generates 25,000N of force for quick bead loosening.
Side shovel bead breaker with three-way adjustable blade for precise control.
Rubber pad protection prevents rim and tyre damage.

User-Friendly Controls for Smooth Operation

Four ergonomic pedals control rotation, clamping, bead breaking, and column tilt.
Quick horizontal and vertical movement of the arm for fast positioning.
Removable pedal unit for easy maintenance.

Robust Construction with High Durability

Reinforced metal front cover ensures long-lasting performance.
50x50mm powerful horizontal arm for maximum rigidity.
Tiltable mounting column for easy positioning and access.

Upgrade Options for Enhanced Efficiency

TCX.PRO assistance column for increased productivity.
Side lift and roller board for heavy-duty applications.
Tubeless inflation kit for fast inflation of tubeless tyres.

Materials & Tech

The TC22 is built with premium materials, featuring a sturdy metal frame, hydraulic bead breaker, and a pneumatic locking system for seamless tyre handling.

Inclusions

5x Front Head Protection
2x Rear Head Protection
Inflation Gun
Standard Lever
Brush
Power Plug

Optional

Storage Kit (TC22, TC45, TC47L) – SKU: 1 692 402 014
TCX.PRO Assistance Column – SKU: 1 692 402 018
Rim Protector – SKU: 1 692 402 027
Plastic Mounting Head (TC22 & TC45) – SKU: 1 692 402 026
Mounting Head for Motorcycles – SKU: 1 692 402 032
Lever for RFT & UHP Tyres – SKU: 1 692 402 037
WDK Kit with Mounting Lever – SKU: 1 692 402 030

Specifications

GENERAL SPECIFICATIONS
Max. Wheel Diameter	1000 mm (39″)
Max. Wheel Width	305 mm (12″)
Max. Clamping Capacity	25″
Min. Clamping Capacity	10″

POWER & DIMENSIONS
Power Supply Voltage	230V \| 1 Phase \| 50-60Hz
Motor Power	1.1 kW
Operating Pressure	8 – 12 bar
Max. Torque	1200 Nm

PHYSICAL DIMENSIONS
Length	1060 mm
Height	1850 mm
Width	930 mm
Space Requirement (Width)	1240 mm
Space Requirement (Length)	1700 mm

PERFORMANCE & CAPACITY
Rotation Speed	7.5 rpm
Bead Breaker Cylinder Force	25,000N @ 10 bar
Bead Breaker Force on Shovel	13,000N @ 10 bar
Turntable Height	670 mm
Bead Breaker Operation	Foot Control
Mounting Head Design	With Tyre Lever
Mounting Column Design	Tiltable

PACKAGING & SHIPPING
Packaging Length	750 mm
Packaging Width	1100 mm
Packaging Height	1100 mm
Stackable	Yes (2 units)
Units per 20ft Container	30
Units per 40ft Container	60
