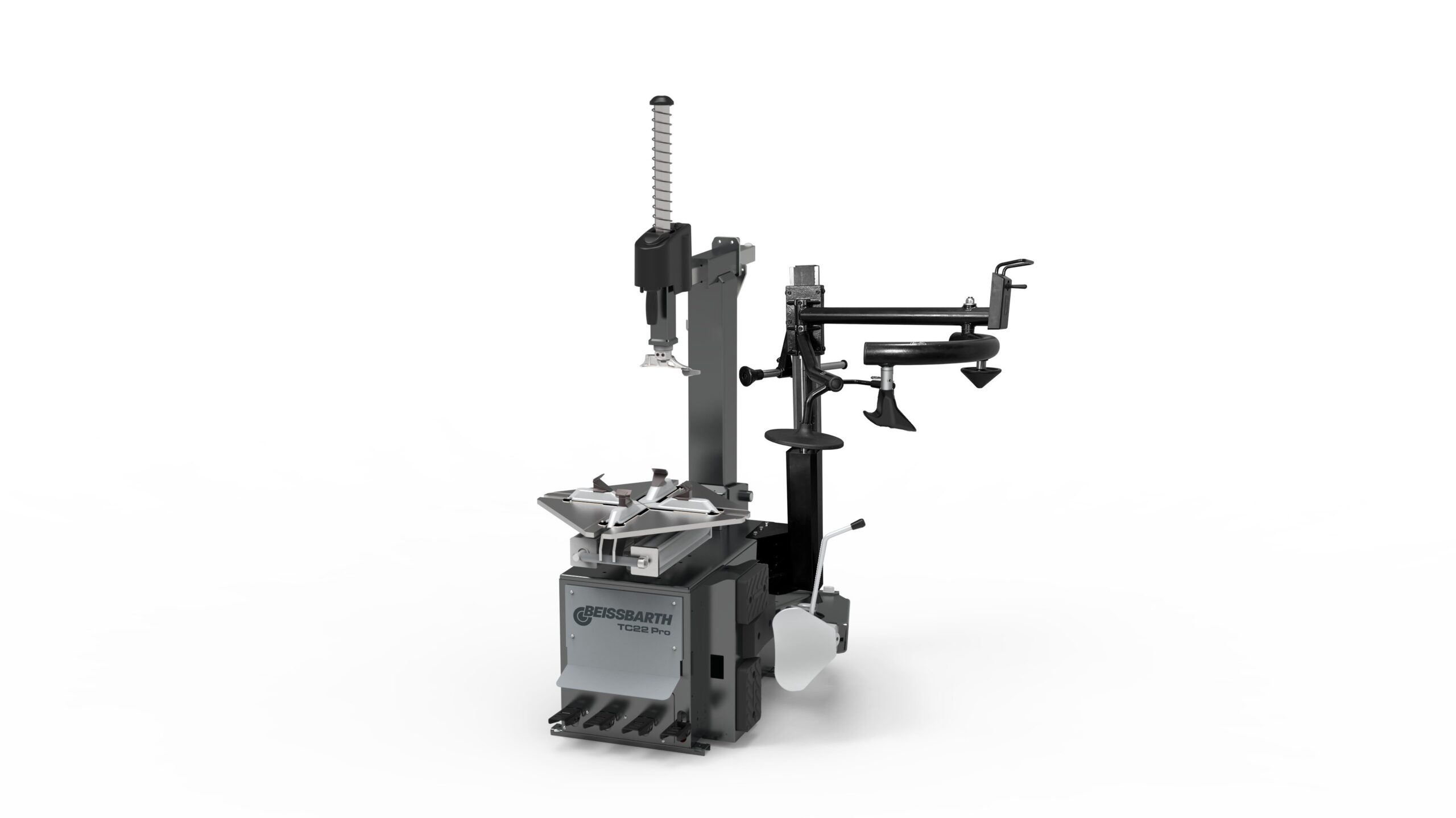

Tyre Changer TC22 Pro | WDK

SKU: 1 692 401 001

The TC22 Pro | WDK is a heavy-duty automatic tilt-back tyre changer with WDK certification, ensuring safe and secure handling of UHP and run-flat tyres. It features a TCX.PRO assistance column, dual-speed operation (8 & 16 rpm), and a robust bead breaker system for precise and efficient tyre changes.

  • Clamping Range: Handles 10-25” wheels
  • Powerful Bead Breaker: Delivers 2600N force
  • Dual-Speed Operation: Adjustable 8 & 16 rpm rotation
  • TCX.PRO Assistance Column: Optimized for UHP & run-flat tyres
  • Full Metal Construction: Durable 50x50mm horizontal arm and high-rigidity design
  • WDK-Approved System: Ensures safe mounting and demounting of tyres
Enquire

Here to help

Tyre Changer TC22 Pro | WDK

Enquire

Features

The TC22 Pro | WDK is engineered for workshops handling low-profile, UHP, and run-flat tyres. The square turntable with automatic centering jaws allows secure and precise clamping, while the dual-speed rotation optimizes workflow.

TCX.PRO Assistance Column

The fully equipped TCX.PRO system ensures seamless handling of hard UHP and run-flat tyres.

  • Bead roller assists in dropping the bead into the centre
  • Travelling bead pusher arm maintains bead position during rotation
  • Bottom disc roller simplifies demounting of heavy, stiff, and wide tyres
  • Rim pressing cone makes external clamping easier

Heavy-Duty Bead Breaking System

  • Side shovel bead breaker delivers 2600N force
  • Foot-controlled operation for quick, effective bead loosening
  • Anti-skid rubber pad protects the tyre and rim

Robust Mounting & Clamping System

  • Pneumatic locking ensures smooth movement
  • Double 80mm clamping cylinders provide maximum holding power
  • Simultaneous height adjustment of all tools

Ergonomic & Safe Operation

  • Full pedal control for rotation, clamping, bead breaking, and column tilting
  • WDK certification for handling run-flat tyres
  • WDK-approved mounting clamp for secure tyre positioning

Built to Last

  • Reinforced metal components for high durability
  • Full metal pedals for reliable operation
  • Removable pedal unit for easy maintenance

Materials & Tech

The TC22 Pro | WDK is built for reliability and durability, featuring a 50x50mm horizontal arm for improved rigidity, a 2600N bead breaker for quick bead loosening, and a WDK-approved mounting clamp for safe handling of run-flat tyres.

Inclusions

  • 5x Front head protection
  • 2x Rear head protection
  • Inflation gun
  • WDK lever
  • WDK mounting clamp for RFT/UHP
  • WDK rim protector
  • Bead breaker blade protection
  • Rim protection for lever
  • Brush
  • 400V plug

Optional

  • Side lift
  • Tubeless inflation kit
  • Roller board

Specifications

GENERAL SPECIFICATIONS
Max. Wheel Diameter 39″ | 1000 mm
Max. Wheel Width 12″ | 305 mm
Clamping Range 10-25″
Power Supply 400V | 3 Phase | 50-60Hz
Motor Power 0.8 – 1.1 kW
Rotation Speed 8 & 16 rpm
PERFORMANCE & BUILD
Bead Breaker Force 2600N
Bead Breaker Cylinder Force 25,000N @ 10 bar
Bead Breaker Blade Force 13,000N @ 10 bar
Max. Torque 1200 Nm
DIMENSIONS & WEIGHT
Length 1360 mm
Width 930 mm
Height 1850 mm
Space Requirement (Width) 1240 mm
Space Requirement (Length) 1700 mm
Packaging Dimensions (LxWxH) 1050 x 1260 x 2100 mm
Units per 20ft Container 9
Units per 40ft Container 20
