TC22 | TI Version/230V/60Hz

SKU: 1 692 401 012

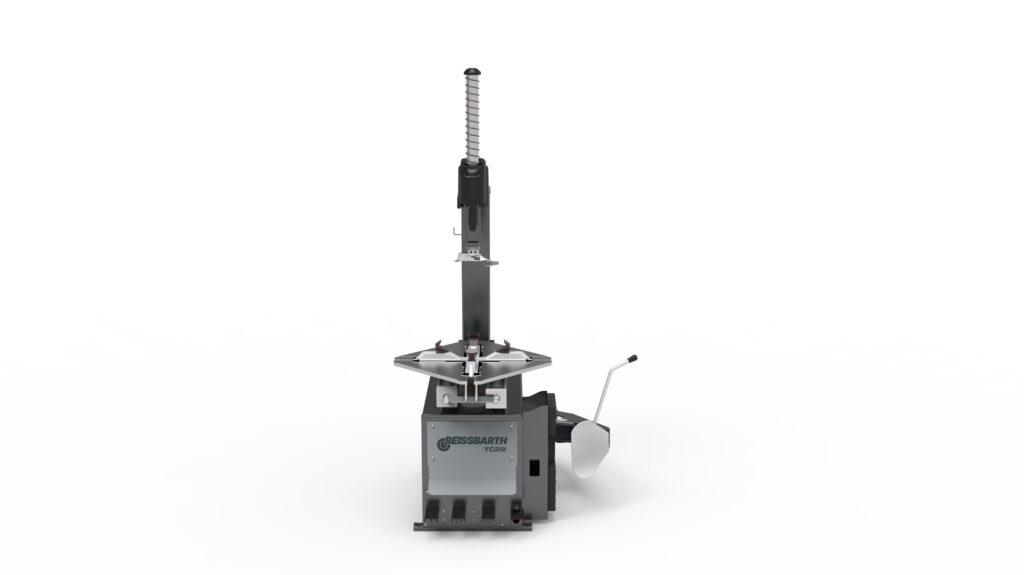

The TC22 | TI Version is an automatic tilt-back tyre changer designed for efficiency and ease of use. Featuring a 10-25″ working range, powerful bead breaker, and innovative jaw inflation technology, it ensures secure and quick tyre mounting and demounting. Ideal for workshops handling various tyre types with a focus on safety and precision.

FEATURES LIST:

Automatic tilt-back column for easy operation
10-25″ clamping range with double 80mm cylinders
Powerful bead breaker side shovel with three-way adjustable blade
Pneumatic locking system for tool precision
Claw inflation technology for secure bead seating
Robust design with full metal pedals and high rigidity

Here to help

TC22 | TI Version/230V/60Hz

Features

The TC22 | TI Version streamlines tyre changing with its automatic tilt-back column, ensuring quick and smooth operation.

Powerful Bead Breaker
Equipped with a side shovel providing 25,000N of force, enabling efficient bead loosening for even the most challenging tyres.

Enhanced Clamping System
Self-centering square turntable with automatic centering jaws ensures precise and firm clamping up to 25″.

Innovative Jaw Inflation Technology
Secure and quick bead seating with an 18-liter air tank, freeing up both hands during inflation.

Pneumatic Locking Mechanism
Ensures stable and secure tool positioning for maximum precision and safety.

Durable and Ergonomic Design
High-rigidity structure with robust metal construction, designed for long-term reliability.

Materials & Tech

Designed with an efficient pneumatic locking system, high-pressure bead breaker, and a claw inflation system for seamless operation.

5x Front head protection
2x Rear head protection
Inflation gun
Standard lever
Brush
Power plug

Inclusions

Pre-assembled components for easy setup
Foot-controlled bead breaker operation
Pedal unit for rotation, column tilting, and clamping

Optional

TCX.PRO assistance column
Side lift
Tubeless inflation kit
Roller board

Specifications

GENERAL SPECIFICATIONS
Max. Wheel Diameter	39″ \| 1000 mm
Max. Wheel Width	12″ \| 305 mm
Max. Clamping Capacity	25″

POWER & DIMENSIONS
Power Supply Voltage	230V \| 1 Phase \| 50-60Hz
Motor Power	1.1 kW
Operating Pressure	8 – 12 bar
Max. Torque	1200 Nm

PHYSICAL DIMENSIONS
Length	1360 mm
Height	1850 mm
Width	930 mm

PERFORMANCE & CAPACITY
Rotation Speed	7.5 rpm
Turntable Height	670 mm
Bead Breaker Force	25,000N @ 10 bar
Rapid Inflation	Yes (via claws)
