SKU: 1 690 310 072
The Easy CCD+ FLEX 433 MHz is an entry-level, high-precision CCD wheel aligner, offering a cost-effective, space-saving, and flexible solution for automotive workshops, service centers, and ADAS-equipped facilities. Featuring wireless data transmission at 433 MHz, permanent self-checking calibration, and rolling runout compensation, this system ensures accurate, fast, and efficient wheel alignment.
Wheel Aligner Easy CCD+ | FLEX/433Mhz
Features

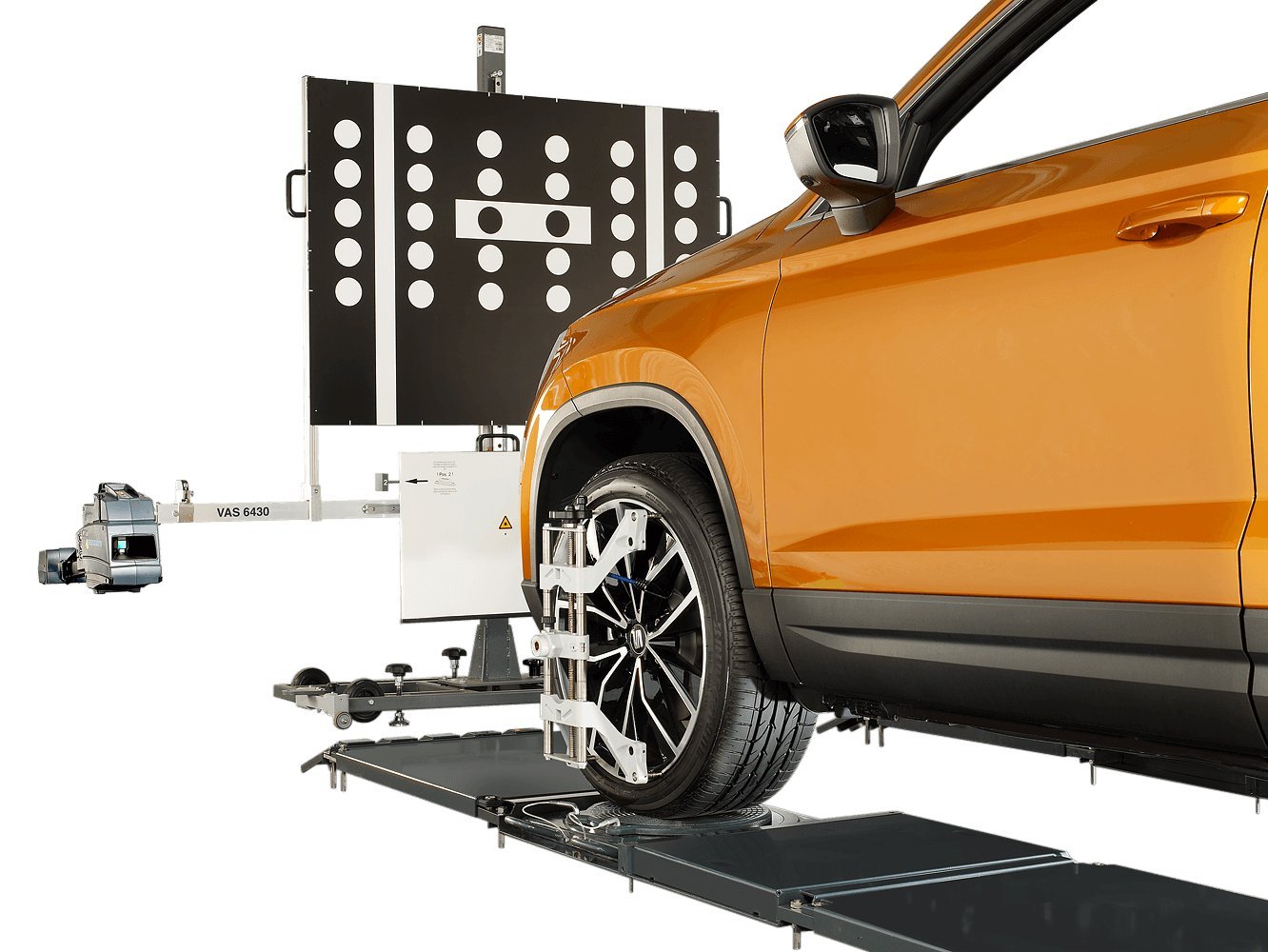

Seamless ADAS Calibration Integration
Permanent thrust angle tracking for precise ADAS calibration
Compatible with headlight testing systems
Eliminates additional cameras, sensors, or extra calibration targets
Wireless CCD Sensors for Enhanced Flexibility
433 MHz wireless data transmission for cable-free operation
Battery-powered sensors with intelligent self-checking functions
Allows use of Windows tablets or laptops for added flexibility
360° Self-Adjusting Measurement System
Automatic compensation for movement, vibration, and alignment variations
Ensures long-term accuracy with minimal technician intervention
Best-in-class ±2-minute precision for every measurement
Rolling Runout Compensation
Eliminates time-consuming single-wheel compensation
No need to raise the vehicle for pre-alignment measurements
Faster alignment workflow with superior accuracy
Space-Saving Wall Storage for Sensor Heads
Easy detachment and storage of sensor heads
Keeps workspace organized and clutter-free
Quick access for maintenance and setup
Materials & Tech
Optional
| GENERAL SPECIFICATIONS | Details |
| Measuring System | CCD-Based Wheel Alignment |
| Power Supply | Battery-Powered Sensors |
| Data Transmission | Wireless (433 MHz) |
| Power Consumption | Low-Power Consumption for Extended Use |
| Operating Temperature | 5°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| DIMENSIONS & WEIGHT | Details |
| Cabinet | H: 1111mm | W: 650mm | D: 680mm |
| Packaging Size | 1150mm x 1200mm x 1600mm |
| Net Weight | 114kg |
| Gross Weight | 144kg |
| MEASUREMENT CAPABILITIES | Supported |
| Total Toe & Individual Toe (Front/Rear Axle) | Yes |
| Toe-Out on Turns | Yes |
| Camber (Front/Rear Axle) | Yes |
| Caster & SAI (Steering Axis Inclination) | Yes |
| Set-Back (Front/Rear Axle) | Yes |
| Thrust Angle & Geometric Center Line | Yes |
| ADAS Calibration Compatibility | Yes |
