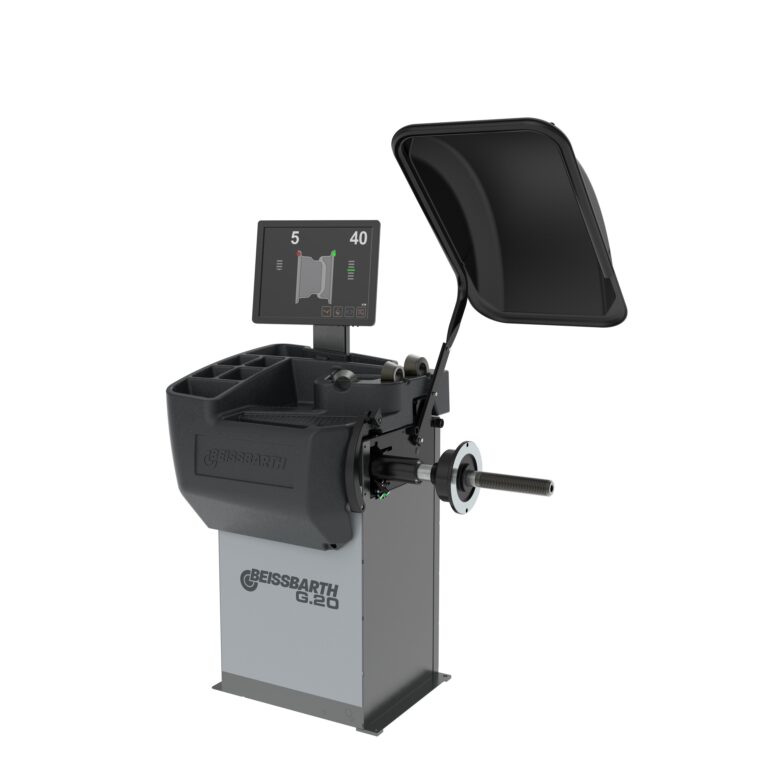

Wheel Balancer G.20

SKU: 1 692 501 000

The G.20 Wheel Balancer is a compact, high-precision solution for automotive workshops, providing fast and accurate wheel balancing. Equipped with a 17″ touchscreen, automatic data arm, internal line laser, and virtual sonar for steel rims, this wheel balancer offers seamless operation, high efficiency, and improved balancing accuracy.

4.7-Second Balancing Time
17″ Touchscreen Display with Graphical User Interface
Auto Adaptive Mode
Internal Line Laser
Mechanical Quick-Clamping
Virtual Sonar

Here to help

Wheel Balancer G.20

Features

Balances wheels in just 4.7 seconds. Automatic wheel stop at 15° before the correction position. LED guidance for easy placement of balance weights

Internal Line Laser for Accurate Weight Placement
Eliminates human error in weight positioning
Ensures proper weight placement for optimal balancing

17″ Industrial Touchscreen for User-Friendly Operation
Step-by-step graphical interface
Touchscreen works even with gloves on
Quick selection of balancing programs & settings

Auto Adaptive Mode for Maximum Ride Comfort
Adjusts balancing tolerances dynamically
Reduces driver-perceptible vibrations

Automatic Data Recognition for Quick Setup
Automatic measurement of rim distance, diameter, and weight placement
Auto-selection between clip-on and adhesive weight programs
**Highest balancing accuracy of ±0.5g

Mechanical Quick-Clamping for Stability
40mm shaft ensures secure wheel mounting
**Handles wheel weights up to 75kg

Virtual Sonar for Automatic Rim Width Measurement
Detects steel rim width automatically
Removes the need for manual input

Materials & Tech

The G.20 Wheel Balancer features a fully automated balancing system with real-time weight placement guidance for consistent and precise results.

3 Cones (Ø45-111mm) for Various Wheel Sizes
Quick-Lock Nut for Secure Clamping
Clamping Cap for Stability
Pressure Ring & Rubber Ring for Enhanced Grip
60g Counterweight for Calibration
Weight Pliers for Handling Balance Weights

Optional

G.Zero Wheel Lift
Universal Adapter
Mercedes-Benz Cone Kit

Specifications

GENERAL SPECIFICATIONS	Details
Max. Wheel Diameter	36″ (914mm)
Max. Rim Diameter	30″
Min. Rim Diameter	10″
Max. Rim Width	20″
Min. Rim Width	1.5″
Max. Wheel Weight	75kg
Measuring Speed	100 rpm
Measuring Time	4.7 seconds
Balancing Accuracy	±0.5g
Wheel Data Recording	Semi-automatic

DIMENSIONS & WEIGHT	Details
Machine Weight	110kg
Gross Weight (with Packaging)	153kg
Length	1100mm
Height	1550mm
Width	960mm
Packaging Dimensions	1100mm (L) x 700mm (W) x 1165mm (H)

ELECTRICAL SPECIFICATIONS	Details
Power Supply	230V / 50-60Hz \| Single Phase
Motor Power	0.15 kW
