SKU: 1 692 501 003
The G.50P Wheel Balancer is engineered for high-volume workshops requiring efficient, precise, and secure balancing. Featuring pneumatic clamping for increased consistency, a 19” touchscreen, sonar-based rim width detection, an internal spot laser for pinpoint accuracy, and One Plane Balancing to minimize weight usage, this system ensures faster, repeatable results while reducing operator effort.

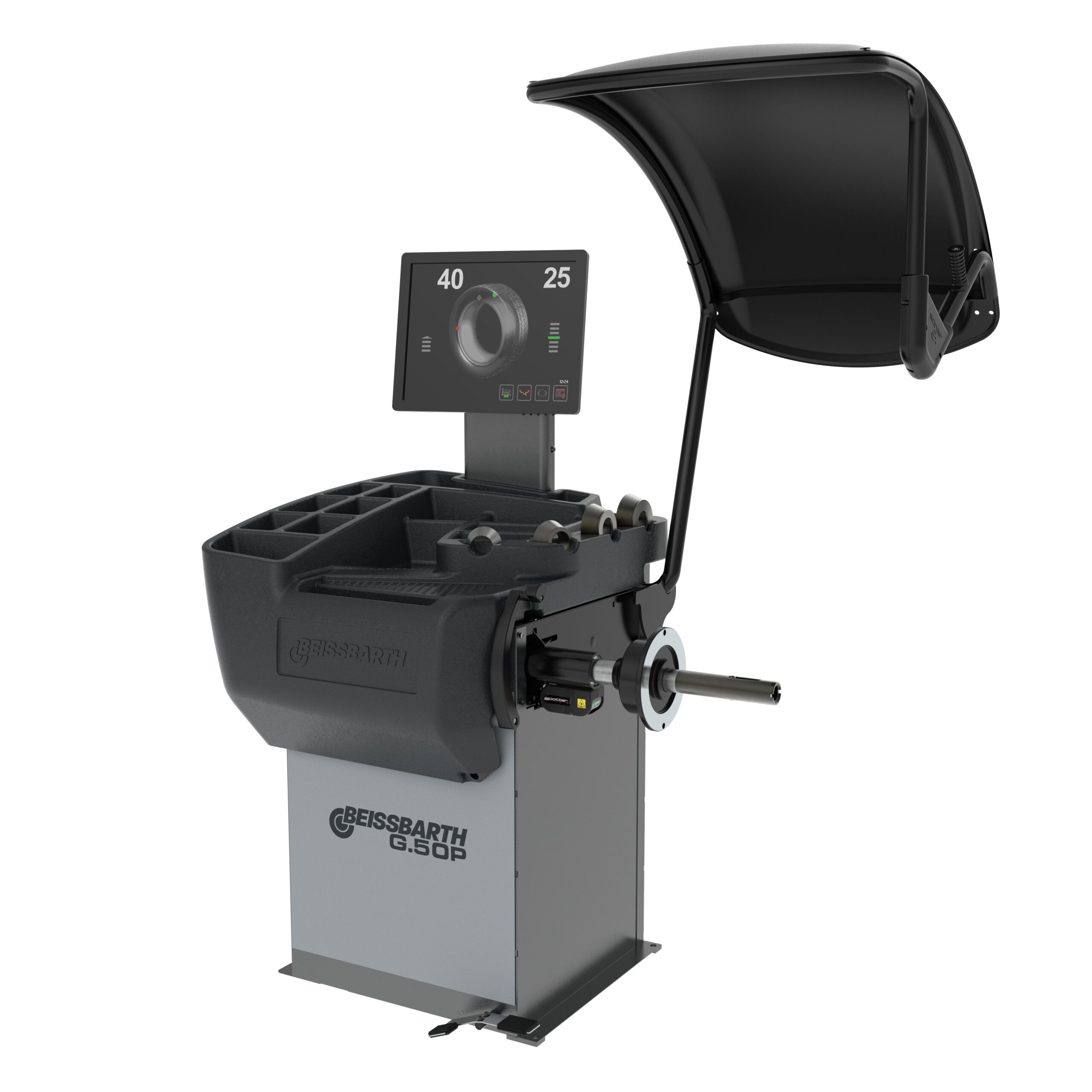

Wheel Balancer G.50P
Features
Pneumatic Quick-Clamping for Secure Mounting
250kg clamping force ensures uniform accuracy across all wheels
Eliminates operator variability, ensuring repeatable balancing results
Reduces operator fatigue and improves workflow efficiency
Internal Spot Laser for Pinpoint Weight Placement
Ensures accurate balancing by guiding weight positioning
Reduces balancing errors and enhances precision
19” Industrial Touchscreen for Seamless Operation
Step-by-step graphical interface for guided balancing
Responsive to gloved hands for seamless use in workshops
Auto Adaptive Mode for Maximum Ride Comfort
Dynamically adjusts tolerances based on wheel weight and size
Minimizes imbalance to reduce vehicle vibrations
Automatic Wheel Data Recognition for Quick Setup
Measures rim distance, diameter, and weight placement automatically
Automatically selects between clip-on and adhesive weights
Achieves a balancing accuracy of ±0.5g
Wheel Guard with Integrated Sonar for Rim Width Detection
Detects rim width without manual input
Closes automatically to initiate the balancing process
One Plane Balancing – Reduce Weight Usage
Uses a single weight instead of two to eliminate dynamic imbalance
Reduces correction points on the rim, leading to less weight usage
Upgradable to Pro Version
Optional Eccentricity Diagnostic Upgrade for runout measurement & Hubmatch function
Materials & Tech
Optional
| GENERAL SPECIFICATIONS | Specifications |
| Max. Wheel Diameter | 44″ (1117 mm) |
| Max. Rim Diameter | 30″ |
| Min. Rim Diameter | 10″ |
| Max. Rim Width | 20″ |
| Min. Rim Width | 1.5″ |
| Max. Wheel Weight | 75 kg |
| Measuring Speed | 100 rpm |
| Measuring Time | 4.7 seconds |
| Balancing Accuracy | ±0.5g |
| Wheel Data Recording | Semi-automatic |
| DIMENSIONS & WEIGHT | Specifications |
| Machine Weight | 130 kg |
| Gross Weight (with Packaging) | 153 kg |
| Length | 1300 mm |
| Height | 1770 mm |
| Width | 1300 mm |
| Packaging Dimensions | 1480 mm (L) x 1130 mm (W) x 1165 mm (H) |
| ELECTRICAL & AIR SUPPLY | Specifications |
| Power Supply | 230V / 50-60Hz | Single Phase |
| Motor Power | 0.15 kW |
| Air Supply | 7-10 bar |
