SKU: 1 692 501 005
The Beissbarth G.90 HD Truck Wheel Balancer is engineered for high-performance balancing of heavy-duty truck and bus wheels. Featuring a height-adjustable flange, automatic measuring arm, inner line laser, and sonar-based wheel width detection, this machine streamlines the balancing process for large commercial vehicles with exceptional precision and efficiency.

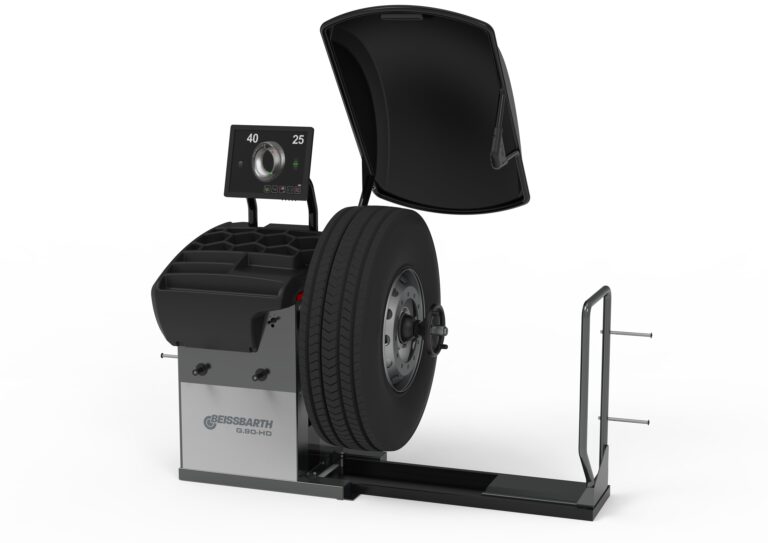

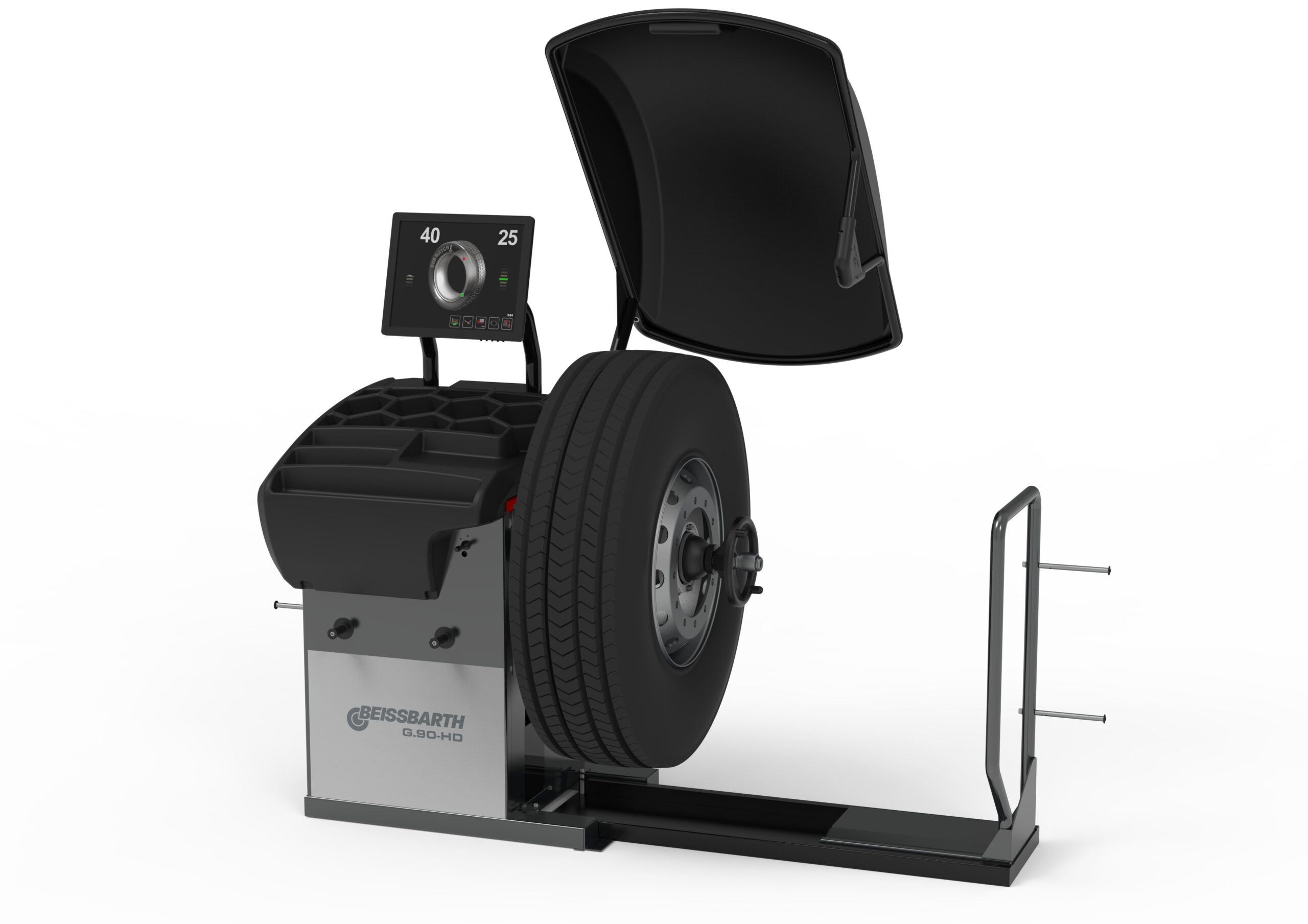

Wheel Balancer G.90 HD
Features
Height-Adjustable Flange for Easier Wheel Mounting
Clamps wheels on the ground rather than mid-air
No separate wheel lift required
59mm build height allows for easy lateral movement
Automatic Wheel Data Detection
Measures wheel distance, diameter, and weight placement automatically
Extended measuring arm supports rims up to 32” diameter
Automatic selection of clip-on or adhesive weight program
Inner Line Laser for Accurate Weight Placement
LED lighting enhances visibility when placing weights
Split function allows hidden weight placement behind spokes
Sonar-Based Rim Width Detection
Detects wheel width in both steel and aluminum rims without manual input
Wheel guard automatically initiates balancing program upon closure
19” Touchscreen for Simplified Operation
Graphical representation of all balancing steps
Guided workflows ensure accuracy and efficiency
Operable even with gloves for workshop convenience
Robust Mechanical Clamping for Heavy Wheels
Handles truck and bus wheels up to 200kg
Stable 40mm shaft ensures durability
Materials & Tech
Optional
| GENERAL SPECIFICATIONS | Specifications |
| Max. Wheel Diameter | 54.3″ (1380 mm) |
| Max. Rim Diameter | 30″ |
| Min. Rim Diameter | 10″ |
| Max. Rim Width | 20″ |
| Min. Rim Width | 1.5″ |
| Max. Wheel Weight | 200 kg |
| Measuring Speed | 130 rpm |
| Measuring Time | 8s (Car) / 20s (Truck) |
| Balancing Accuracy | ±1g (Cars) / ±10g (Trucks) |
| Wheel Data Recording | Semi-Automatic |
| DIMENSIONS & WEIGHT | Specifications |
| Machine Weight | 210 kg |
| Gross Weight (with Packaging) | Varies |
| Length | 2300 mm |
| Height | 2195 mm |
| Width | 1760 mm |
| Packaging Dimensions | 1800 mm (L) x 1130 mm (W) x 1827 mm (H) |
| ELECTRICAL & MOTOR | Specifications |
| Power Supply | 230V / 50-60Hz | Single Phase |
| Motor Power | 1.1 kW |
