SKU: 5175153
The 14,000-kg Open-Front Alignment Lift is designed for large trucks, SUVs, and passenger vehicles, offering unrestricted access with its open-front design. It features integrated turnplates and slip plates for precise wheel alignments, heavy-duty aircraft cables for durability, a push-button pneumatic lock release for safe descent, and extended approach ramps for easy loading of low-clearance vehicles.
HDSO-14AX
Features
Open-Front, Heavy-Duty Alignment Lift
The HDSO14AX combines high performance with unmatched accessibility, perfect for busy alignment bays and professional workshops.
![Feature Image]

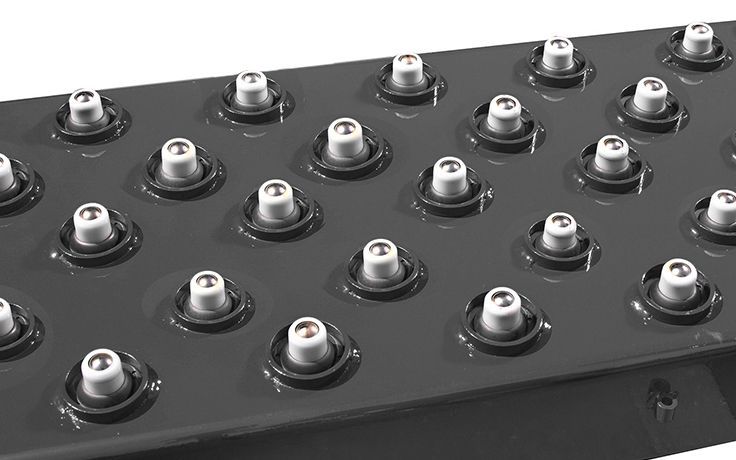

Rear Slip Plates & Turn Plates for Easy Adjustments
Integrated multi-caster slip plates at the rear and corrosion-resistant turn plates at the front ensure precise, free-floating wheel alignments.
Durable, Heavy-Duty Cable Sheaves
Built for extended service life, the HDSO14AX features 10.5” (267mm) diameter cable sheaves and 2.25” (57mm) sheave axles for smoother operation.
Aircraft-Quality Lifting Cables
Four 1/2″ (12.7mm) aircraft-quality steel cables provide exceptional load-bearing strength and long-term reliability.
Adjustable Height Locking Positions
Multiple locking positions accommodate different working heights, enhancing safety and comfort.
Built-In Lubrication for Long-Term Performance
Integrated grease fittings keep the cable sheaves well-lubricated, ensuring smooth, trouble-free operation.
Flow Restrictor for Controlled Descent
BendPak’s hydraulic flow divider provides a smooth, even descent, even in the event of hydraulic failure.
Spring-Loaded Safety Locks
Spring-loaded locks engage automatically at each locking position, ensuring maximum operator safety.
Push-Button Pneumatic Lock Release
A simple, push-button system disengages all locks simultaneously for quick, smooth lowering.
Secondary Lock System for Added Safety
A slack-cable detection system immediately engages safety locks if cable tension is compromised.
Internally Routed Cables & Airlines
All hydraulic lines, airlines, and cables are fully enclosed, protecting them from external damage.
Electric-Hydraulic Power System
The zero-maintenance power unit features an intuitive layout for seamless operation.
Extended Approach Ramps for Low-Clearance Vehicles
Longer ramps allow low-profile sports cars and large trucks to be easily loaded without damage.
Flexible Protective Conduit
A durable, protective conduit safeguards airlines and hydraulic hoses, ensuring long-term durability.
Optional Rolling Bridge Jacks for Multi-Purpose Use
Turn the HDSO14AX into a complete service station with rolling bridge jacks (sold separately).
Materials & Tech
Inclusions
| Lifting Capacity | 14,000 lbs. (6,350 kg) |
| Overall Width (Front/Rear) | 143.25” (3,638 mm) / 130” (3,304 mm) |
| Outside Length | 215.5” (5,472 mm) |
| Overall Length | 244.5” (6,209 mm) |
| Height of Columns (Front/Rear) | 103.25” (2,623 mm) / 92” (2,338 mm) |
| Min. Runway Height | 7.75” (196 mm) |
| Max. Lifting Height | 70” (1,778 mm) |
| Drive-Thru Clearance | 120” (3,050 mm) |
| Runway Width | 20.5” (520 mm) |
| Width Between Runways | 42” (1,067 mm) |
| Locking Positions | 15 |
| Lock Spacing | Every 4” (102 mm) |
| Lifting Time | 60 seconds |
| Motor | 220 VAC / 60 Hz / 1 Ph |
| Shipping Weight | 3,556 kg (7,840 lbs.) |
