SKU: 5175613

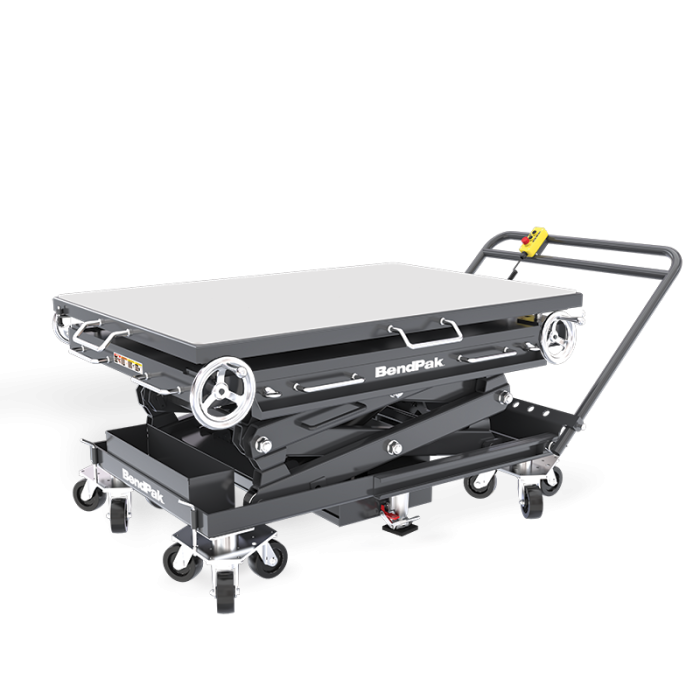

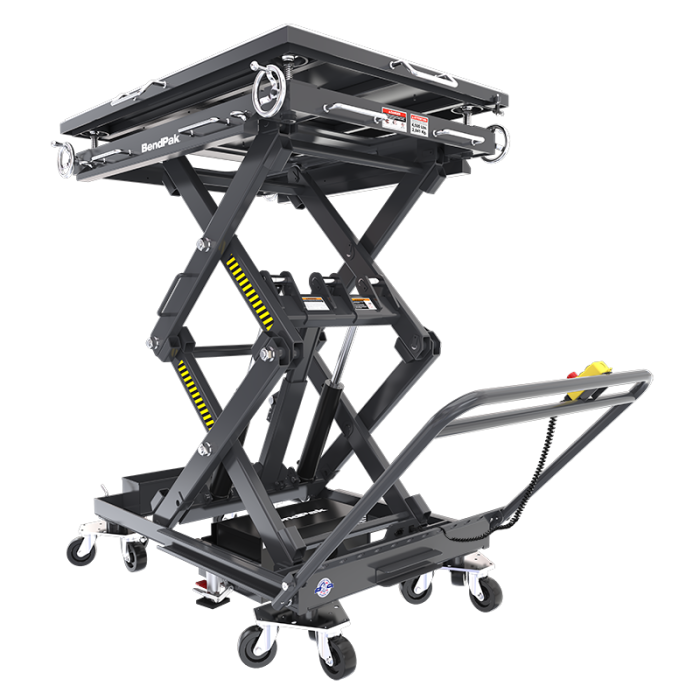

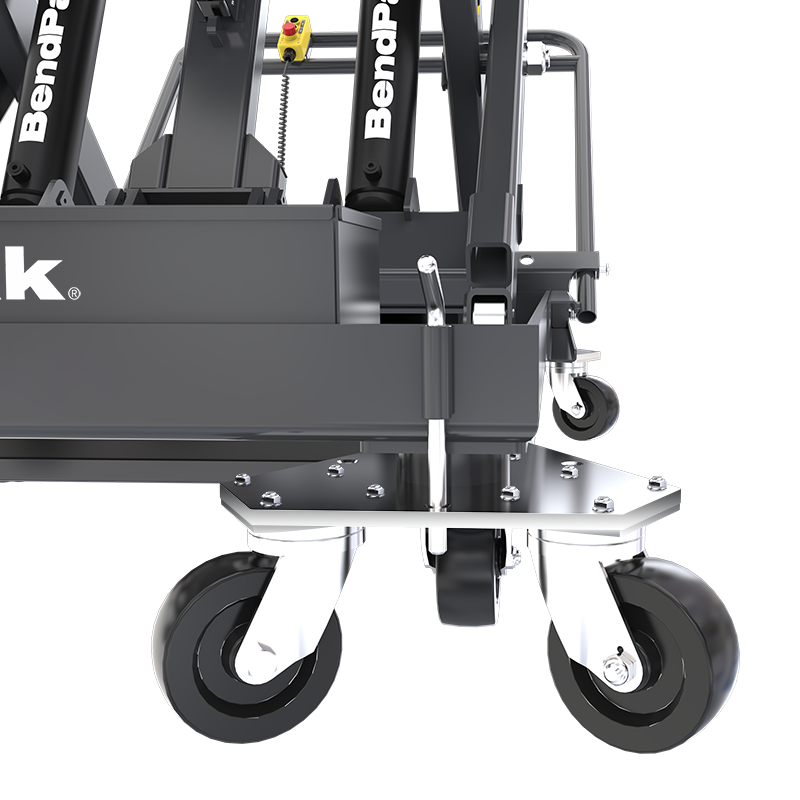

The BendPak EVS4500 is a battery-powered mobile lift table for EV battery pack replacement and powertrain work. It lifts components up to 2,040 kg to a height of 1,972 mm, and its compact footprint moves easily between bays.
Getting your workshop EV ready? See how the DRIVEN rebate works.
Portable Lift Table 2,040kg EVS4500
Features
Full Rise in About 18 Seconds

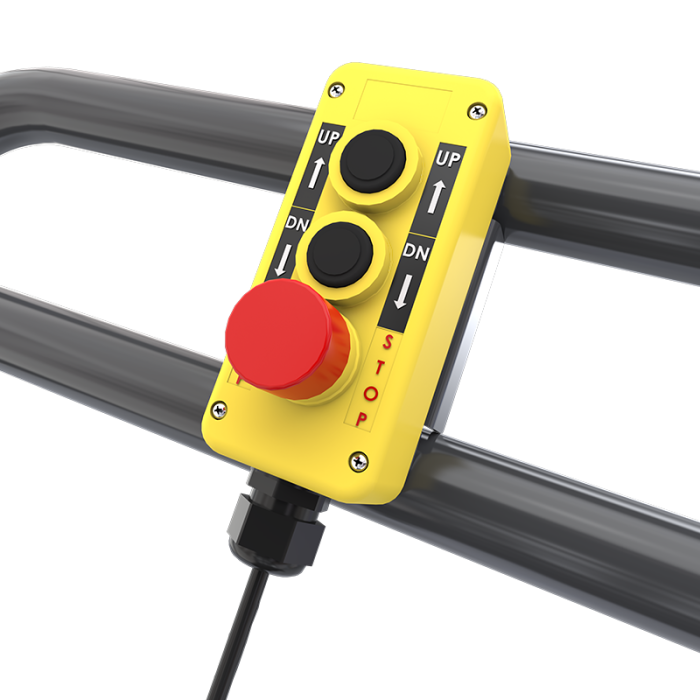

A press of the pendant control raises the platform to its full 1,972 mm height in around 18 seconds.
Modular Platform

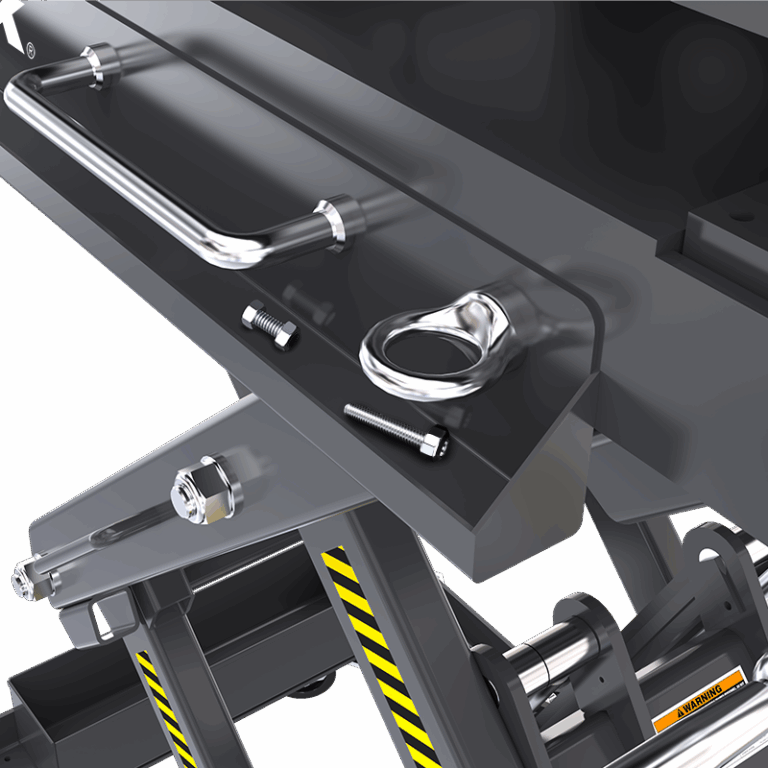

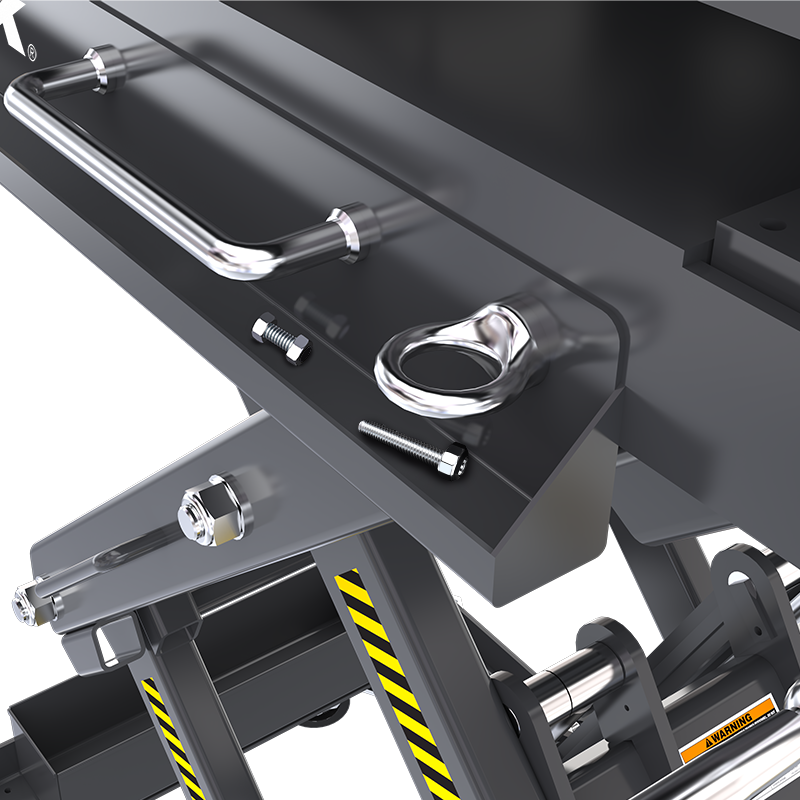

The 1,600 × 1,088 mm deck has recessed anchor points for fixtures, adapters and accessories, which can be moved or removed to suit the job.
Insulating Deck Surface
A tough, low-friction polyethylene top protects the deck, lets technicians slide heavy components into position with less effort, and keeps electrical components off the steel platform.

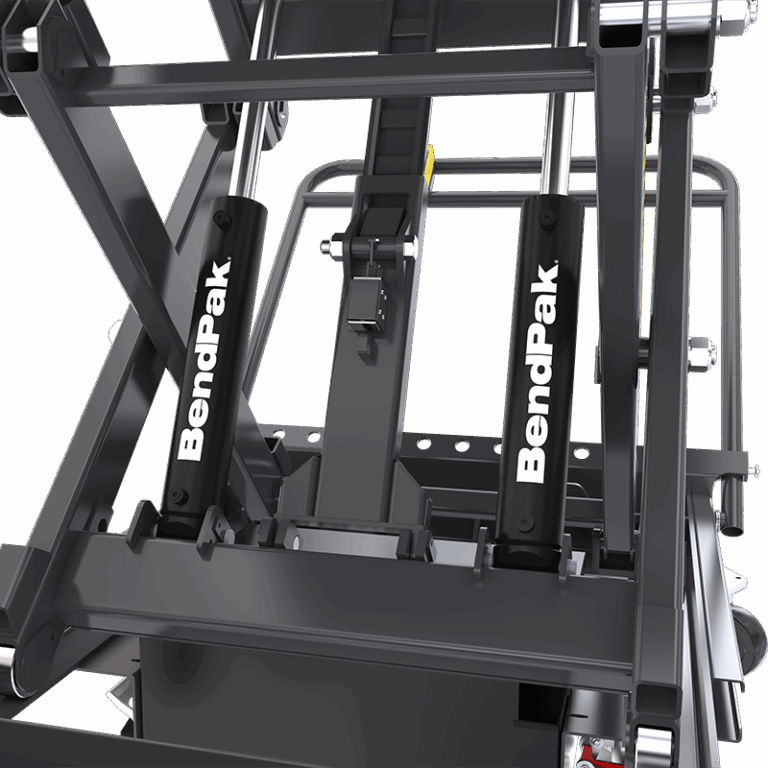

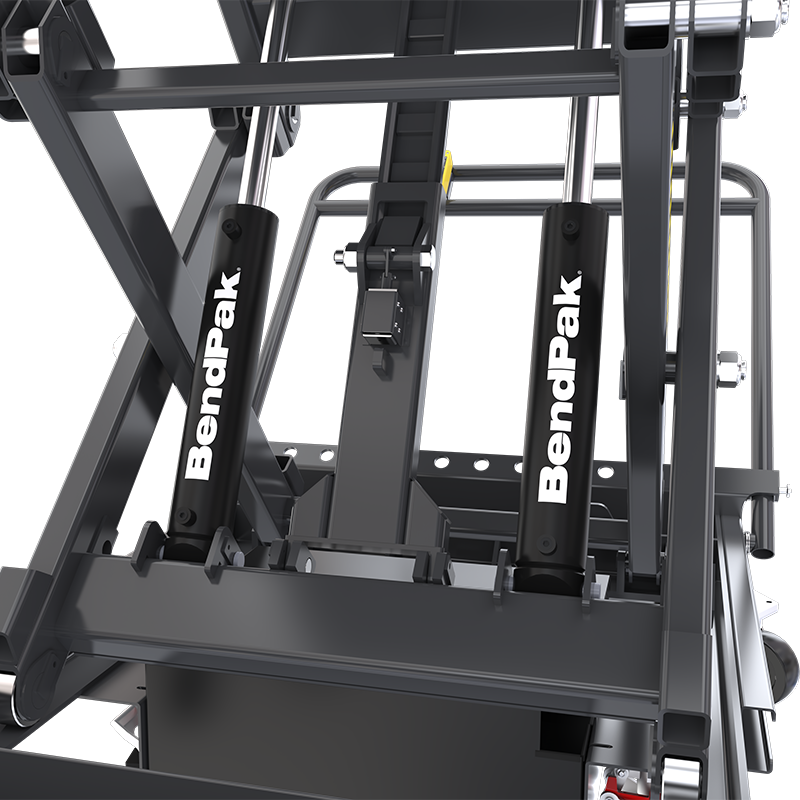

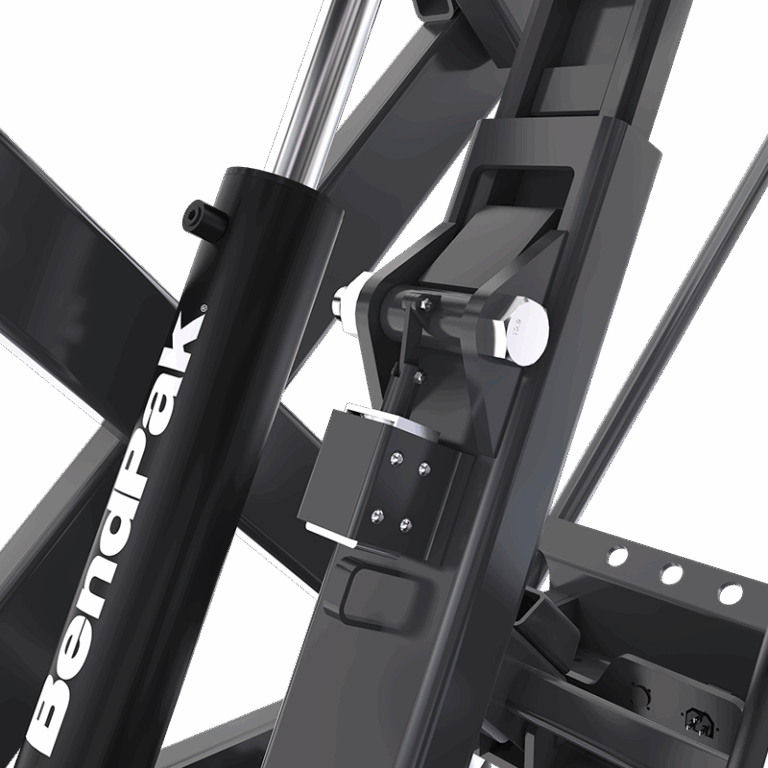

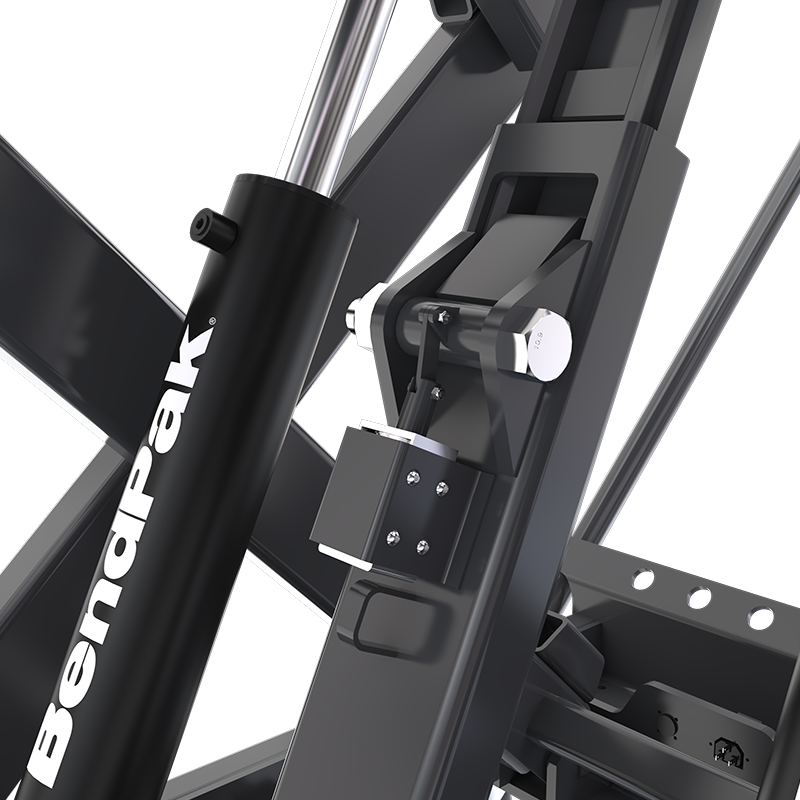

Twin Hydraulic Cylinders
Welded cylinders with chrome-plated rods and polished bores, with a seal design built for long, dependable service.
Deep-Cycle Power
A heavy-duty 12 V DC power unit runs from a deep-cycle battery, with an on-board charger and a gauge showing charge at all times.
Pair It With the Right Hoist
EVs are heavier and use EV-specific lifting points. A clearfloor two-post hoist such as the BendPak 10AP, with 4,536 kg capacity and triple-telescoping arms, leaves room to roll the table under the vehicle.
Materials & Tech
| Lifting Capacity | 2,041 kg |
| Maximum Rise | 1,972 mm |
| Minimum Deck Height | 868 mm |
| Overall Length | 2,318 mm |
| Top Deck Length (with handles) | 1,807 mm |
| Top Deck Length | 1,600 mm |
| Overall Width (with handles) | 1,348 mm |
| Top Deck Width | 1,088 mm |

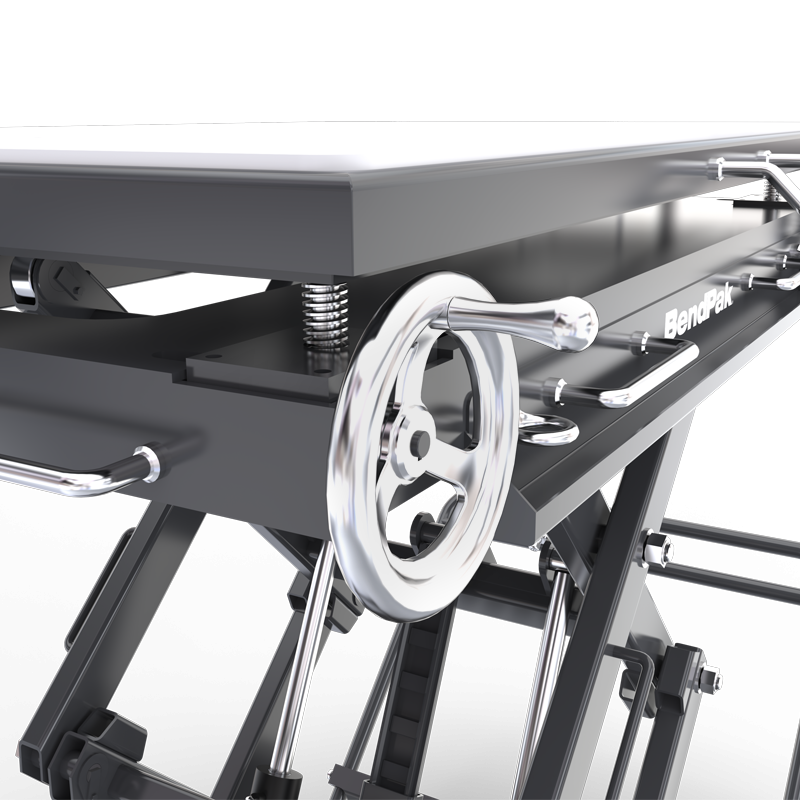

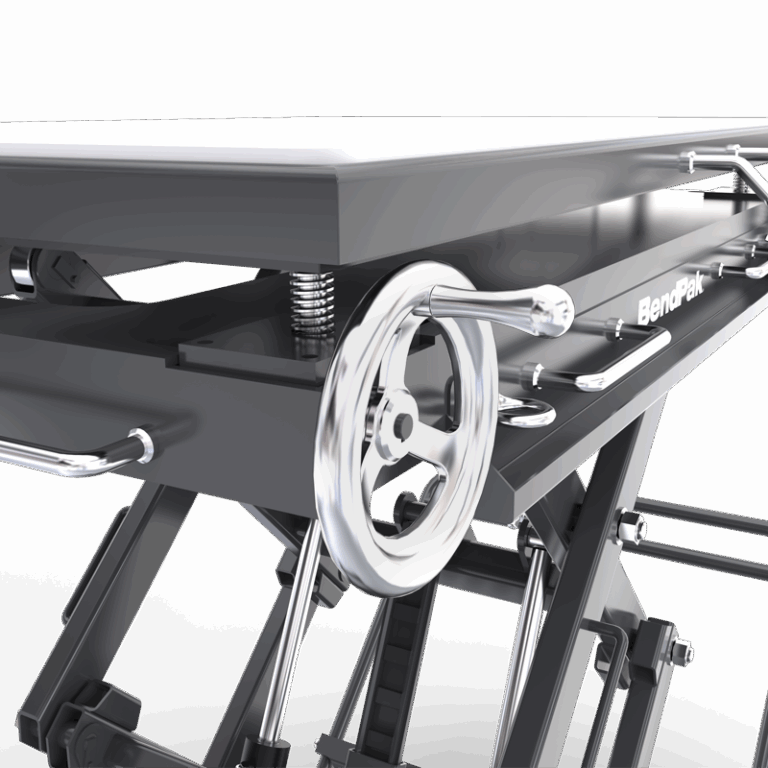

| Screw Jack Maximum Adjustment | 38 mm |
| Height of Steering Handle | 997 mm |
| Motor | 12 V DC |
| Operating Pressure at Maximum Load | 119 bar |
| Battery Charger | Input: 230 V AC, 50 Hz · Output: 12 V DC, 15 A |
| Battery Charge Time | 10–12 hours to full from about 20% |
| Lifting Time | About 18 seconds |
| Weight | 870 kg |
