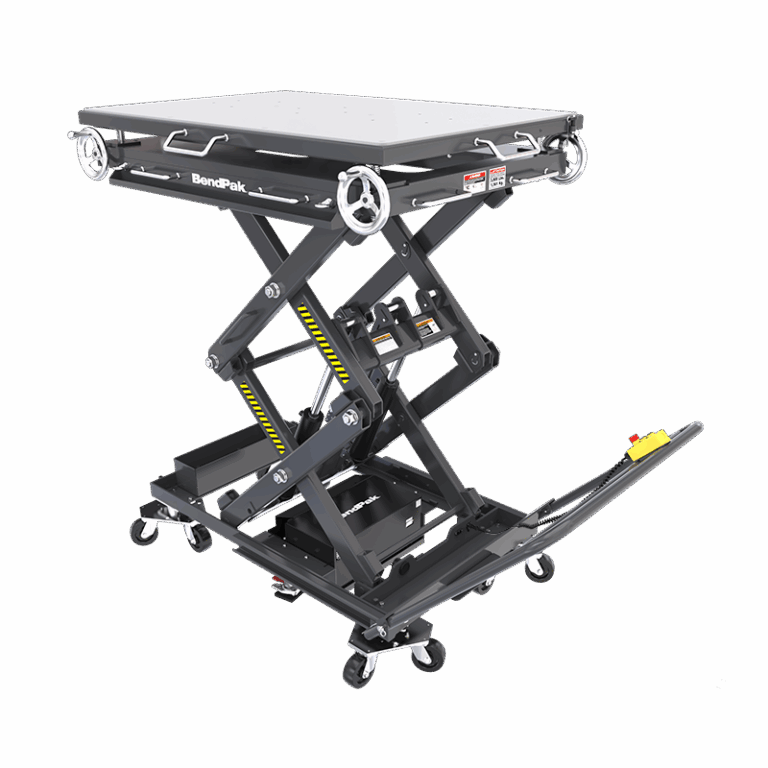

EVS3000 Scissor Lift

SKU: 5175611

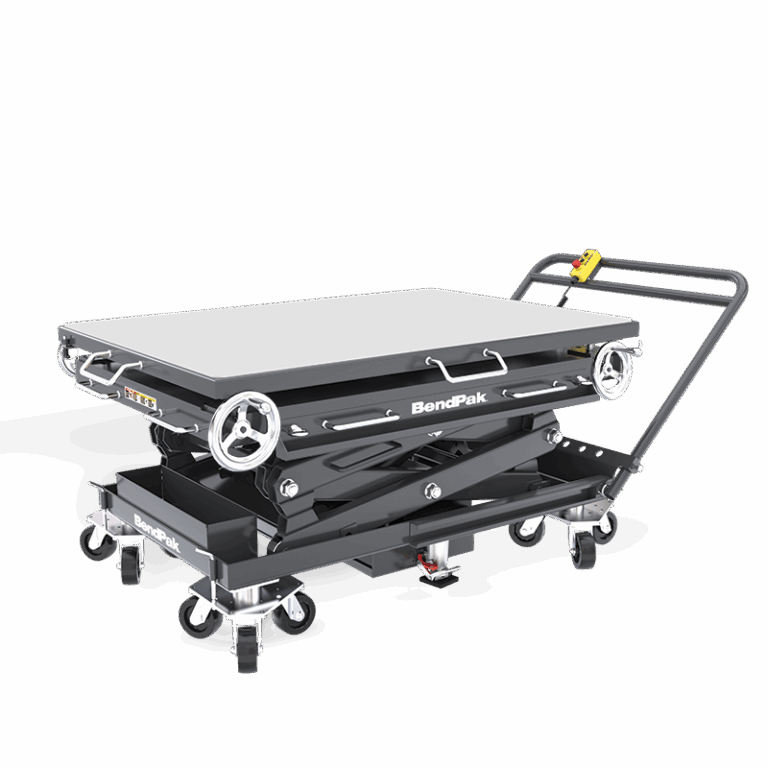

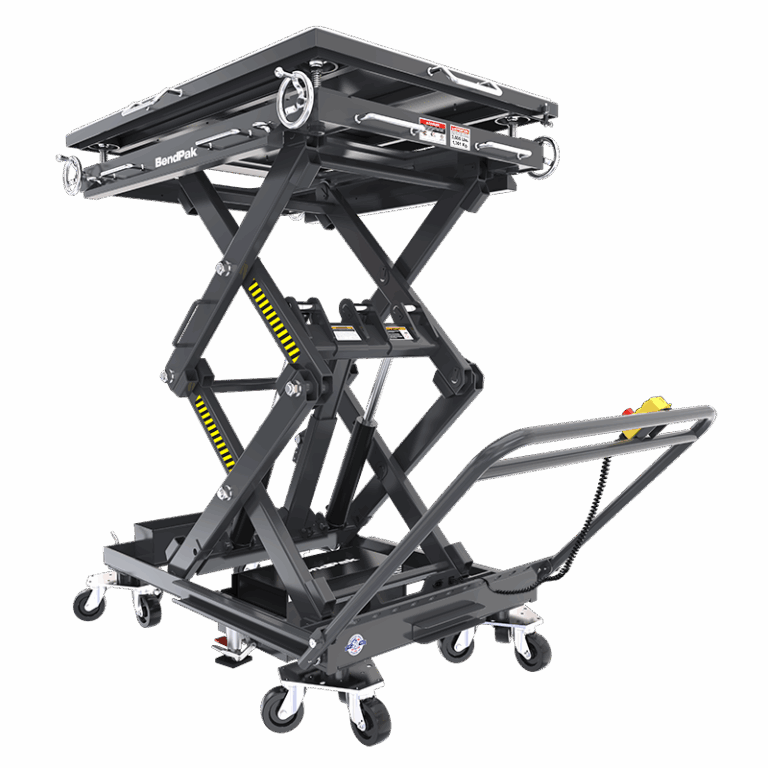

The EVS300 is the latest in BendPak’s revolutionary Mobi-EVS™ line of full-rise battery powered mobile scissor lift tables and is perfectly suited for Electric Vehicle Service and EV Battery Pack replacement. With it, you’ll be able to safely handle critical vehicle components weighing up to 3,000 lbs. With a compact design, this space-saving lift table can be easily transported anywhere in the workplace, making the EVS3000 ideal for multi-bay facilities or workplaces with confined areas.

  • 3,000 Lb. Cap.
  • EV Battery Pack and Powertrain Lift Table
  • Rechargeable 12V
  • Incl. Battery
  • Zero-throw casters for extreme maneuverability
  • Adjustable screw jack

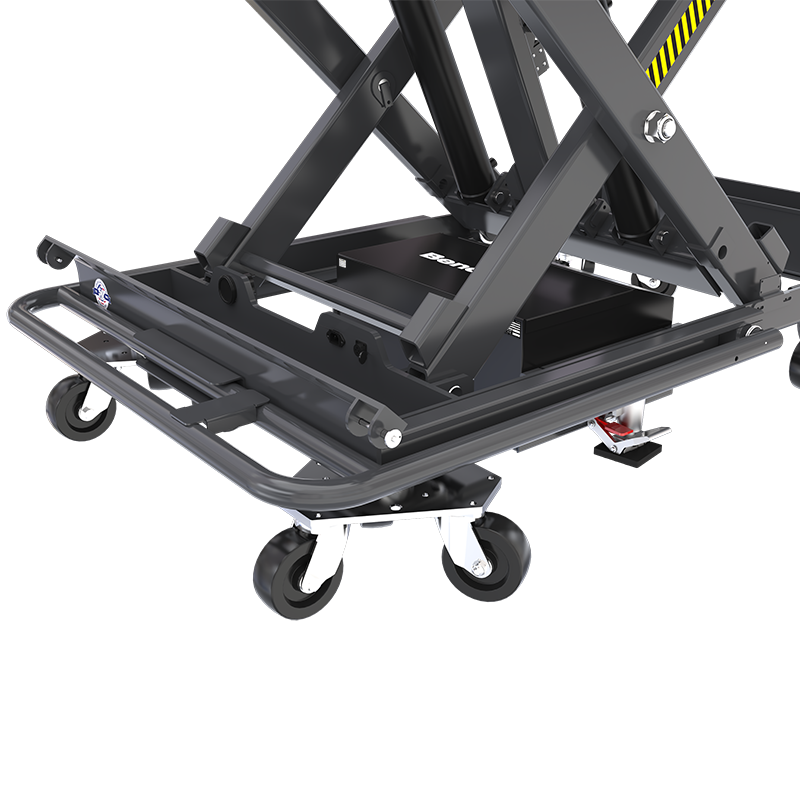

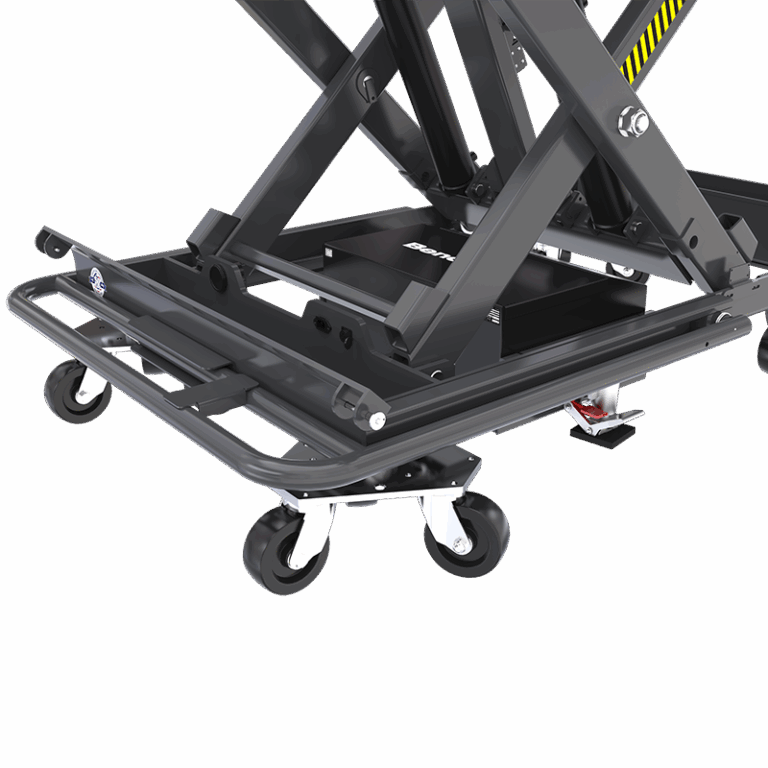

  • Stowable tow bar
  • Twin hydraulic cylinders
  • Tri-caster locking pin
  • DC Electric power system with onboard charging

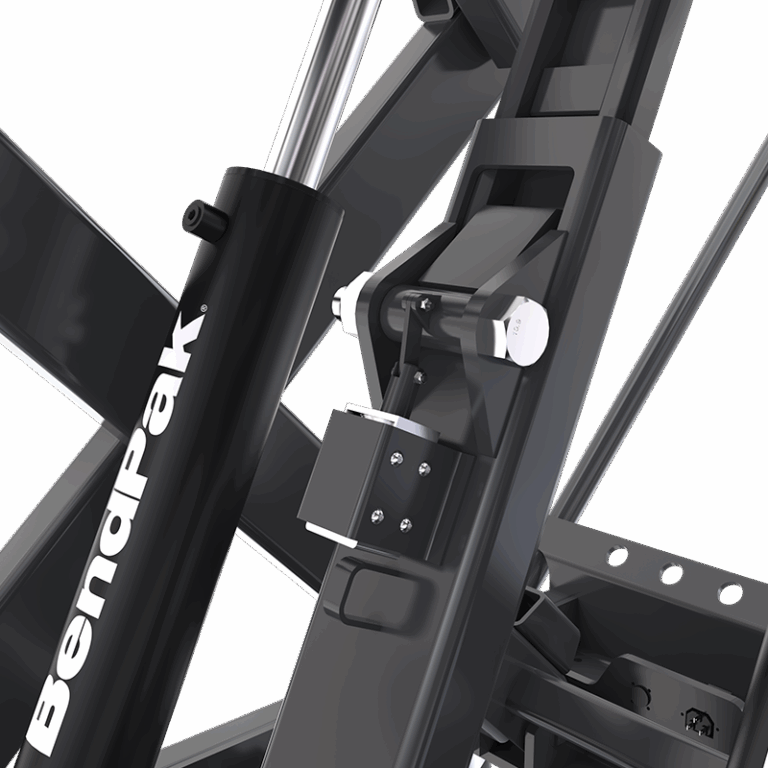

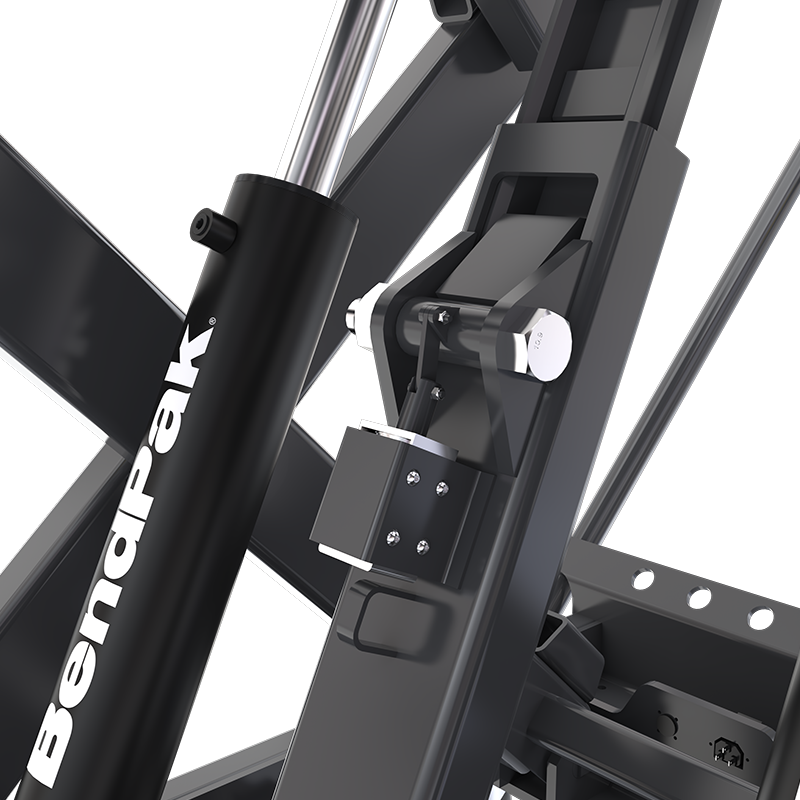

  • Multi-point safety locks

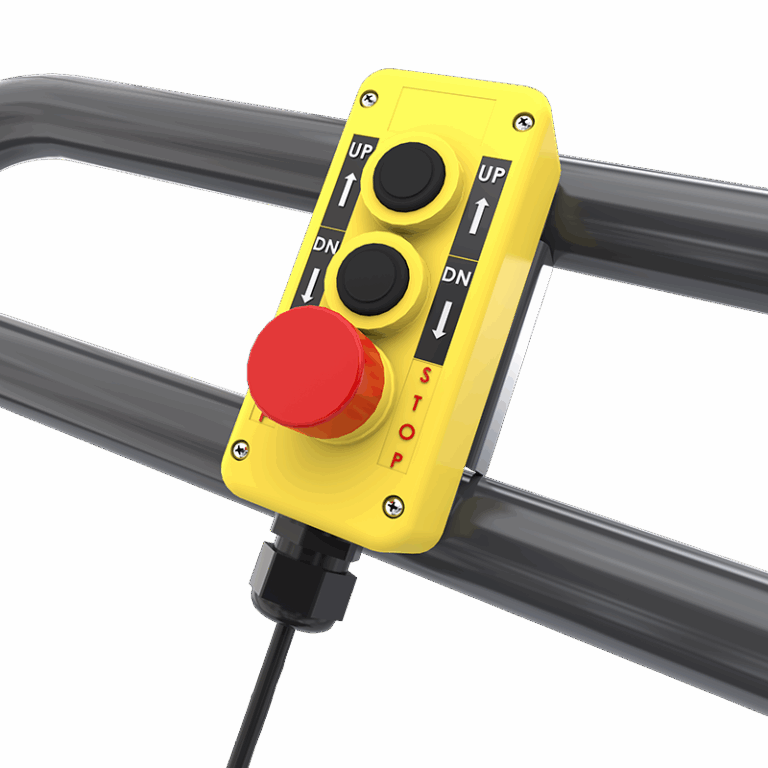

  • Remote control operation

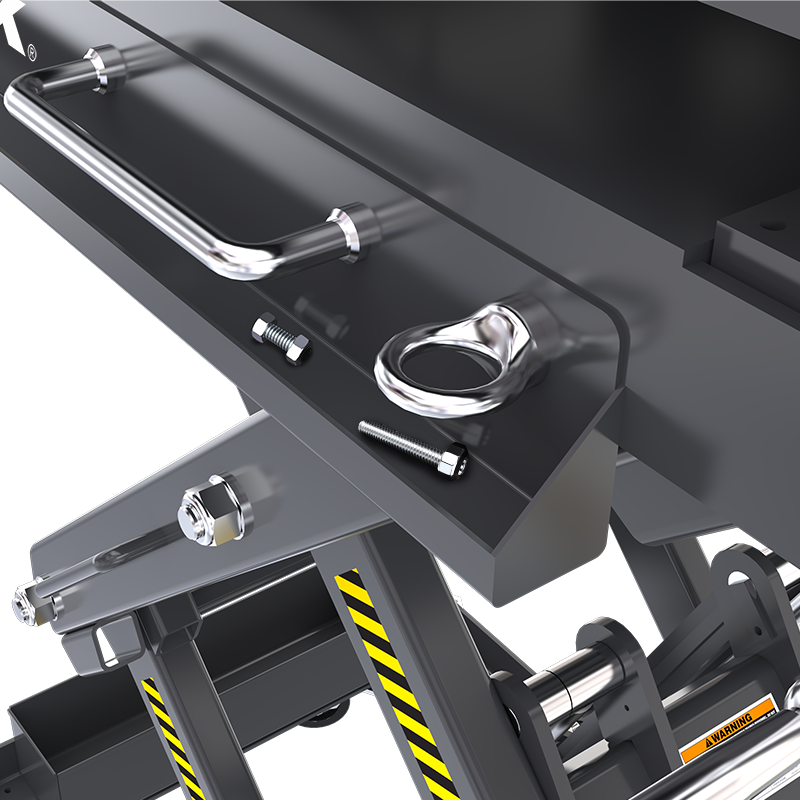

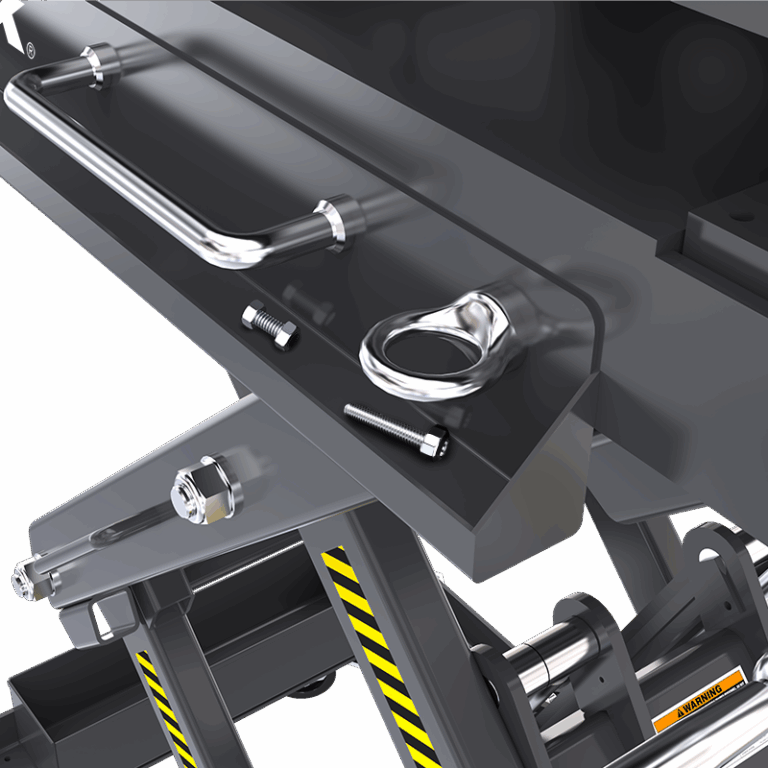

  • Full-length utility trays

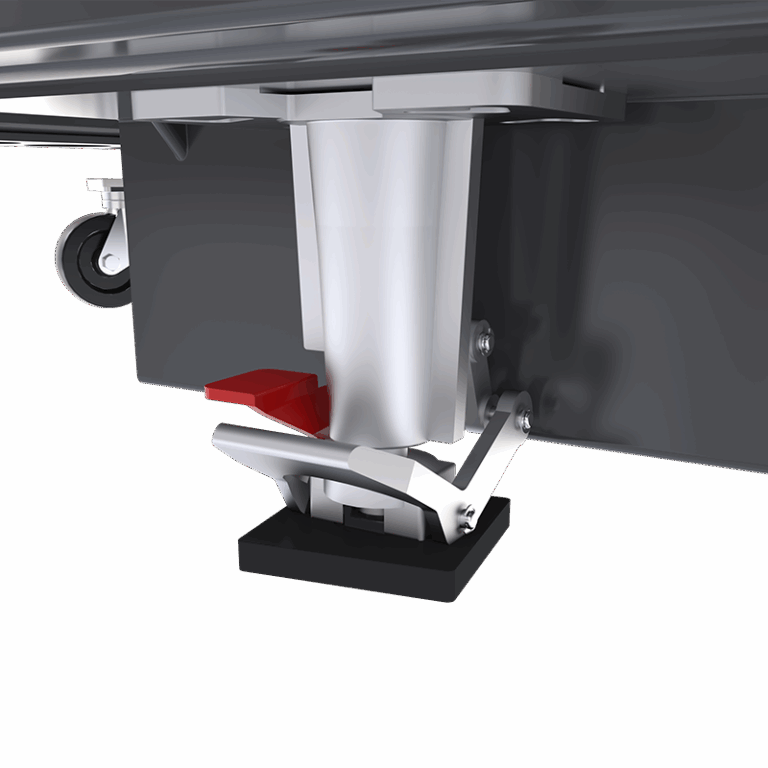

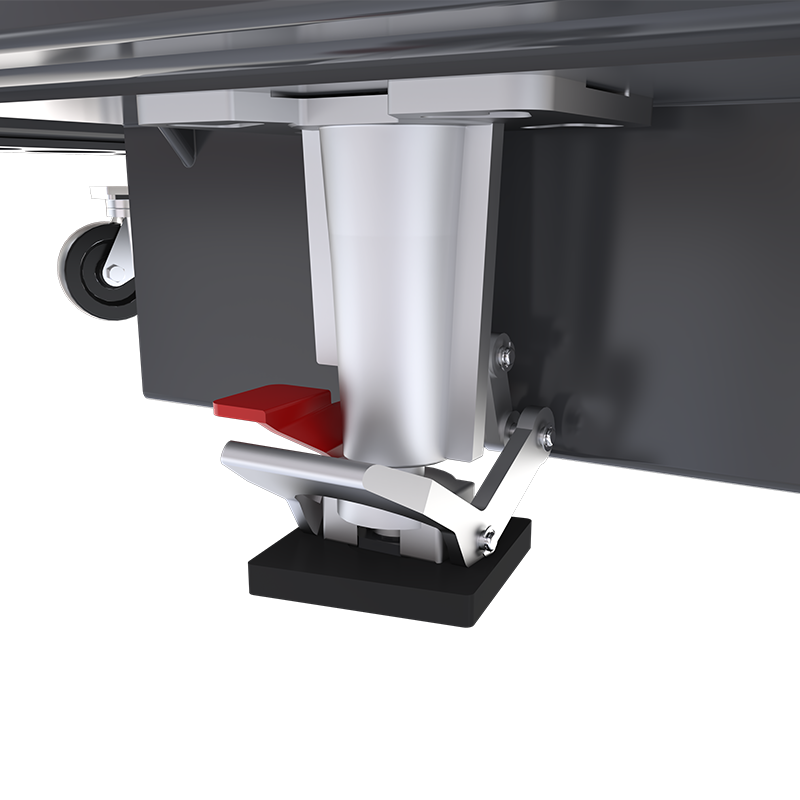

  • Manual floor locks
  • Hydraulic fail-safe circuit

Features

The EV4000SL lifts up to 3,000 lbs., accommodating large EV battery packs and heavy powertrain components with ease and safety.
BendPak EVS3000 Scissor Lift from Genesis Equipment Australia

The Future of EV Service

Our Mobi-EVS models are multi-functional scissor-style lifts that feature multiple recessed anchoring locations for accommodating a variety of modular fixtures, adapters, and accessories. Each can be repositioned or removed as applications dictate.

Precision Simplified

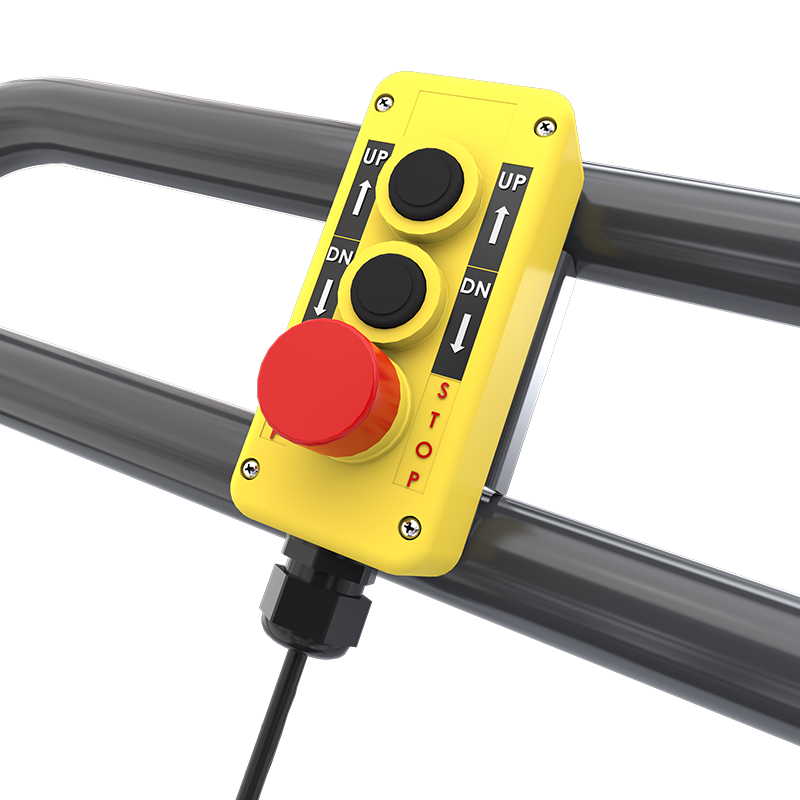

With a press of the button on the pendant control, the lift platform elevates to more than 6 feet in less than 20 seconds. Mobi-EVS lift tables feature state-of- the-art engineering and technology within an elegant design that sets a new industry benchmark for performance and versatility.

Adapts to Your Needs

The Mobi-EVS boasts an array of thoughtfully integrated ergonomic features that seamlessly merge user comfort and operational efficiency. These features collectively empower mechanics to work more efficiently, minimizing fatigue and maximizing their overall output within the dynamic automotive workshop environment.

Built Smart, Built Tough, Built to Last

To ensure optimal portability, we meticulously engineer each Mobi-EVS to uphold its structural integrity in key areas, all while avoiding unnecessary steel usage. High-tensile steel used throughout skillfully marries minimal weight with exceptional safety standards making for a ruggedly built lifting system. A robust upper deck plate is further reinforced with supplementary structural cross- members, strategically implemented to mitigate deflection resulting from torsion or uneven loading, even under demanding conditions.

Zero-throw Casters for Extreme Maneuverability

Revolutionary turn-on-a-dime zero-throw casters allow the lift table to move and change direction effortlessly, requiring a fraction of the effort normally associated with plain swivel casters.

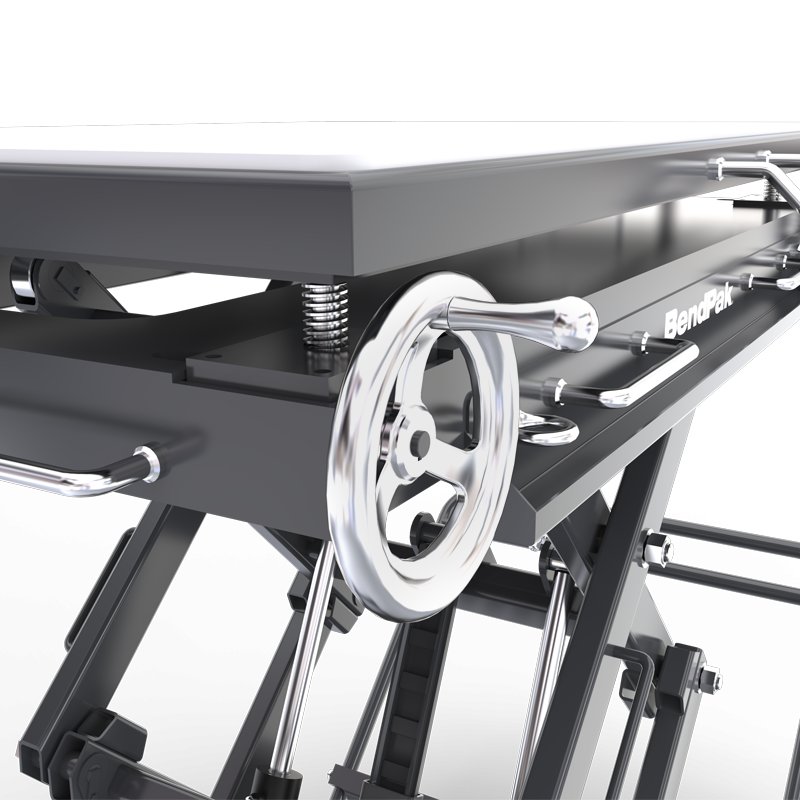

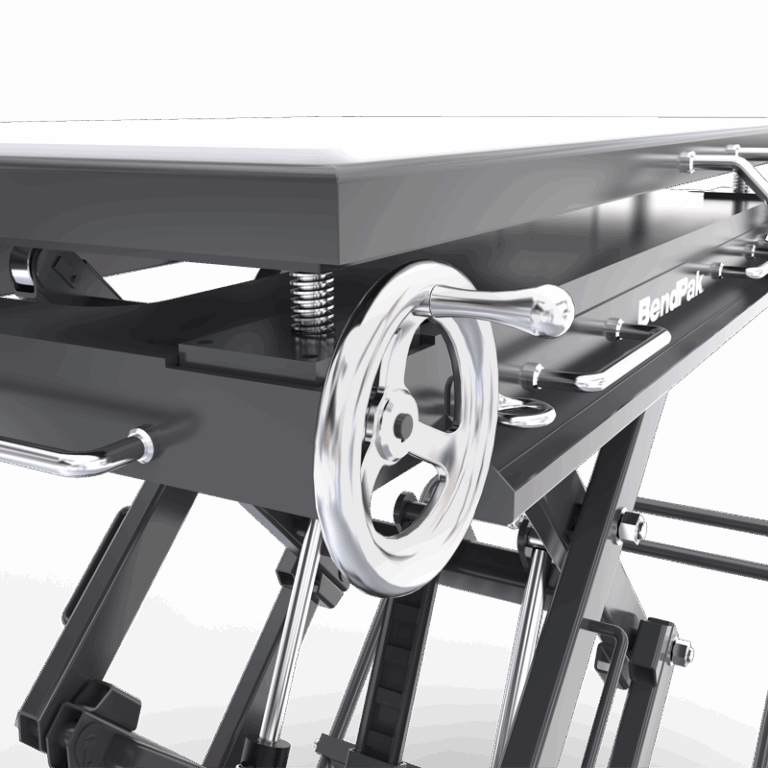

Adjustable Screw Jack

Screw jacks allow for quick and easy service and provide effortless roll, pitch, and yaw adjustments for precise alignment and leveling of EV batteries, engine and drivetrain assemblies, fuel tanks, and more. This patented design minimizes time and effort spent making adjustments.

Optimum Versatility

The 42.75′′x 63′′ lift platform is the perfect size for safe handling of heavy battery packs and powertrain systems. The platform surface features multiple recessed anchoring locations for accommodating a variety of modular fixtures, adapters, and accessories that can be repositioned or removed as applications dictate.

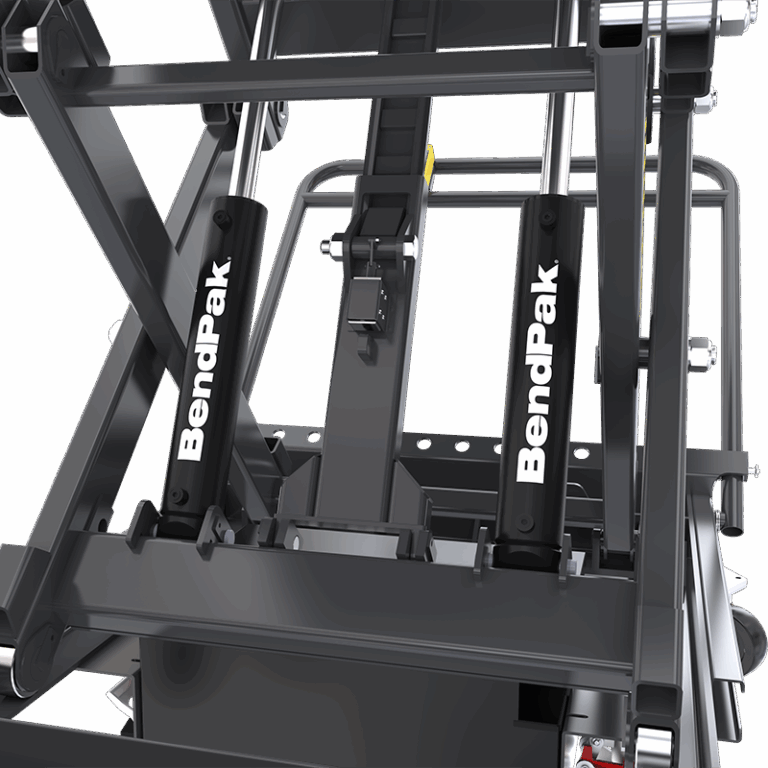

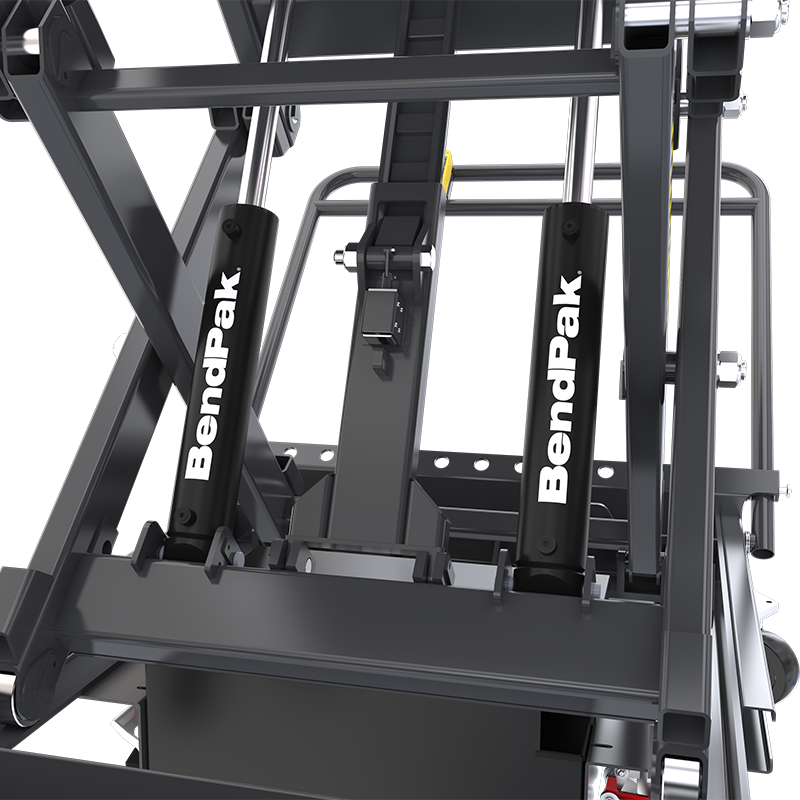

Twin Hydraulic Cylinders

Twin hydraulic cylinders feature welded construction, chrome-plated rods, and high polished bores for extended seal life. Proprietary sea l design reduces leakage and increased seal life for long-lasting, dependable operation.

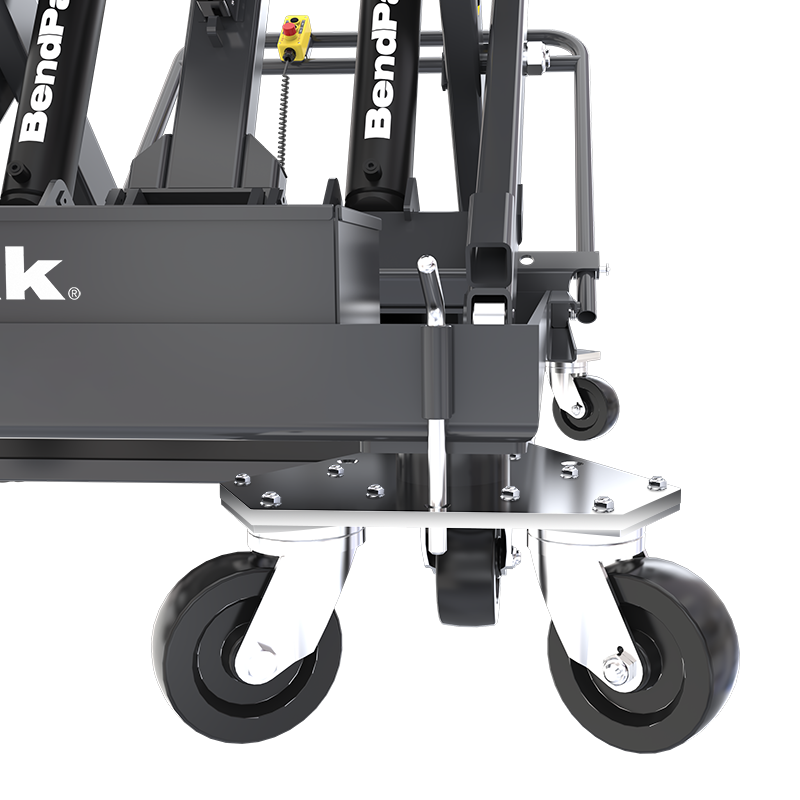

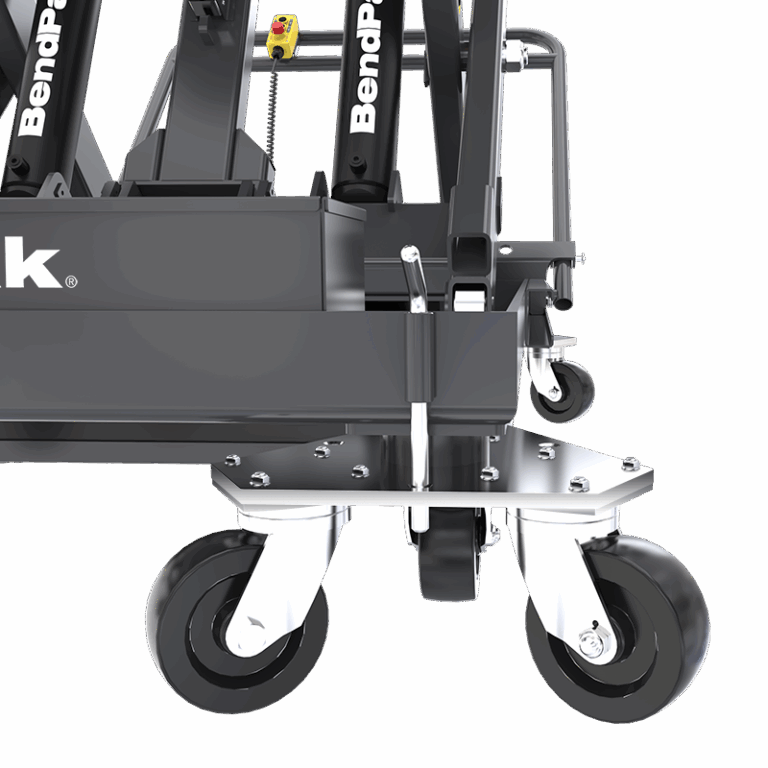

Tri-Caster Locking

It is easier than ever to move your Mobi-EVS longer distances. The removable locking pin located on the front tri-casters converts them into a fixed design making straight-line travel more efficient.

Materials & Tech

High-tensile steel used throughout skillfully marries minimal weight with exceptional safety standards making for a ruggedly built lifting system.
BendPak EVS3000 Scissor Lift from Genesis Equipment Australia
  • Zero-throw casters
  • Adjustable screw-jack
  • Twin hydraulic cylinders
  • Tri-caster locking

Specifications

Lifting Capacity
3,000 lbs. / 1,361 kg
Maximum Rise 77.75 in. / 1,972 mm
Overall length 91.25 in. / 2,318 mm
Top Deck length (with handles)
71.25 in. / 1,807 mm
Top Deck Length
63 in. / 1,600 mm
Overall Width (with handles)
53 in / 1,348 mm
Top Deck Width 42.75 in. / 1,088 mm
Screw Jack Max. Adjustment
1.5 in. / 38 mm
Minimum Deck Height 34.25 in. / 868 mm
Height of Steering Handle 39.25 in. / 997 mm
Motor 12VDC
Operating Pressure at Max Load 1250 psi
Battery Charger Input: 120 VAC, 60 Hz.
Output: 12VDC, 15A
Battery Charge Time 10-12 Hours to full charge from ≈20%
Lifting Time ≈18 seconds
Weight 1,918 lbs. / 870 kg
Brand Spotlight

BendPak

For decades, BendPak has set the gold standard in hoisting technology, trusted by automotive repair workshops, motor dealerships, and heavy vehicle operators alike.

Renowned for its unmatched quality and durability, BendPak delivers solutions built to withstand the demands of high-volume operations. With our exclusive partnership, Genesis Equipment ensures that your business benefits from the latest innovations and superior performance. When you choose BendPak through Genesis, you’re choosing a brand that professionals trust worldwide to maximize safety, efficiency, and value.

Other BendPak Products

BendPak 12APX 2-post Hoist Exclusively distributed in Australia by Genesis Equipment - car lifts

BendPak

12APX | 2-Post Hoist

— Car Lifts

BendPak HDS-40 Heavy Duty 4-post Heavy Vehicle Truck Lift Genesis Equipment Australia

BendPak

HDS-40 Heavy Vehicle Lift

— 4 Post Hoist

BendPak HDS-27X Heavy Duty 4-post Truck Lift Genesis Equipment Australia

BendPak

HDS-27X Heavy Vehicle Lift

— 4 Post Hoist

Product Uses

What some of our customers have used it for:

357434510_691079939701100_5253503691519644574_n

Premier Autotune Workshop

Genesis was transparent with me, and answered all my questions, they weren't trying to sell me anything or push hoists onto me. They could see my plans and what I needed for the future for all the types of cars I service. And they provided me with solutions for what is going to work for my workshop and the future. I’m confident with Genesis Equipment and the BendPak hoists they’ve supplied me.

Allen, Owner

Perfect for:

  • Heavy-duty EV servicing
  • Large EV battery pack replacements
  • Drivetrain and powertrain support
  • Commercial fleet maintenance
  • Transmission and fuel tank installation
