RCD-1500 Stand

SKU: 5150595

The Ranger RCD-1500 GoCart is a heavy-duty hydraulic car dolly and wheel lift designed for effortless vehicle positioning and mobility. With a 680 kg capacity per dolly, this set of precision-engineered dollies allows one person to easily move vehicles, including cars, trucks, trailers, lawn equipment, and more.

680 kg capacity per dolly (1,500 lbs)
Hydraulic foot pump
Durable steel frame with powder-coat finish
Flat-free polymer wheels
Expandable frame

Here to help

RCD-1500 Stand

Features

The GoCart RCD-1500 allows one-person vehicle maneuvering, perfect for workshops, dealerships, and garages.

Hydraulic Foot Pump for Effortless Lifting
Quick-action hydraulic foot pump lifts the vehicle in seconds
No manual effort required – simply pump and elevate

Heavy-Duty Steel Construction for Maximum Durability
Reinforced steel frame supports heavy loads
Powder-coated finish for long-lasting protection

Smooth, Multi-Directional Maneuverability
Precision-bearing casters ensure seamless movement
Non-marking polymer wheels protect delicate flooring

Expandable Frame for Versatile Fit
Accommodates tyre widths up to 305mm
Handles tyres with diameters from 381mm to 711mm

Secure Locking Mechanism
Multi-position locking pin for safety

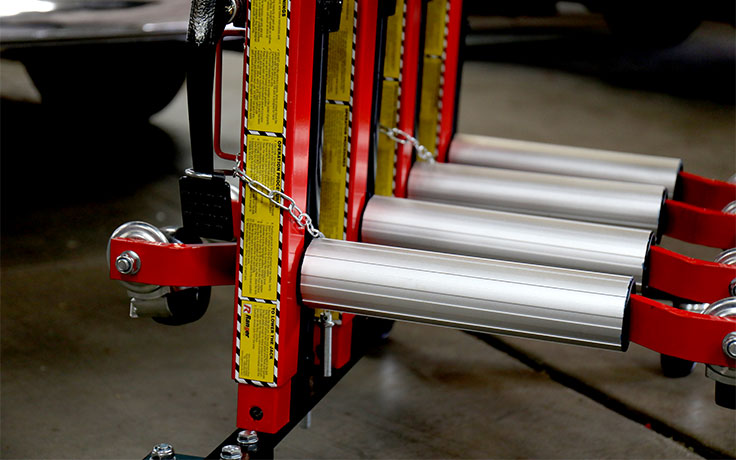

Reinforced, non-skid brushed aluminium rollers for added grip

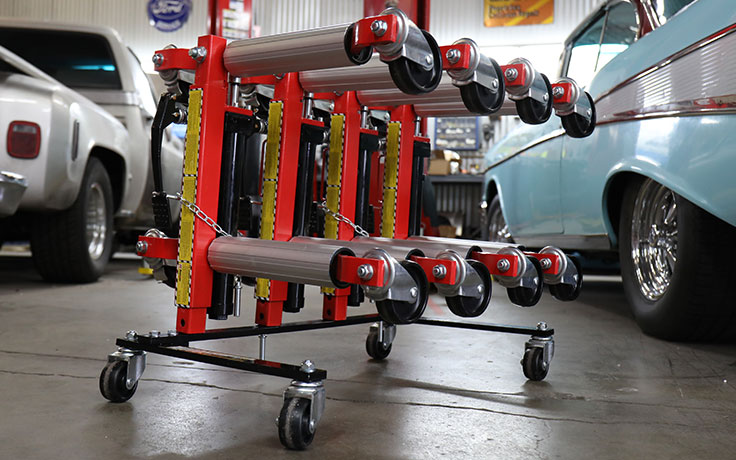

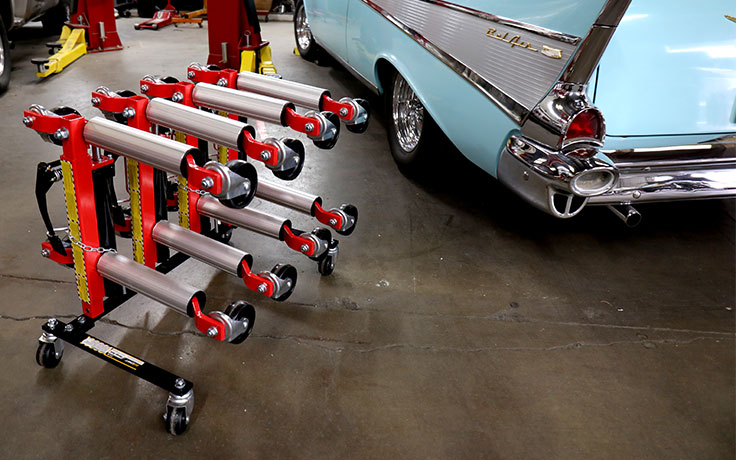

Optional Storage Rack for Easy Organization
Keep your dollies neatly stored and ready for use
Available as an add-on accessory

Materials & Tech

The GoCart RCD-1500 is built with a robust two-inch tubular steel telescoping frame, solid steel caster bars, and corrosion-resistant, fibre-filled resin wheels.

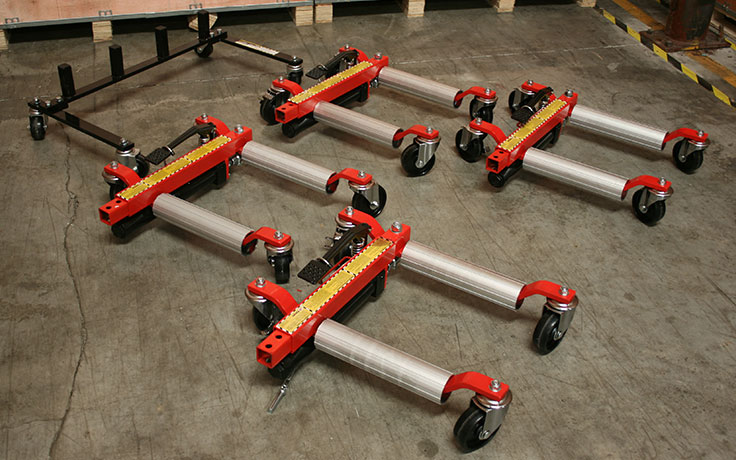

Set of 2 Ranger RCD-1500 GoCart Car Dollies
Hydraulic Foot Pump Mechanism
Flat-Free Polymer Wheels
Non-Skid Aluminium Rollers
Adjustable Frame for Variable Tyre Sizes

OPTIONAL

Additional Set of Two or Four Dollies
GoCart Storage Rack for Easy Organization

Specifications

LOAD & LIFTING CAPACITY	Specifications
Load Rating (Each Dolly)	680 kg (1,500 lbs)
Load Rating (Set of 4)	2,722 kg (6,000 lbs)
Lifting Mechanism	Hydraulic Foot Pump

DIMENSIONS & COMPATIBILITY	Specifications
Tyre Width Capacity	305 mm (12″)
Wheel Size Capacity	203 mm – 610 mm (8” – 24″)
Tyre Diameter Capacity	381 mm – 711 mm (15” – 28″)

BUILD & MOBILITY	Specifications
Casters + Frame Height	152 mm (6″)
Casters Diameter	102 mm (4″)
Stowed Dimensions	533 mm x 610 mm (21” x 24″)
Caster to Handle Distance	457 mm (18″)

WEIGHT & DURABILITY	Specifications
Unit Weight	19 kg (42 lbs)
Frame Material	Heavy-Duty Steel with Powder-Coat Finish
Rollers Material	Non-Skid Aluminium
Wheel Material	Flat-Free Polymer
