SKU: 5150191
The Ranger RCD-1500EX GoCart Car Dollies are extended-length, heavy-duty hydraulic vehicle positioning jacks, designed for larger, wider tyres up to 330mm width and 991mm diameter. Ideal for SUVs, light-duty trucks, and specialty vehicles, these dollies provide effortless maneuverability in workshops, garages, and dealerships.
RCD-1500EX
Features

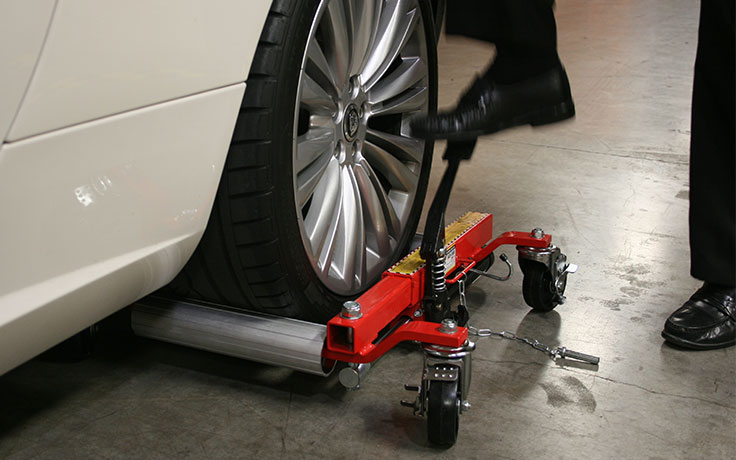

Hydraulic Foot Pump for Effortless Lifting
Quick-action hydraulic foot pump lifts the vehicle in seconds
No manual effort required – simply pump and elevate
Heavy-Duty Steel Frame with Durable Powder-Coat Finish
Reinforced steel construction supports heavy loads
Powder-coated finish ensures long-lasting durability

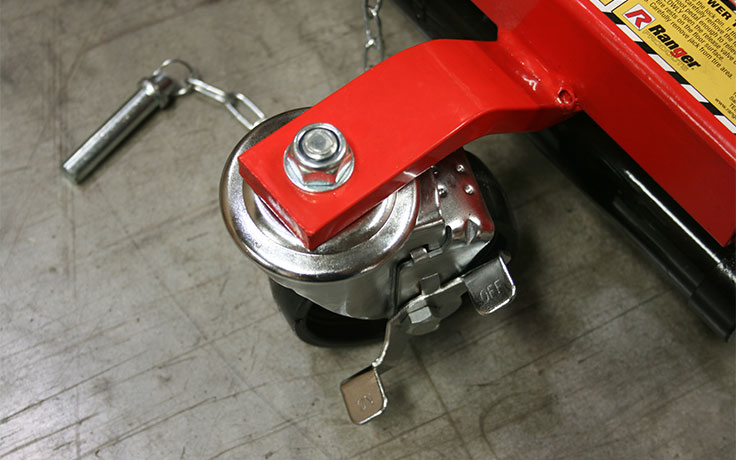

Superior Mobility with Flat-Free Polymer Wheels
Precision-bearing casters ensure smooth, multi-directional movement
Non-marking urethane wheels protect delicate flooring
Non-Skid Rollers for Secure Tyre Grip
Skid-proof polymer rollers safely engage the tyre
Perfect for custom and specialty wheels
Locking Mechanism for Enhanced Safety
Multi-position locking pin ensures secure load holding
Sliding pin and hook latch prevent movement

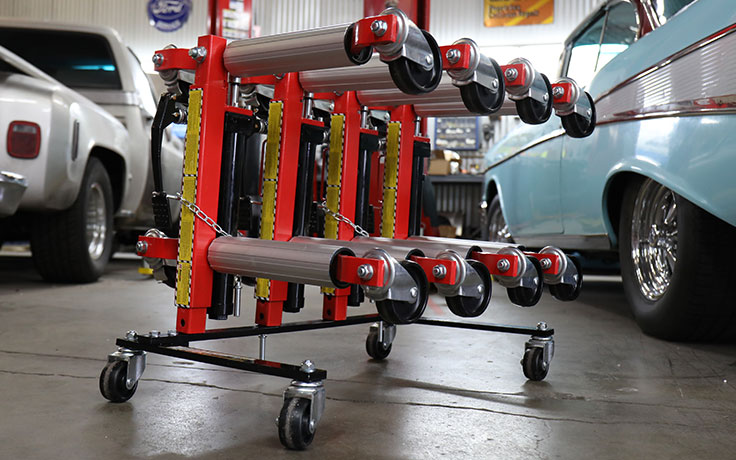

Optional Storage Rack for Easy Organization
Store your dollies efficiently with the optional rack
Available as an add-on accessory
Materials & Tech
OPTIONAL
LOAD & LIFTING CAPACITY | Specifications |
Load Rating (Each Dolly) | 680 kg (1,500 lbs) |
Lifting Mechanism | Hydraulic Foot Pump |
DIMENSIONS & COMPATIBILITY | Specifications |
Tyre Width Capacity | 330 mm (13″) |
Wheel Size Capacity | 203 mm – 607 mm (8” – 24″) |
Tyre Diameter Capacity | 484 mm – 991 mm (19” – 39″) |
BUILD & MOBILITY | Specifications |
Casters + Frame Height | 152 mm (6″) |
Casters Diameter | 102 mm (4″) |
Stowed Dimensions | 635 mm x 660 mm (25” x 26″) |
WEIGHT & DURABILITY | Specifications |
Frame Material | Heavy-Duty Steel with Powder-Coat Finish |
Rollers Material | Non-Skid Polymer |
Wheel Material | Flat-Free Urethane |
