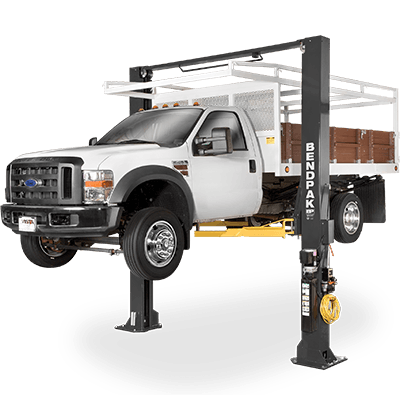

XPR-15CL | 2-Post Hoist

SKU: 5175408

The XPR-15CL is a heavy-duty, clearfloor two-post hoist with a 6,804 kg lifting capacity. Designed to handle both low-profile vehicles and heavy trucks, this hoist offers versatility, safety, and ease of operation, making it a perfect addition to any professional garage or workshop.

6,804-kg lifting capacity
Clearfloor design for unrestricted workspace
Dual direct-drive hydraulic cylinders
High-speed hydraulics for rapid operation
ALI Certified for safety and reliability

Here to help

Features

The XPR-15CL boasts a 6,804 kg capacity, making it suitable for everything from sports cars to dump trucks.

Clearfloor Design
The Clearfloor model features overhead hydraulic lines, providing maximum workspace underneath the hoist.

Dual Direct-Drive Technology
Low-pressure HVLP hydraulic cylinders eliminate chains and screws, ensuring smooth operation with less maintenance.

Industrial-Grade Hydraulic Cylinders
Built from high-grade steel with pressure-loaded seals, these cylinders ensure long-lasting performance without fluid bypass.

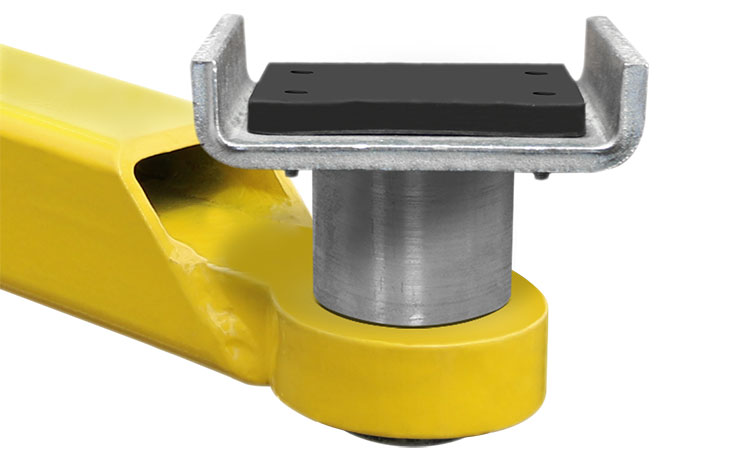

16-Piece Adapter Set
This hoist includes a full adapter set for compatibility with various vehicle types, including auxiliary tanks and running boards.

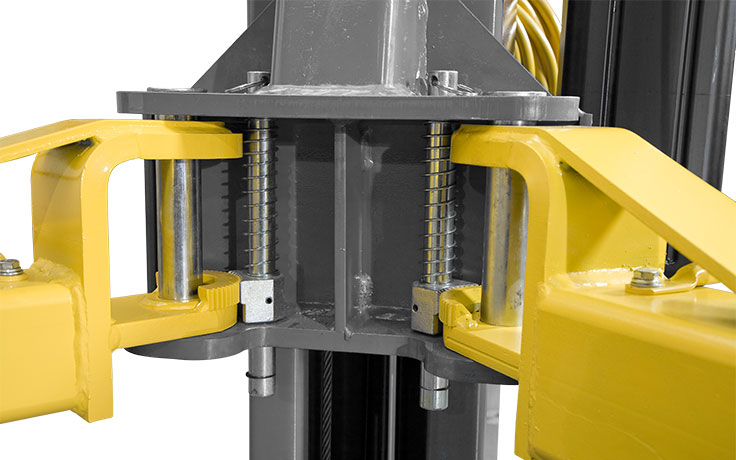

Automatic Arm Restraints
Powerful auto-locking arm restraints engage during lifting and release when the hoist is lowered for maximum safety.

Materials & Tech

The XPR-15CL features single-piece steel columns, oversized base plates, and maintenance-free UHMW load bearings for durability and safety.

XPR-15CL Lift Unit
16-piece adapter set (stackable adapters, polyurethane pads, frame cradle pads)
Installation and user manual

Comes with

Electric/hydraulic power system
High-speed hydraulic pump

Optional

Extended height columns for larger vehicles

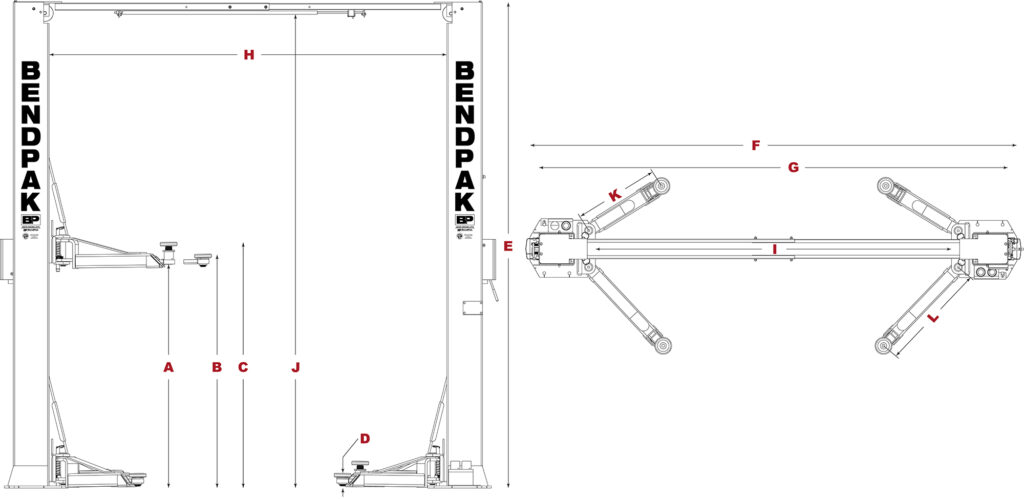

Specifications

Capacity	Imperial	Metric
Lifting Capacity	15,000 lbs	6,804 kg
Max Capacity / Front Axle	7,500 lbs	3,402 kg
Max Capacity / Rear Axle	7,500 lbs	3,402 kg

Rise	Imperial	Metric
A – Rise	69″	1,753 mm
B – Rise + Pad Only	74″	1,880 mm
C – Rise + Pad + 63 mm Adapter	80″	2,032 mm
D – Min. Height + Pad	5″	127 mm
Time to Full Rise	45 seconds

Outside Dimensions	Imperial	Metric
E – Height Overall	170″	4,318 mm
F – Width Overall	155″	3,937 mm
G – Outside Columns	144″	3,658 mm

Inside Dimensions	Imperial	Metric
H – Inside Columns	120″	3,048 mm
I – Drive-Thru Clearance	106″	2,692 mm
J – Floor To Overhead Switch	165″	4,191 mm

Arms & Pads	Imperial	Metric
K – Front Arm Reach (MIN)	39″	991 mm
K – Front Arm Reach (MAX)	60″	1,524 mm
L – Rear Arm Reach (MIN)	39″	991 mm
L – Rear Arm Reach (MAX)	60″	1,524 mm
Max Load Per Arm	3,750 lbs	1,701 kg

Power Unit
Motor	220 VAC / 60 Hz / 1 Ph
Noise	45 dB

Brand Spotlight

BendPak

For decades, BendPak has set the gold standard in hoisting technology, trusted by automotive repair workshops, motor dealerships, and heavy vehicle operators alike.

Renowned for its unmatched quality and durability, BendPak delivers solutions built to withstand the demands of high-volume operations. With our exclusive partnership, Genesis Equipment ensures that your business benefits from the latest innovations and superior performance. When you choose BendPak through Genesis, you’re choosing a brand that professionals trust worldwide to maximize safety, efficiency, and value.

Other BendPak Products

Ranger

Tyre Inflation Cage

— Wheel Service Equipment

BendPak

Litestix Under Hood Work Light

— Workshop Equipment

Nussbaum

Top Lift 2.35 TLD XY

— Vehicle Lifts

Product Uses

What some of our customers have used it for:

357434510_691079939701100_5253503691519644574_n

Premier Autotune Workshop

Genesis was transparent with me, and answered all my questions, they weren't trying to sell me anything or push hoists onto me. They could see my plans and what I needed for the future for all the types of cars I service. And they provided me with solutions for what is going to work for my workshop and the future. I’m confident with Genesis Equipment and the BendPak hoists they’ve supplied me.

Allen, Owner

Perfect for:

Lifting heavy-duty vehicles like garbage trucks, small buses, and commercial vans
Servicing low-profile sports cars and compact vehicles
Professional garages and workshops
