7000TLX

SKU: 5000TLX

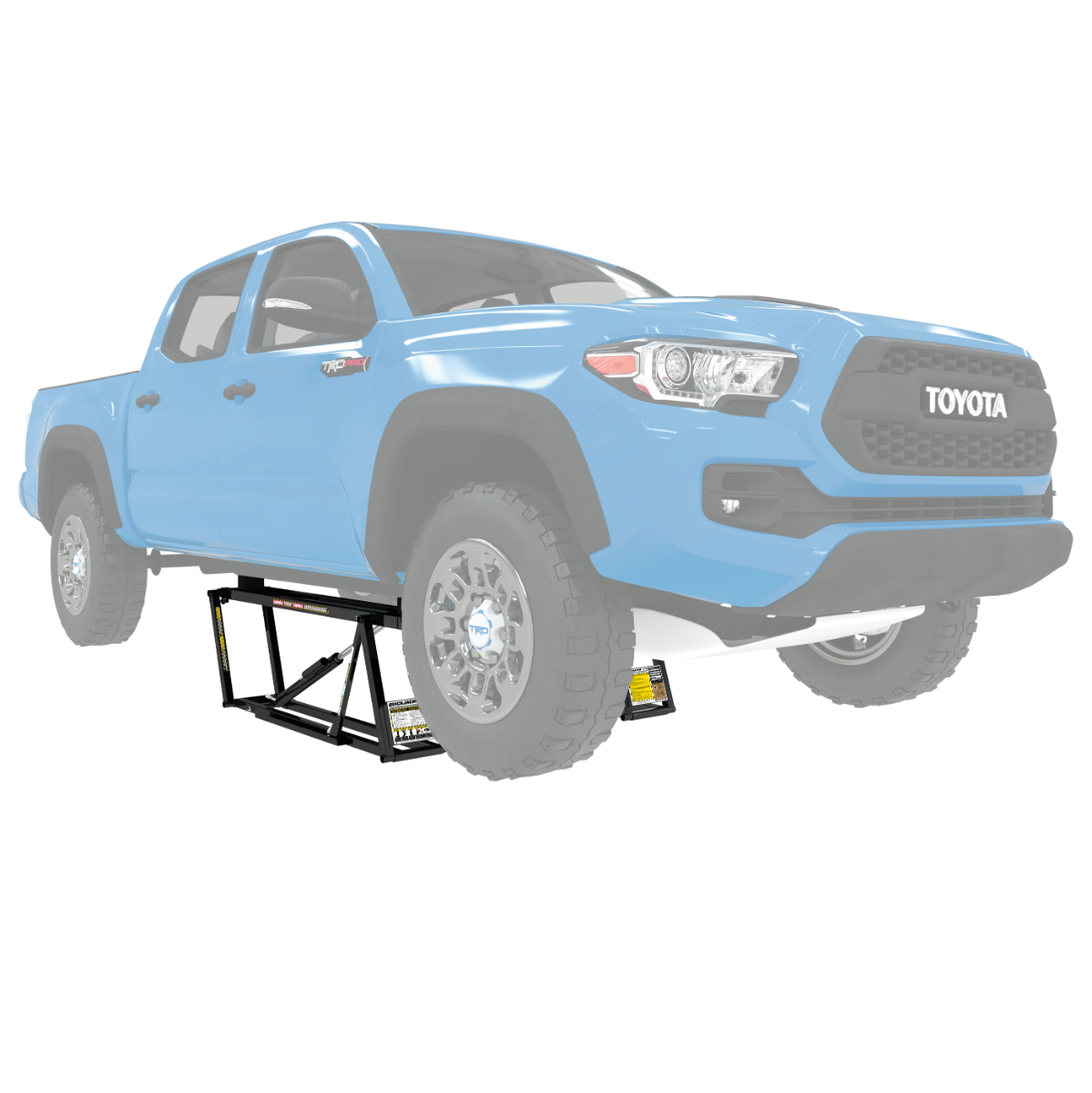

The QuickJack 7000TLX is a high-capacity, extended-length portable lift designed to accommodate trucks, SUVs, and long-wheelbase vehicles. With a 7,000-lb. lifting capacity, 66” lift point reach, and reinforced heavy-duty construction, this model is the ideal solution for both home mechanics and professional workshops.

  • 7,000-lb. lifting capacity – ideal for trucks & SUVs
  • Extended 66” lift point reach for long-wheelbase vehicles
  • 24.5” max lifting height for superior undercarriage access
  • Automatic safety locks for secure operation
  • One-touch button control for effortless lifting

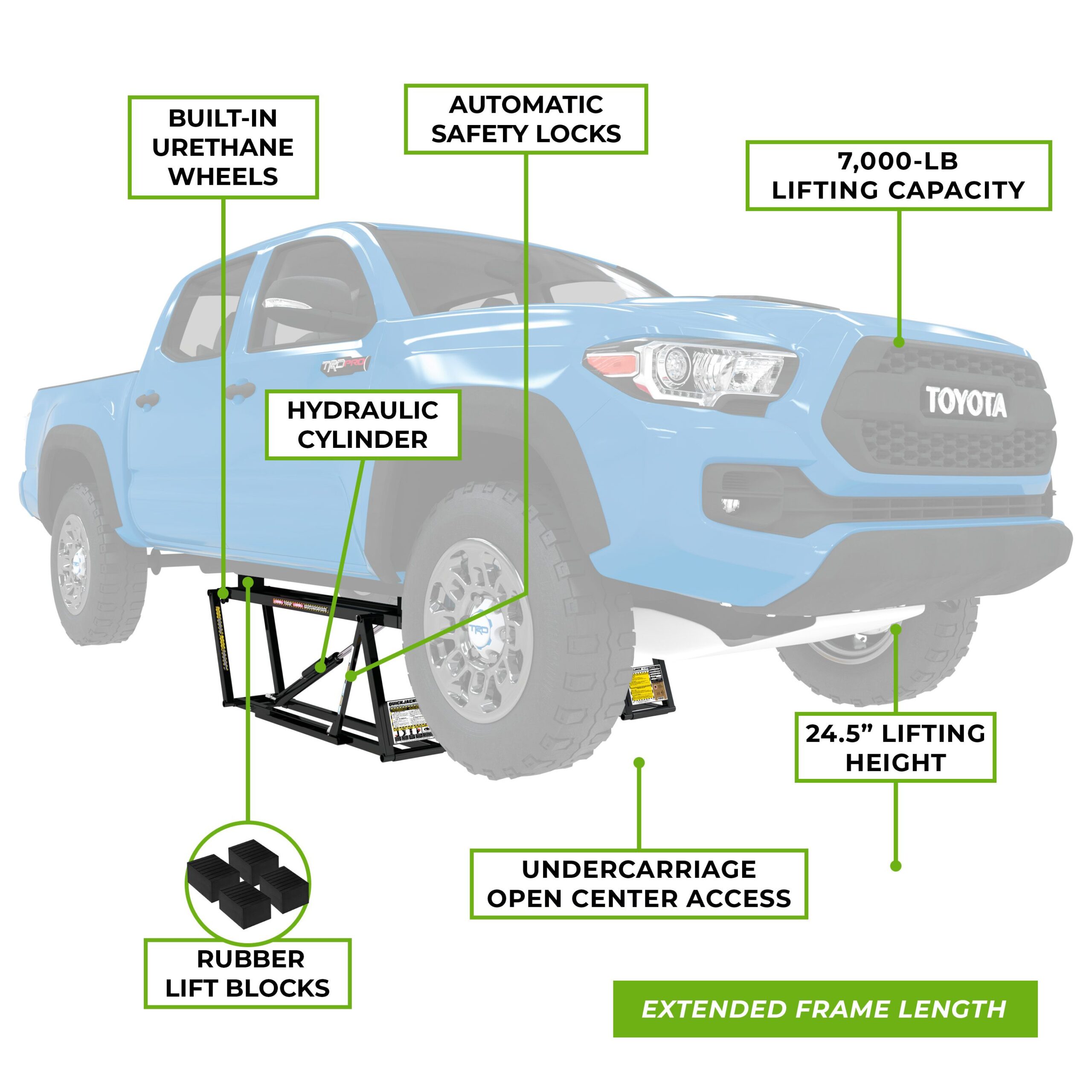

Features

The 7000TLX features a 66” lift point reach, making it the best QuickJack model for long-wheelbase vehicles, including trucks and SUVs.

High-Capacity Lifting with Reinforced Frame
With a 7,000-lb. lifting capacity, reinforced upper frame rails, and heavy-duty construction, this lift can handle heavier vehicles with ease.

Automatic Safety Locks for Secure Operation
Equipped with dual-position safety locks, the frames automatically engage at mid-rise and full-rise, ensuring maximum security and stability.

One-Touch Button Control
The hydraulic power unit features a simple pendant control for quick and effortless lifting, eliminating manual cranking or bending.

Compact & Portable for Easy Storage
Despite its high lifting capacity, the 7000TLX is easy to roll, transport, and store, making it perfect for both home garages and commercial shops.

Suitable for Indoor & Outdoor Use
The durable urethane wheels allow the 7000TLX to be easily moved indoors or outdoors, operating on gravel, concrete, or asphalt surfaces.

Materials & Tech

Built from high-strength steel, the 7000TLX’s extended frame design provides exceptional strength and durability. The advanced hydraulic system ensures precise, even lifting, making operation smooth, stable, and reliable.

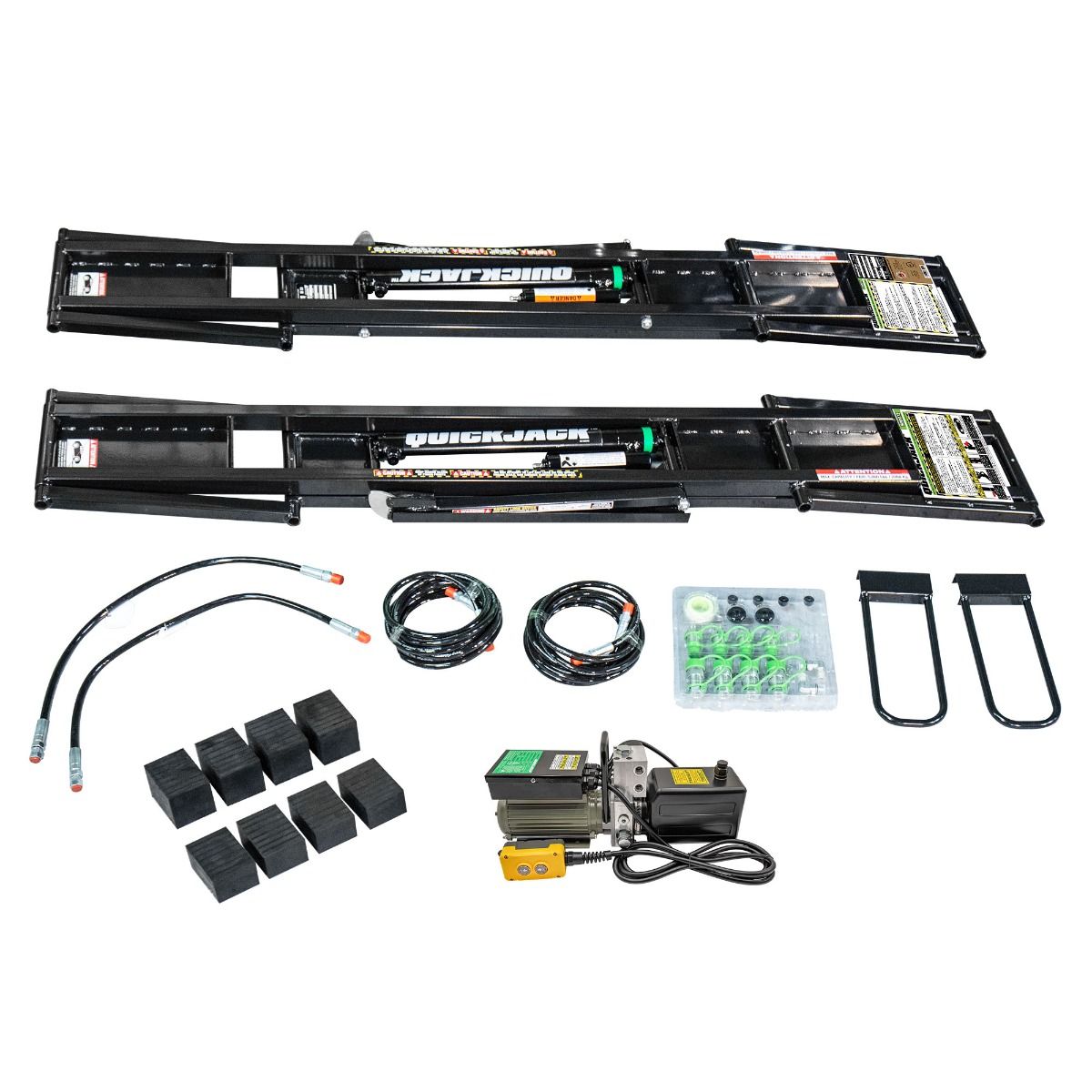

  • 7000TLX Left & Right Frame Assemblies
  • Hydraulic Power Unit with Pendant Control
  • 4x Medium Rubber Lift Blocks (2″)
  • 4x Tall Rubber Lift Blocks (3″)
  • 2x Short Hydraulic Hoses
  • 2x Long Hydraulic Hoses
  • 2x Frame-Positioning Handles
  • Fittings, Thread Tape & Setup Instructions

Optional

  • Truck Adapter Kit (increases height to 27”)

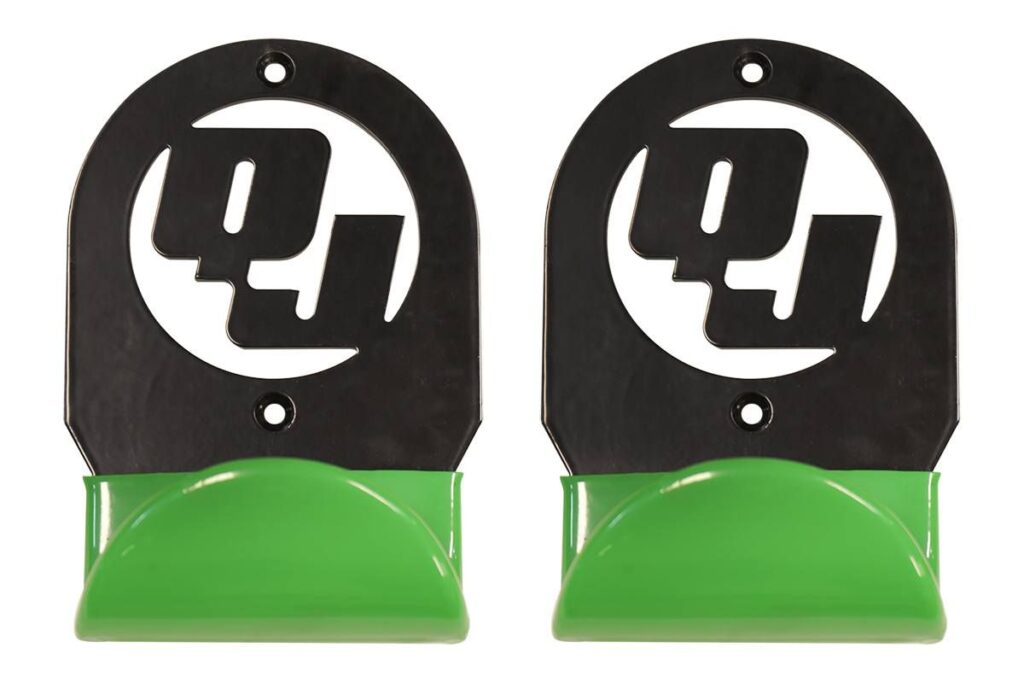

  • Wall Hanger Set for convenient storage
  • LITESTIX™ LS36MDX LED Work Light

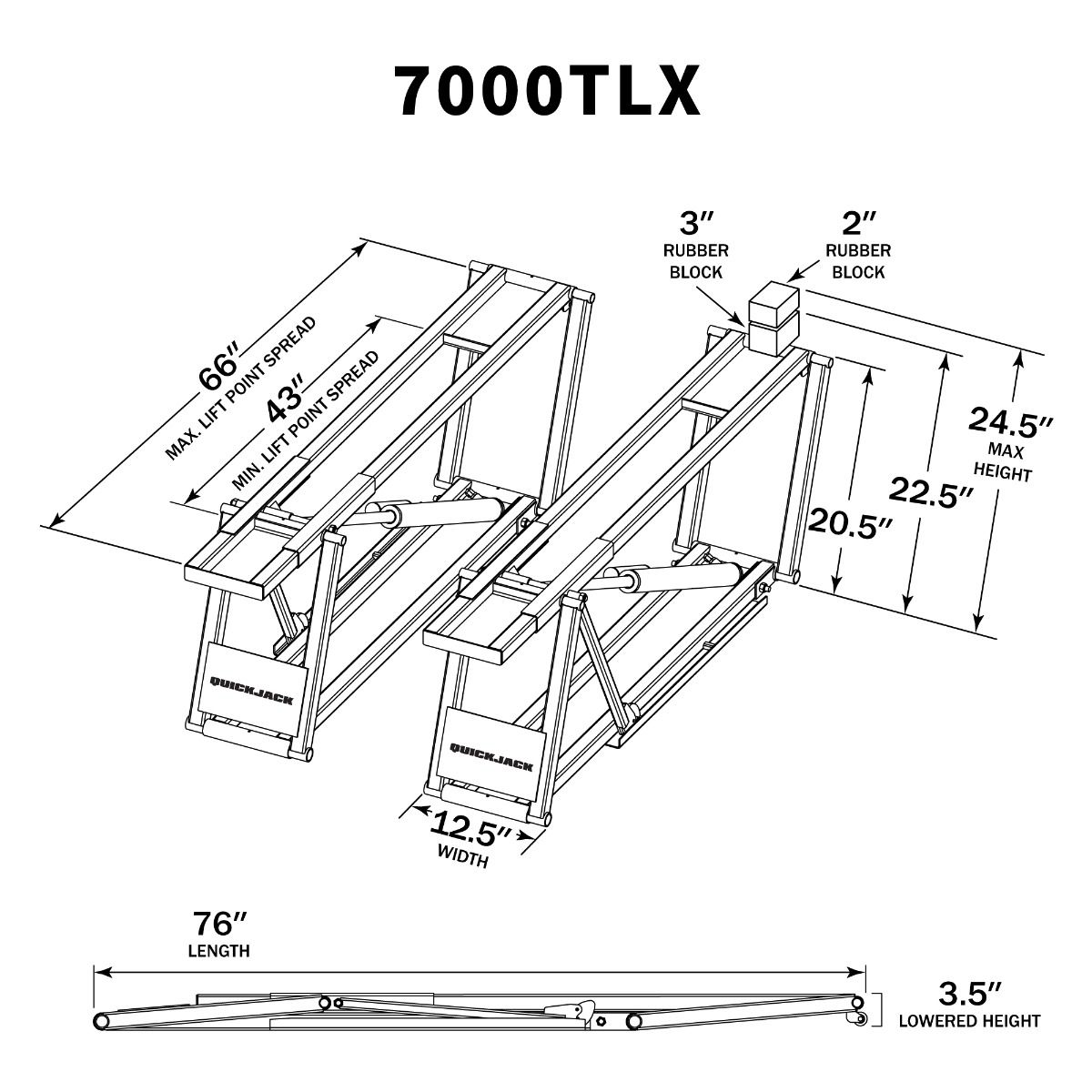

Specifications

Specification Details
Lifting Capacity 7,000 lbs. (3,175 kg)
Lowered Height 3.5″ (89 mm)
Max Lifting Height 24.5″ (622 mm)
Lift Time 30 seconds
Frame Length 76″ (1,930 mm)
Frame Width 12.5″ (318 mm)
Weight (each frame) 98 lbs. (45 kg)

Lift Point Spread & Clearance

Specification Details
Max Lift Point Spread 66″ (1,676 mm)
Min Lift Point Spread 43″ (1,092 mm)
Drive Thru Height 68.5″ (1,742 mm)

Power & Safety Features

Specification Details
Power Options 110V AC / 220V AC
Hydraulic Power Unit Weight 15 lbs. (7 kg)
Safety Lock Positions 2 (Mid-Rise & Full-Rise)
Automatic Safety Locks Yes

Shipping & Packaging

Specification Details
Shipping Weight 304 lbs. (138 kg)
Shipping Dimensions (each frame) 73.75″ (L) x 16.75″ (W) x 6.25″ (H)
