SKU: 5175196

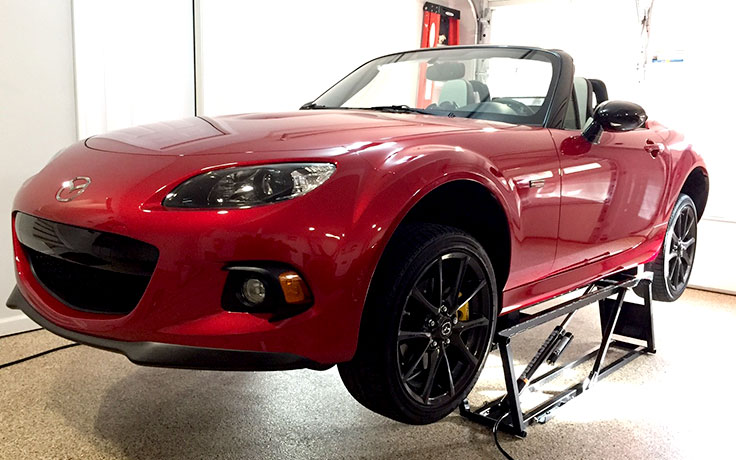

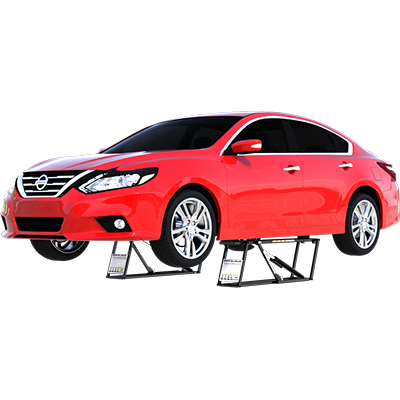

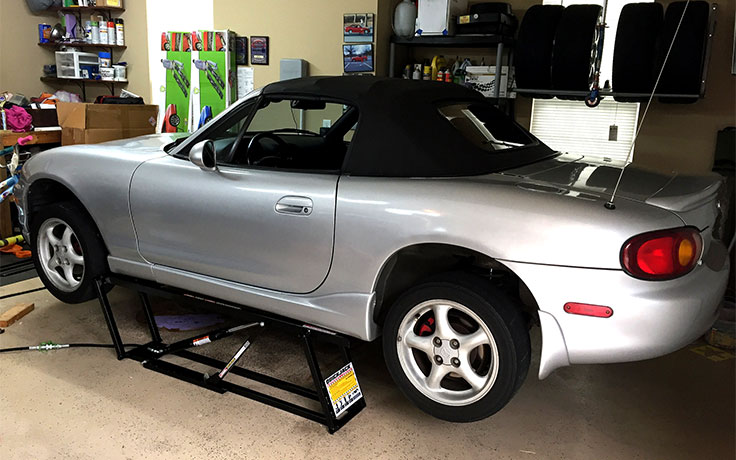

The QuickJack BL-3500SLX is the perfect lightweight, portable car hoist for small-wheelbase vehicles, race cars, and home garages. With a 1,588-kg. lifting capacity, 508 mm max lifting height, and ultra-low 76 mm profile, it’s designed for speed, convenience, and safety. Whether you’re servicing your daily driver or heading to the track, this hoist is the ideal replacement for traditional jacks and stands.
BL-3500SLX
Features
Fast & Effortless Lifting
From stow to fully lifted in under 60 seconds, the QuickJack system provides instant access to your vehicle for maintenance, repairs, and tire changes.

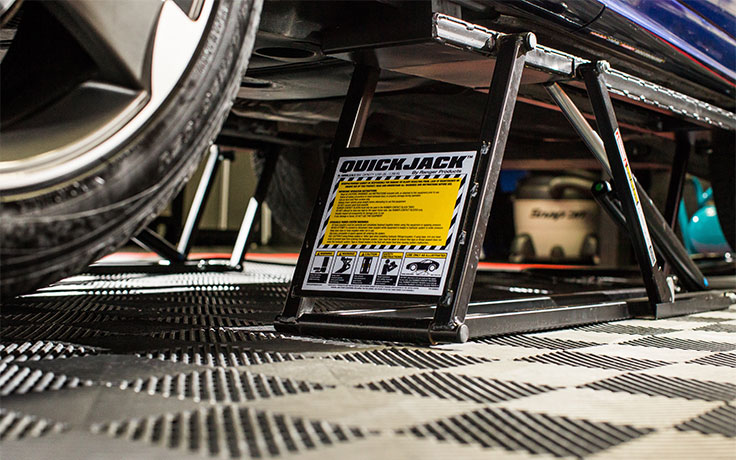

Automatic Safety Locking System
The dual-position automatic safety locks engage automatically as the hoist rises, with two locking positions (mid-rise and full-rise) for added security and stability.

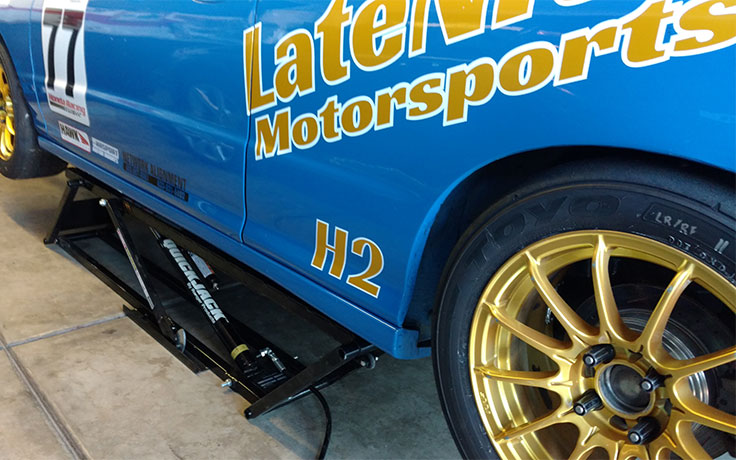

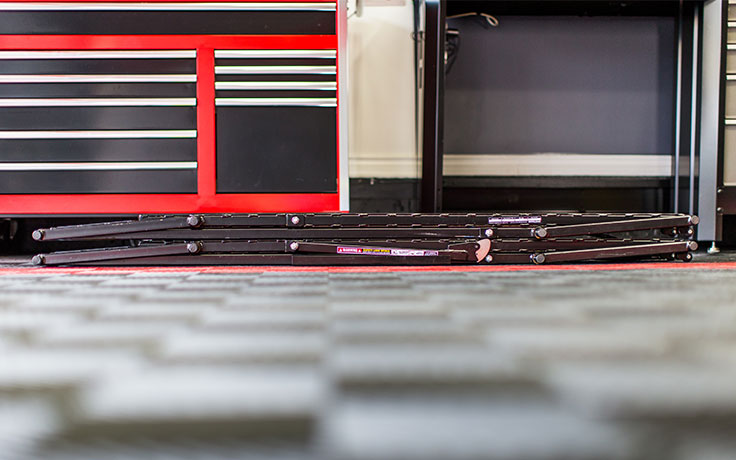

Ultra-Low Profile for Low-Clearance Cars
With a super-low 76 mm frame height, the BL-3500SLX easily fits under low-stance cars, making it ideal for sports cars, track cars, and performance vehicles.
Open-Center Design for Full Access
The open-center design allows full undercarriage access, making it perfect for brake work, tire changes, and general maintenance.
Durable & Heavy-Duty Construction
Made from 14-gauge welded steel, this rugged and reliable hoist is built for long-term durability and performance.
Easy One-Handed Operation
The remote pendant control features a 4-metre cord, allowing convenient, push-button operation with one hand free.
Materials & Tech
Optional
| Specification | Details |
| Lifting Capacity | 1,588 kg (3,500 lbs.) |
| Lowered Height | 76 mm (3″) |
| Max Lifting Height | 508 mm (20″) |
| Lift Time | Under 60 seconds |
| Frame Length | 1,575 mm (62″) |
| Frame Width | 268 mm (10.6″) |
| Weight (each frame) | 27 kg (60 lbs.) |
| Specification | Details |
| Max Lift Point Spread | 1,283 mm (50.5″) |
| Min Lift Point Spread | 678 mm (26.7″) |
| Specification | Details |

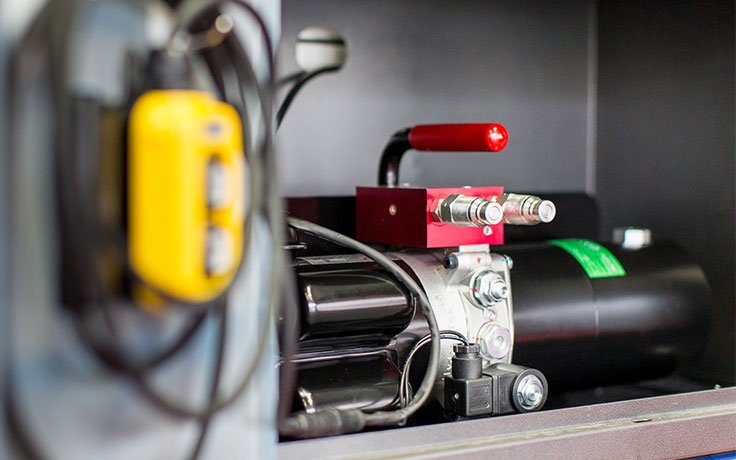

| Power Options | 110V / 220V / 12V DC |
| Hydraulic Power Unit Weight | 16 kg (35 lbs.) |
| Safety Lock Positions | 2 (Mid-Rise & Full-Rise) |
| Automatic Safety Locks | Yes |
| Specification | Details |
| Shipping Weight | 82 kg (180 lbs.) |
