Crossbeam Adapter

SKU: Crossbeam Adapter

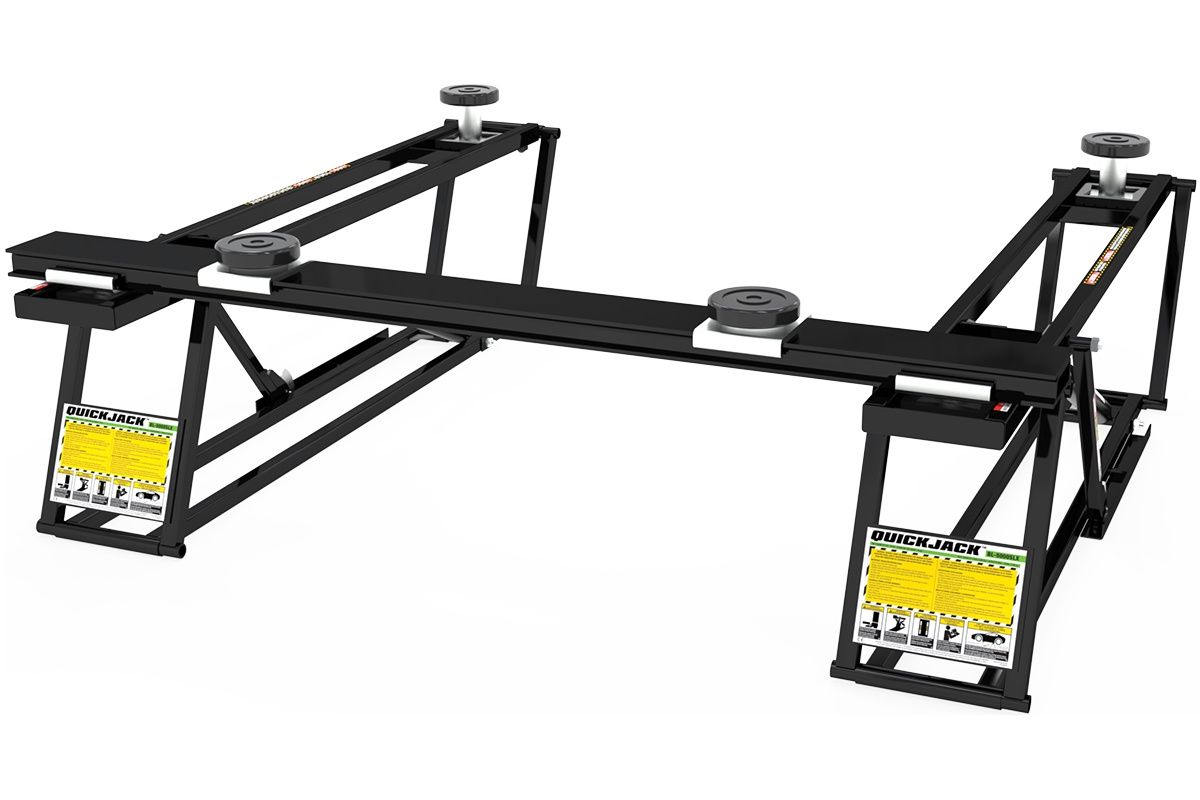

The QuickJack Crossbeam Adapter Set allows precise lifting for vehicles with staggered or uneven jack points while keeping the undercarriage completely unobstructed for easy maintenance. This heavy-duty, adjustable crossbeam converts your QuickJack into a more versatile lifting system, similar to a two-post lift, by allowing you to position lifting pads directly under difficult jack points.

Easily reaches difficult lifting points – accommodates staggered frames
Adjustable lifting pads – find the perfect jack point placement
Adds 4.75″ extra clearance – provides better undercarriage access
Heavy-duty steel construction – ensures long-term durability
Works with QuickJack 5000 & 7000 Series – separate versions available

Here to help

Crossbeam Adapter

Features

Many vehicles, including trucks and SUVs, feature uneven jack points that can be difficult to access. The Crossbeam Adapter Set enables precise positioning of lifting pads, ensuring safe, level lifting.

Increases Clearance for Easier Maintenance
The adapter adds 4.75” clearance, giving you more space underneath for oil changes, suspension work, and other undercarriage repairs.

Adjustable Sliding Pads for Maximum Versatility
With movable base and lift pads, the crossbeam allows you to fine-tune the placement for a secure and stable lift, even on challenging frame designs.

Maintains Open-Center Access
Unlike placing the QuickJack sideways, which can block undercarriage access, this adapter keeps the workspace completely open, making it perfect for exhaust work, drivetrain maintenance, and detailing.

Compatible with QuickJack 5000 & 7000 Series
Two versions available:

5000 Series – Lower lift adapter height
7000 Series – Taller lift adapter height for deeper lifting trays

Materials & Tech

The reinforced steel crossbeam is designed for maximum strength, ensuring safe and stable lifting for trucks, SUVs, and long-wheelbase vehicles. The welded crossbeam and sliding contact pads offer strong, secure lifting while reducing stress on the QuickJack system.

1x Crossbeam Weldment
2x Sliding Base Pad Assemblies
2x Sliding Lift Pad Assemblies
2x Base Height Adapter Assemblies
2x Round Lift Pad Adapter Assemblies

Specifications

Specification	Details
Crossbeam Length	65” (1,651 mm)
Min. Adapter Height (5000 Series)	6” (152 mm)
Min. Adapter Height (7000 Series)	7” (178 mm)
Crossbeam with Adapter Height (5000 Series)	4.75” (121 mm)
Crossbeam with Adapter Height (7000 Series)	5” (127 mm)
Crossbeam to Pad Height	1.5” (38 mm)
Base Pad Dimensions	4.75” x 4.75” (121 x 121 mm)
Round Pad Diameter	5” (127 mm)
Compatible Models	QuickJack 5000 & 7000 Series
