SKU: 5175628
Some vehicles put their factory lift points further apart than a standard hoist can reach. The QuickJack 6000TLX answers that with 1,930 mm frames and a lift-point spread that opens to 1,676 mm — 152 mm more than the standard model — while carrying the same 2,722 kg. This is the long-wheelbase option, not the heavy-duty one.
Compare across the range:
QuickJack LWB Storable Car Lift 6000TLX
Features
152 mm more reach at both ends — minimum spread opens at 1,092 mm and extends to 1,676 mm, covering lift points a standard-length hoist can’t span.
Same slim profile as the standard frame — the extra length costs nothing in height. At 76 mm collapsed it still slides under low-set cars.
Synchronised lifting — the redesigned power unit’s pressure-compensated flow divider keeps both frames level, which matters more the longer the frames get.
Structural upgrades throughout — heavier cross members, improved welds and reinforced pivots resist flex across the longer span.
Measure before you buy — the longer frames mean a longer minimum spread. Very short-wheelbase cars are better matched to the standard-length model; check your lift points first.
Stows the same way — longer frames, same routine: wheel them out, stand them up, get the floor back.
Materials & Tech
Optional

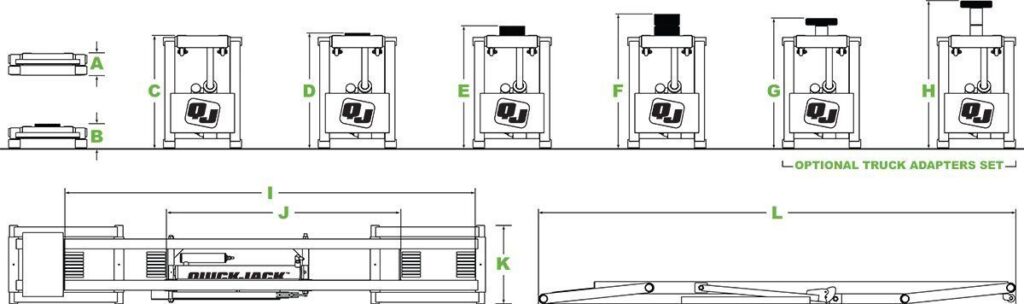

| Specification | Details |
| Lifting Capacity | 2,722 kg (6,000 lbs.) |
| Lowered Height (frame only) | 76 mm (3″) |
| Lifting Height (medium blocks) | 520 mm (20.5″) |
| Lifting Height (tall blocks) | 546 mm (21.5″) |
| Max Lifting Height (stacked blocks) | 610 mm (24″) |
| Lift Time | 30 seconds |
| Frame Length | 1,930 mm (76″) |
| Frame Width | 279 mm (11″) |
| Max Lift Point Spread | 1,676 mm (66″) |
| Min Lift Point Spread | 1,092 mm (43″) |
| Weight (each frame) | 37 kg (81.5 lbs.) |
| Power Supply | 208–240 V AC, 50/60 Hz, 1 Ph, 5 A min. |
| Power Unit Weight (dry) | 12.3 kg (27.26 lbs.) |
| Safety Lock Positions | 2 (Mid-Rise & Full-Rise) |
