HDS-14LSX

SKU: 5175171

The BendPak HDS-14LSX is a 6,350-kg. capacity four-post alignment hoist designed for precise wheel alignment and vehicle servicing. It features integrated turn plates and slip plates, ensuring seamless compatibility with all leading alignment systems. With heavy-duty aircraft cables, multiple safety locks, and an efficient hydraulic system, this hoist provides exceptional performance for professional workshops.

  • 6,350-kg lifting capacity for cars, trucks & SUVs
  • Integrated turn & slip plates for wheel alignment
  • Adjustable height locks for flexibility
  • Spring-loaded safety locks with pneumatic release
  • Heavy-duty stainless steel cables for durability
  • Extended ramps for low-clearance vehicles

Features

The BendPak HDS-14LSX is a heavy-duty four-post alignment hoist engineered for precision, durability, and efficiency in automotive service centers, tire shops, and dealerships.

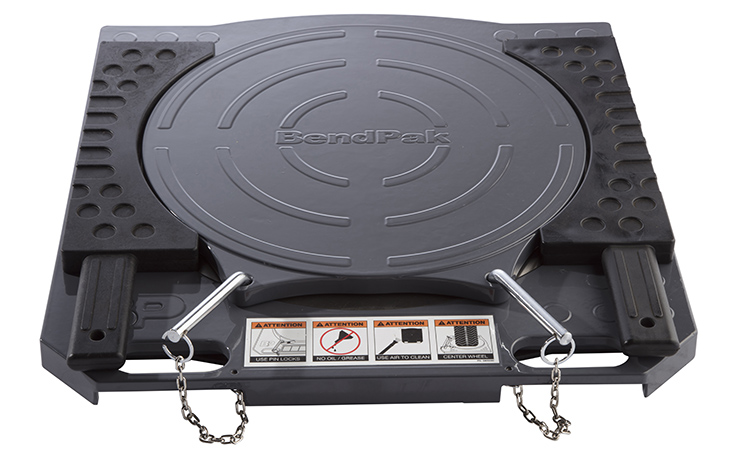

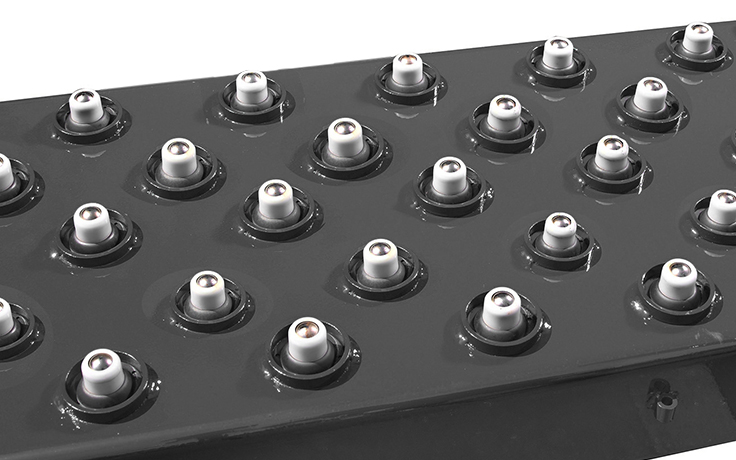

Integrated Turn Plates and Slip Plates
This hoist includes front turn plates and rear slip plates, ensuring seamless compatibility with 3D and camera-based alignment systems.

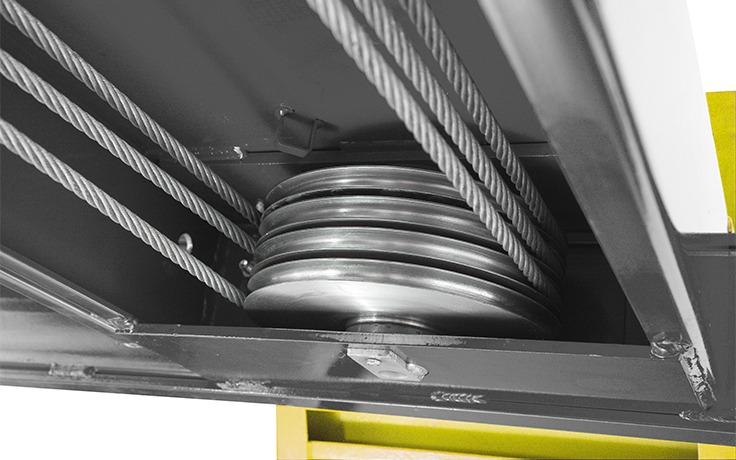

Dual-Hub Cable Sheaves for Longevity
The 267 mm diameter cable sheaves and 57 mm axles ensure exceptional strength and long-term durability, minimizing maintenance requirements.

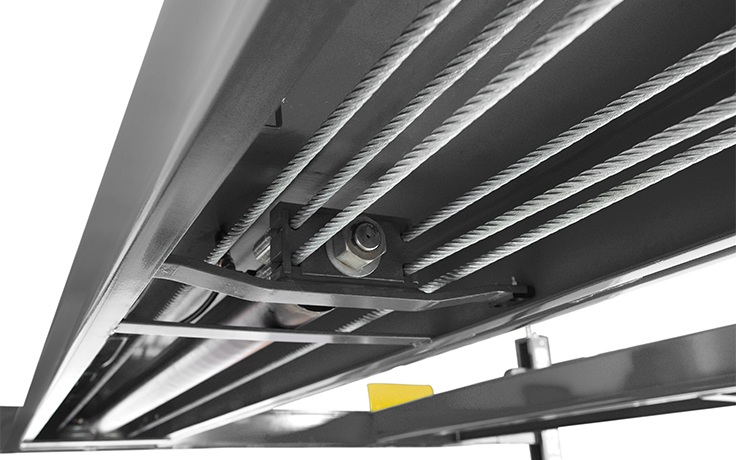

Heavy-Duty Stainless Steel Aircraft Cables
The 13 mm aircraft-quality lifting cables are resistant to chemicals, weather, and wear, providing maximum reliability in high-traffic workshops.

Adjustable Height Locking Positions
The hoist allows for multiple height adjustments, enabling optimal positioning for alignment, tire, and brake services.

Push-Button Pneumatic Lock Release
Operators can release all four safety locks simultaneously with a single button press, ensuring smooth and secure lowering.

Spring-Loaded Safety Locks
Spring-loaded locks engage automatically at each height, preventing accidental lowering and providing secure vehicle stability.

Hydraulic Flow Restrictor for Controlled Descent
The integrated hydraulic flow divider guarantees level lifting and controlled descent, reducing sudden movements and potential safety hazards.

Extended Approach Ramps for Low Vehicles
The extra-long ramps ensure smooth entry and exit for sports cars and low-clearance vehicles, improving workshop efficiency.

Materials & Tech

Constructed from reinforced steel with a powder-coated finish, the HDS-14LSX is designed for durability, corrosion resistance, and long-term performance in high-traffic environments.
  • Rolling Jacking Beams for Additional Wheel & Brake Services
  • Extended-Frame Model for Longer Vehicles
  • Durable powder-coated finish for extended lifespan
  • Hydraulic-powered lifting system with ergonomic controls
  • Flexible protective conduit for hoses and airlines

Inclusions

  • HDS-14LSX Four-Post Alignment Hoist
  • Integrated Turn Plates and Slip Plates
  • Aircraft-Quality Stainless Steel Hoisting Cables
  • Push-Button Pneumatic Lock Release System
  • Extended Approach Ramps

Specifications

CAPACITY lbs kgs
Lifting Capacity 14,000 lbs 6,350 kg
Max Capacity / Front Axle 7,000 lbs 3,175 kg
Max Capacity / Rear Axle 7,000 lbs 3,175 kg
RISE inches mm
Minimum Runway Height 7.625” 194 mm
Maximum Rise 70” 1,778 mm
Maximum Lifting Height 77.625” 1,972 mm
Time to Full Rise 60 seconds
POWER
Power Unit 220 VAC / 60 Hz / 1 Ph
NOISE
Noise Level 45 dB
SHIPPING Weight
Shipping Weight 3,102 lbs (1,407 kg)
