SKU: 5175624
More room, more comfort, more productivity. The BendPak HDS-14XT four-post hoist pairs a 6,350 kg lifting capacity with extended 5,778 mm runways and a taller rise, so technicians of any height can work upright beneath limousines, SUVs and extended trucks. ALI-certified and built for high-volume shops, it turns awkward, fatiguing jobs into fast, comfortable ones.

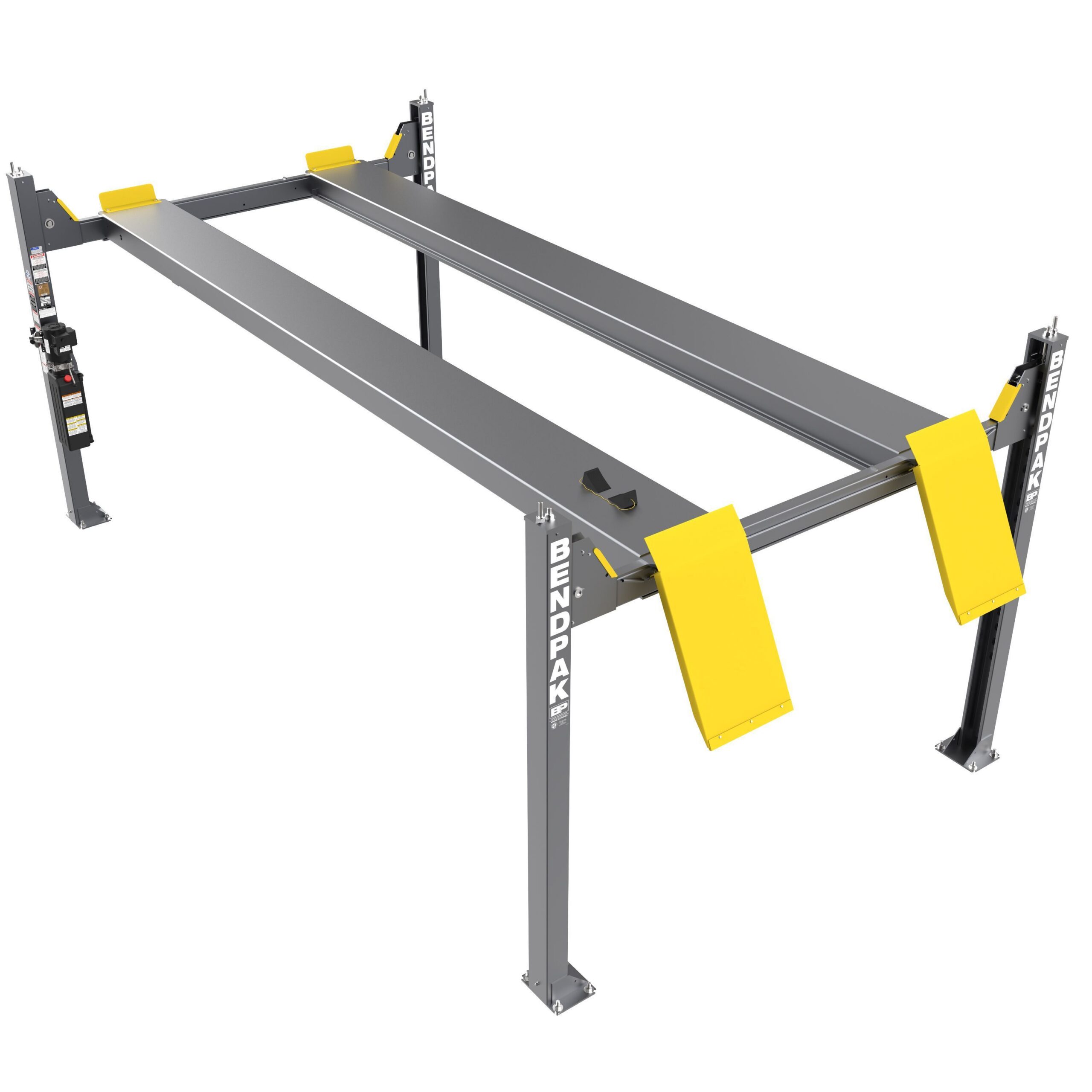

4 Post High-Rise Hoist HDS-14XT
Features

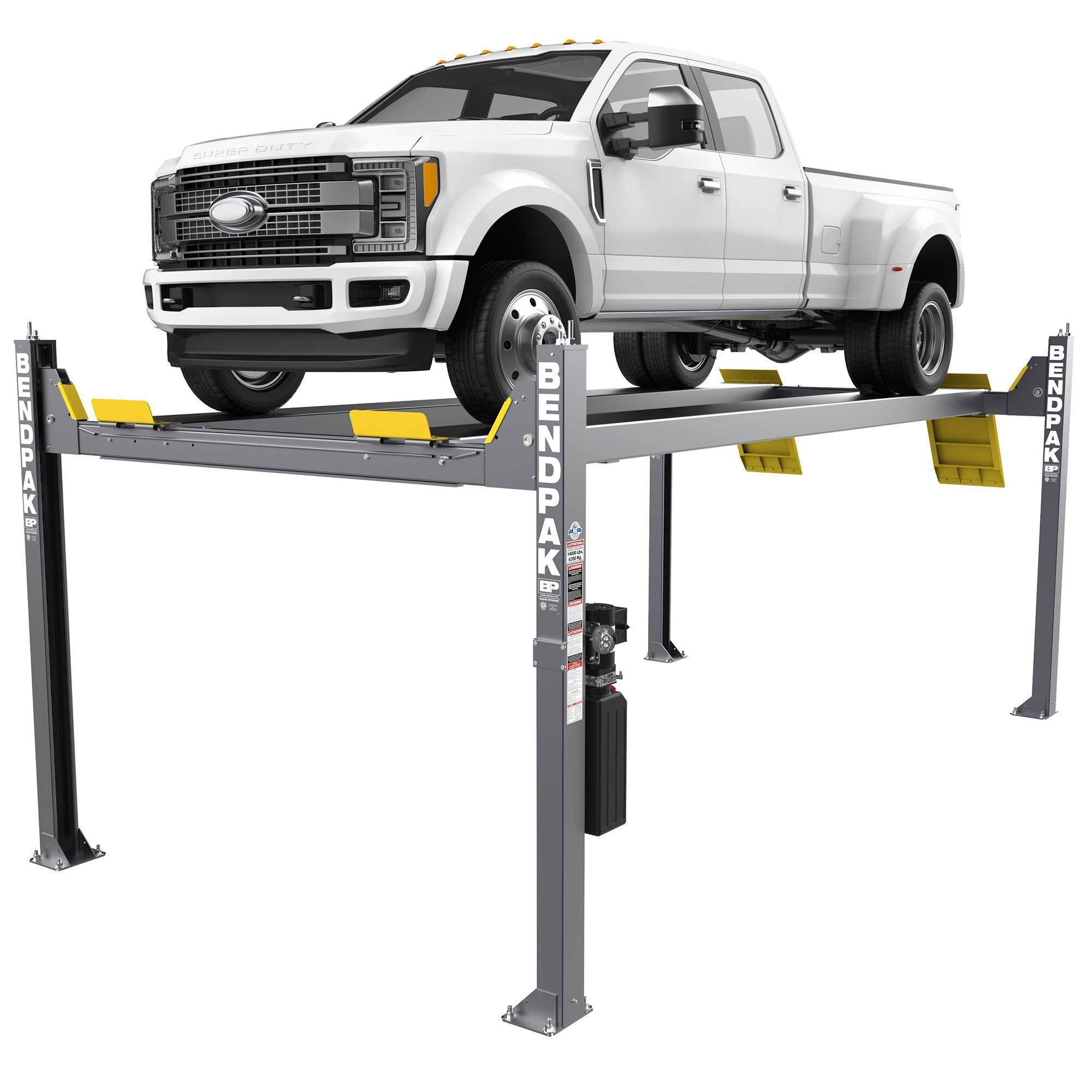

Purpose-built for heavy-duty vehicles, the HDS-14XT brings serious versatility to busy shops. A 6,350 kg capacity, extended runways and a taller rise make light work of limousines, extended trucks and large SUVs.
With up to 2,104 mm of rise and a 2,275 mm maximum lifting height, technicians get the overhead clearance to stand upright through undercar work. Less strain means faster turnaround and higher-quality service.
Massive 10.5-inch dual-hub cable sheaves dramatically reduce cable wear, while four 1/2-inch stainless aircraft-quality cables deliver the right balance of strength, abrasion resistance and long-term fatigue protection.
Automatic spring-loaded locks engage continuously as the lift rises, adjustable safety ladders level the runways even on uneven floors, and independent backup slack-cable latches add another layer of protection — all fully enclosed to minimise pinch points.
A pneumatic push-button release makes everyday use effortless, customisable power-unit placement fits your bay, and reinforced base plates with internal anti-sway slider blocks keep every lift smooth and secure. Extended approach ramps protect low-clearance undercarriages, and runway rail-kits accept optional accessories.
The HDS-14XT is fully certified by the Automotive Lift Institute (ALI), meeting or exceeding stringent safety and performance standards.
Materials & Tech
Inclusions
Inclusions
| Lifting Capacity | 6,350 kg (14,000 lb) |
| Max. Capacity — Front Axle | 3,175 kg |
| Max. Capacity — Rear Axle | 3,175 kg |
| Min. Runway Height | 191 mm |
| Max. Rise | 2,104 mm |
| Max. Lifting Height | 2,275 mm |
| Time to Full Rise | 90 seconds |
| Overall Width | 3,302 mm |
| Outside Length | 6,172 mm |
| Overall Length | 6,908 mm |
| Height of Columns | 2,643 mm |
| Width Between Columns | 3,048 mm |
| Drive-Thru Clearance | 2,052 mm |
| Runway Width | 508 mm |
| Length of Runways | 5,778 mm |
| Width Between Runways | 876 mm or 1,054 mm |
| Locking Positions | 18 (every 102 mm) |
| Motor | 220 VAC, 60 Hz, 1 Ph |
| Noise | 45 dB |
| Certification | ALI certified |
| Shipping Weight | 1,242 kg |
