SKU: 5175307
The BendPak 10APX-181 is the extended-height 2 post hoist built for high-roof workshops. It pairs a 10,000-lb (4,536 kg) lifting capacity and adaptable Bi-Metric™ arms with a towering 181″ (4,597 mm) overhead beam as standard — giving you the overhead clearance to lift and service high-roof cargo vans, larger EVs and tall vehicles with confidence.
2 Post High Roof Hoist 10APX-181
Features
Extended 181″ Overhead Beam
The defining feature of the 10APX-181 is its 181″ (4,597 mm) overhead beam — versus 157″ (3,988 mm) on the standard 10APX — delivering the headroom to raise and service high-roof cargo vans and taller EVs, while retaining the same 79.5″ (2,007 mm) lifting height.
Automatic Arm Restraints
The patented ASARS system locks arms securely in place with over 2,000 lbs of holding force, ensuring unmatched safety during vehicle servicing.
Triple-Telescoping Swing Arms
Revolutionary triple-telescoping arms offer maximum retraction and extension, accommodating a variety of vehicle lifting points with ease.
Low-Profile Arm Versatility
Low-Pro™ swing arms provide easy access to low-clearance vehicles while minimising the risk of damage to side skirts, running boards, and other sensitive areas.
Advanced Safety Lock System
The innovative safety lock system engages automatically during lift operations and features a single-point release for smooth and effortless lowering.
Screw Pads and Adapter Options
Double-telescoping screw pads with tear-resistant polyurethane ensure secure vehicle engagement, with optional stackable adapters for added lifting precision.
Bi-Metric™ Swing Arm Design
Adaptable Bi-Metric™ arms allow for quick switching between symmetric and asymmetric configurations, improving efficiency for diverse vehicle servicing.
Reinforced Construction
Engineered with high-tensile steel and oversized components, the 10APX-181 is built to handle the increased weight of modern electric and heavy-duty vehicles with ease.
Materials & Tech
COMES WITH
OPTIONAL

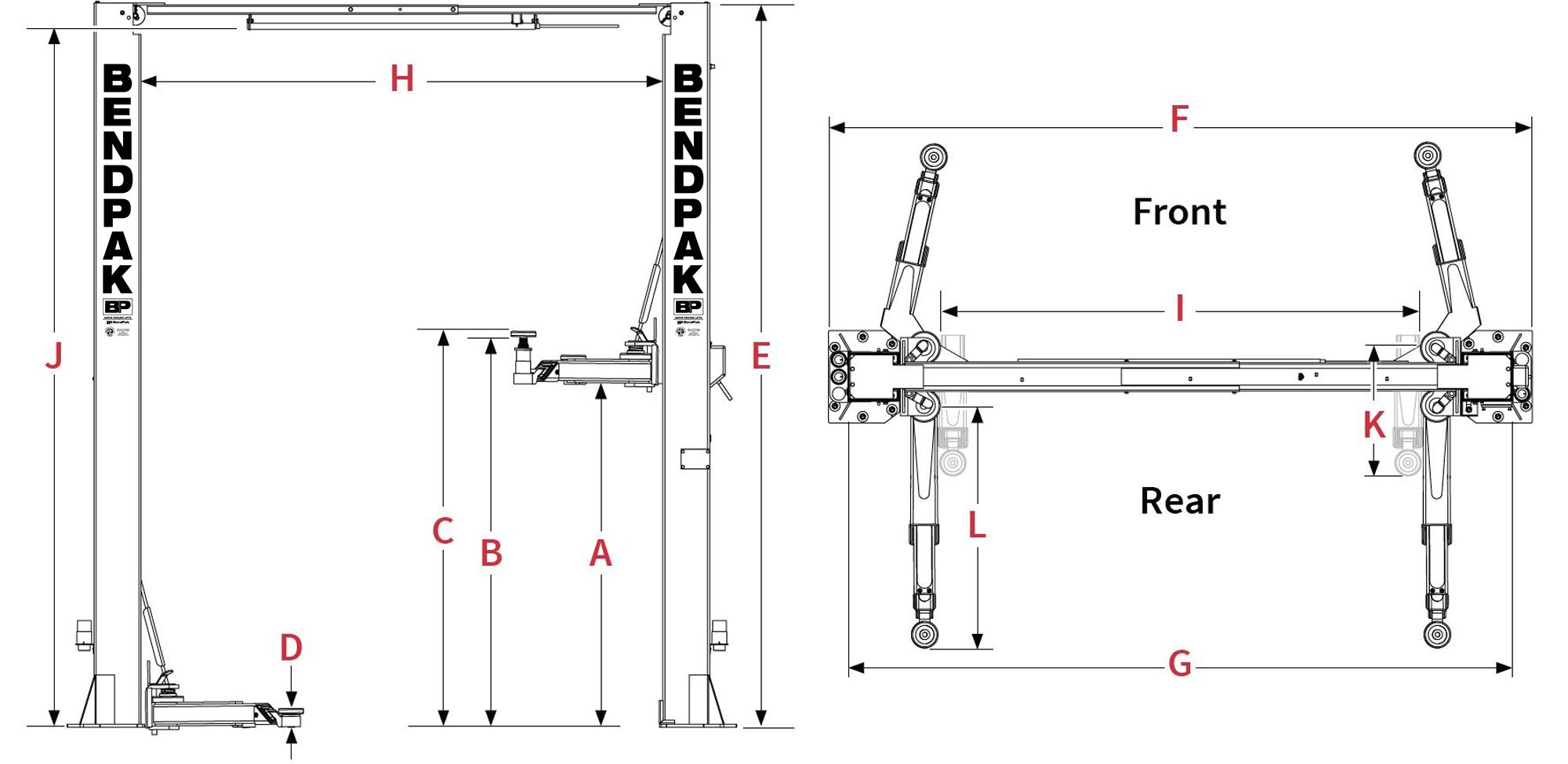

| CAPACITY | Imperial | Metric |
| Lifting Capacity | 10,000 lbs | 4,536 kg |
| Max Capacity / Front Axle | 5,000 lbs | 2,268 kg |
| Max Capacity / Rear Axle | 5,000 lbs | 2,268 kg |
| RISE | Imperial | Metric |
| A – Rise | 75.5″ | 1,918 mm |
| B – Rise + Pad Only | 79.5″ | 2,007 mm |
| D – Min. Height + Pad | 4″ | 102 mm |
| Time to Full Rise | 45 seconds | – |
| OUTSIDE DIMENSIONS | Imperial | Metric |
| E – Height Overall | 181″ | 4,597 mm |
| F – Width Overall | 135″ or 145″ | 3,431 mm or 3,683 mm |
| G – Outside Columns | 127.5″ or 137.5″ | 3,238 mm or 3,492 mm |
| J – Floor to Overhead Switch | 175.75″ | 4,464 mm |
| INSIDE DIMENSIONS | Imperial | Metric |
| H – Inside Columns | 108.5″ or 118.5″ | 2,756 mm or 3,010 mm |
| I – Drive-Thru Clearance | 92″ or 102″ | 2,338 mm or 2,592 mm |
| ARMS & PADS | Imperial | Metric |
| K – Front Arm Reach (MIN) | 24.5″ | 622 mm |
| K – Front Arm Reach (MAX) | 50″ | 1,270 mm |
| L – Rear Arm Reach (MIN) | 32″ | 812 mm |
| L – Rear Arm Reach (MAX) | 59.25″ | 1,504 mm |
| MAX LOAD PER ARM | Imperial | Metric |
| Max Load Per Arm | 2,500 lbs | 1,134 kg |
| POWER UNIT | Specification |
| Motor | 220 VAC, 60 Hz, 1 Phase |
| NOISE LEVEL | |
| Noise | <70 dB |
