SKU: 5175729

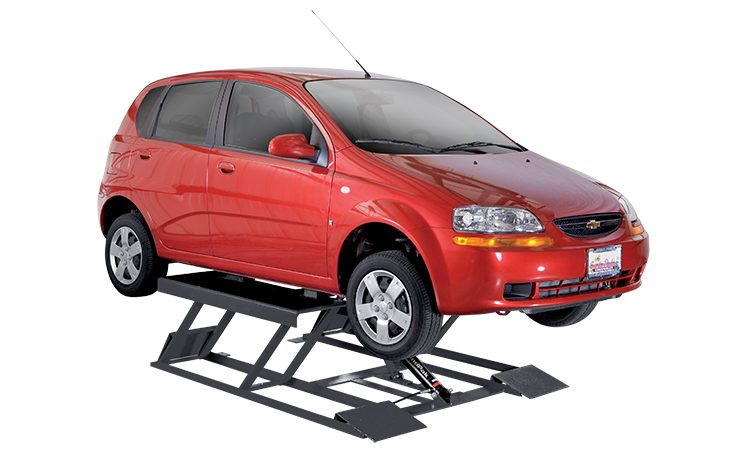

The BendPak LR-60 is a compact, high-performance low-rise scissor lift designed for quick service on passenger cars and light trucks. With a 2,722-kg. lifting capacity, multi-position safety locks, and rugged steel frame construction, this space-saving lift is ideal for wheel service, detailing, and auto-body repair.
Features
2,722-kg. Lifting Capacity for Versatile Vehicle Service
Capable of lifting cars, SUVs, and light trucks, the LR-60 is a go-to solution for automotive professionals and DIY enthusiasts.
Low-Profile 102 mm Collapsed Height
The ultra-low-profile design allows for easy access to low-clearance vehicles, making it ideal for sports cars and performance sedans.
Multi-Position Safety Locks for Secure Lifting
Adjustable safety locks engage at multiple heights, providing stable lifting and flexibility for different service needs.
Rugged Steel Channel Frame for Maximum Strength
Built with heavy-duty steel, the LR-60 ensures long-lasting performance and enhanced structural stability.
Electric/Hydraulic Power System for Smooth Operation
The efficient power system delivers fast, stable lifting and reliable operation for professional and home garages alike.
Dropped Crossbar for Increased Clearance
A strategically designed crossbar offers additional drive-over clearance, making suspension and wheel service easier.
Materials & Tech
Inclusions
| LIFTING CAPACITY | |
| Lifting Capacity | 2,722 kg (6,000 lbs.) |
| MAX LIFTING HEIGHT | |
| Max Lifting Height | 660 mm (26″) |
| MAX LIFT HEIGHT WITH 1.5″ BLOCKS | |
| Max Lift Height with 1.5″ Blocks | 699 mm (27.5″) |
| OVERALL PAD LENGTH | |
| Overall Pad Length | 1,346 mm (53″) |
| OVERALL WIDTH | |
| Overall Width | 1,791 mm (70.5″) |
| LOWERED HEIGHT | |
| Lowered Height | 102 mm (4″) |
| POWER SOURCE | |
| Power Source | 115/208 or 230 VAC / 50-60 Hz / 1 Ph |
| SHIPPING WEIGHT | |
| Shipping Weight | 370 kg (814 lbs.) |
