SKU: 5175547

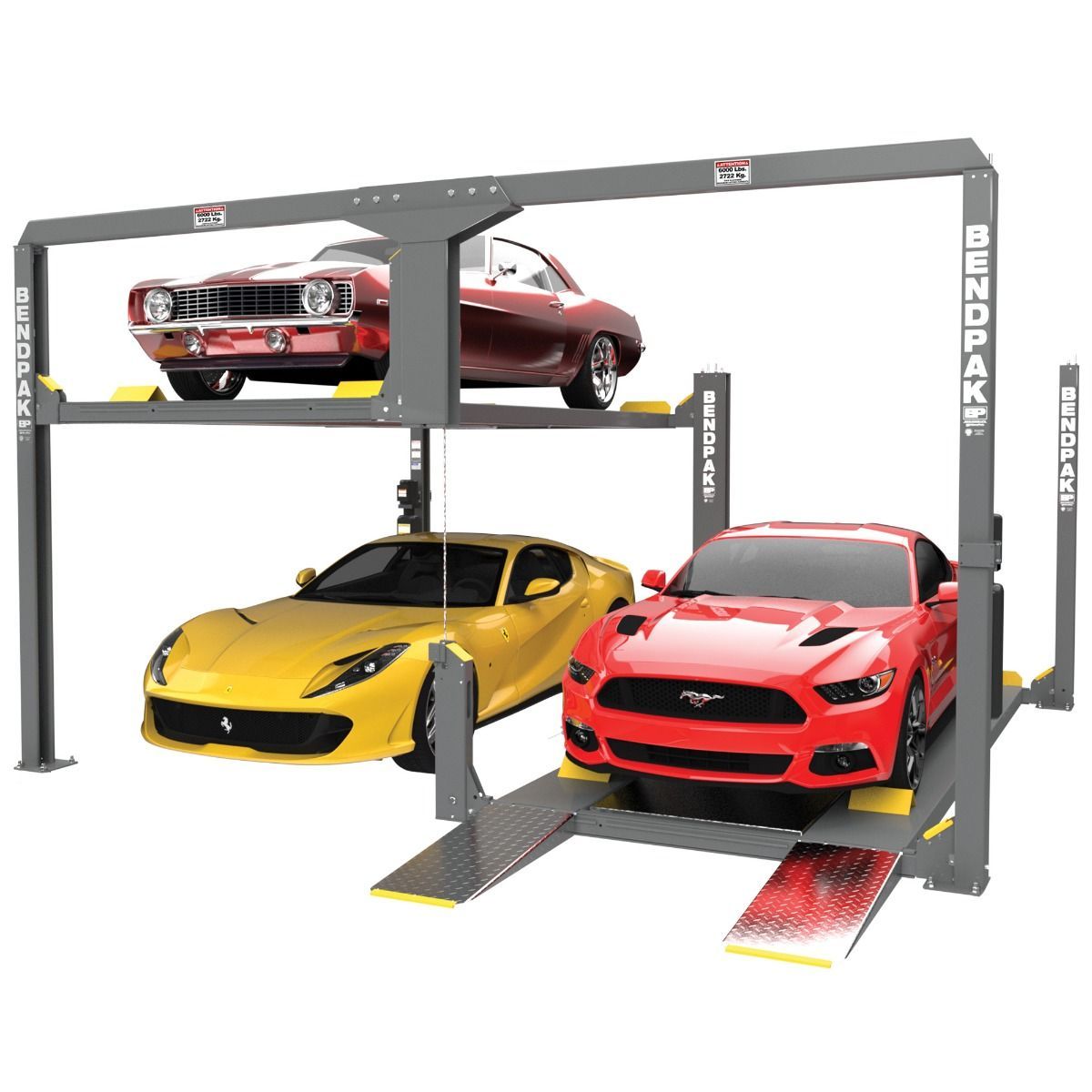

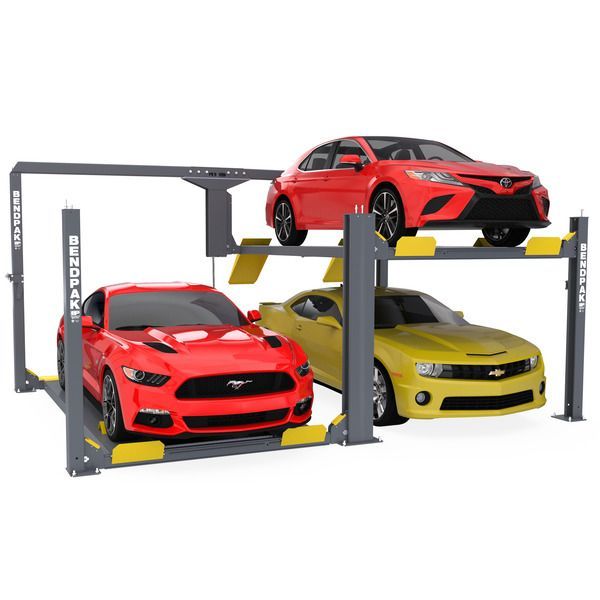

A 12,000-lb. capacity tandem parking lift featuring two independent platforms, designed to maximize parking density without expanding your existing space. Ideal for both commercial and residential applications seeking efficient vehicle storage solutions.
PL-12000DP
Features
Space-Saving Design
Engineered to stack two vehicles vertically within the footprint of a single parking space, effectively doubling parking capacity.
Robust Hydraulic System
Equipped with dual hydraulic cylinders and heavy-duty galvanized lifting cables, ensuring reliable and smooth lifting operations.
Multiple Safety Locks
Features multiple locking positions for various parking heights, providing secure and adaptable vehicle storage.
Heavy-Duty Steel Construction
Built with rugged, welded steel to withstand daily use and ensure longevity with minimal maintenance.
User-Friendly Controls
Simple and intuitive operator controls make vehicle lifting and lowering straightforward and efficient.
Materials & Tech
Optional
| CAPACITY | Imperial | Metric |
| Load Capacity per Platform | 6,000 lbs | 2,722 kg |
| Total Lifting Capacity | 12,000 lbs | 5,444 kg |
| DIMENSIONS | Imperial | Metric |
| Total Width | 221.25″ | 5,620 mm |
| Outside Length | 198″ | 5,029 mm |
| Total Length | 242.5″ | 6,160 mm |
| Total Height | 130.5″ | 3,313 mm |
| RUNWAYS | Imperial | Metric |
| Min. Runway Height | 4.75″ | 121 mm |
| Maximum Rise | 82″ | 2,082 mm |
| Runway Length | 183″ | 4,649 mm |
| Runway Width | 19″ | 482 mm |
| CLEARANCES | Imperial | Metric |
| Width Between Posts | 211″ | 5,362 mm |
| Width Between Platforms | 29″ | 739 mm |
| Drive-Thru Height | 80.5″ | 2,047 mm |
| Drive-Thru Width | 85″ | 2,161 mm |
| LOCKING | Imperial | Metric |
| Safety Lock Positions | 6 | – |
| POWER UNIT | Imperial | Metric |
| Motor | 220 VAC / 50/60 Hz / 1 Ph | – |
| SHIPPING | Imperial | Metric |
| Weight | 3,500 lbs | 1,588 kg |
| Dimensions | 250″ x 30″ x 40″ | 6,350 mm x 762 mm x 1,016 mm |
