SKU: 5175552

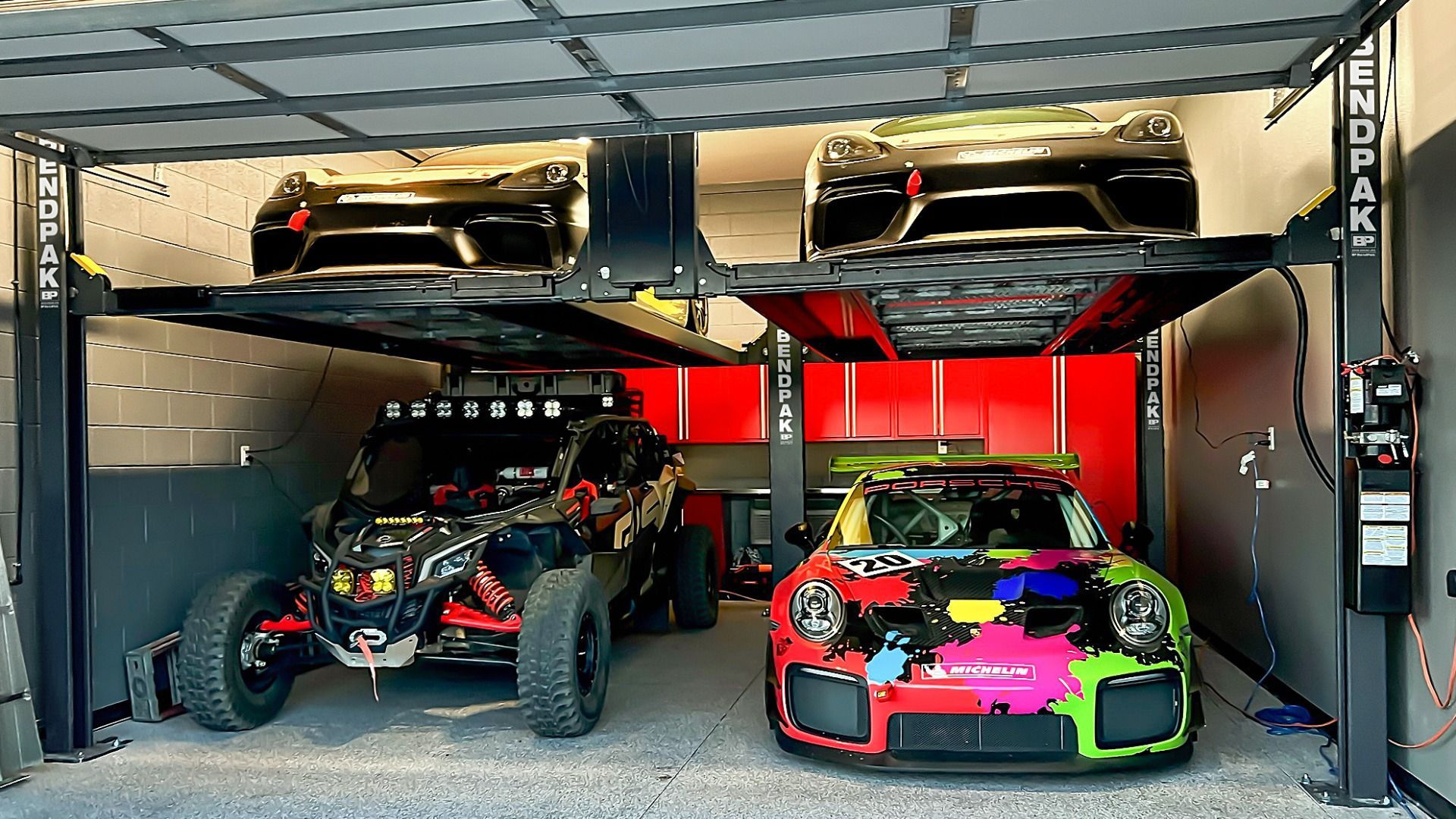

The BendPak PL-12000DPS is an advanced tandem parking lift that maximizes vehicle storage capacity without expanding your physical space. With two independent platforms, this lift allows for flexible vehicle access, eliminating the need for repositioning. Ideal for commercial garages, residential parking, and automotive storage, the 12,000-lb. total capacity ensures reliable performance for cars, trucks, motorcycles, and ATVs.
PL-12000DPS
Features
Independent Platform Operation
Each platform operates independently, allowing you to lower one side while keeping the other raised.
Heavy-Duty Hydraulic Drive System
Equipped with dual hydraulic cylinders and galvanized lifting cables, ensuring precise, even lifting.
Multi-Position Safety Locks & Wheel Stops
Features multiple lock positions and built-in wheel stops for added security and stability.
Wide Baseplates for Maximum Stability
A reinforced baseplate design ensures the lift remains stable under heavy loads and continuous use.
Durable Powder-Coated Steel Construction
Made from high-strength welded steel with a corrosion-resistant powder-coat finish.
Materials & Tech
Optional
| Specification | Details |
| Total Lifting Capacity | 12,000 lbs. (5,444 kg) |
| Per Platform Capacity | 6,000 lbs. (2,722 kg) |
| Independent Platforms | Yes |
| Lifting Time | ≈45 Seconds |
| Specification | Details |
| Total Width | 5,624 mm (221.5″) |
| Total Length | 5,550 mm (218.5″) |
| Overall Height | 3,009 mm (118.5″) |
| Width Between Posts | 5,362 mm (211″) |
| Runway Height | 121 mm (4.75″) |
| Max Rise | 1,784 mm (70.2″) |
| Drive-Thru Height | 1,742 mm (68.5″) |
| Drive-Thru Width | 2,161 mm (85″) |
| Specification | Details |
| Runway Width | 482 mm (19″) |
| Runway Length | 4,039 mm (159″) |
| Width Between Runways | 887 mm or 1,045 mm (35″ or 41″) |
| Specification | Details |
| Safety Lock Positions | 6 |
| Front & Rear Wheel Stops | Yes |
| Specification | Details |
| Motor | 220V AC / 50-60 Hz / 1 Ph |
| Noise Level | 45 dB |
| Specification | Details |
| Shipping Weight | TBD |
| Shipping Dimensions | TBD |
