SKU: 5000TLX

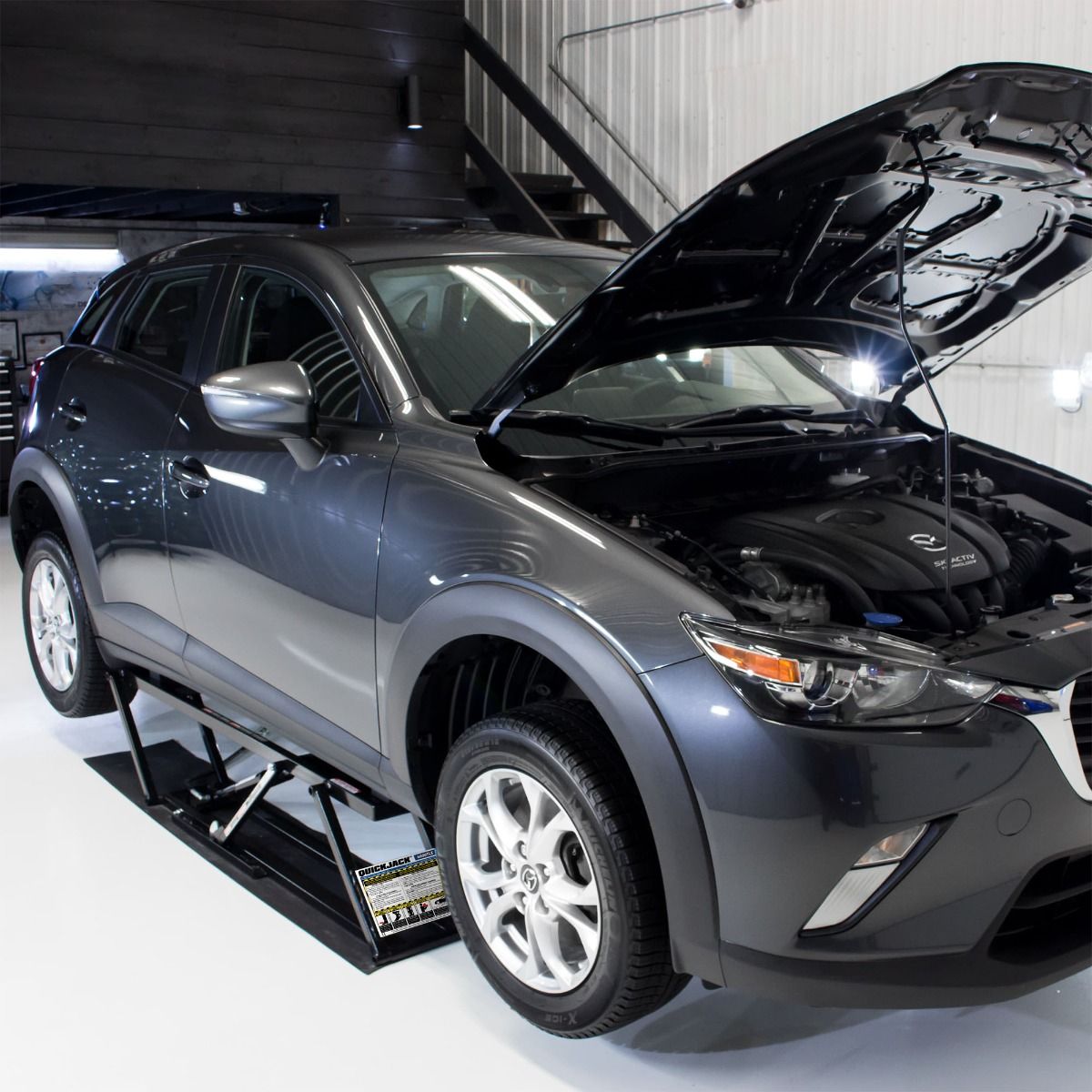

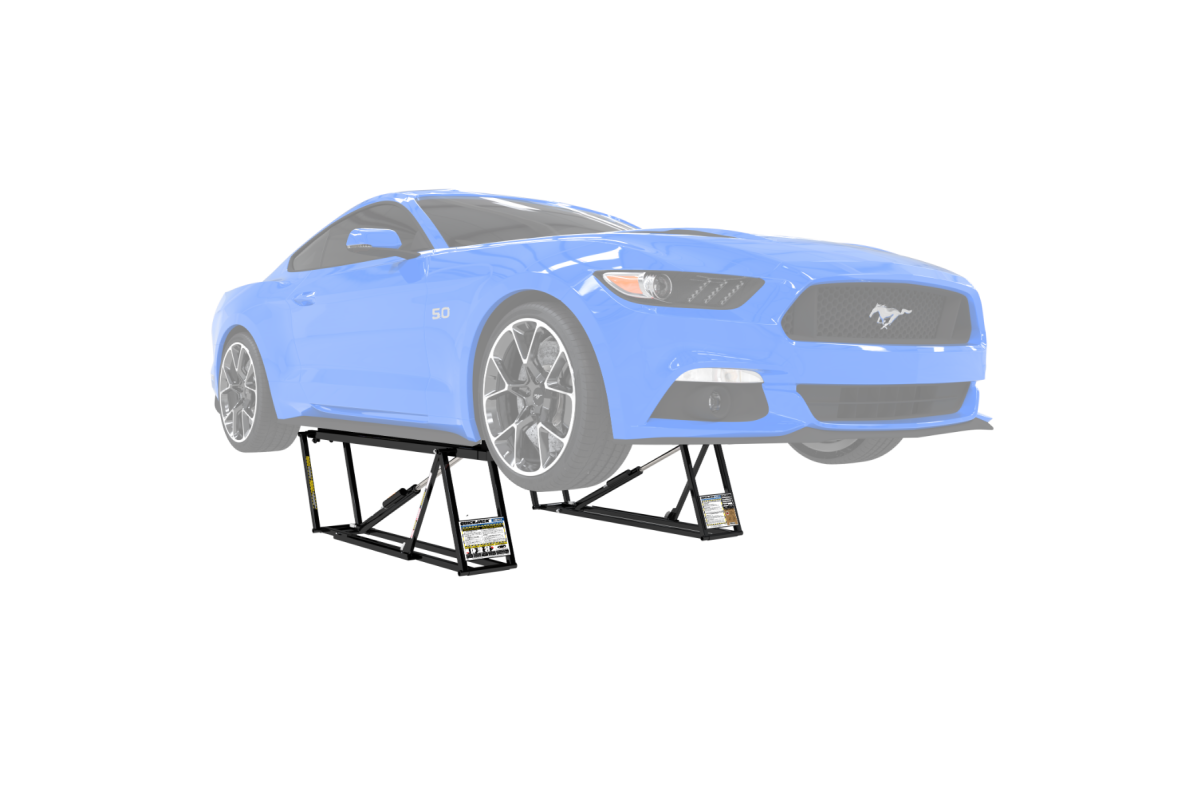

The QuickJack 5000TL is a compact, highly versatile portable car lift designed to increase lifting height by an extra 3 inches, giving you 24 inches of clearance for easier vehicle maintenance and repairs. With a 5,000-lb. weight capacity, it’s perfect for home garages, track days, and professional workshops. Its lightweight, portable frame and one-handed operation make it a must-have tool for mechanics and car enthusiasts alike

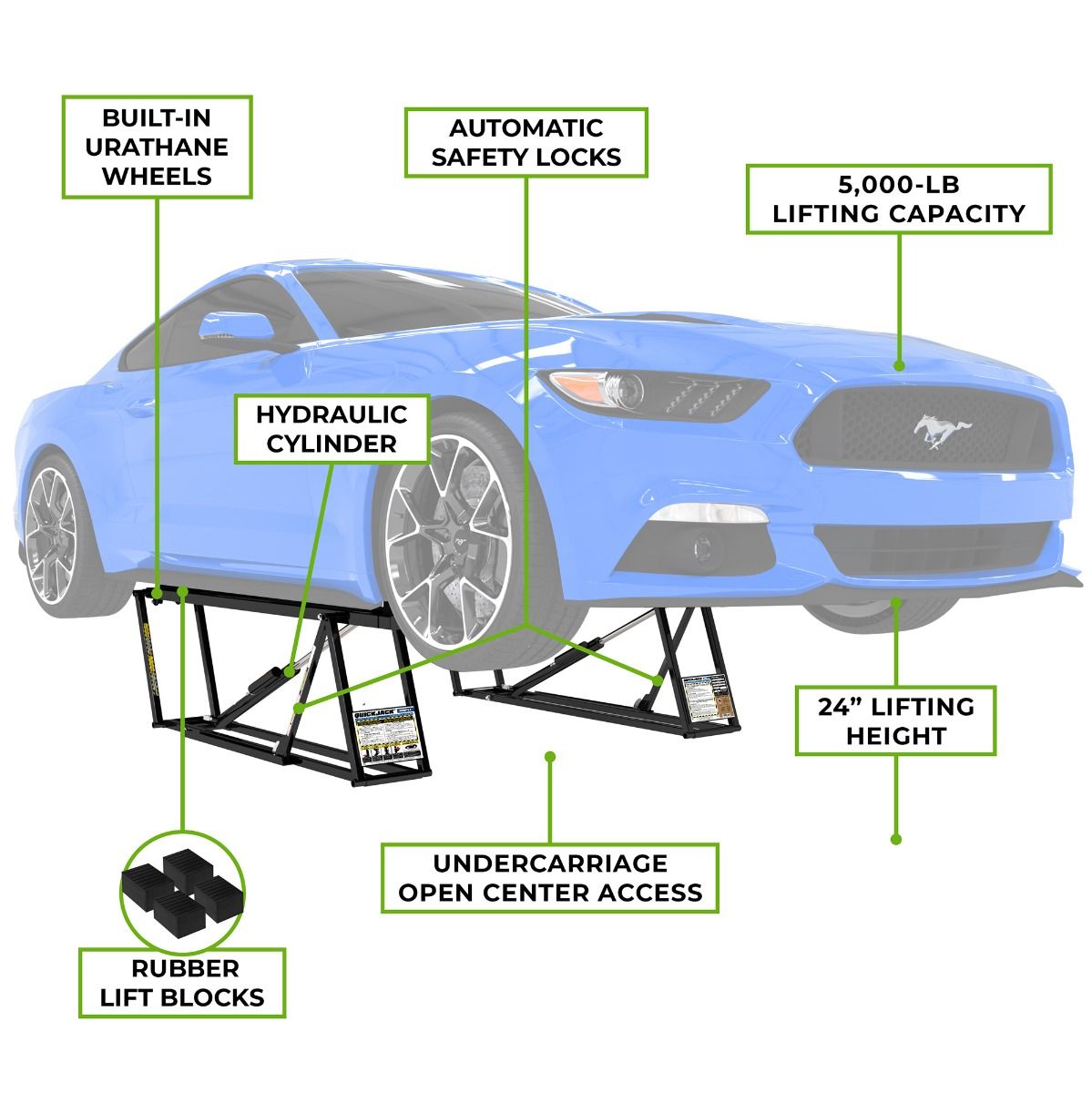

Features
Automatic Safety Locks
Dual-position automatic safety locks engage at mid-rise and full-rise, ensuring secure lifting without manual adjustments.

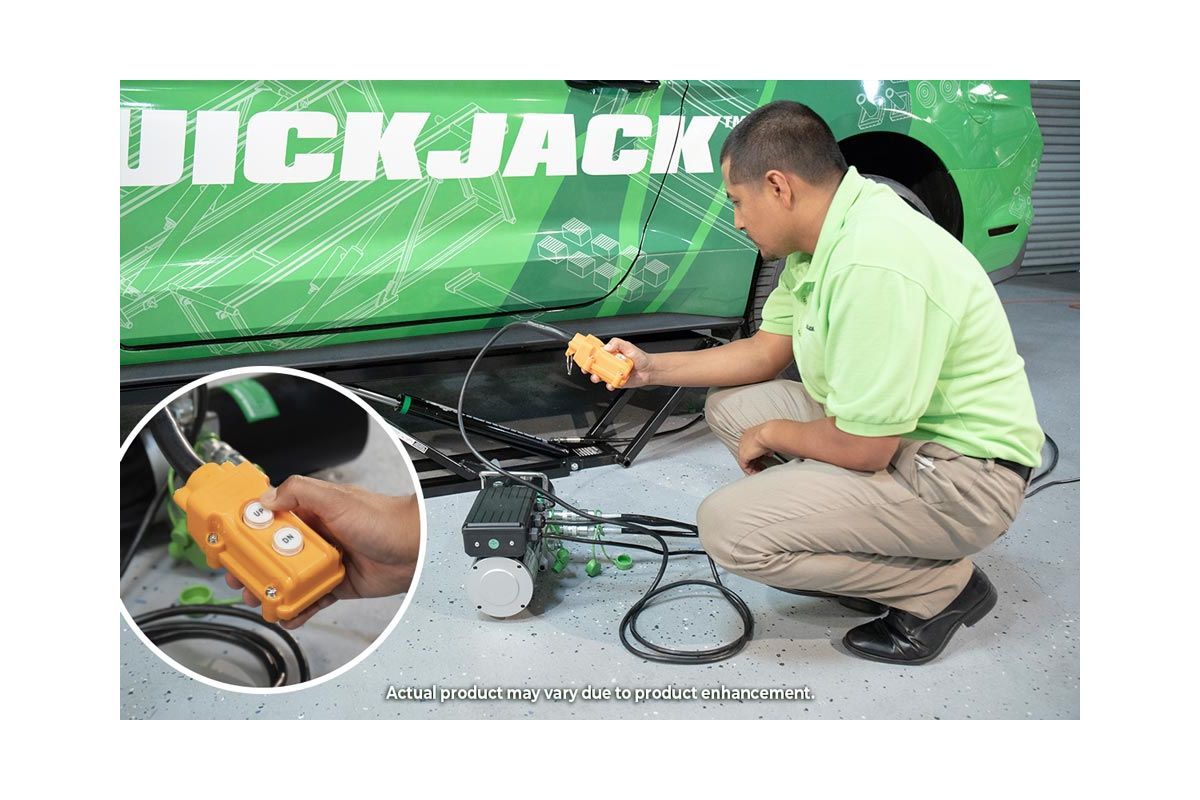

One-Handed Operation
The pendant control system allows for easy, one-handed operation, so you can focus on your repairs without distractions.

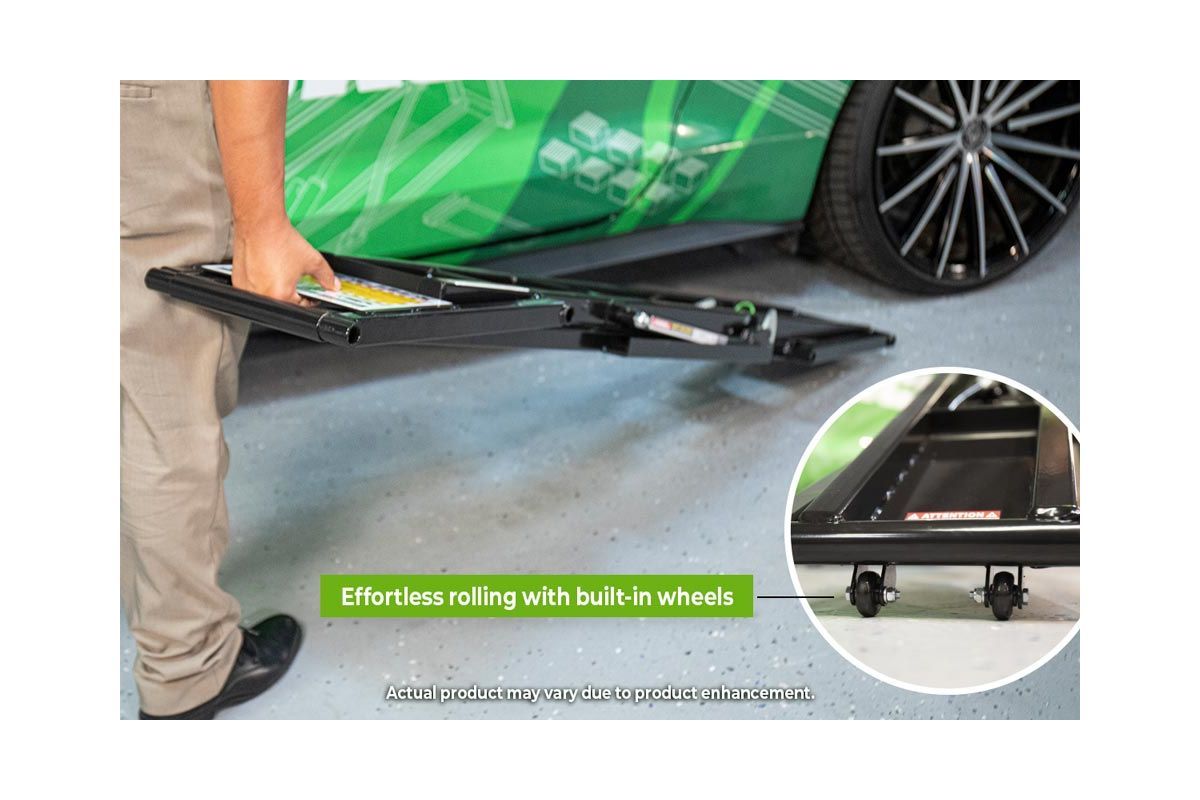

Lightweight, Portable Frame
With a compact 70-inch length and 11-inch width, the 5000TL is easy to store and transport, making it ideal for garage use, racetrack pits, and mobile mechanics.

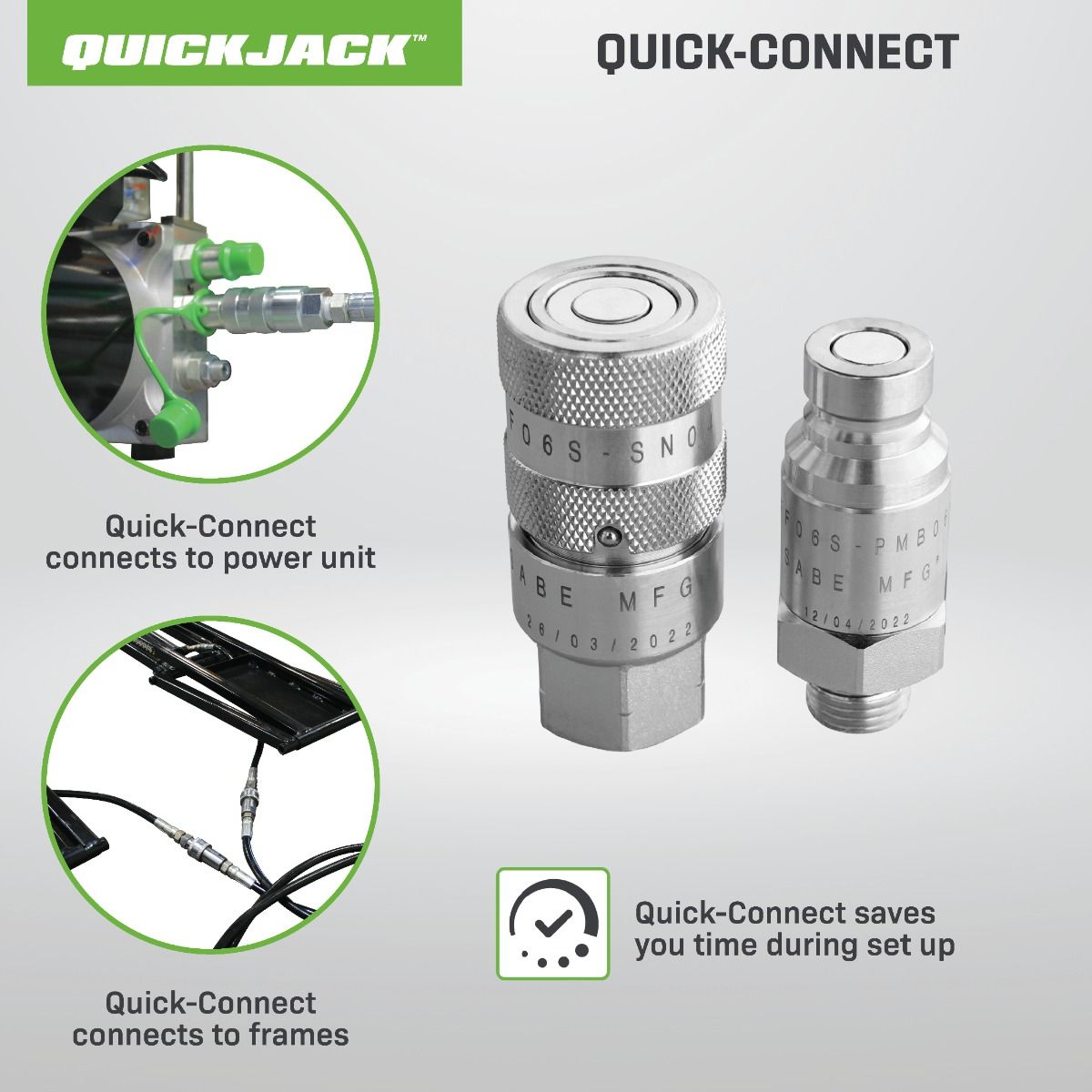

Hydraulic Power & Quick Setup
The hydraulic power unit allows for fast lifting in just 30 seconds, saving time on maintenance tasks.
Versatile Accessories for Customization
Compatible with truck adapter kits, frame extensions, and wall hangers, the 5000TL adapts to your specific vehicle needs.
Materials & Tech
Optional
| Specification | Details |
| Lifting Capacity | 5,000 lbs. (2,268 kg) |
| Lowered Height | 3.5″ (89 mm) |
| Max Lifting Height | 24″ (616 mm) |
| Lift Time | 30 seconds |
| Frame Length | 70″ (1,778 mm) |
| Frame Width | 11″ (278 mm) |
| Weight (each frame) | 78 lbs. (35 kg) |
| Specification | Details |
| Max Lift Point Spread | 60″ (1,524 mm) |
| Min Lift Point Spread | 37″ (940 mm) |
| Drive Thru Height | 68.5″ (1,742 mm) |
| Specification | Details |
| Power Options | 110V AC / 220V AC |
| Hydraulic Power Unit Weight | 15 lbs. (7 kg) |
| Safety Lock Positions | 2 (Mid-Rise & Full-Rise) |
| Automatic Safety Locks | Yes |
| Specification | Details |
| Shipping Weight | 240 lbs. (109 kg) |
| Shipping Dimensions (each frame) | 73.5″ (L) x 15.25″ (W) x 5″ (H) |
