HD-7500BLX | 4-Post Hoist

SKU: 5175315

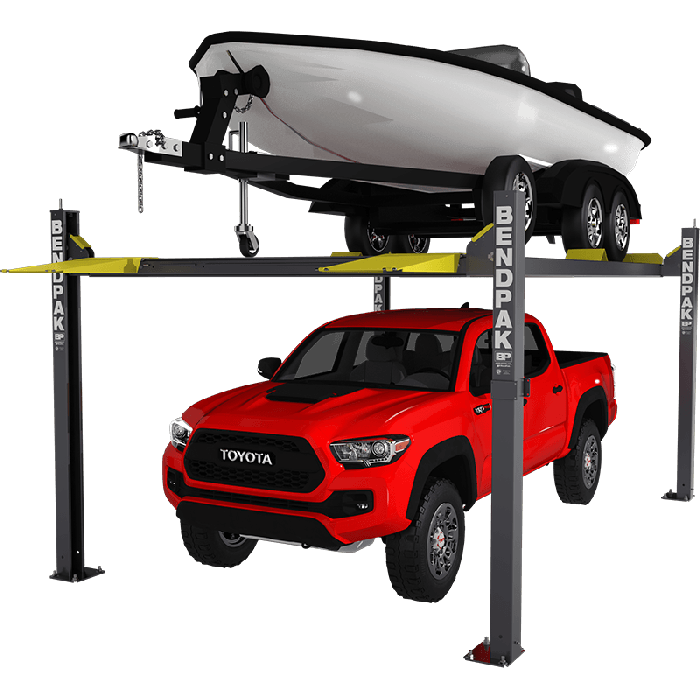

The BendPak HD-7500BLX is a 7,500-lb. capacity lift designed for vehicle and boat storage. With its extended length and height, it ensures safe and secure dry docking for boats and provides versatile storage for cars, trucks, and trailers.

  • 7,500-lb. lifting capacity
  • 82″ max rise with 17 locking positions
  • Extended length and height for boats and larger vehicles
  • Heavy-duty aircraft cables and dual-hub sheaves
  • Electric-hydraulic power system for seamless operation

Features

Avoid rust, blemishes, rot, and water damage by securely storing your boat out of the water with the HD-7500BLX.

Dual-Purpose Design
Wide and narrow installations accommodate most boat trailers and also function as a professional-grade lift for cars and trucks.

Automatic Safety Locks
Spring-loaded safety locks and a secondary slack-cable lock system ensure maximum safety and stability during operation.

Durable Build for Longevity
Crafted with rugged stainless steel wire ropes, dual-hub sheaves, and enclosed components for extended durability and performance.

Adjustable Runways
The adjustable width between runways ensures compatibility with various vehicles and boat trailers.

Materials & Tech

With a robust stainless steel cable system and integrated hydraulic and pneumatic controls, the HD-7500BLX is built for smooth operation and long-lasting performance.
  • Extended-length approach ramps
  • Integrated safety lock system
  • Pneumatic safety release
  • Enclosed lifting components for protection

Comes with

  • Single hydraulic cylinder beneath the runway for minimal exposure
  • Powder-coated finish for durability

Optional

  • Custom accessories for enhanced storage

Specifications

Capacity Imperial Metric
Lifting Capacity 7,500 lbs 3,402 kg
Max Capacity / Front Axle 3,750 lbs 1,701 kg
Max Capacity / Rear Axle 3,750 lbs 1,701 kg
Rise Imperial Metric
A – Min. Runway Height 5″ 127 mm
B – Max. Rise 82″ 2,083 mm
C – Max. Lifting Height 85.75″ 2,178 mm
Time to Full Rise 55 seconds
Outside Dimensions Imperial Metric
D – Overall Width 132″ 3,353 mm
E – Outside Length 198″ 5,029 mm
F – Overall Length 224.5″ 5,702 mm
G – Height of Columns 100″ 2,540 mm
Inside Dimensions Imperial Metric
H – Width Between Columns 122″ 3,099 mm
I – Drive-Thru Clearance 108.5″ 2,756 mm
Runways Imperial Metric
J – Runway Width 19″ 483 mm
K – Length of Runways 182.25″ 4,629 mm
L – Width Between Runways 46.5″ or 66.5″ 1,181 mm or 1,689 mm
M – Runway Centerline 68.5″ or 88.5″ 1,740 mm or 2,248 mm
N – Outside Edge of Runways 87.5″ or 107.5″ 2,223 mm or 2,731 mm
Minimum Wheelbase Imperial Metric
Rated Capacity 135″ 3,429 mm
75% Capacity 115″ 2,921 mm
50% Capacity 95″ 2,413 mm
25% Capacity 80″ 2,032 mm
Locking Imperial Metric
Locking Positions 17
Lock Spacing Every 4″ 102 mm
Power Unit
Motor 220 VAC / 60 Hz / 1 Ph
Noise 45 dB
Shipping
Weight 1,910 lbs 866 kg
Dimensions 191″ x 22″ x 28″ 4,851 mm x 558 mm x 711 mm
Brand Spotlight

BendPak

For decades, BendPak has set the gold standard in hoisting technology, trusted by automotive repair workshops, motor dealerships, and heavy vehicle operators alike.

Renowned for its unmatched quality and durability, BendPak delivers solutions built to withstand the demands of high-volume operations. With our exclusive partnership, Genesis Equipment ensures that your business benefits from the latest innovations and superior performance. When you choose BendPak through Genesis, you’re choosing a brand that professionals trust worldwide to maximize safety, efficiency, and value.

Other BendPak Products

Ranger

Tyre Inflation Cage

— Wheel Service Equipment

BendPak

Litestix Under Hood Work Light

— Workshop Equipment

Nussbaum

Top Lift 2.35 TLD XY

— Vehicle Lifts

Product Uses

What some of our customers have used it for:

357434510_691079939701100_5253503691519644574_n

Premier Autotune Workshop

Genesis was transparent with me, and answered all my questions, they weren't trying to sell me anything or push hoists onto me. They could see my plans and what I needed for the future for all the types of cars I service. And they provided me with solutions for what is going to work for my workshop and the future. I’m confident with Genesis Equipment and the BendPak hoists they’ve supplied me.

Allen, Owner

Perfect for:

  • Dry docking boats to prevent water-related damage
  • Storing vehicles in residential garages or commercial facilities
  • Accommodating wide and long trailers

Enquire

Talk to us about your equipment, project, and servicing needs.
We ship, plan, and install Australia-wide.
